Manual Transaxle Torque Specifications

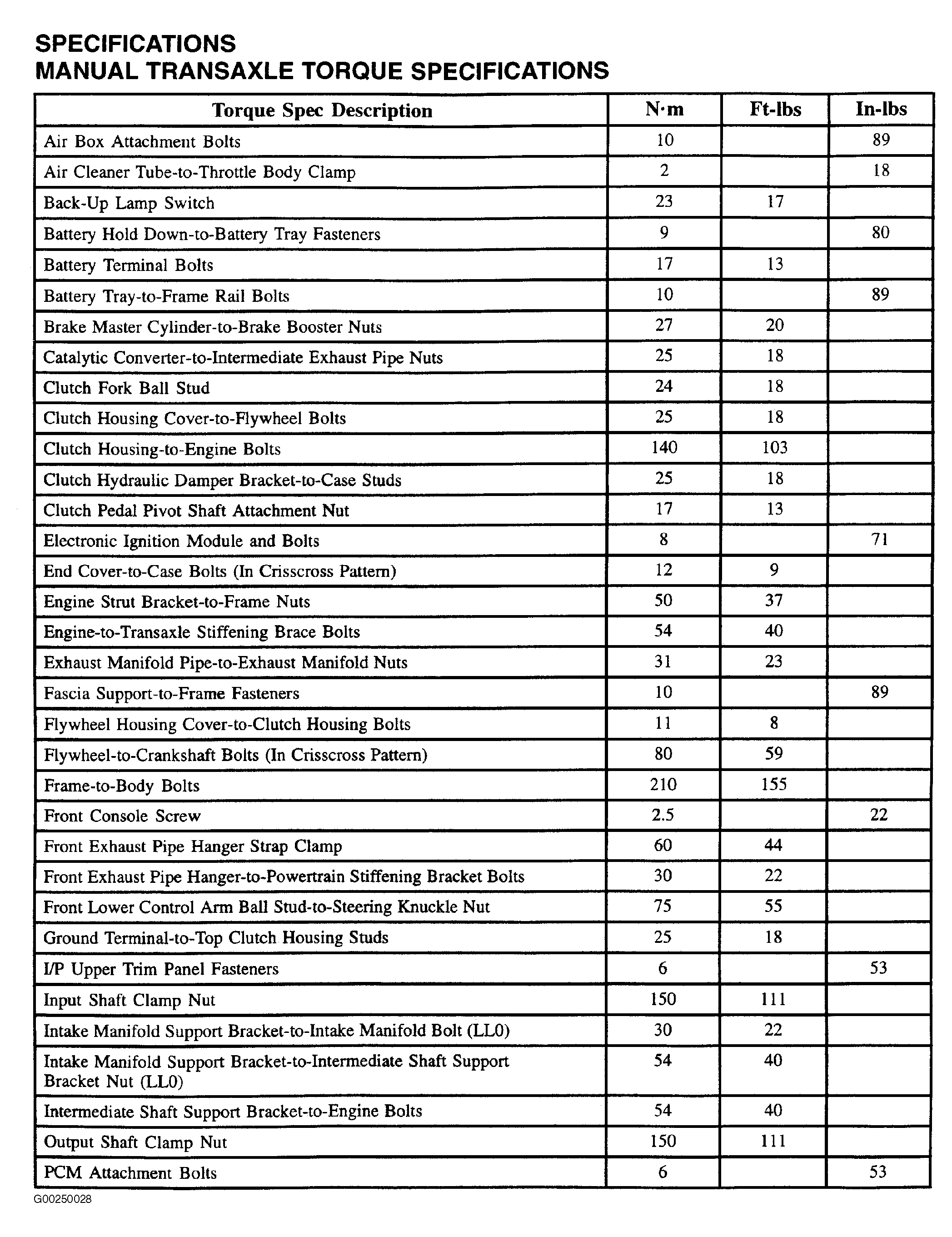

Fig 1: Manual Transaxle Torque Specifications (1 Of 2)
G00250028Courtesy of GENERAL MOTORS CORP.

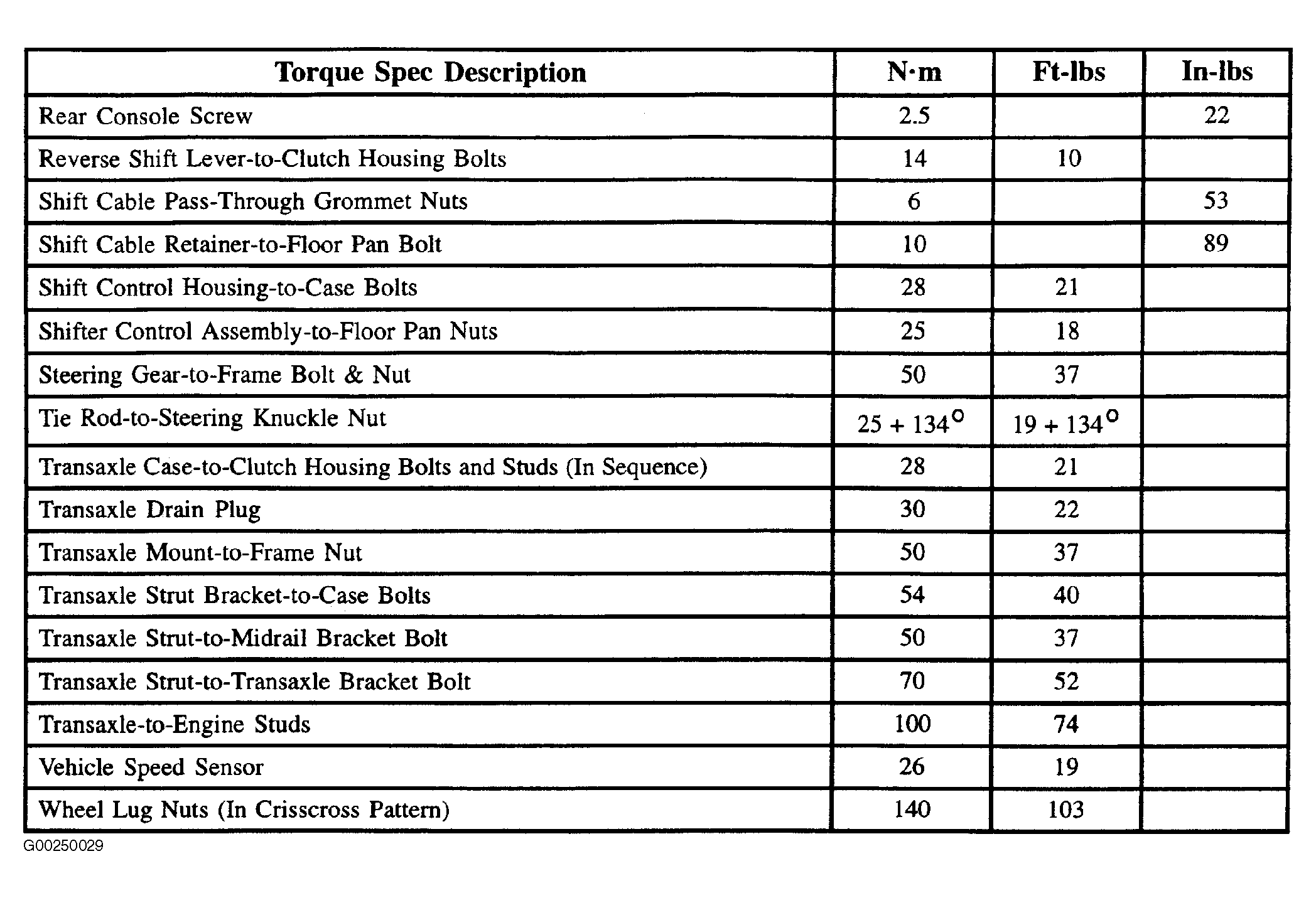

Fig 2: Manual Transaxle Torque Specifications (2 Of 2)
G00250029Courtesy of GENERAL MOTORS CORP.
