Disassembly

DISASSEMBLY

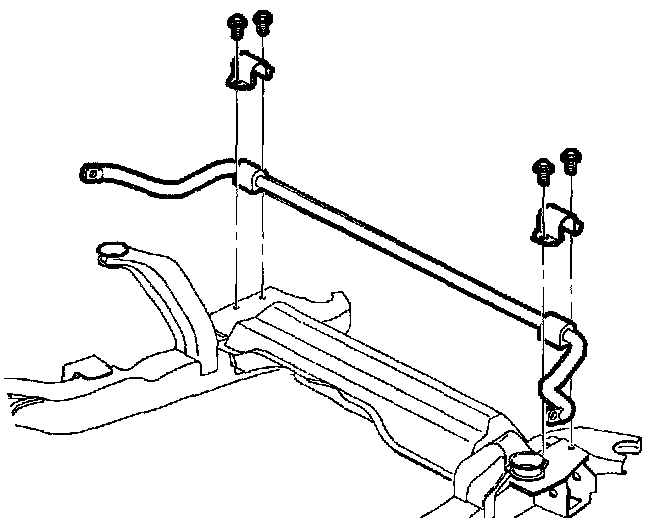

1. Remove stabilizer clamp-to-frame bolts.
2. Remove stabilizer bar and clamps.

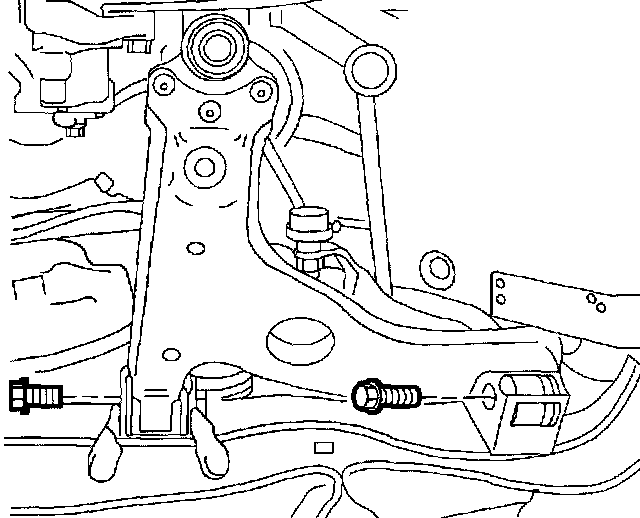

3. Remove control arm-to-frame assembly bolts and discard bolts.
4. Remove control arm from frame.

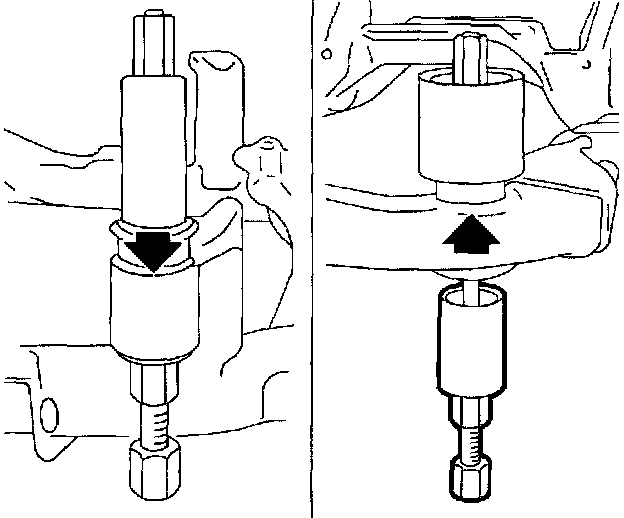

5. Using tools Bushing Remover/Installer KM-671, Bushing Remover/Installer KM-907 KM-907-11, KM-907-12 and KM-907-30, press out all damping bushings.
