RKE/Security System Connector Face Views

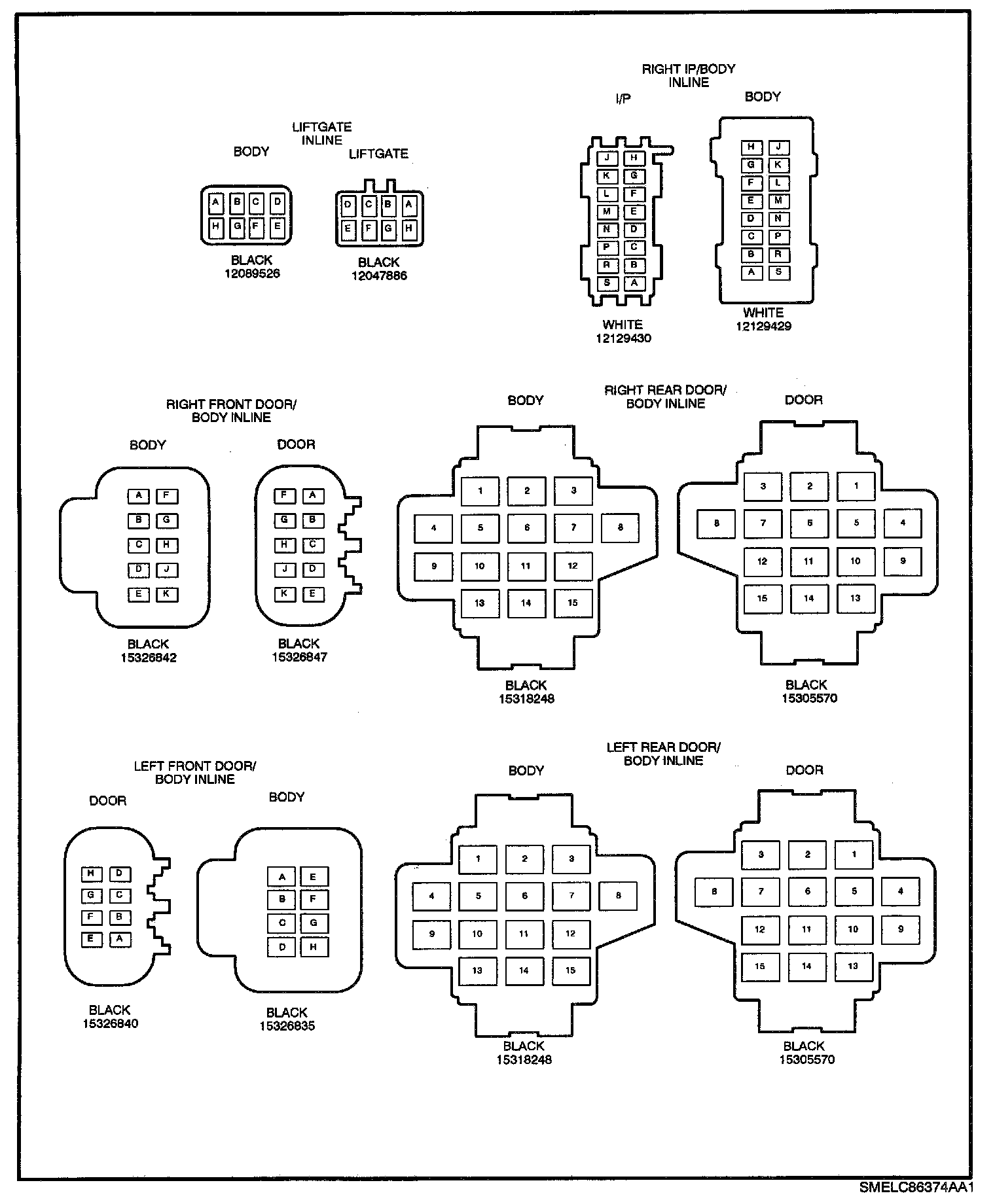

RKE/Security System Connector Face Views (Part 1 Of 2):

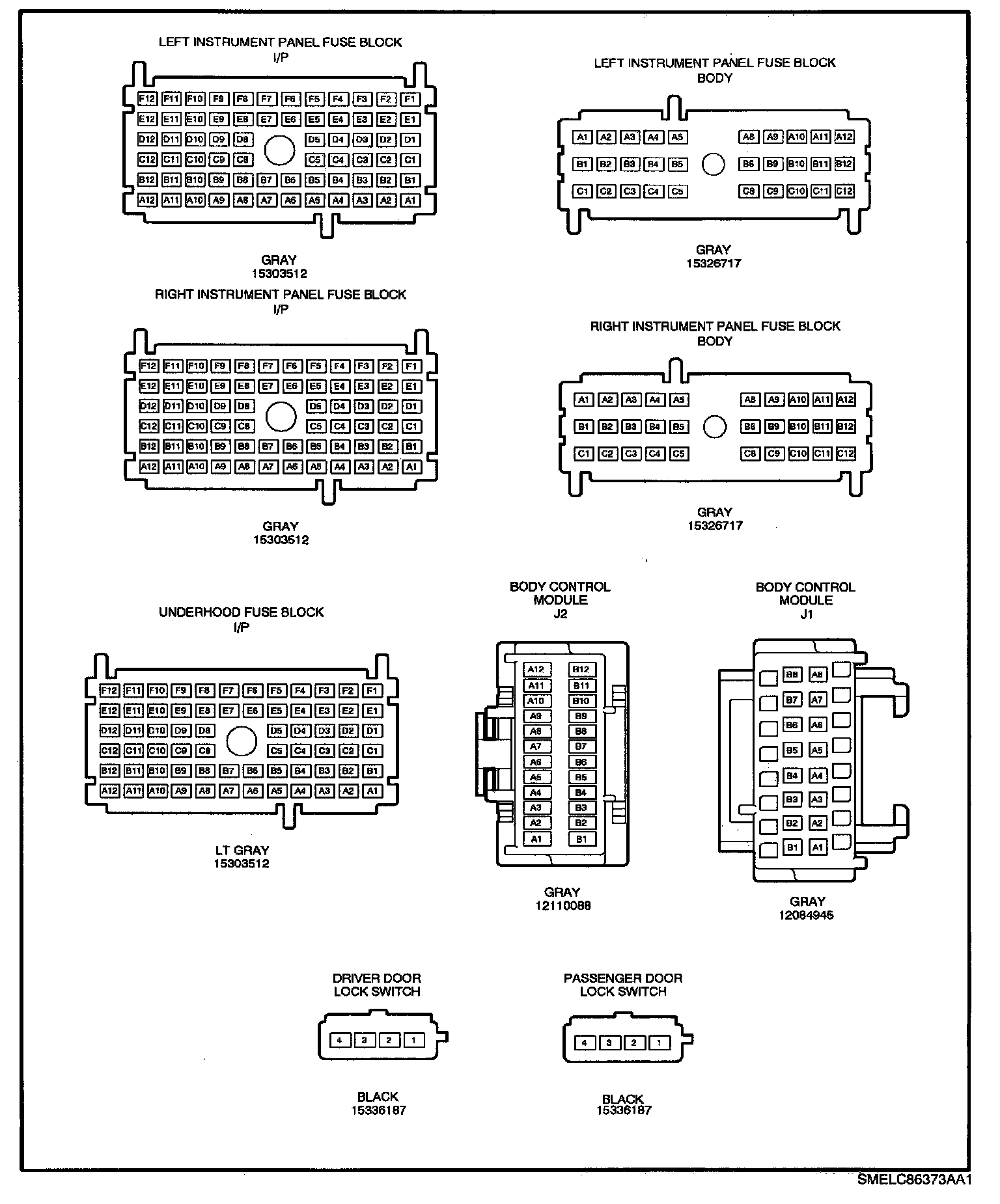

RKE/Security System Connector Face Views (Part 2 Of 2):
