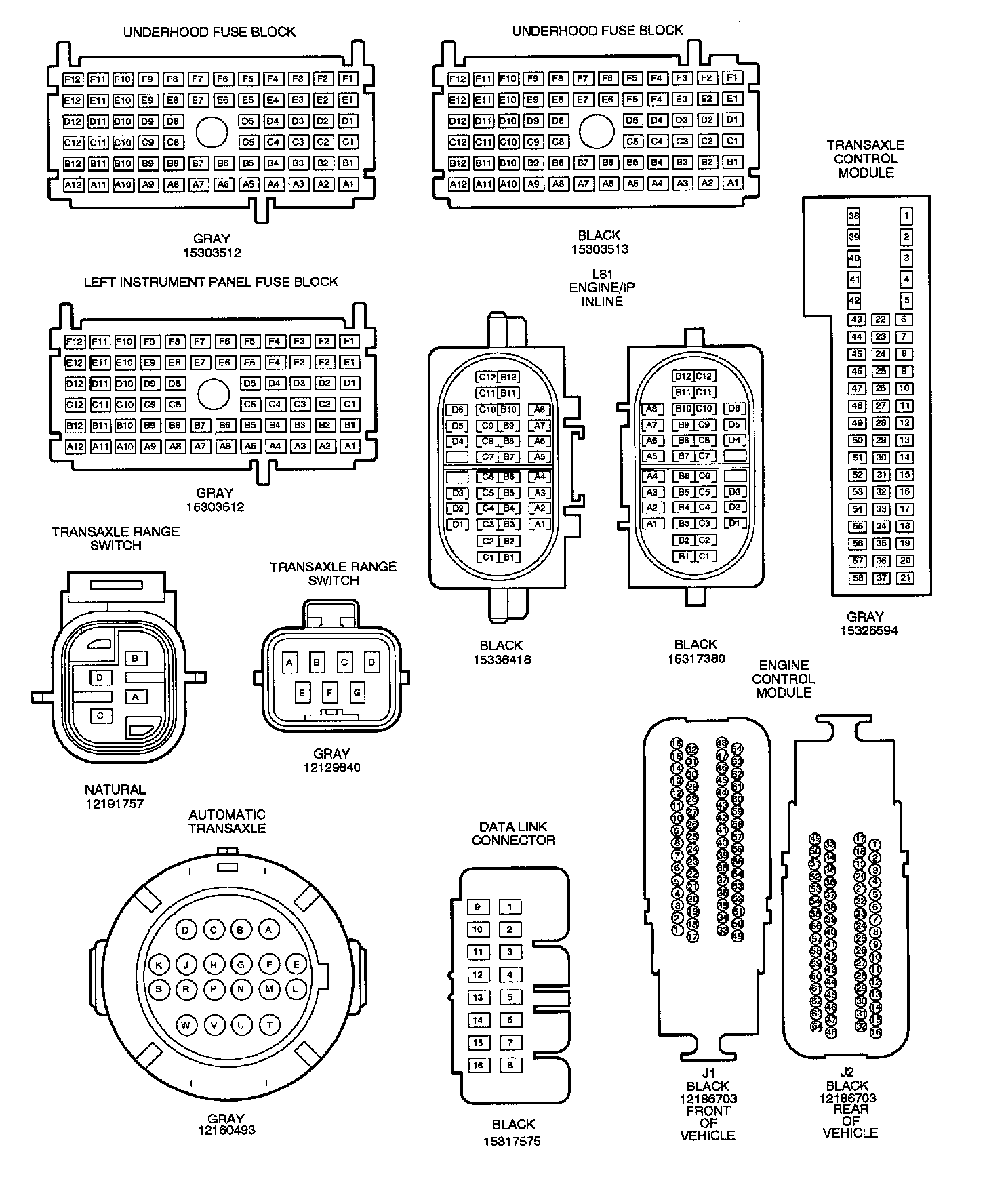

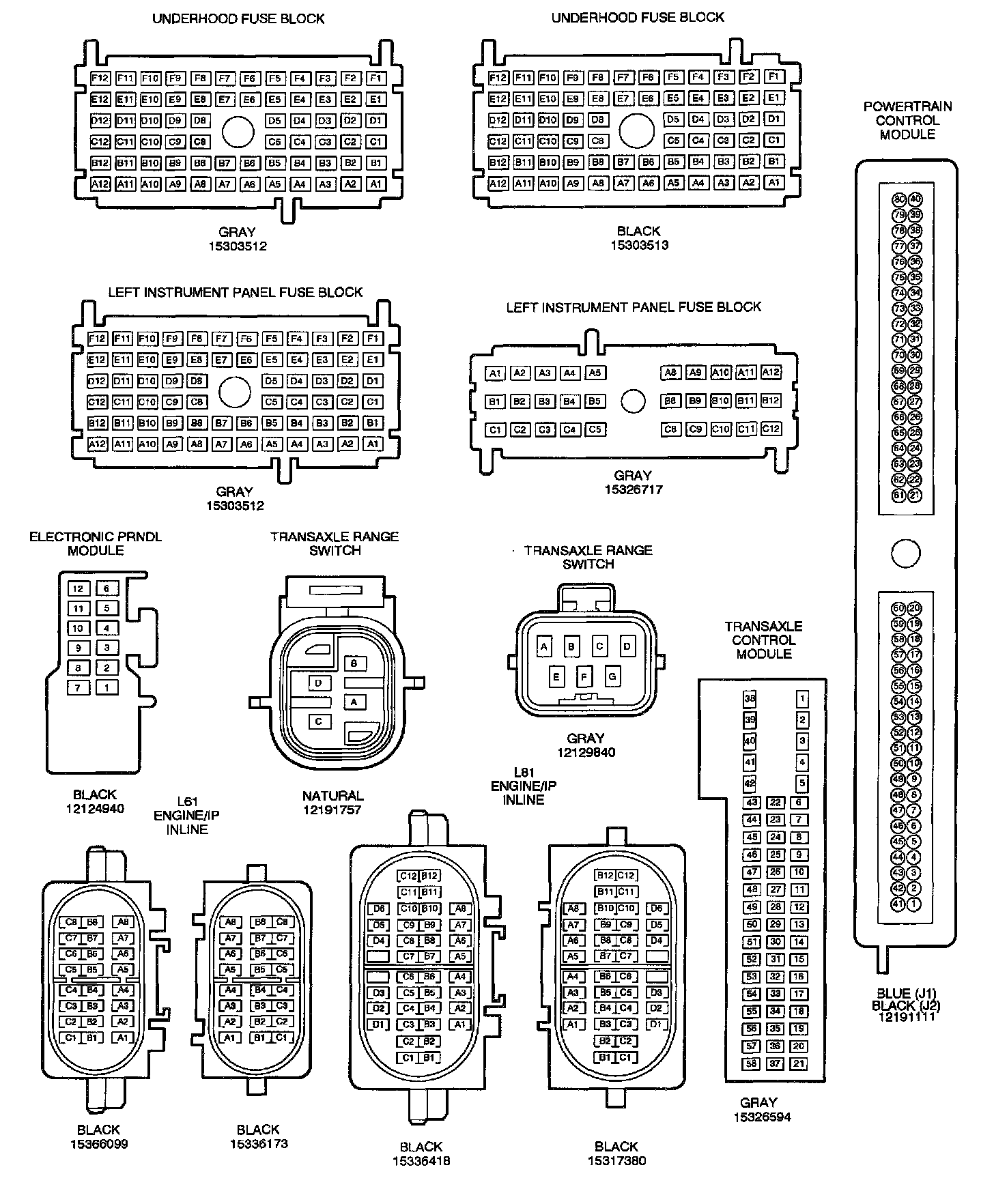

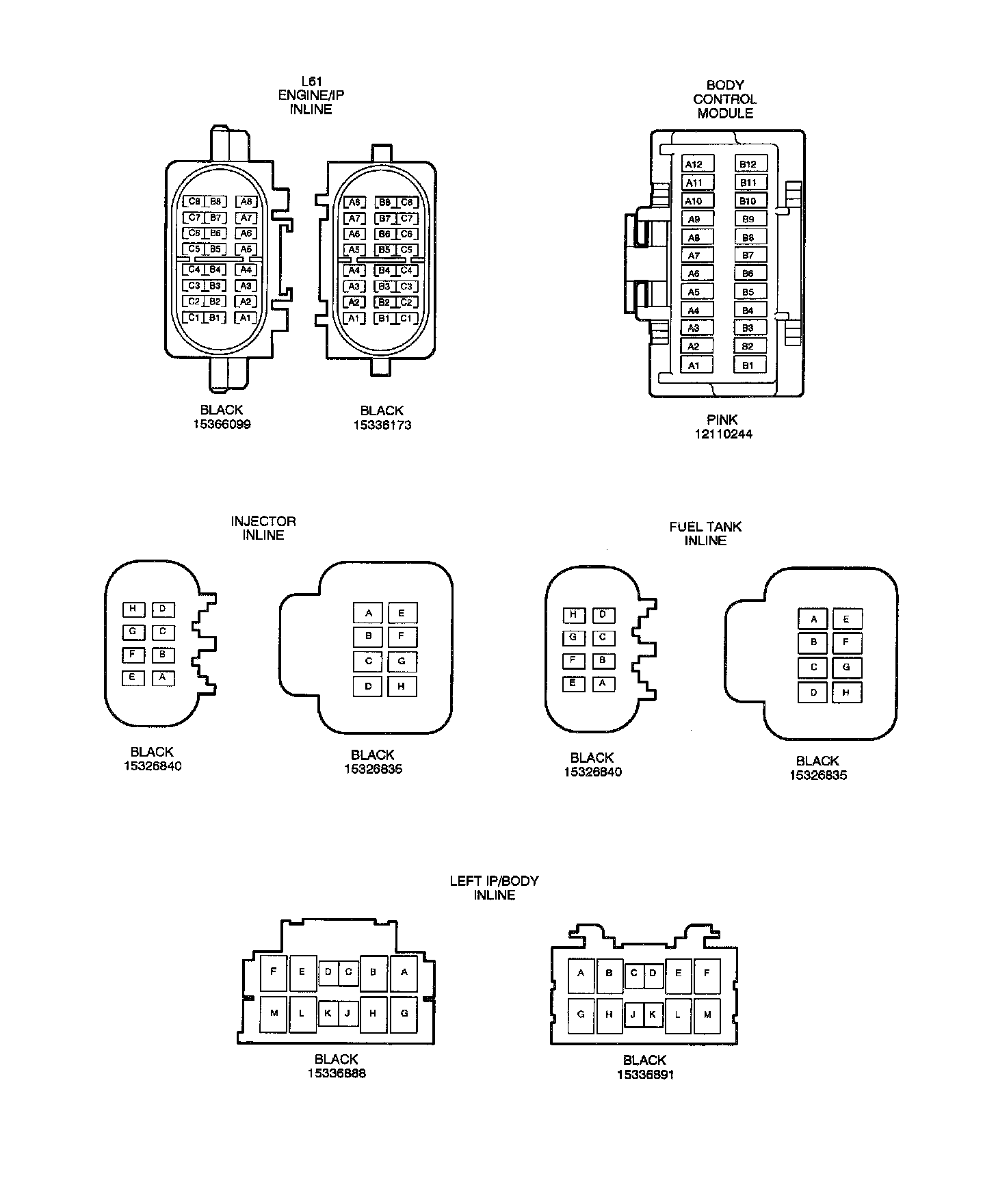

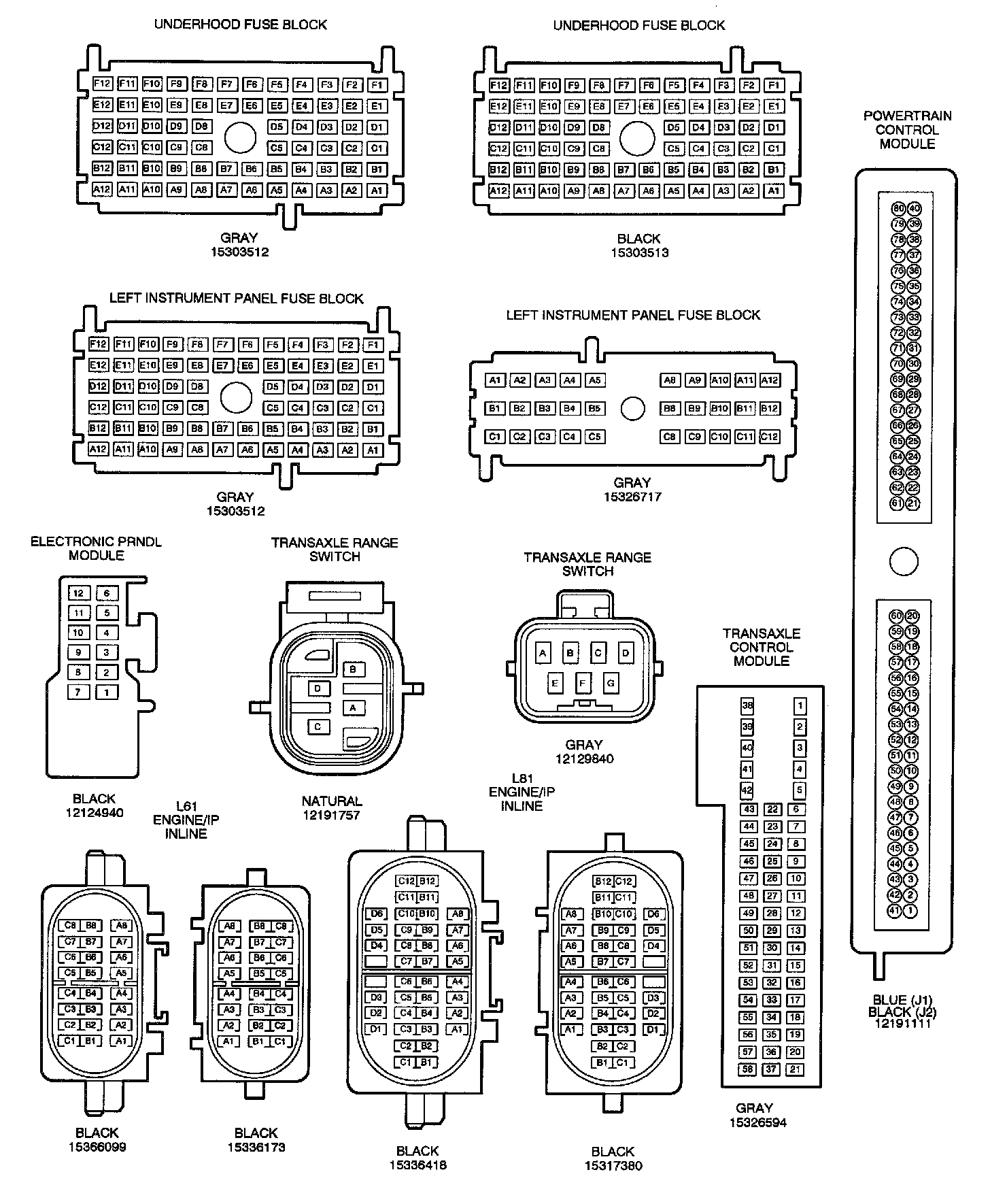

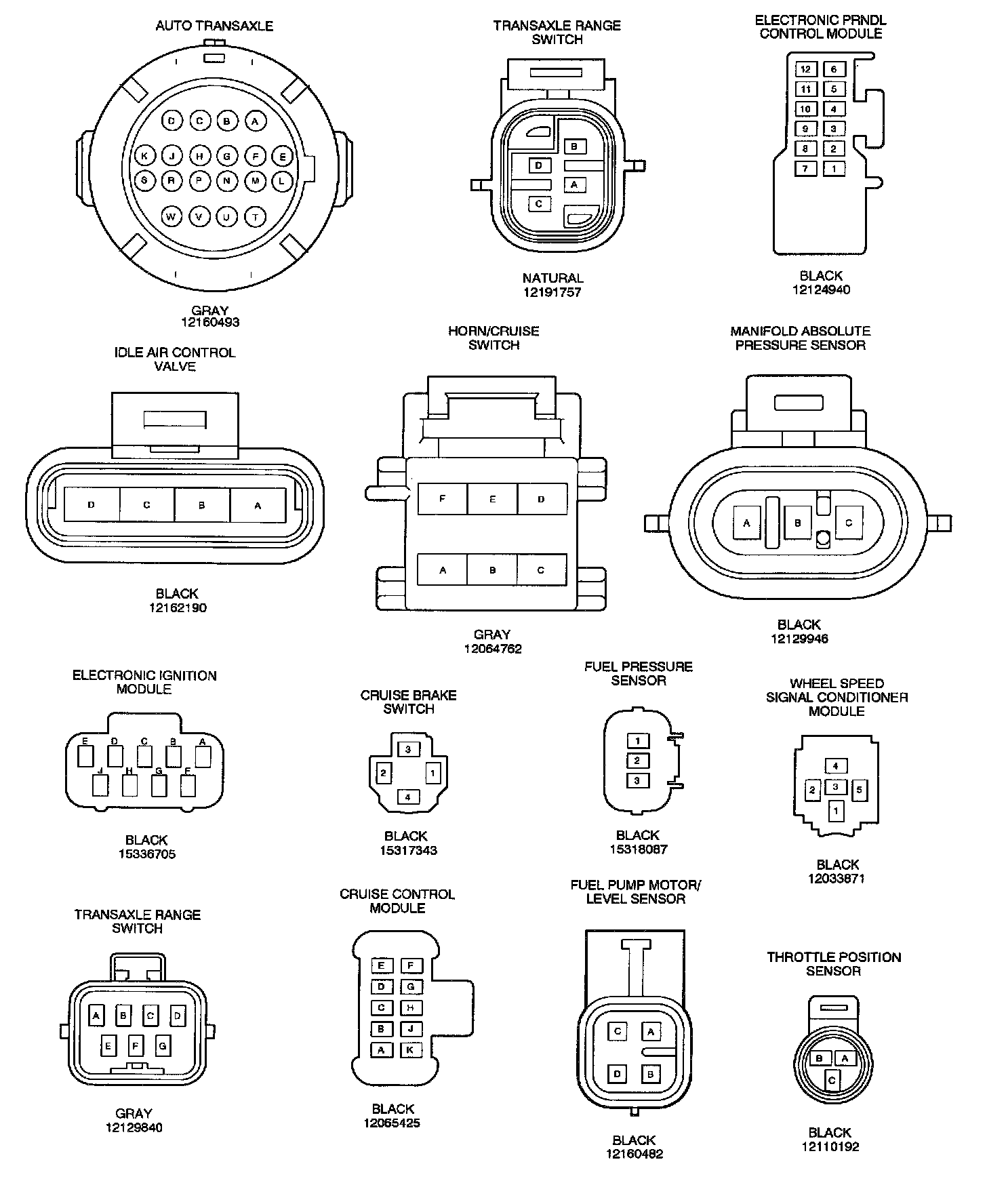

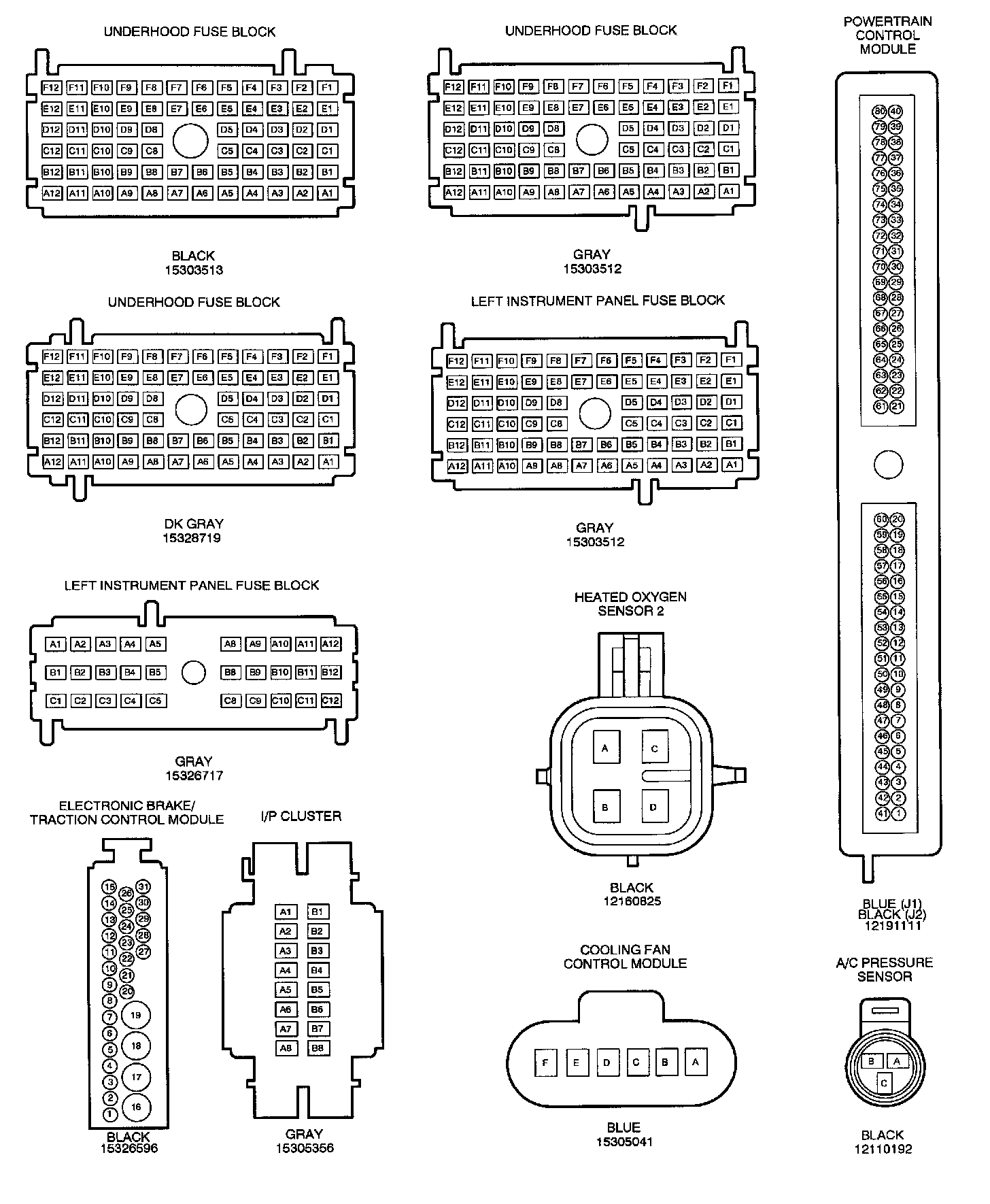

Connector Face Views












Powertrain Control Module (PCM) Connector Face Views (2001)









Transaxle Control Module (TCM) - (2001)






Shift Control Connector Face Views (2001)
