Harness Locations

Powertrain Control Module (PCM) Harness Connector Faces (Part 1 Of 3):



Powertrain Control Module (PCM) Harness Connector Faces (Part 2 Of 3):

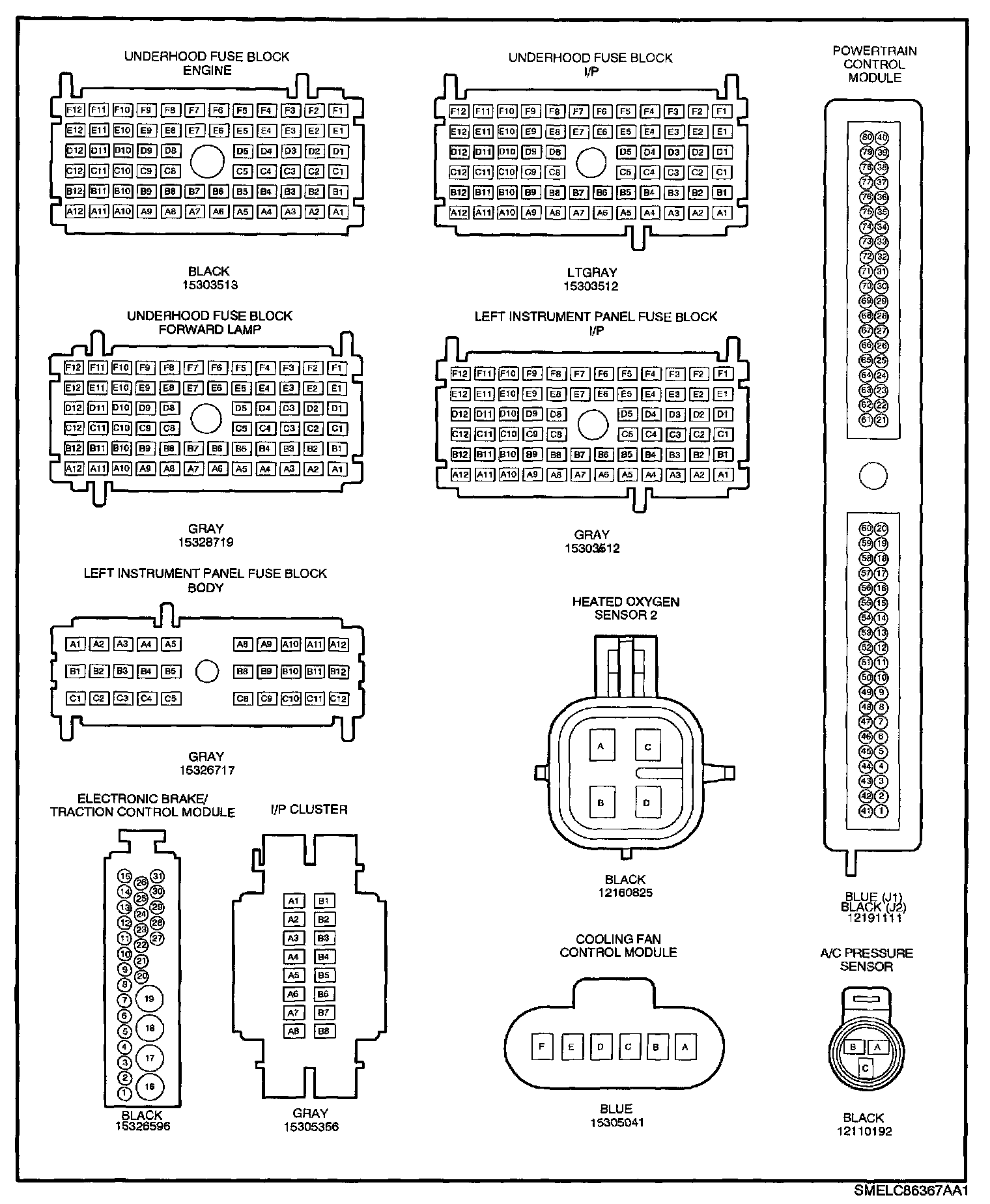

Powertrain Control Module (PCM) Harness Connector Faces (Part 3 Of 3):
