Powertrain Control Module (PCM)

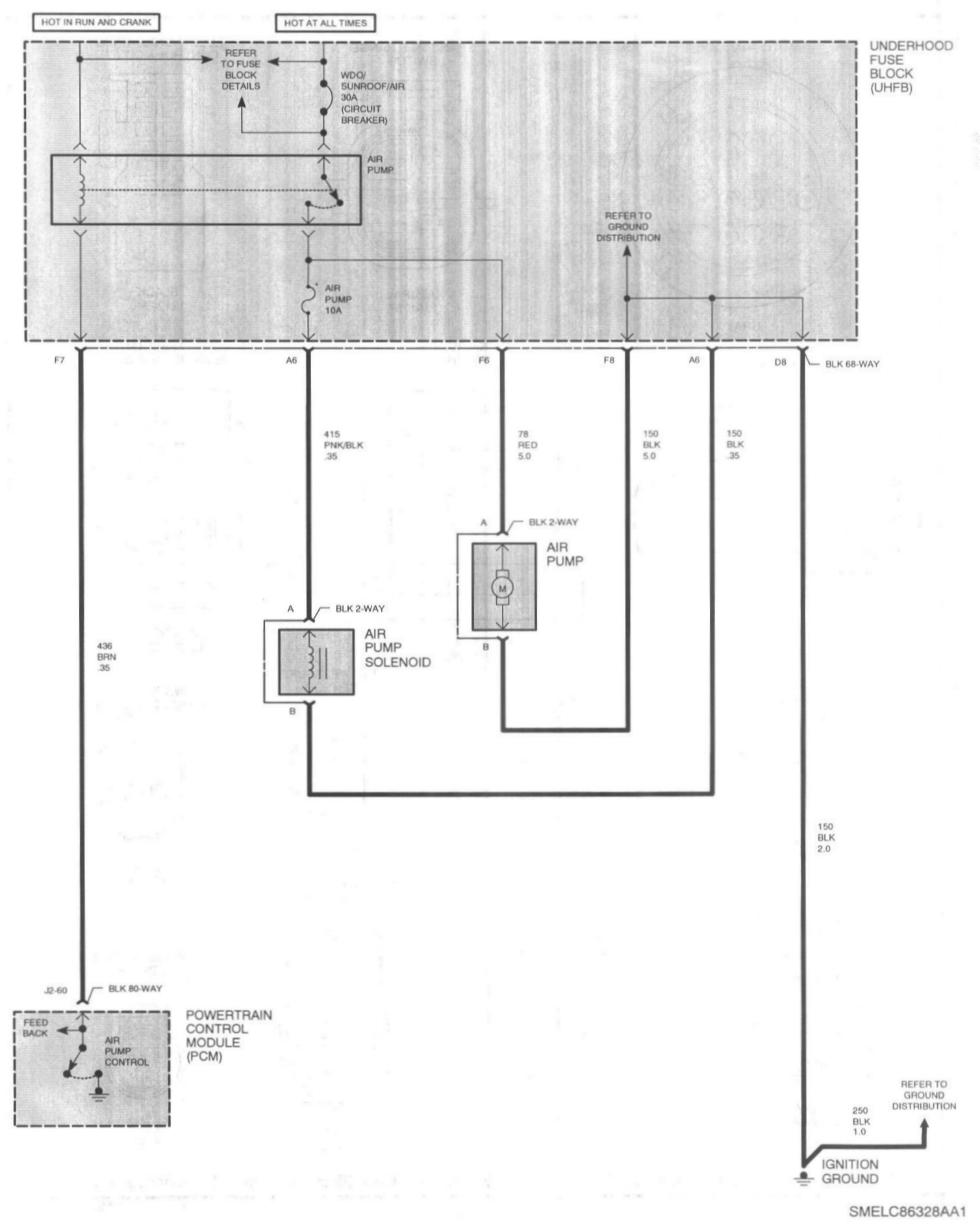

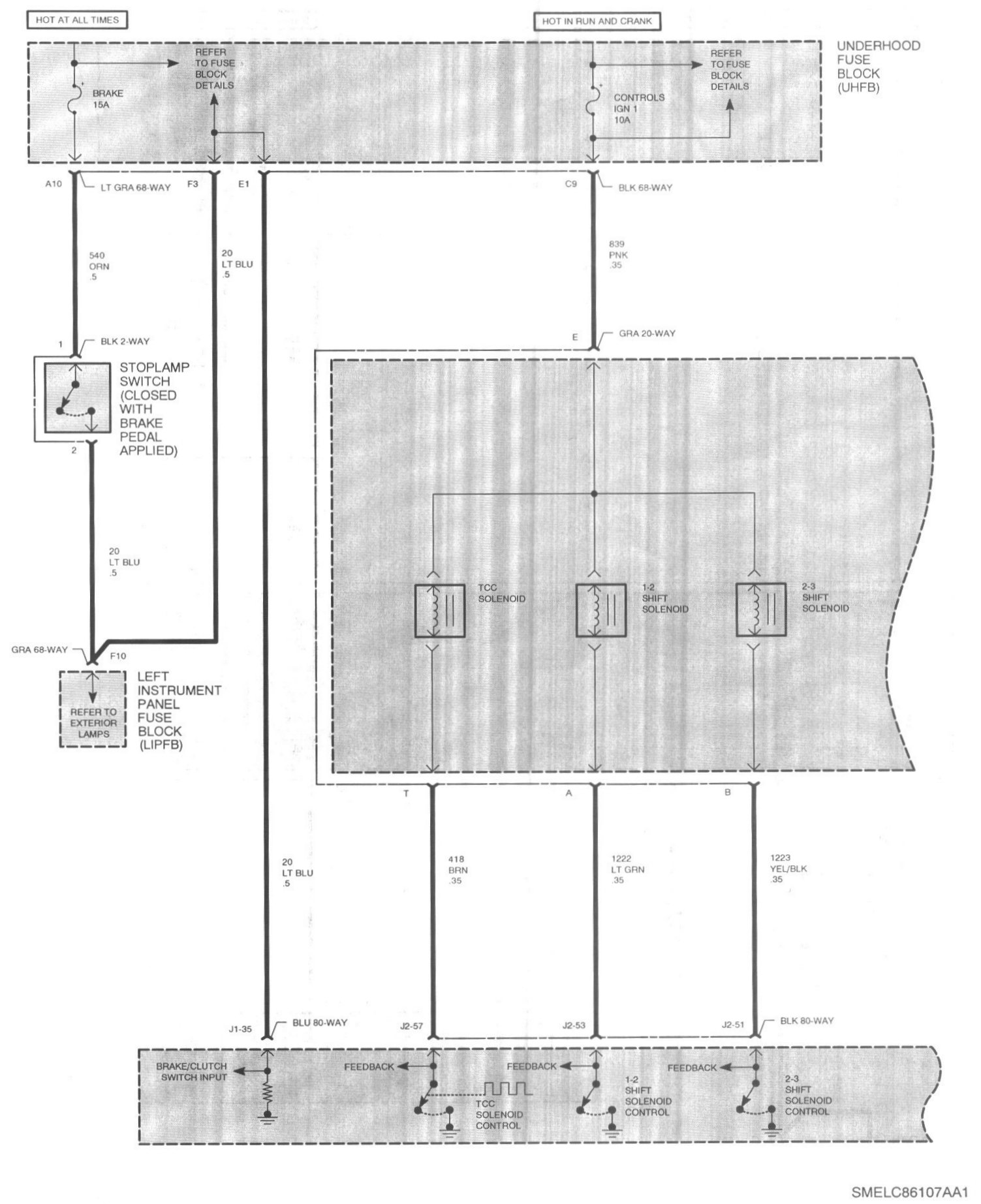

Part 1 Of 13:

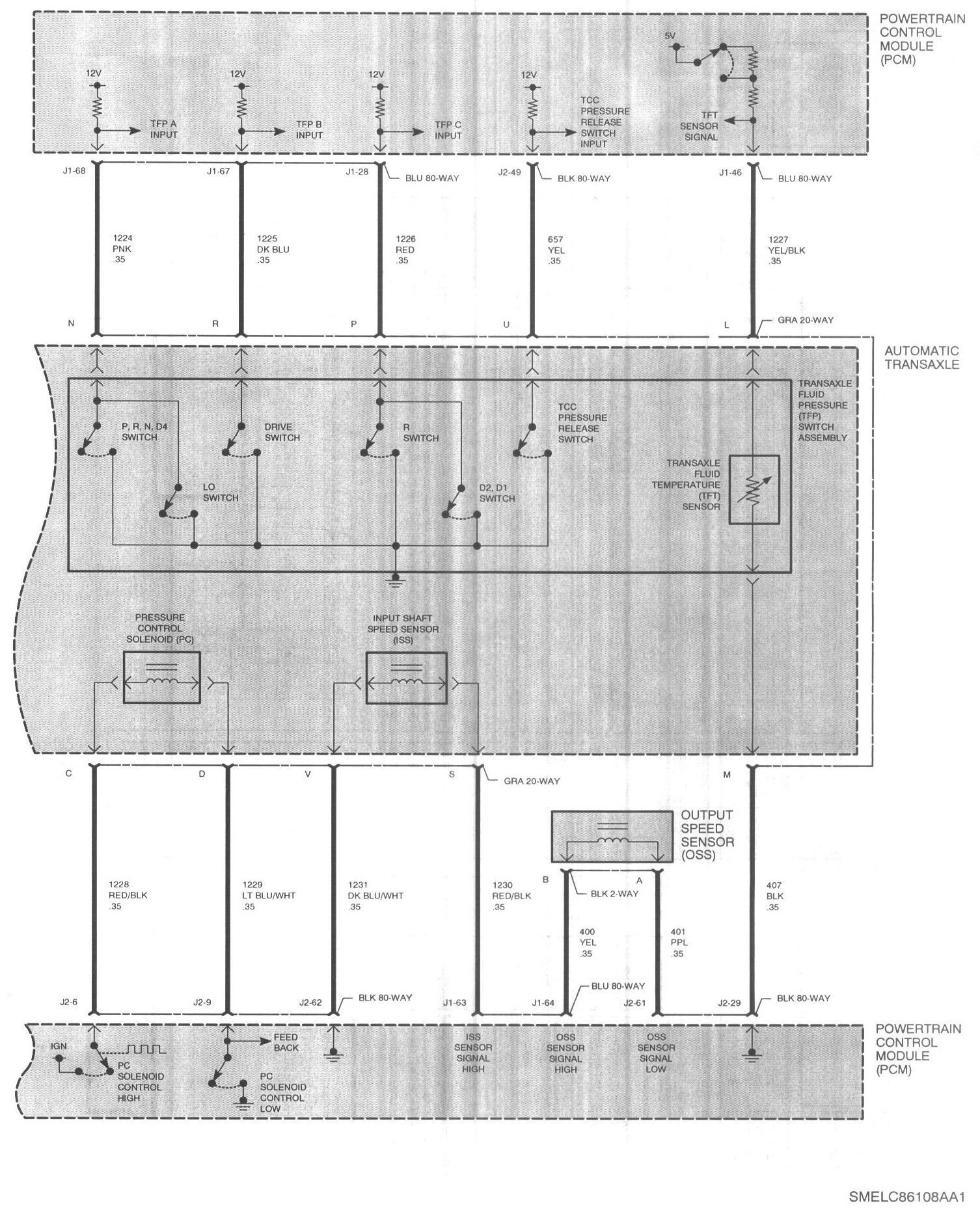

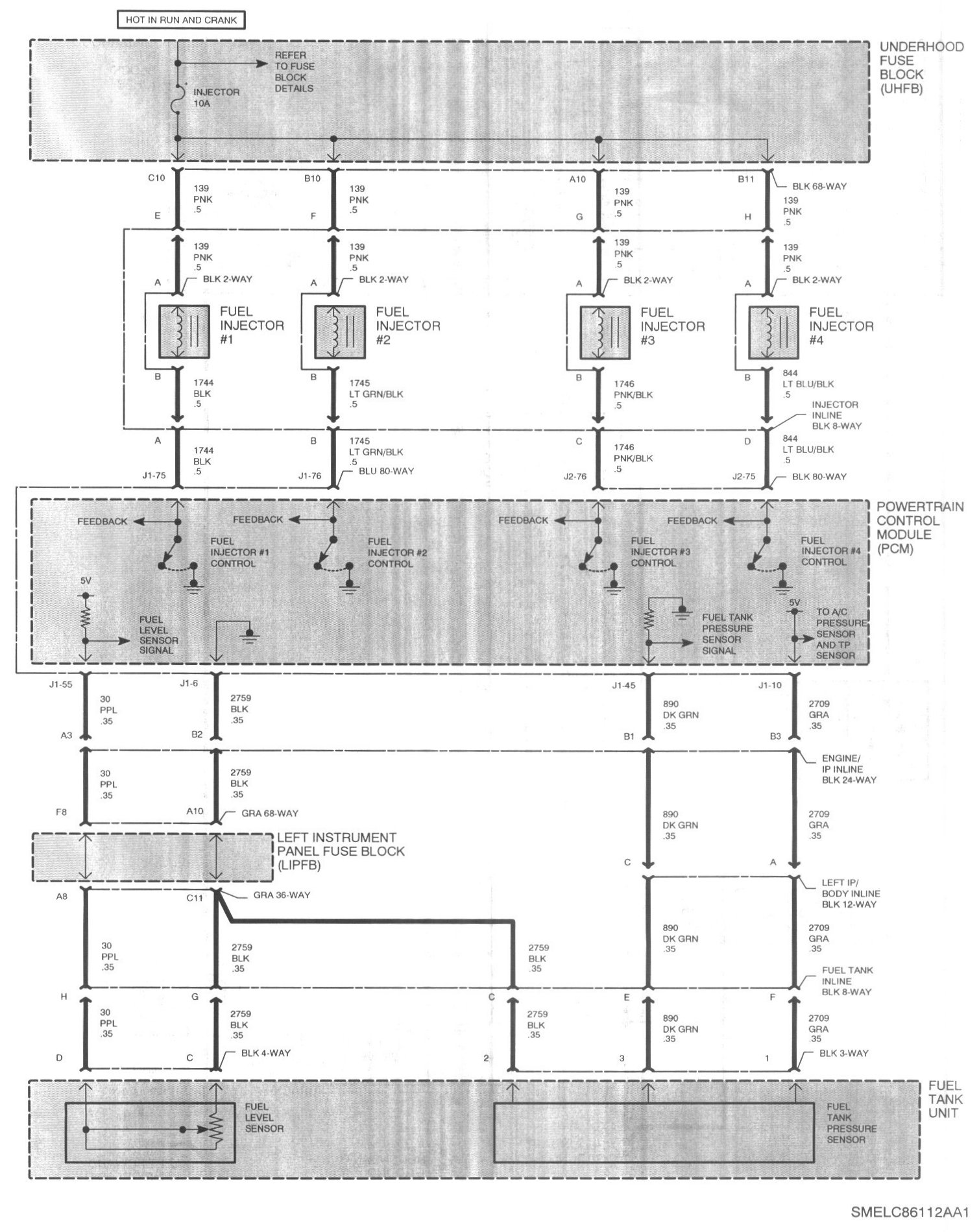

Part 2 Of 13:

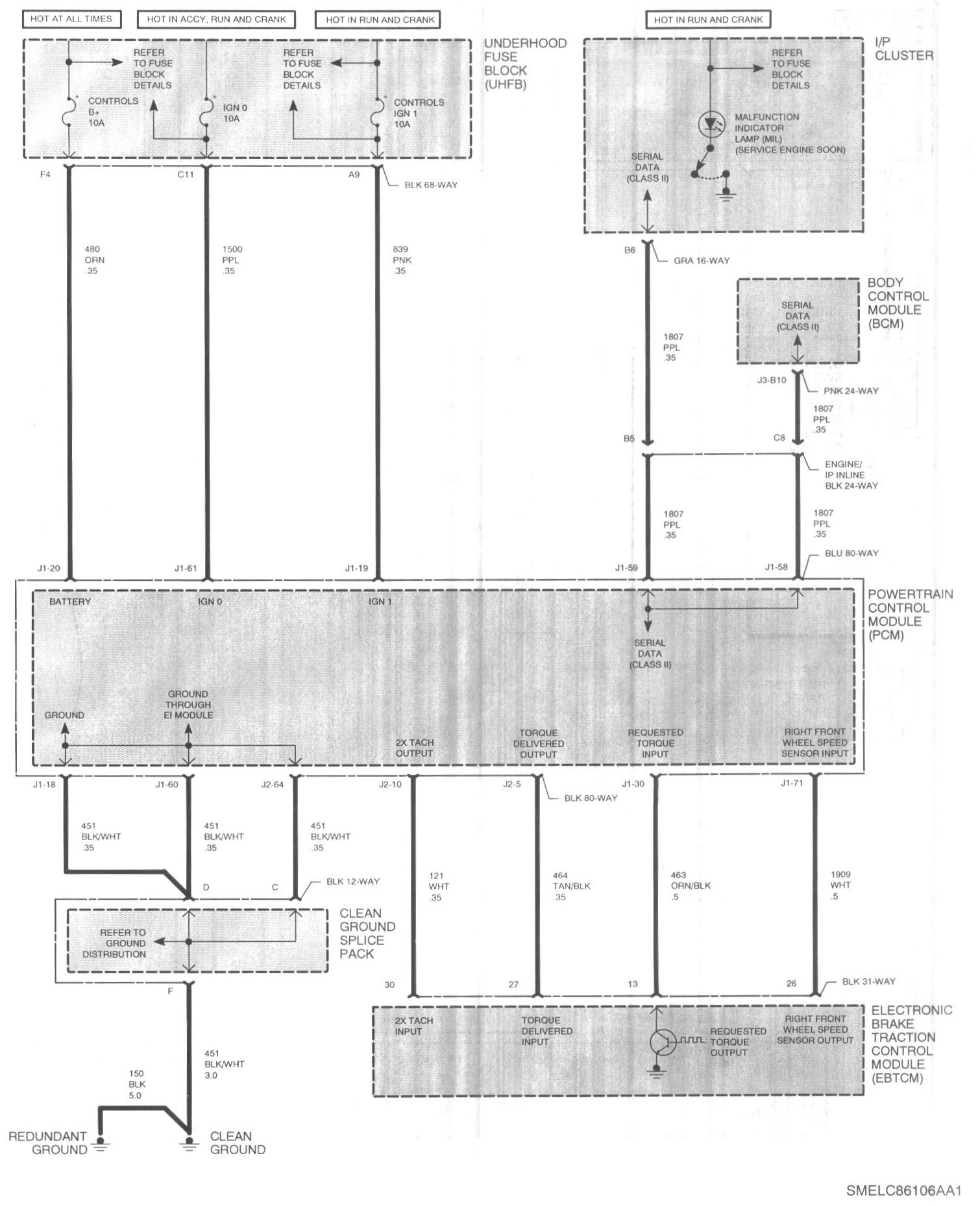

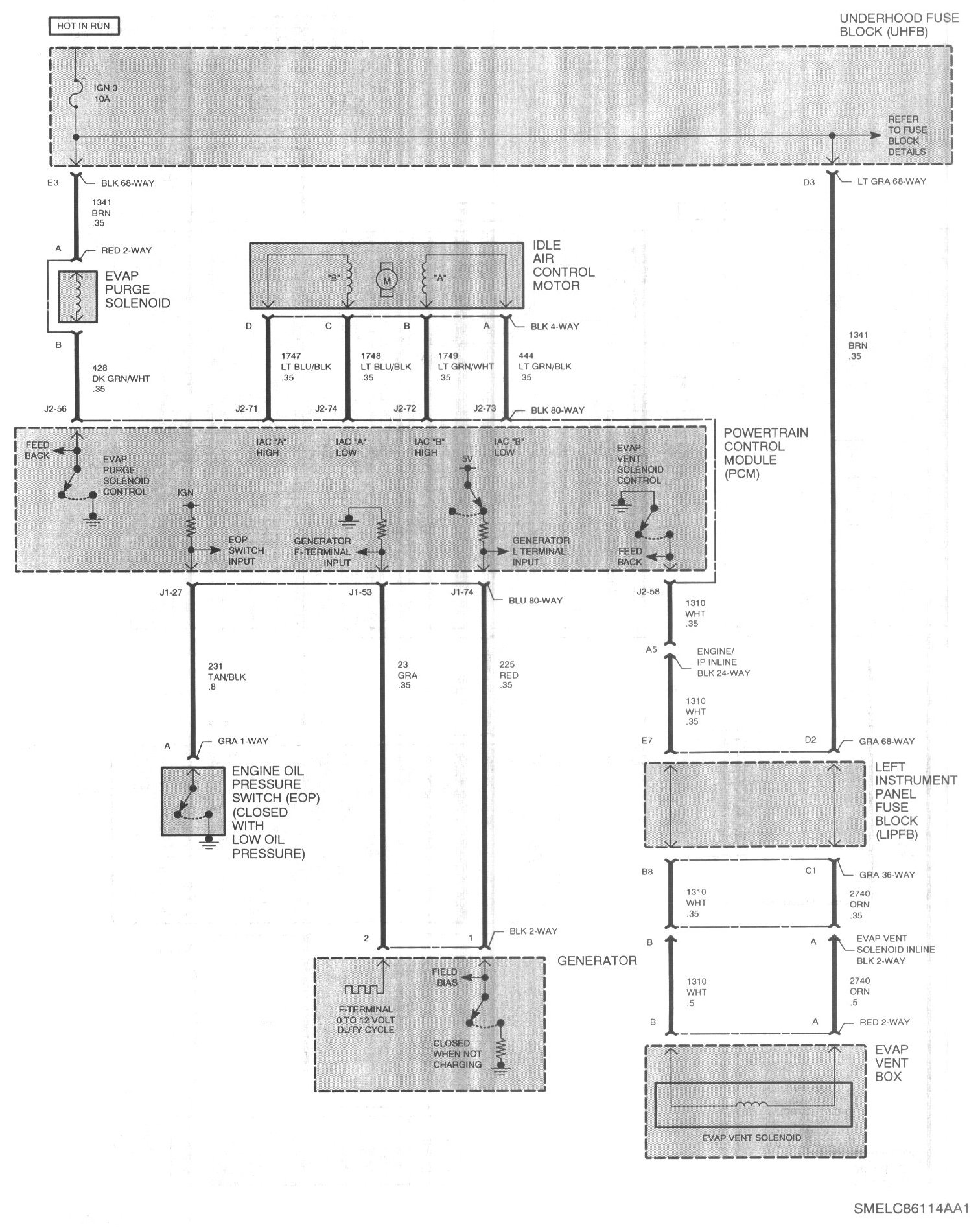

Part 3 Of 13:

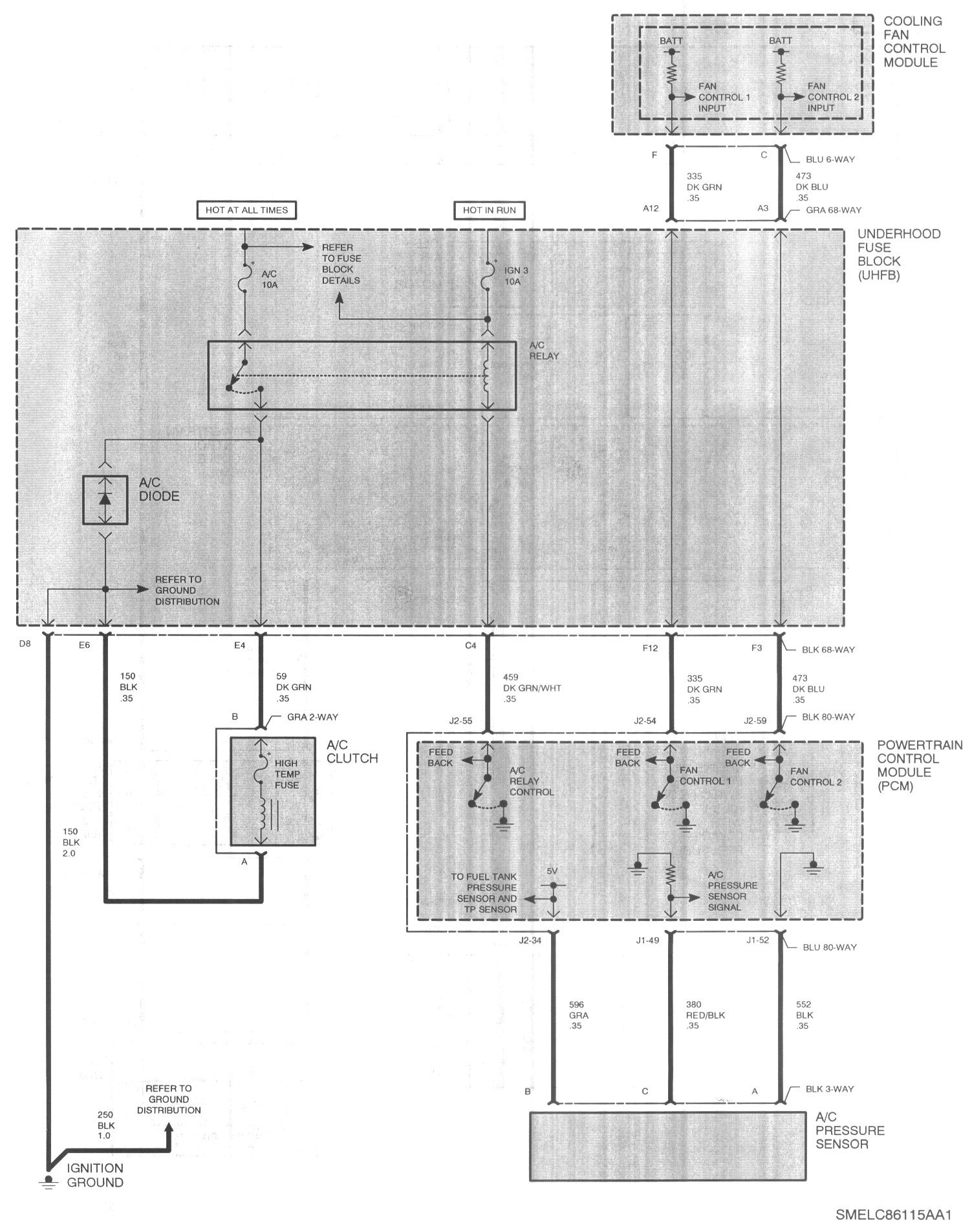

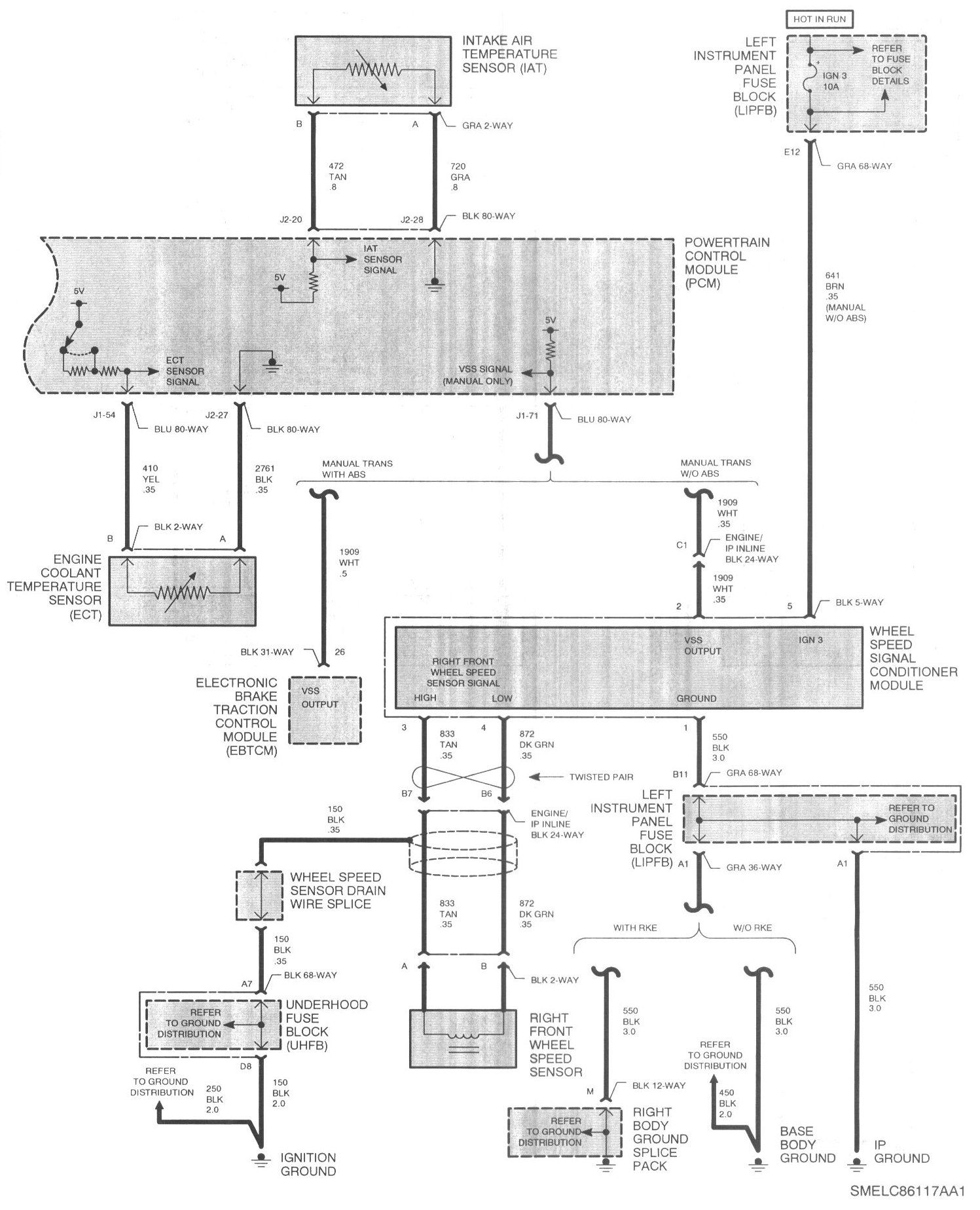

Part 4 Of 13:

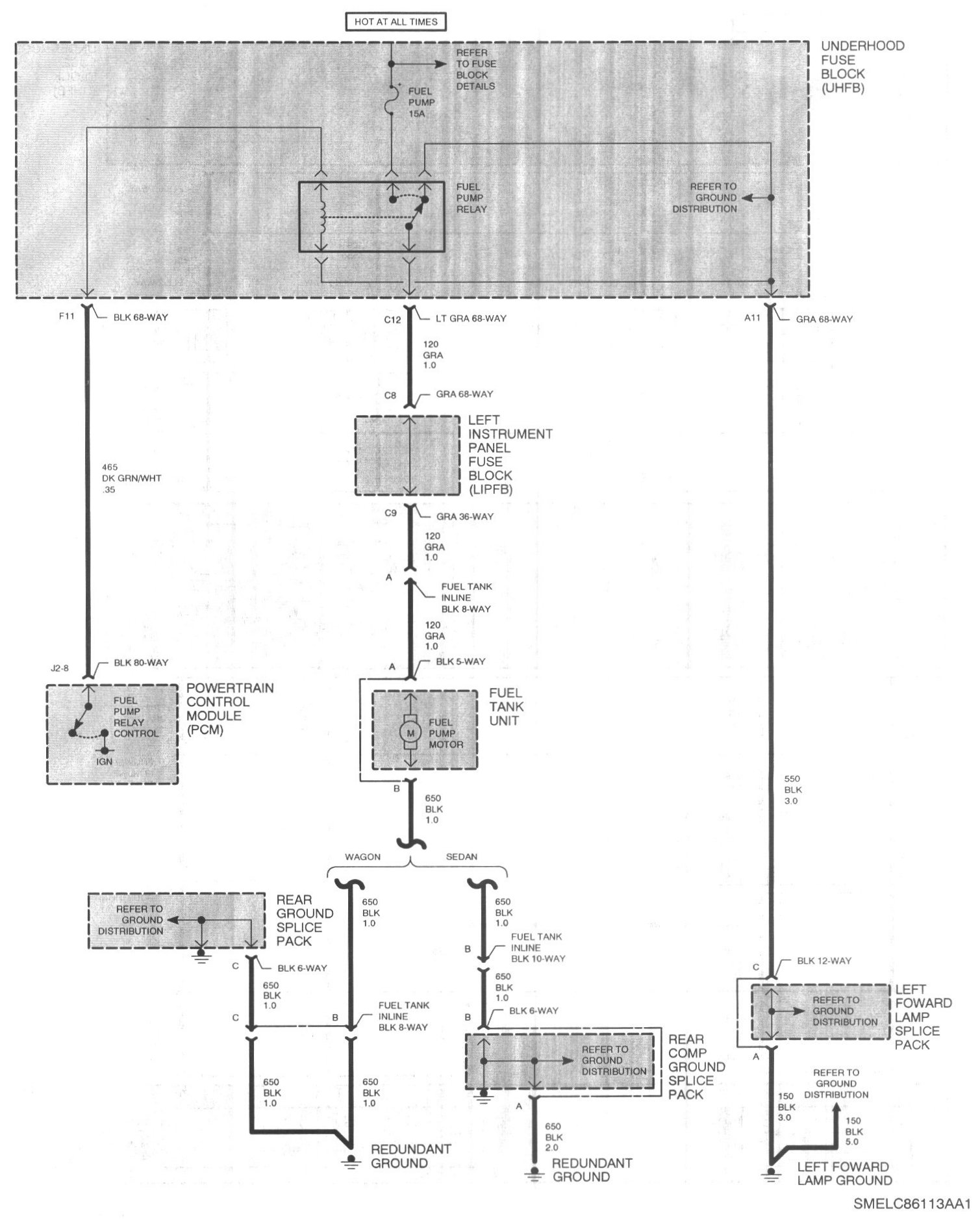

Part 5 Of 13:

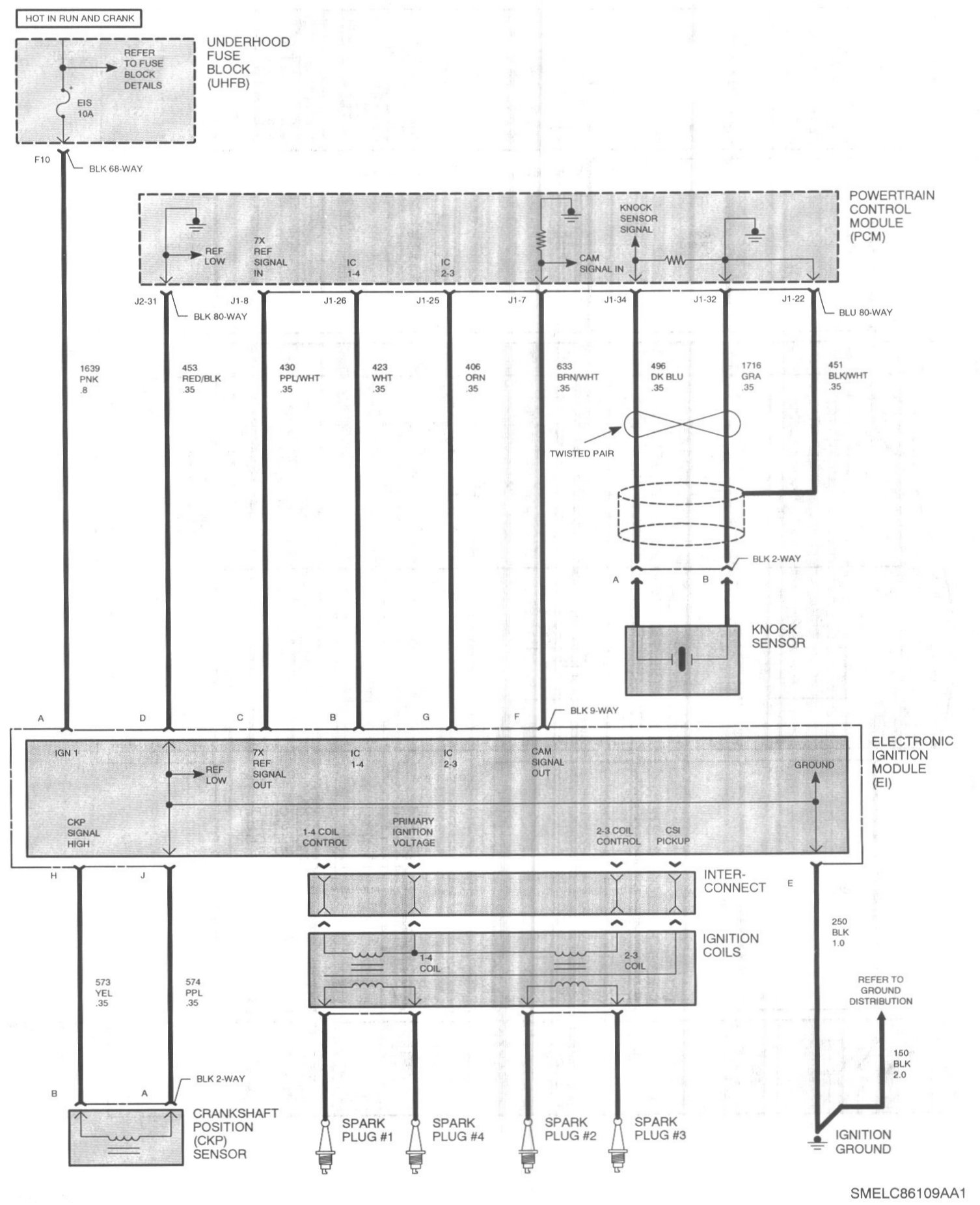

Part 6 Of 13:

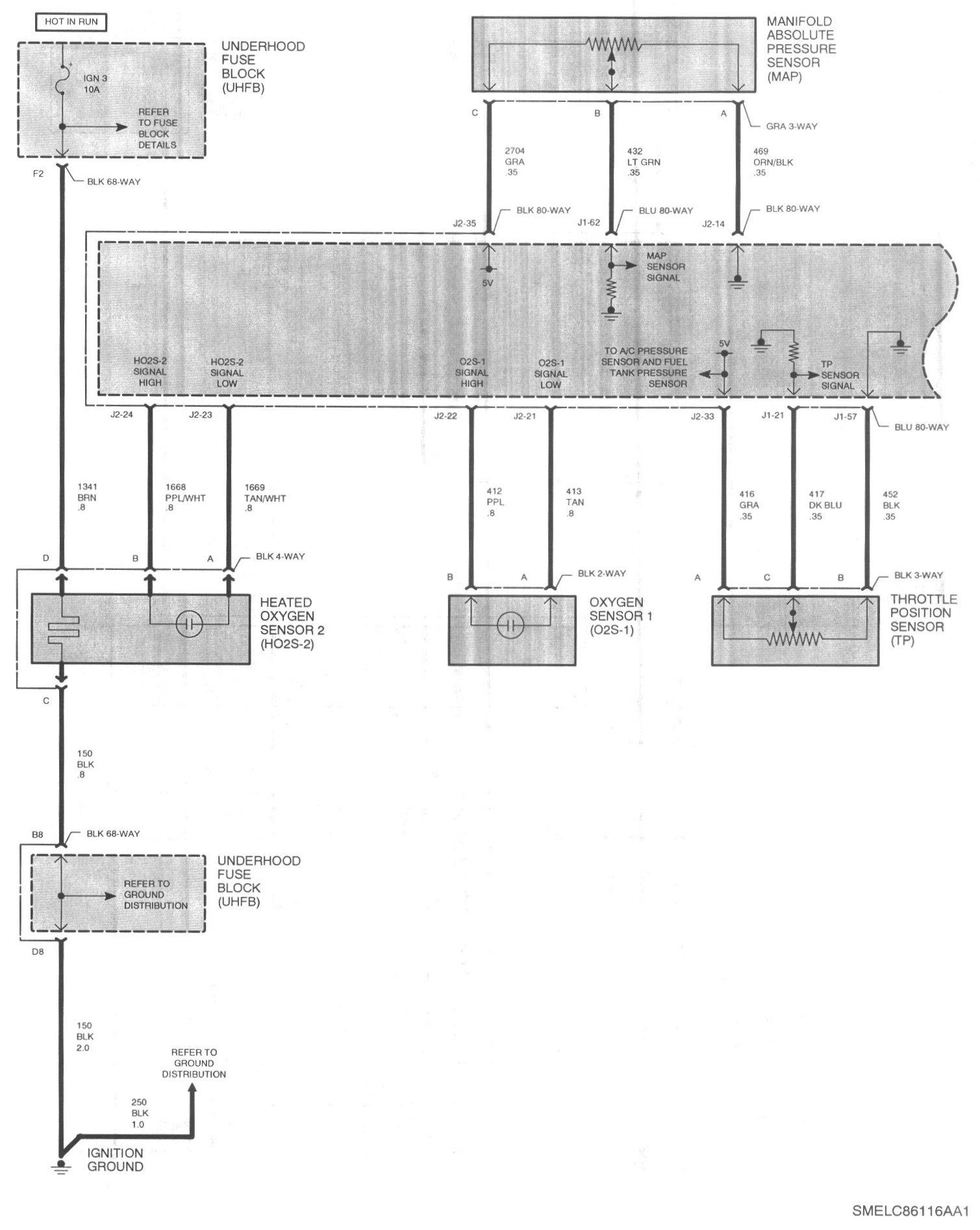

Part 7 Of 13:

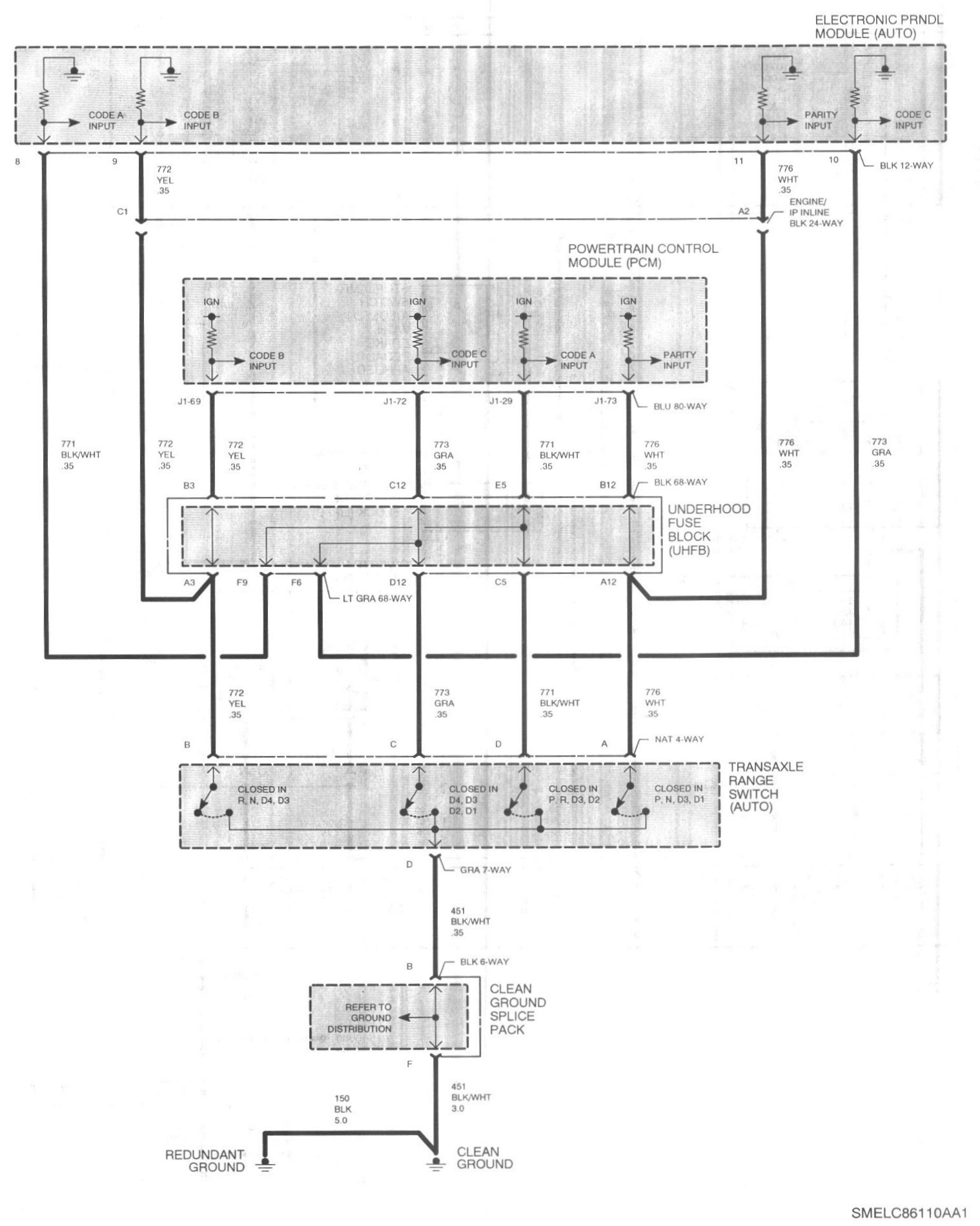

Part 8 Of 13:




Part 9 Of 13:




Part 10 Of 13:




Part 11 Of 13:




Part 12 Of 13:




Part 13 Of 13:
