Electronic Ignition (EI) Module

ELECTRONIC IGNITION (EI) MODULE

REMOVAL




1. Ignition Off.
2. Disconnect EI module harness connector.

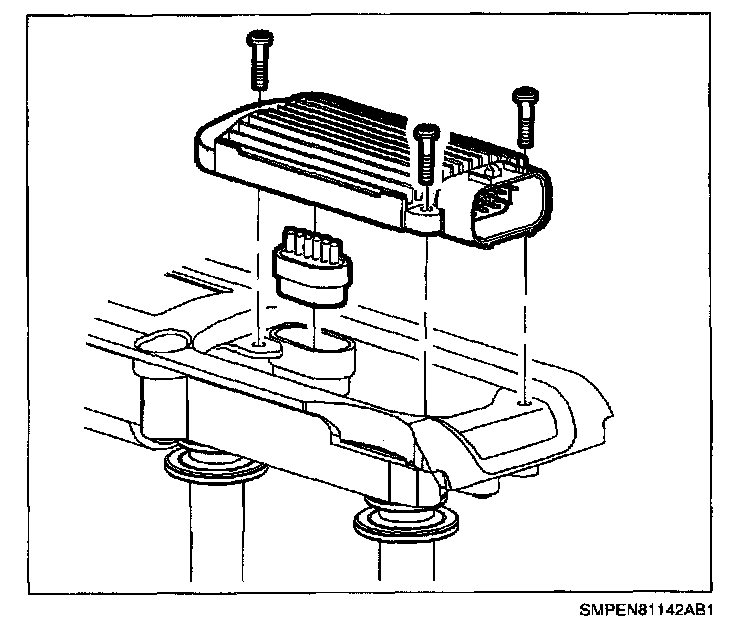

3. Remove EI module attachment screws and remove EI module.

INSTALLATION

IMPORTANT: Make sure interconnect is lined up and interconnect seal is in place before installing attachment screws.




1. Install EI module and attachment screws.

Torque:
EI Module Screws: 1.5 N.m (13 in-lbs)

2. Connect EI module harness connector. Push in connector until a click is heard, then pull back to confirm a positive engagement.
