Torque Specifications

Cylinder Head

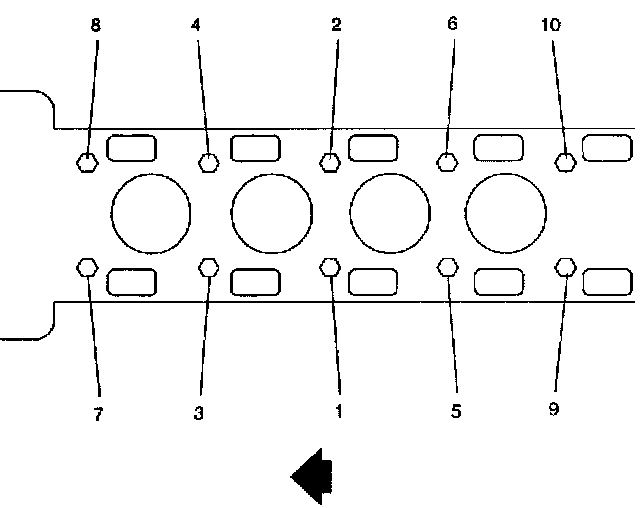

Install and tighten cylinder head bolts in sequence.
Torque:
Cylinder Head Bolts: 30 Nm (22 ft. lbs.) + 155°

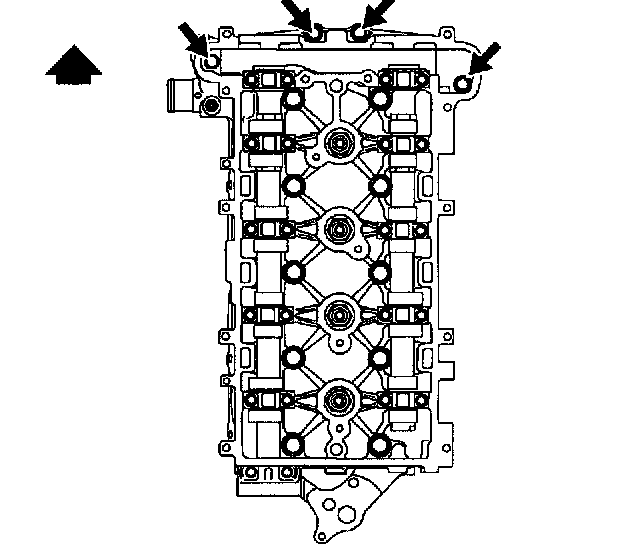

Cylinder Head Front Chaincase Bolts:





Coat front cylinder head bolts with Loctite 242.

Install front cylinder head bolts.
Torque:
Cylinder Head Front chain case Bolts: 20 Nm (15 ft. lbs.)
