Input and Output Shaft Components

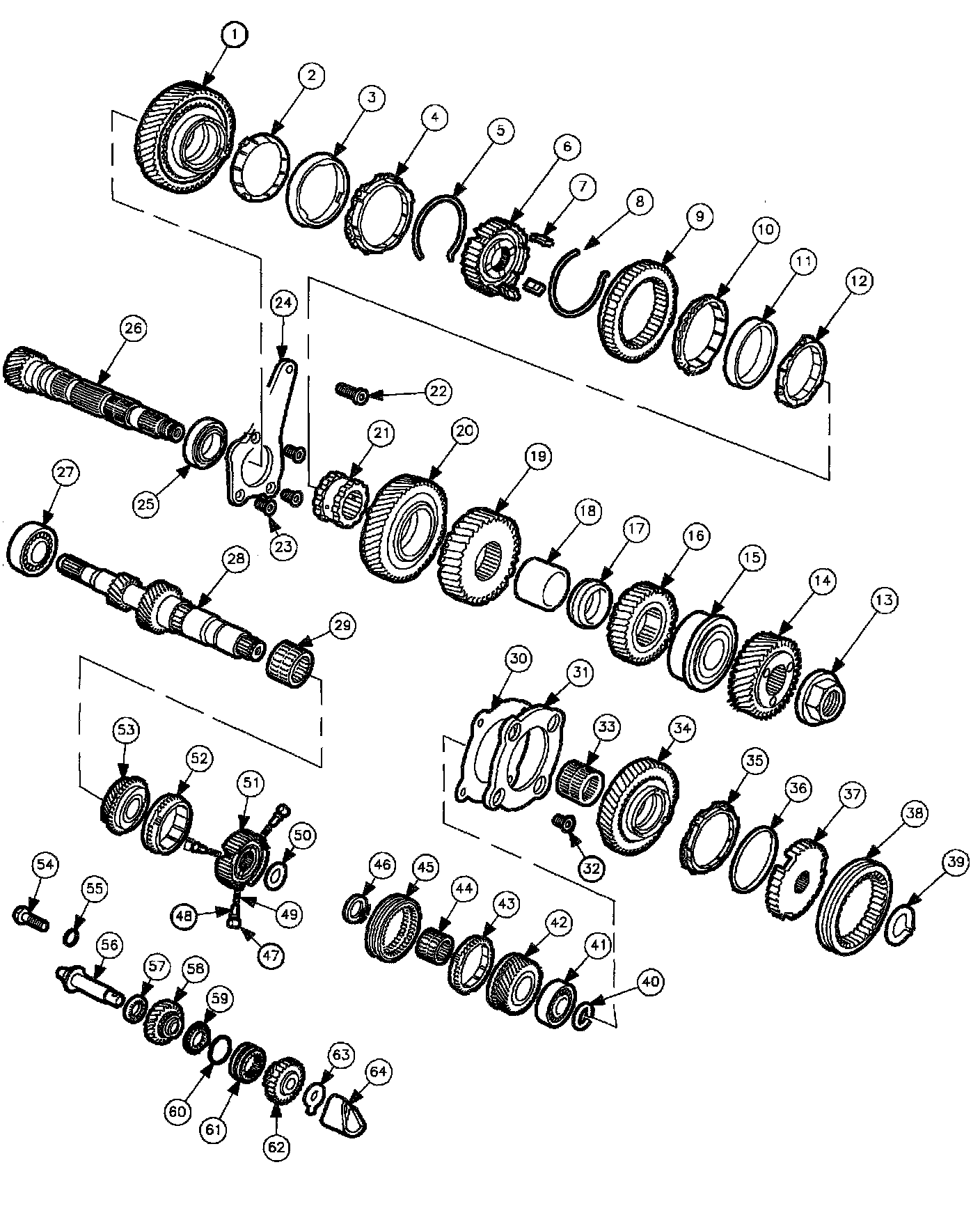

INPUT AND OUTPUT SHAFT COMPONENTS

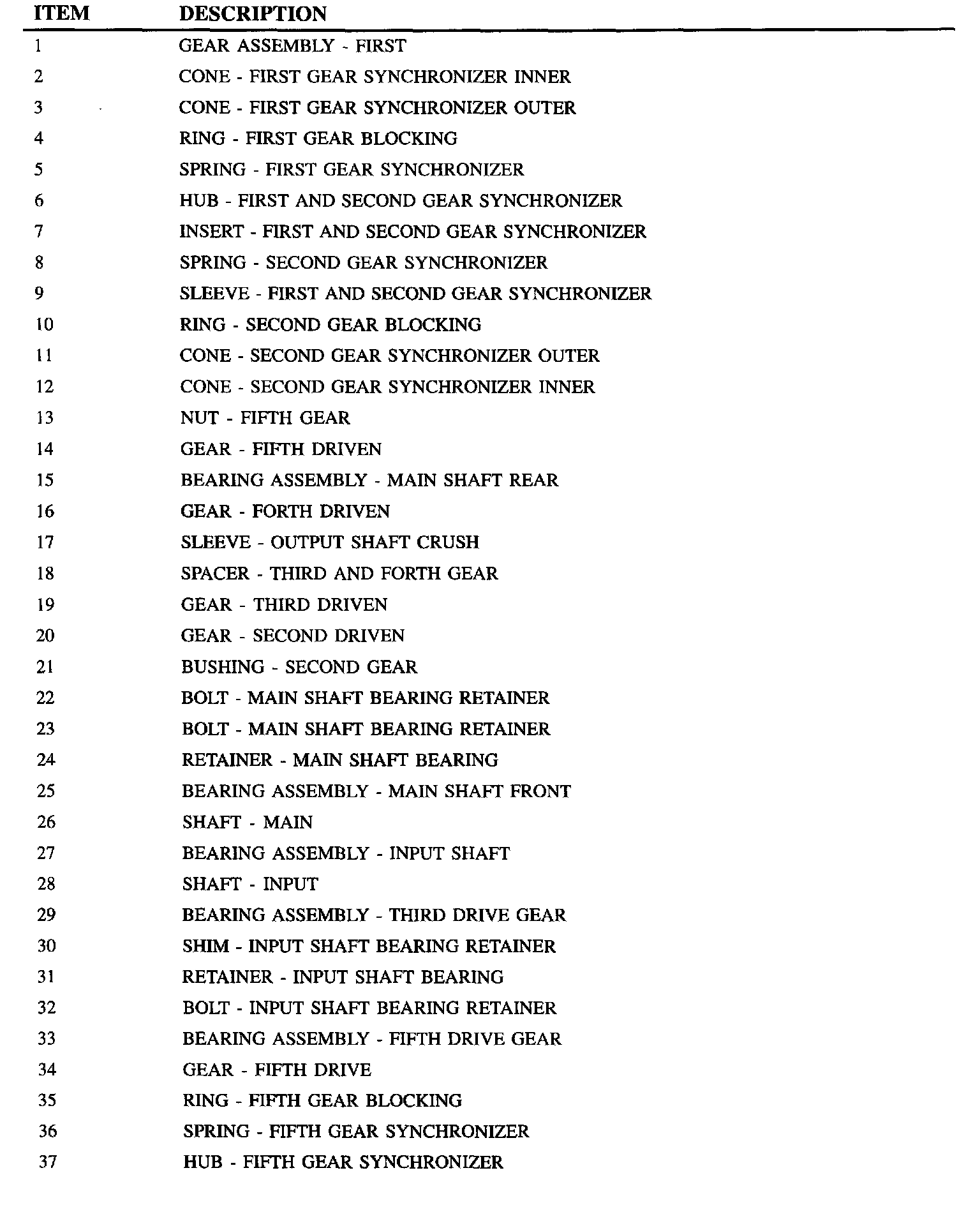

Part 1 of 3





Part 2 of 3

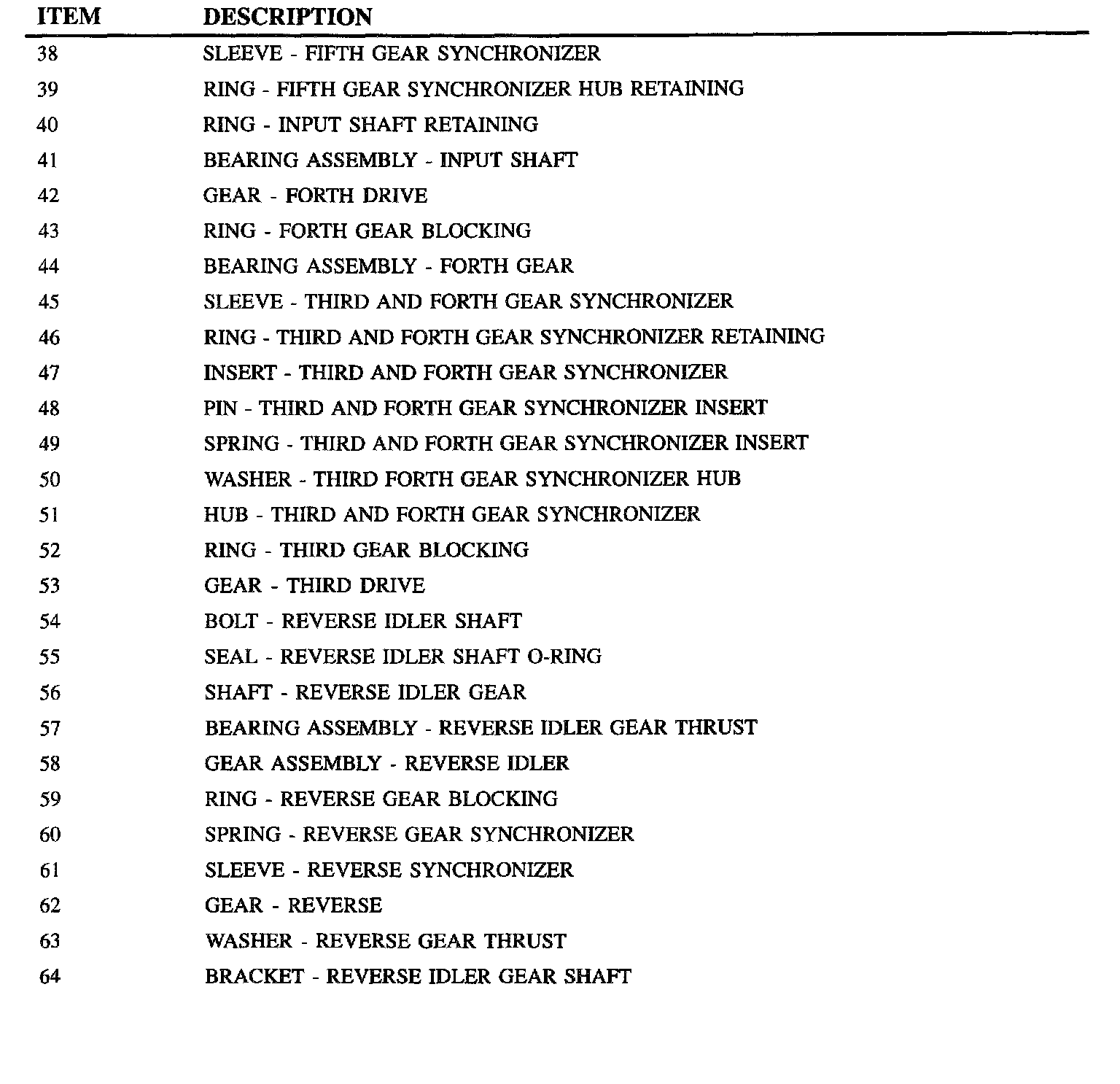

Part 3 of 3
