Floor Console: Installation

  1. Position console into vehicle. See Fig 6 . Route PRNDL boot through console opening. Install console front fasteners. Tighten console front fasteners to 22 INCH lbs. (2.5 N.m).
  2. Move front seats forward and install console rear fasteners. Tighten console rear fasteners to 22 INCH lbs. (2.5 N.m). Snap shift indicator bezel into console opening. See Fig 5 . Connect console wiring harness to main body harness.
  3. Snap console front tray into console. See Fig 4 . Connect power window harness to power window switch and snap switch into place. See Fig 2 . Snap parking brake boot into place. See Fig 3 . Install console extensions Fig 1 .

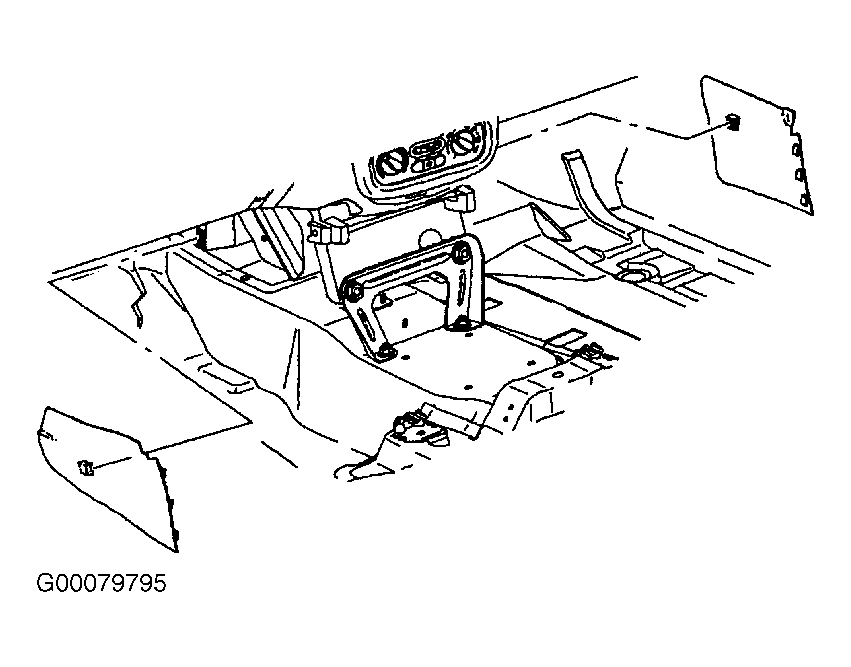

Fig 1: Removing & Installing Console Side Extensions
G00079795Courtesy of GENERAL MOTORS CORP.

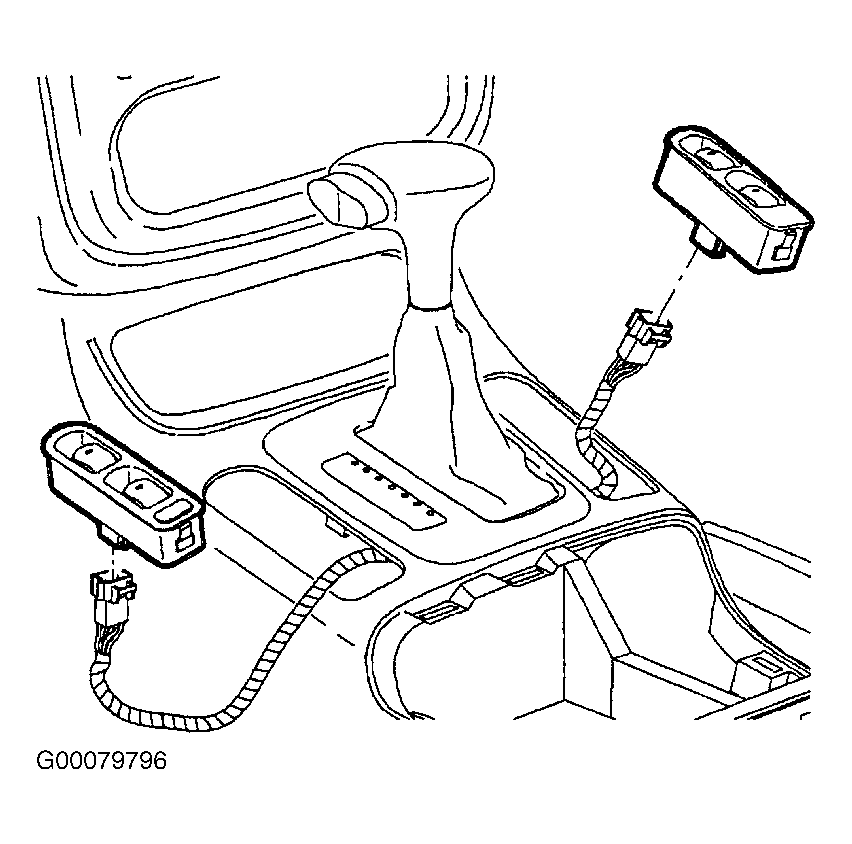

Fig 2: Removing & Installing Power Window Switches
G00079796Courtesy of GENERAL MOTORS CORP.

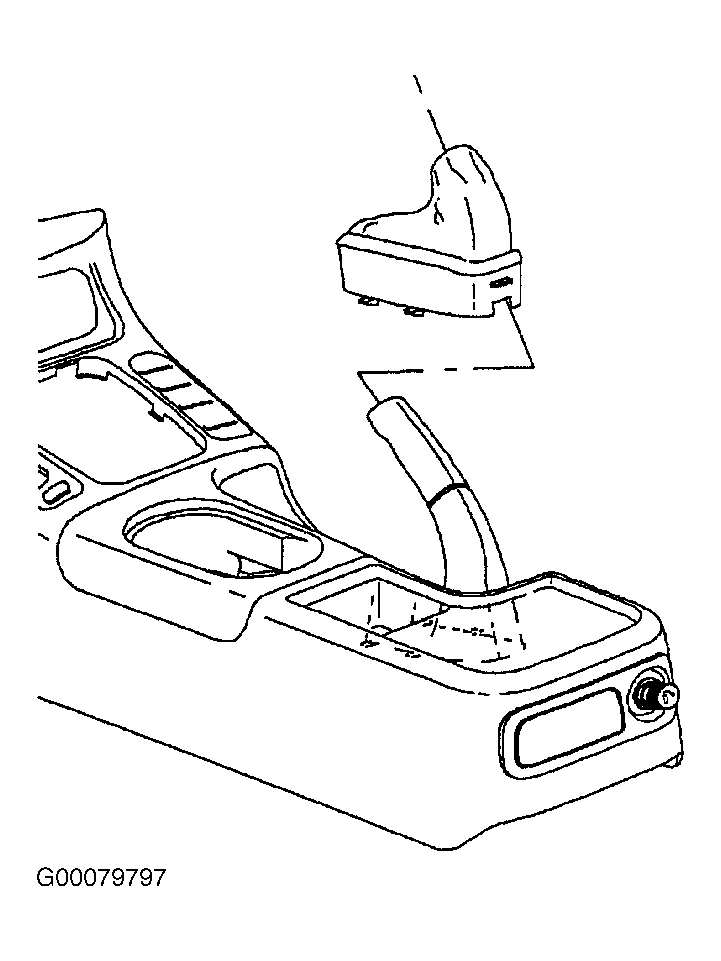

Fig 3: Removing & Installing Parking Brake Boot
G00079797Courtesy of GENERAL MOTORS CORP.

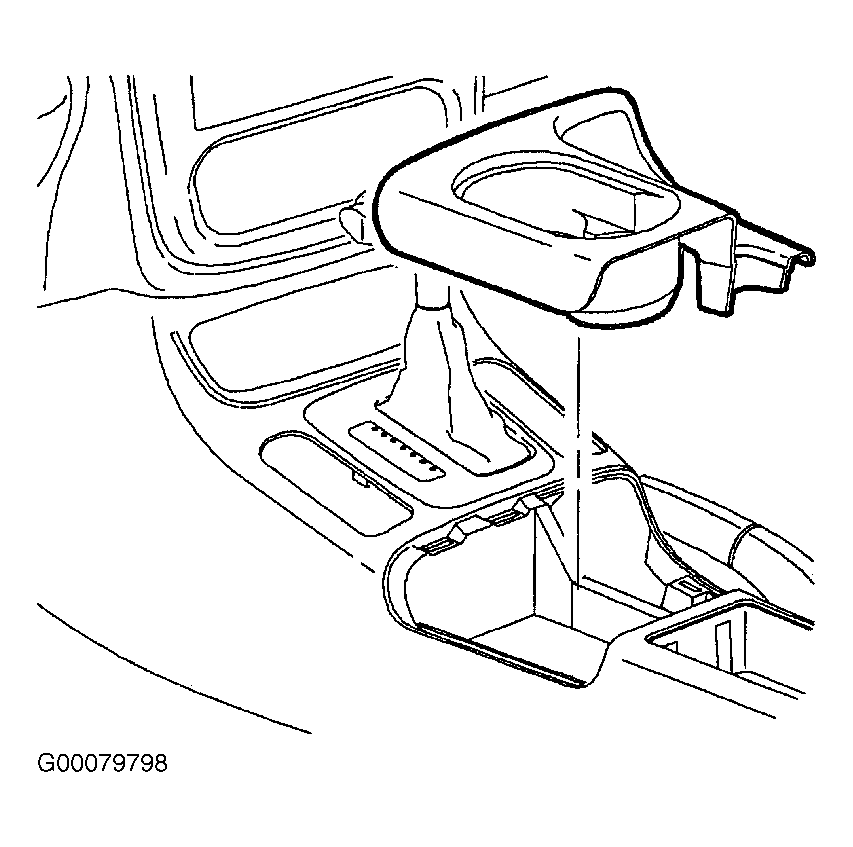

Fig 4: Removing & Installing Console Tray
G00079798Courtesy of GENERAL MOTORS CORP.
Fig 5: Removing & Installing Shift Indicator Bezel
G00079799Courtesy of GENERAL MOTORS CORP.

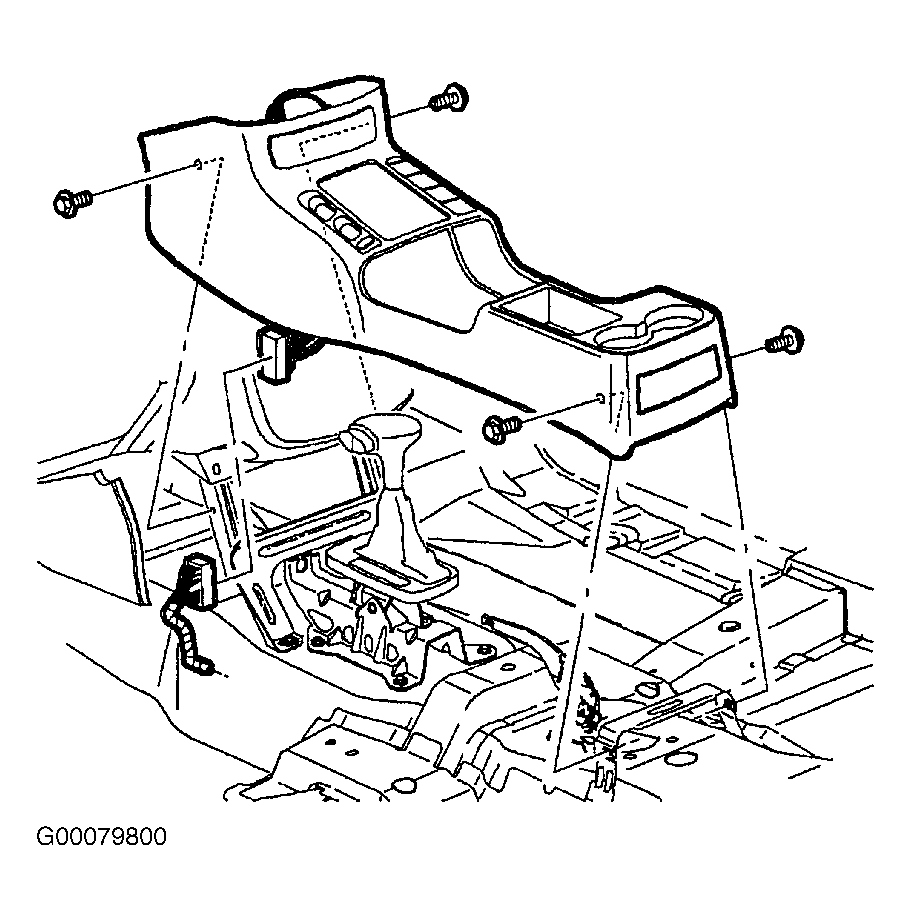

Fig 6: Removing & Installing Console Assembly
G00079800Courtesy of GENERAL MOTORS CORP.
