Anti-Lock Brake System (Abs) Harness Connector View

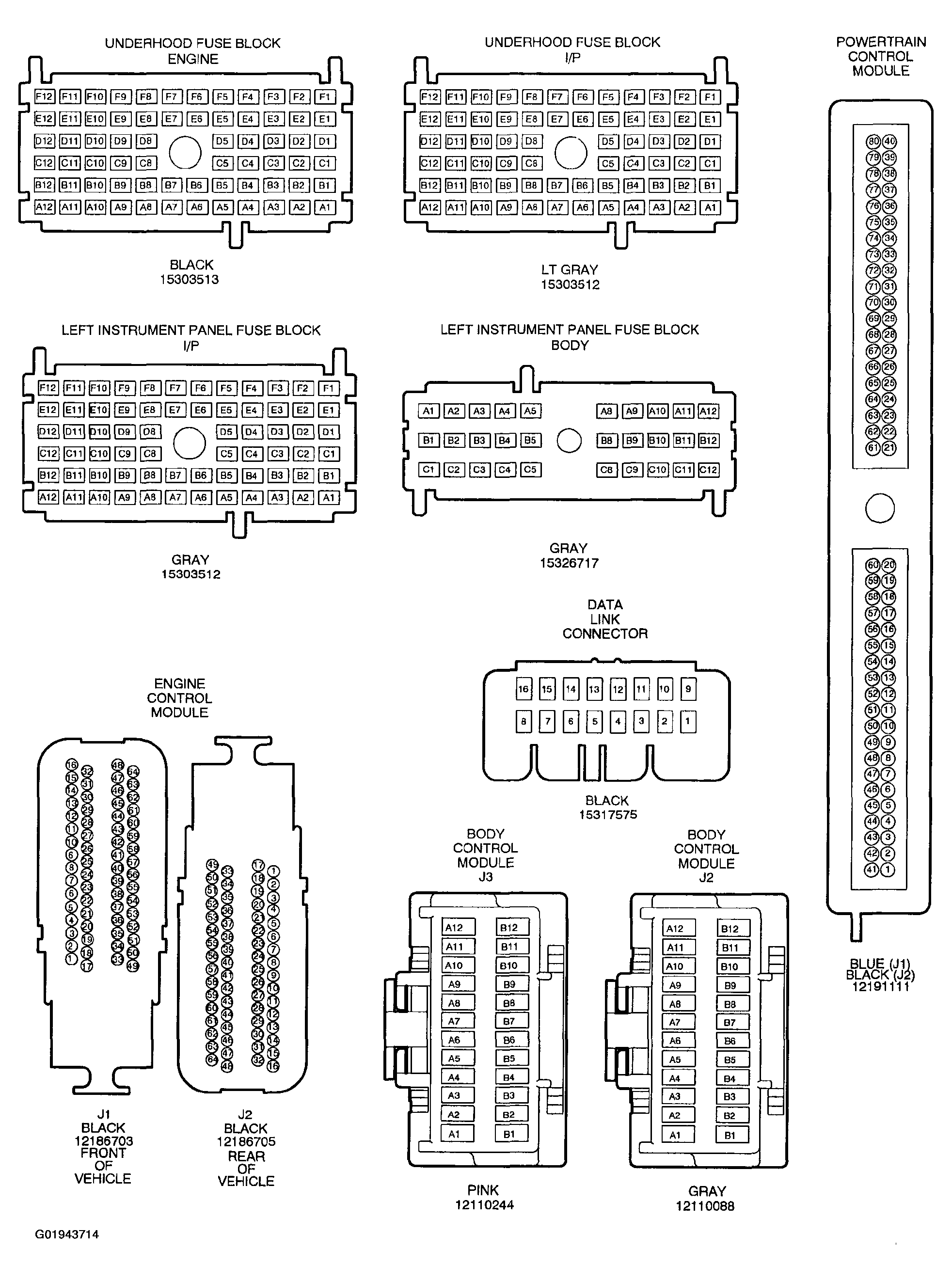

Fig 1: Anti-Lock Brake System (ABS) Harness Connector View (1 Of 2)
G01943714Courtesy of GENERAL MOTORS CORP.

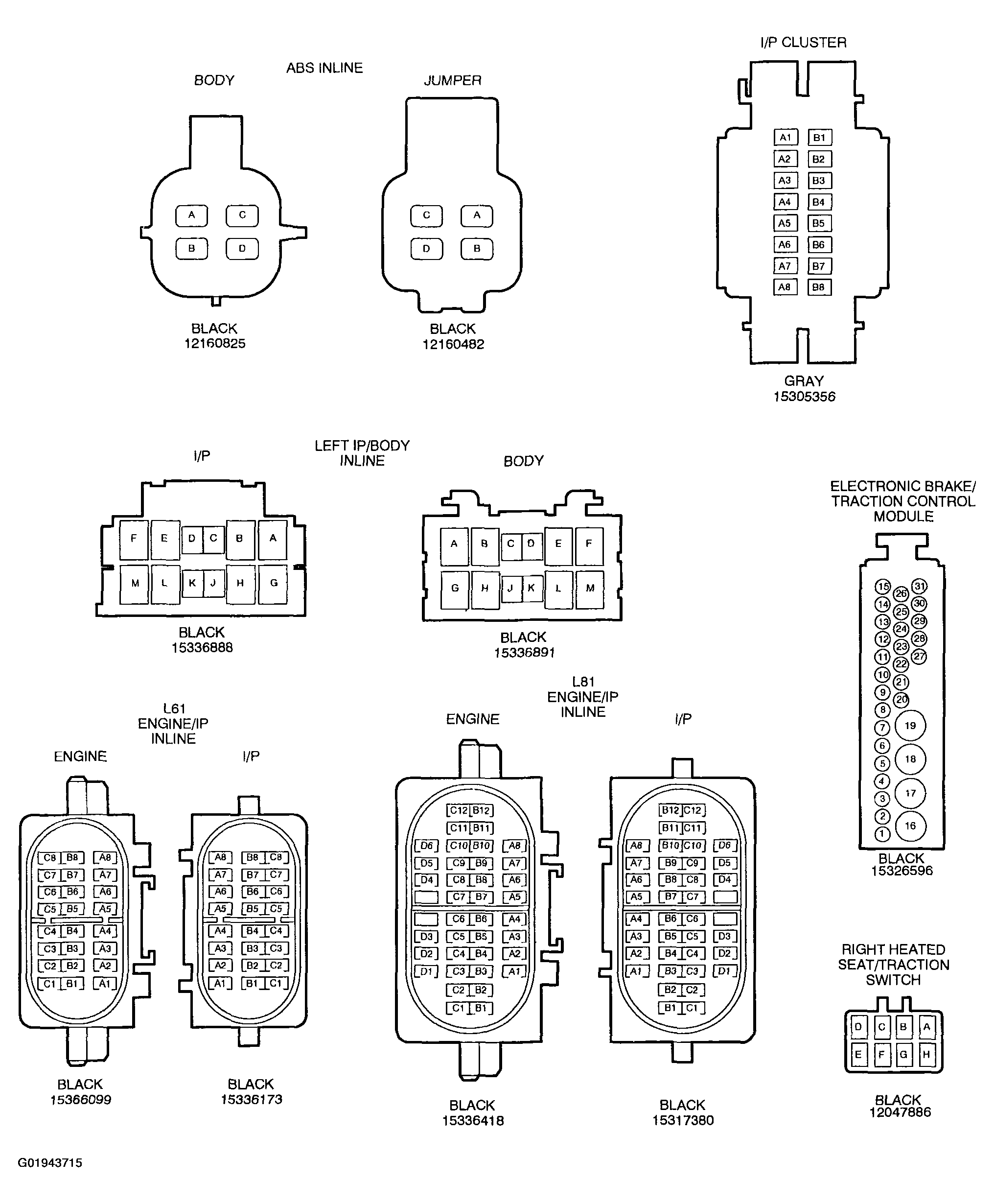

Fig 2: Anti-Lock Brake System (ABS) Harness Connector View (2 Of 2)
G01943715Courtesy of GENERAL MOTORS CORP.
