Abs Scan Tool Data Chart

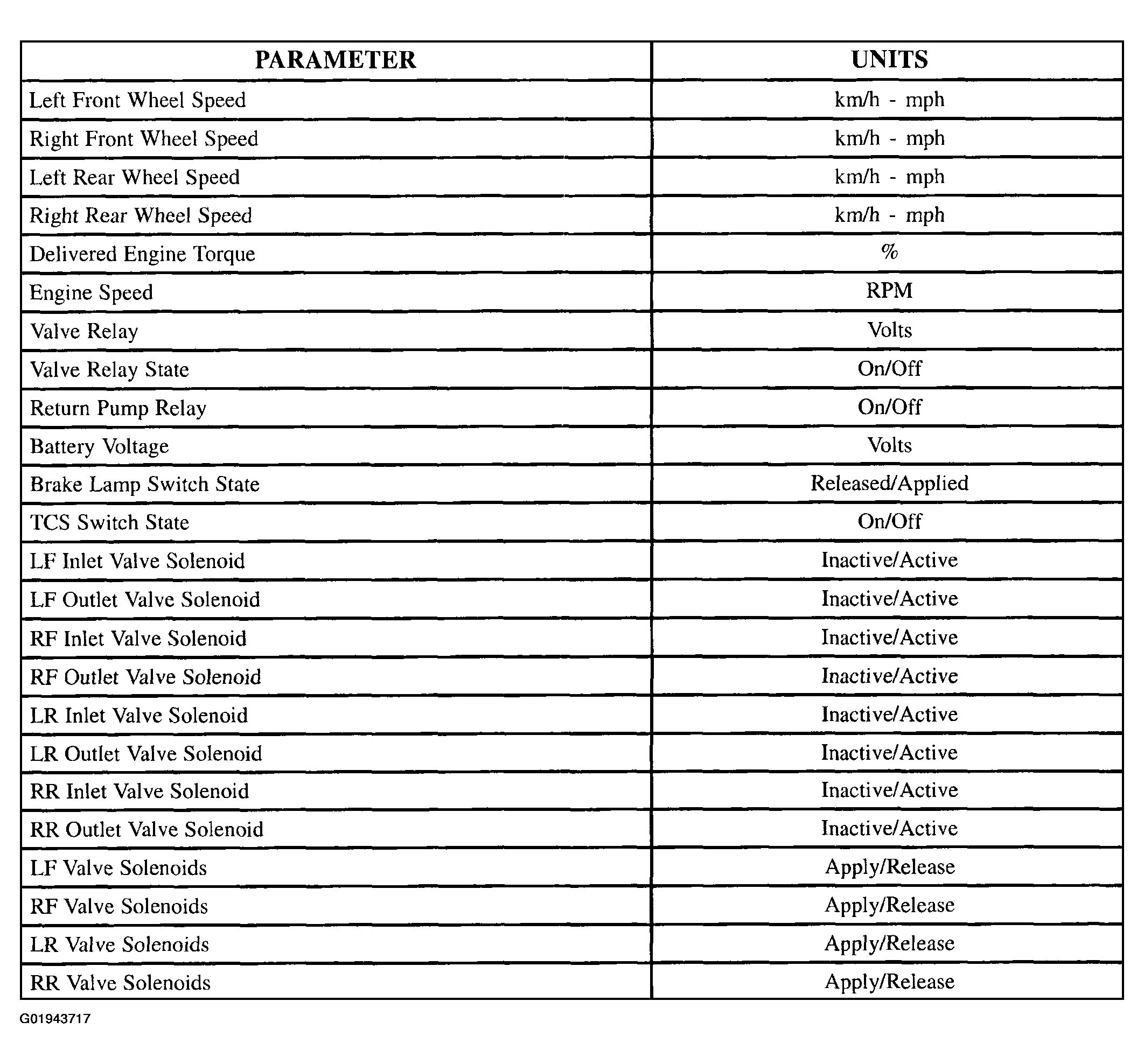

Fig 1: ABS Scan Tool Data Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
