DTC P1637: Generator L-Terminal Control Circuit
>>
Diagnostic Procedures
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures
To diagnose DTC, see
Fig 1
.

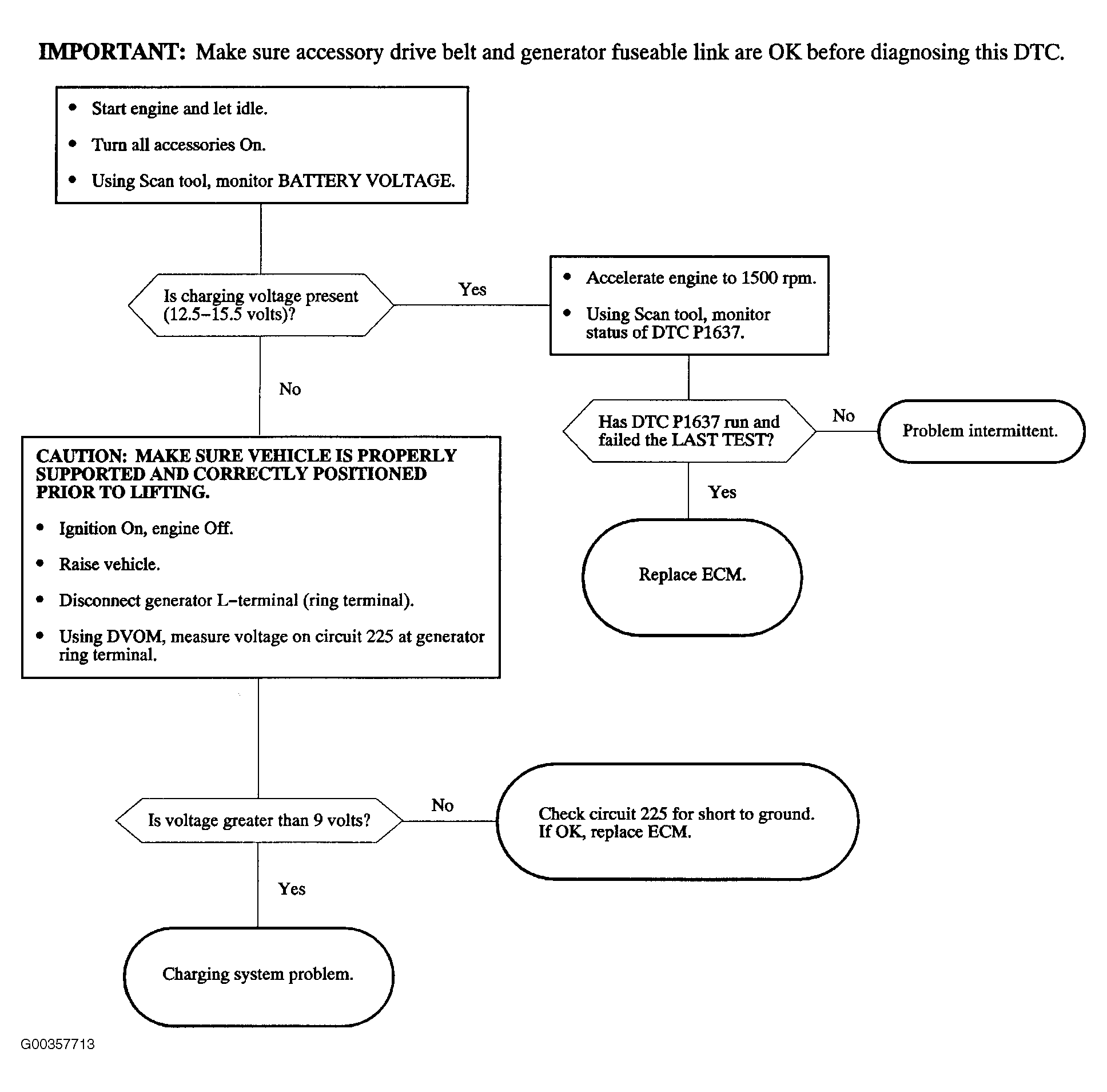

Fig 1: DTC P1637: Generator L-Terminal Circuit
Courtesy of GENERAL MOTORS CORP.
