Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

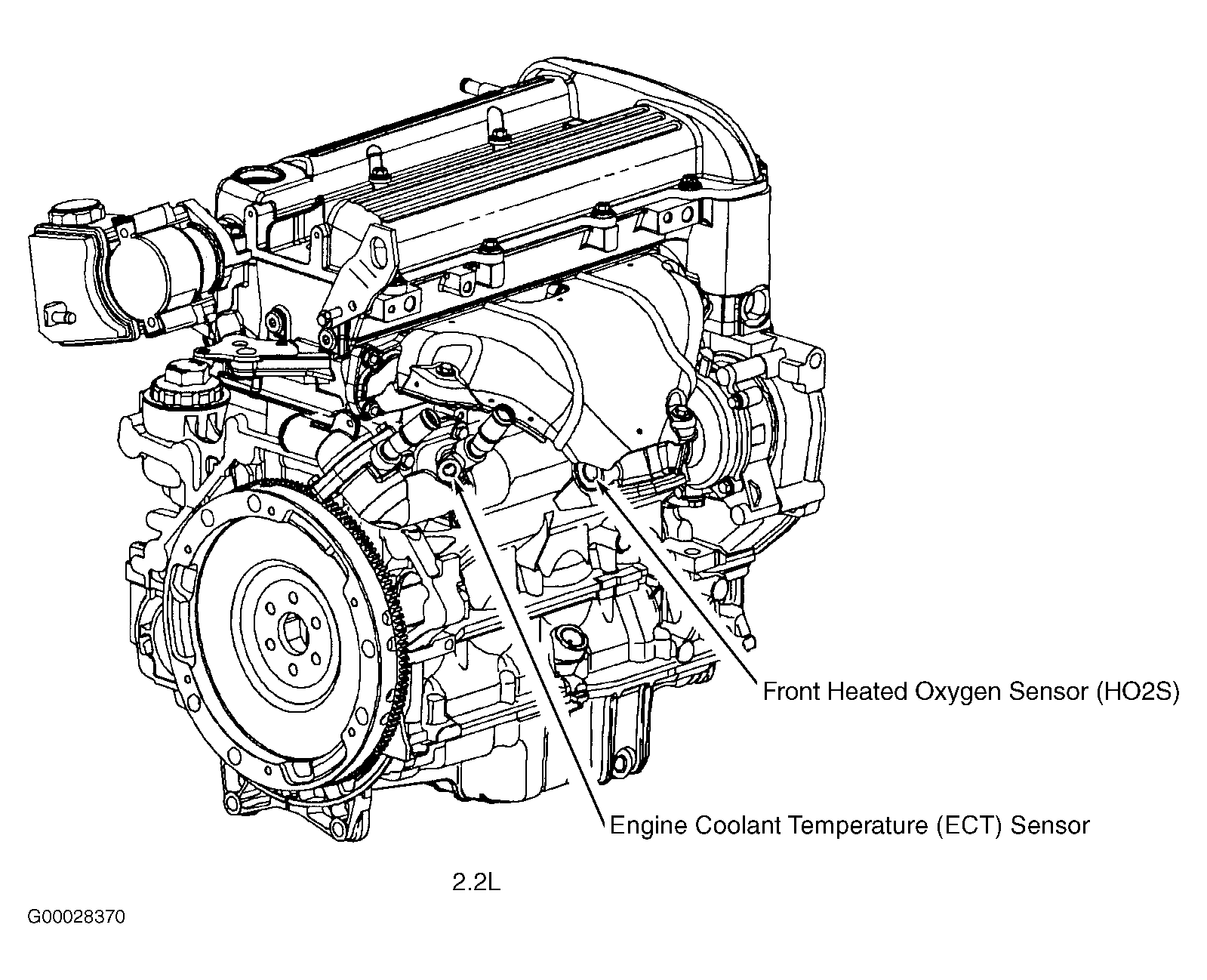

Fig 1: Left Front Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

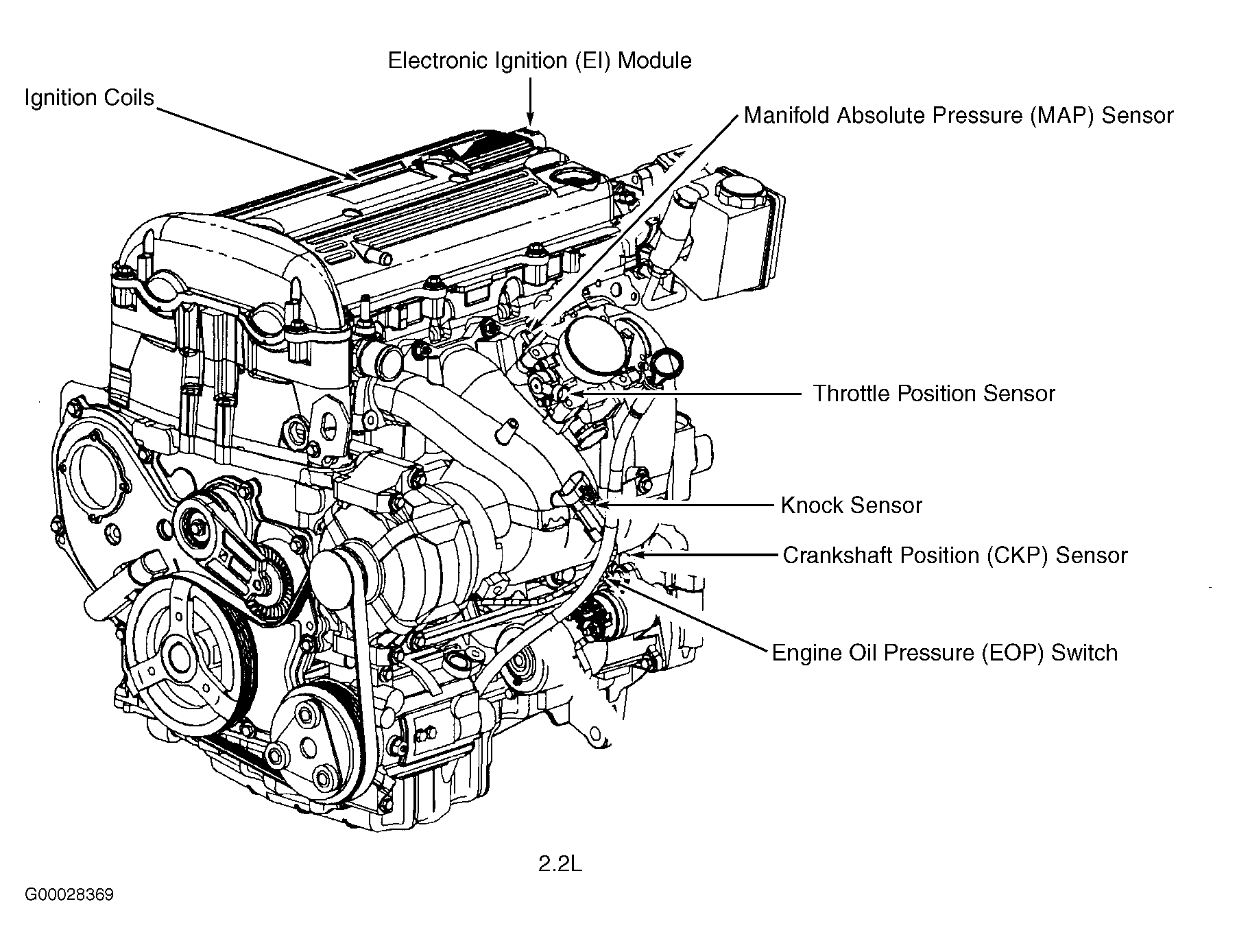

Fig 2: Right Rear Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

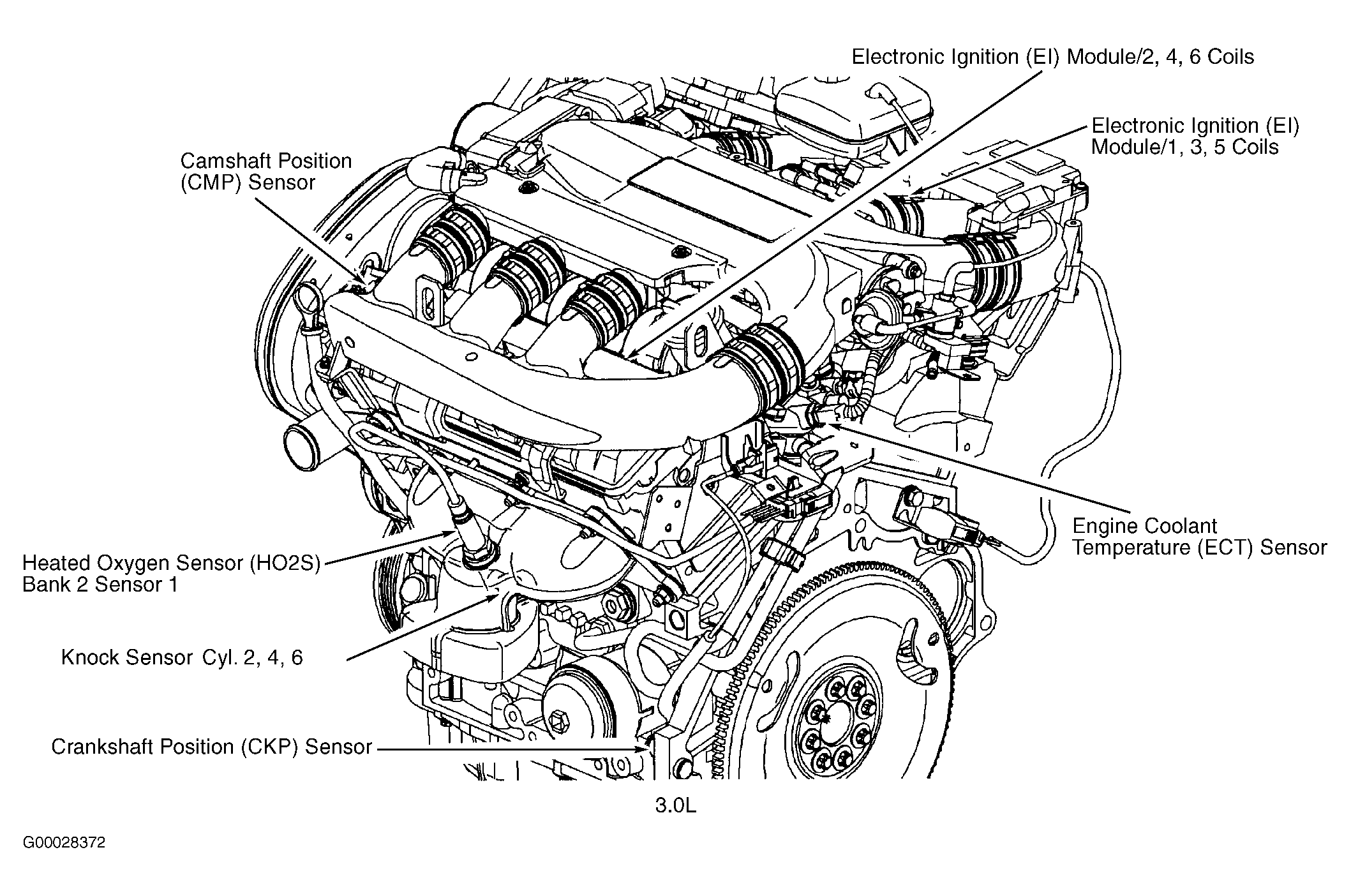

Fig 3: Right Rear Of Engine (3.0L)

Courtesy of GENERAL MOTORS CORP.

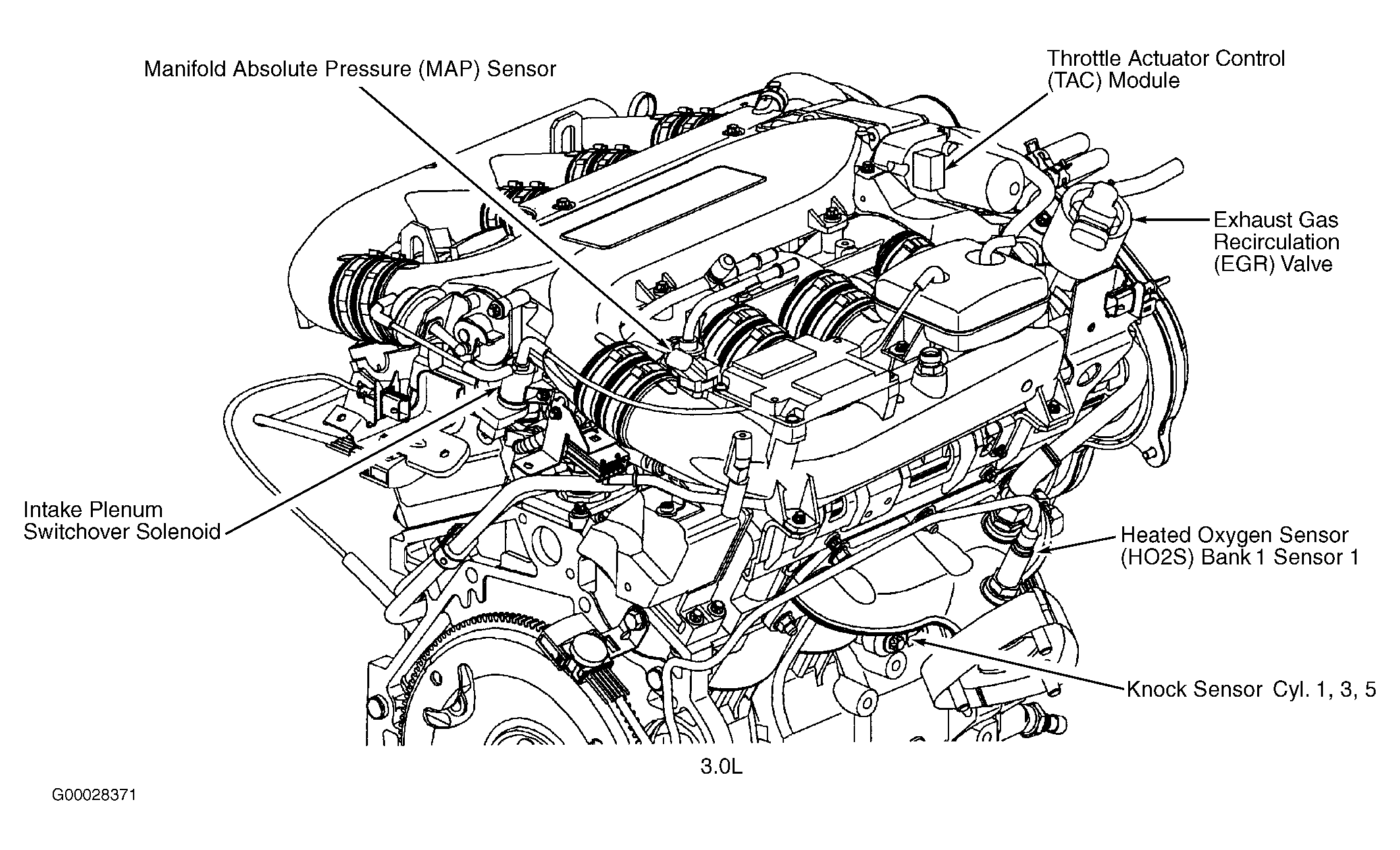

Fig 4: Left Rear Of Engine (3.0L)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Vehicle Overview

Courtesy of GENERAL MOTORS CORP.

Fig 6: Vehicle Overview

Courtesy of GENERAL MOTORS CORP.
