Crankcase Ventilation System

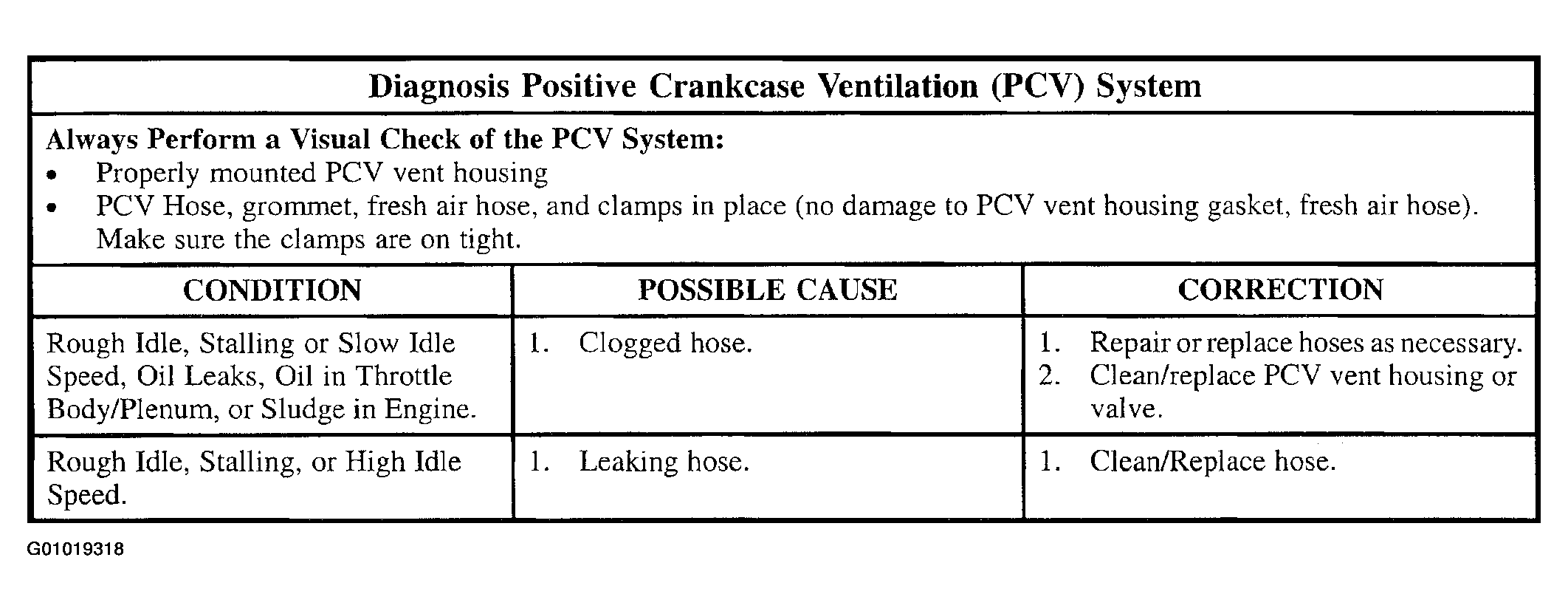

Fig 1: Diagnosis Positive Crankcase Ventilation (PCV) System Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
