EVAP Canister: Installation

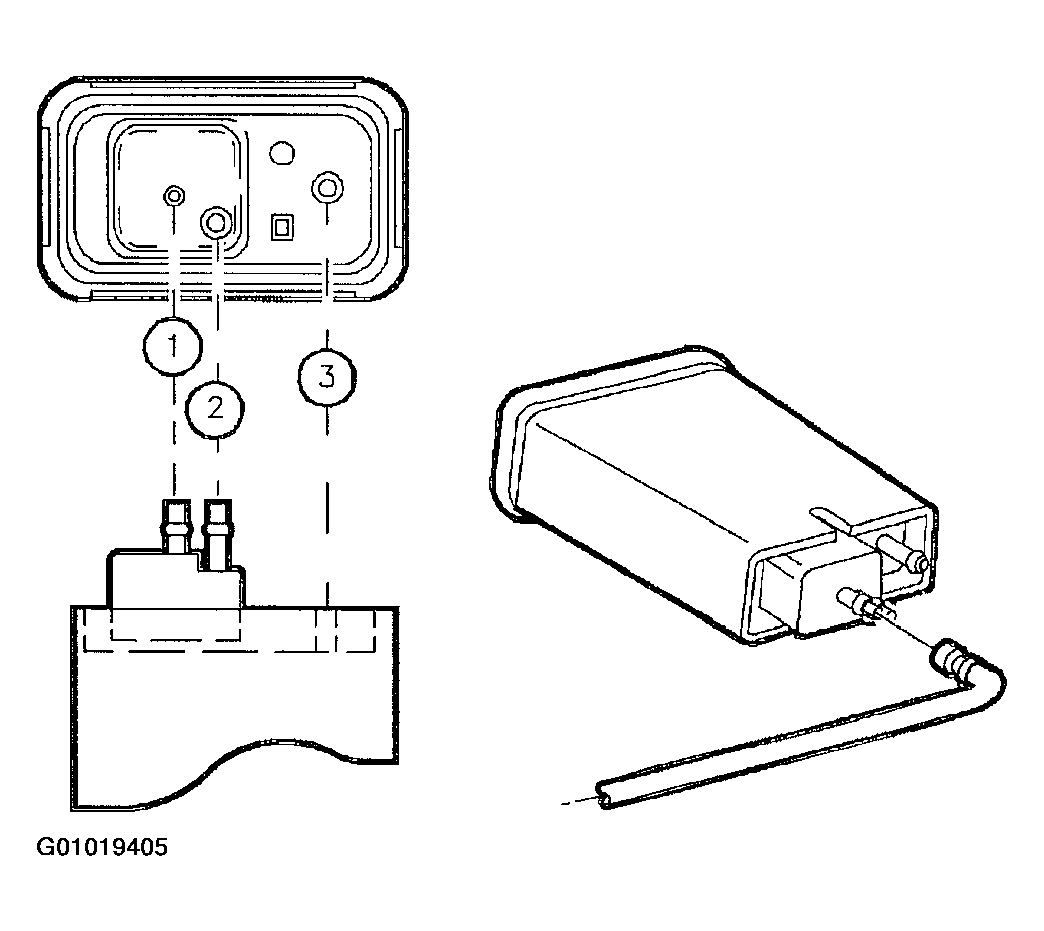

Fig 1: EVAP Canister Components
G01019405Courtesy of GENERAL MOTORS CORP.
  1. Place EVAP canister in the pocket on top of fuel tank. Make sure that canister vent hose is positioned towards middle of fuel tank.
    NOTE: If a replacement canister is being installed, make sure that vent hose is installed on canister prior to installation on fuel tank. Orient molded vent hose on canister so that when it is installed it is pointed toward fuel tank inlet.
  2. Install the canister and its retaining strap.
    NOTE: Install the retainer for the purge fitting quick connect into the female portion of the connector. Care must be taken to ensure that the locking tab is centered in the window of the female connector.
  3. Install purge line fitting to purge port on canister.
  4. Install vapor line fitting to tank port on canister.
  5. Install vent tube.
  6. Install fuel tank. (Refer to "Fuel Tank Installation" procedure in this section of the service manual.)
