Fuel Tank Pressure Sensor: Removal

The fuel tank pressure sensor is located on top of fuel pump module cover.

1. Remove fuel tank from vehicle. Refer to FUEL TANK  .
2. Disengage electrical connector from fuel tank pressure sensor.
3. Remove retaining nut and washer.
4. Disengage sensor from fuel pump module cover.

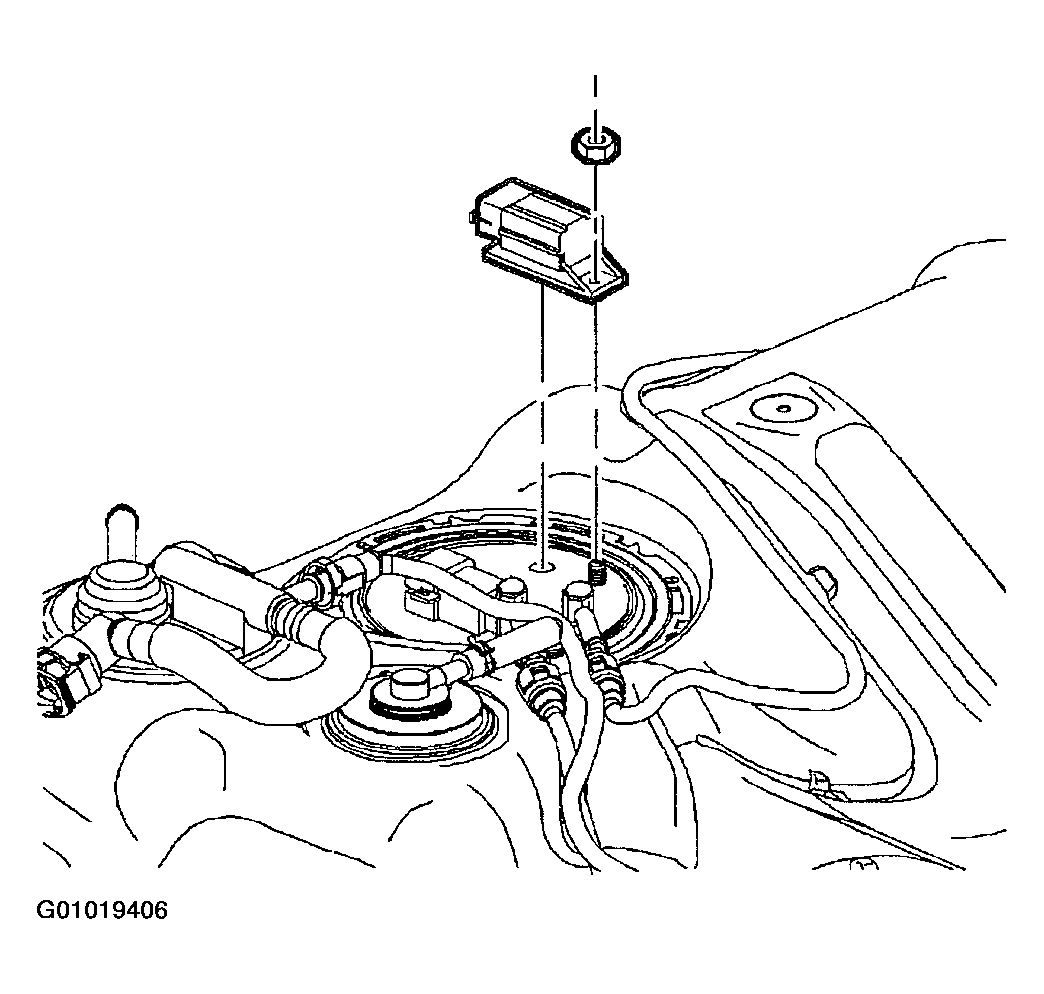

Fig 1: Removing Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS CORP.
