Sender Unit & Float: Installation

Slide new sender unit into place until click is heard. Pulling up lightly to ensure sender unit is locked into place.

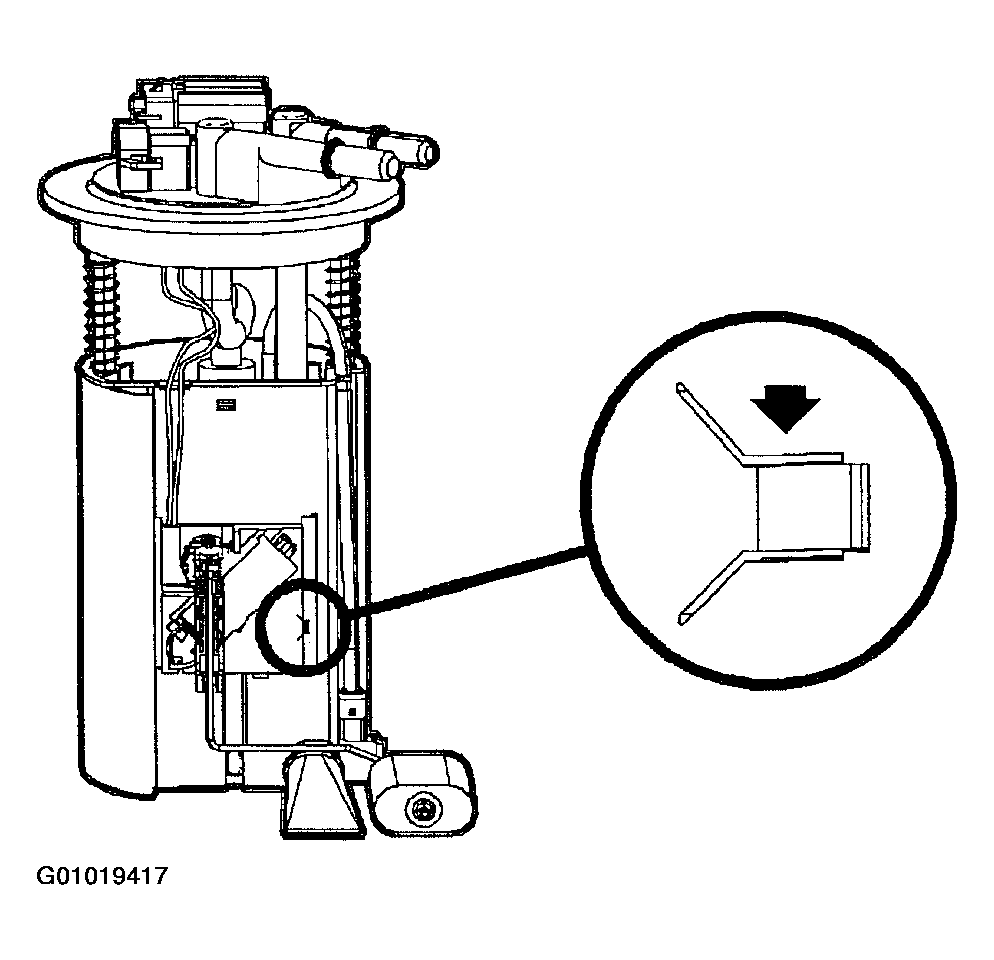

Fig 1: Installing New Sender Unit
Courtesy of GENERAL MOTORS CORP.

NOTE: Verify that float arm on sender unit maintains correct relationship to pump module by standing module on a flat, horizontal surface. The float should lay on the surface.
Connect electrical connections.
NOTE: The fuel pump module to tank seal must always be replaced whenever module is removed from fuel tank.
Install pump module and lock ring using a new tank seal.
Reconnect fuel lines & electrical connectors to fuel pump.
Install fuel tank. Refer to FUEL TANK .
