Power Steering Diagnosis

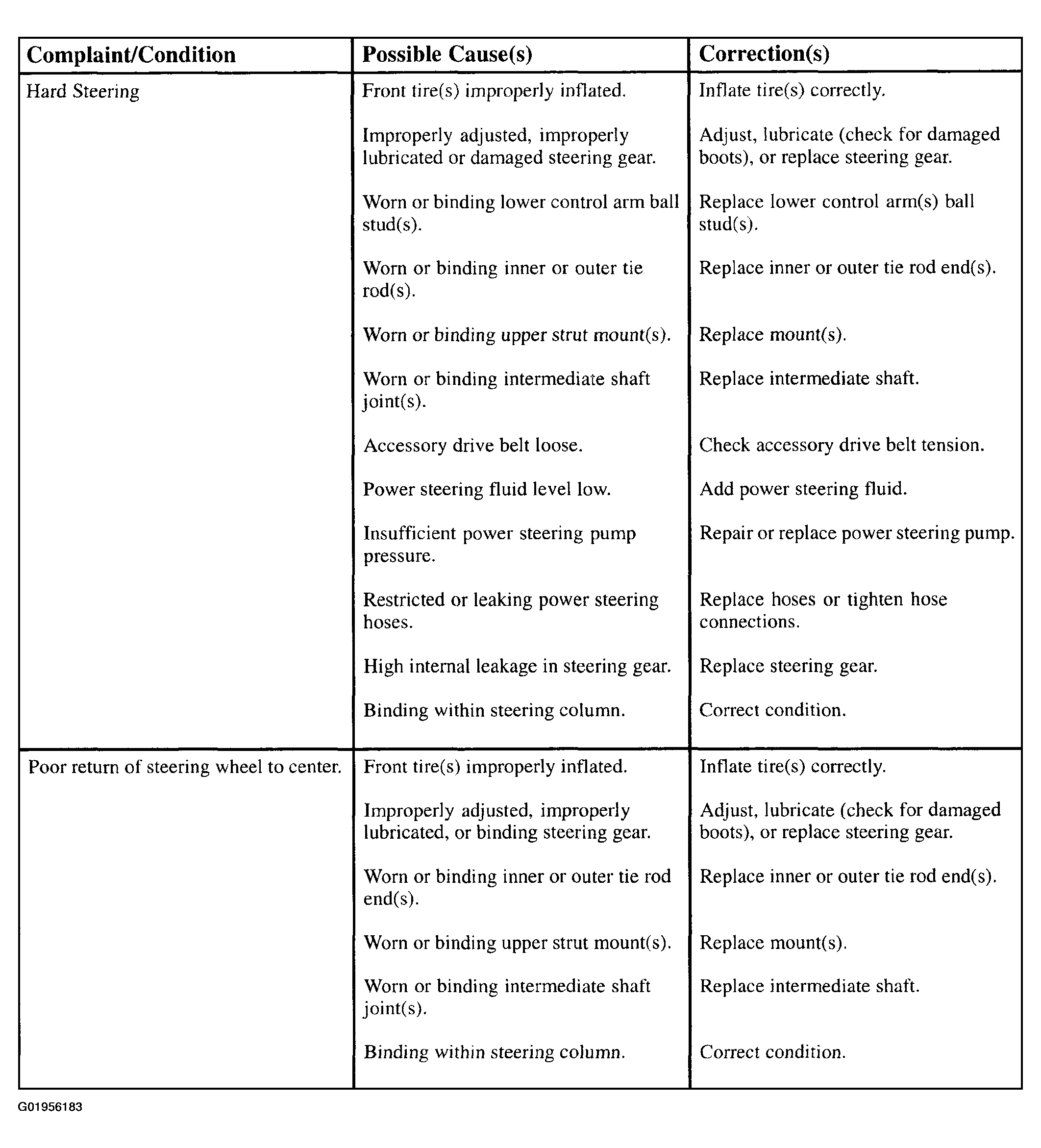

Fig 1: Power Steering Diagnosis (1 Of 3)
G01956183Courtesy of GENERAL MOTORS CORP.

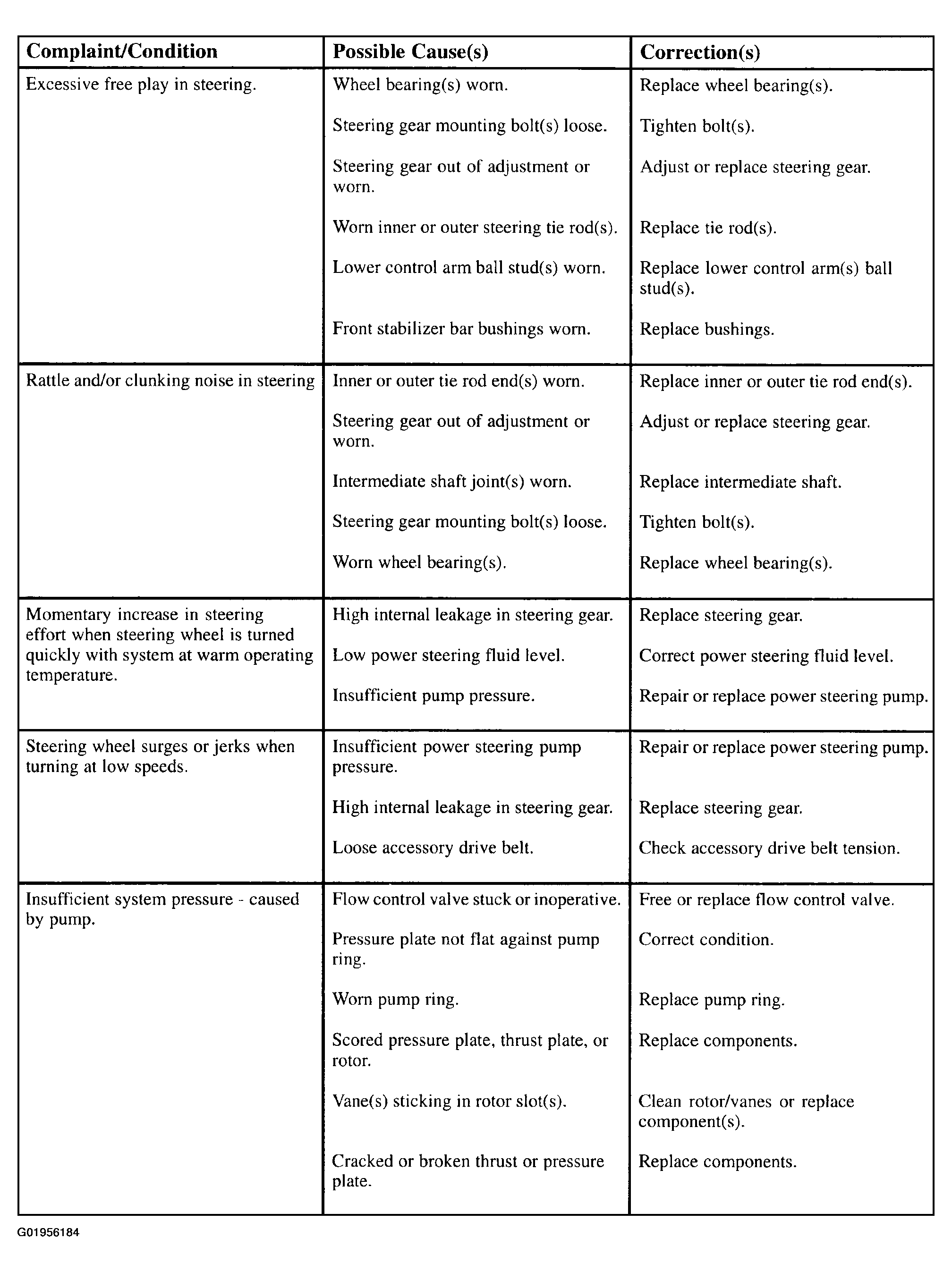

Fig 2: Power Steering Diagnosis (2 Of 3)
G01956184Courtesy of GENERAL MOTORS CORP.

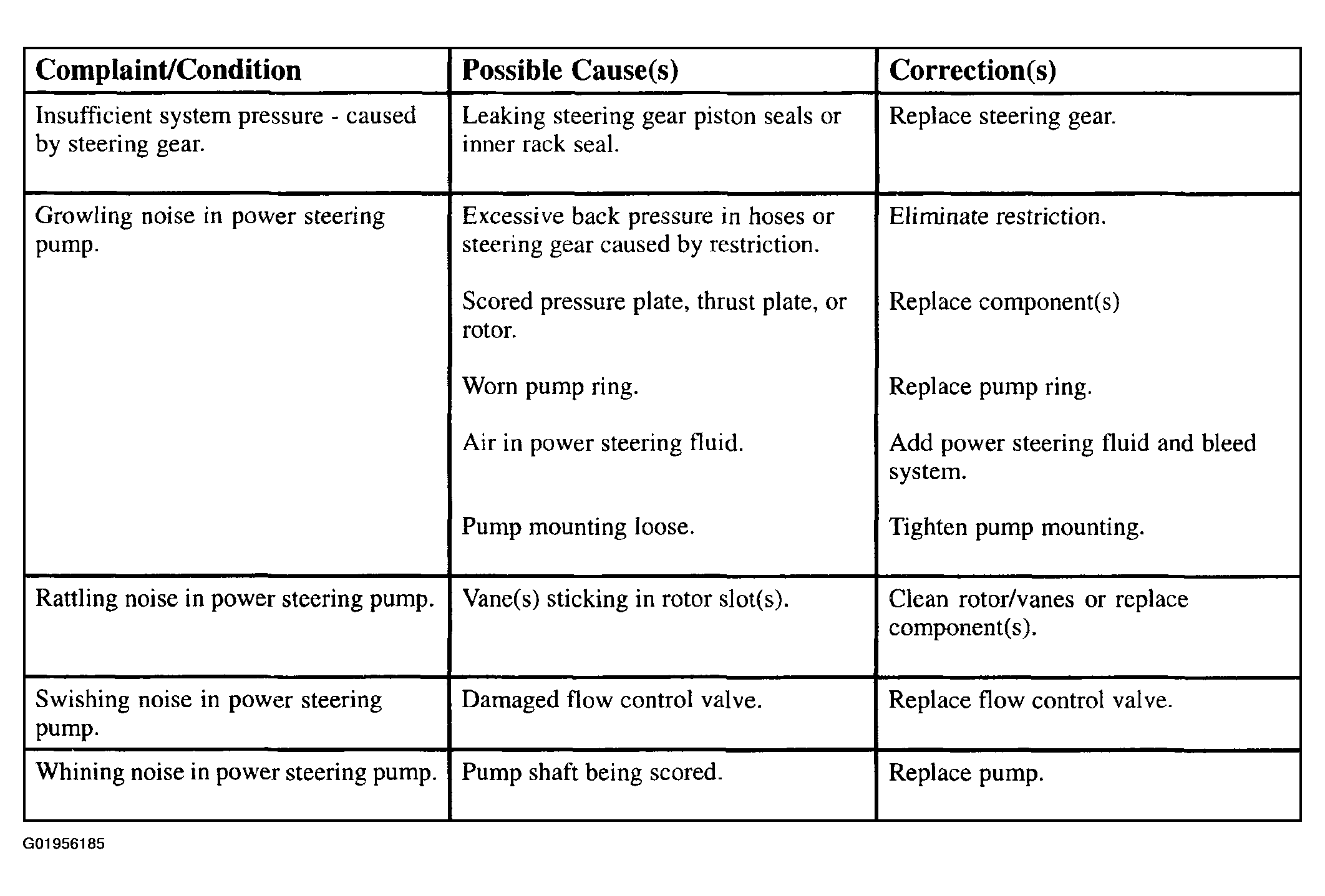

Fig 3: Power Steering Diagnosis (3 Of 3)
G01956185Courtesy of GENERAL MOTORS CORP.
