Inflator Module Installation

  1. Connect inflator module wiring harness and horn lead. Be sure to install Connector Position Assurance (CPA) device.
  2. Align inflator module to steering wheel and press to install.

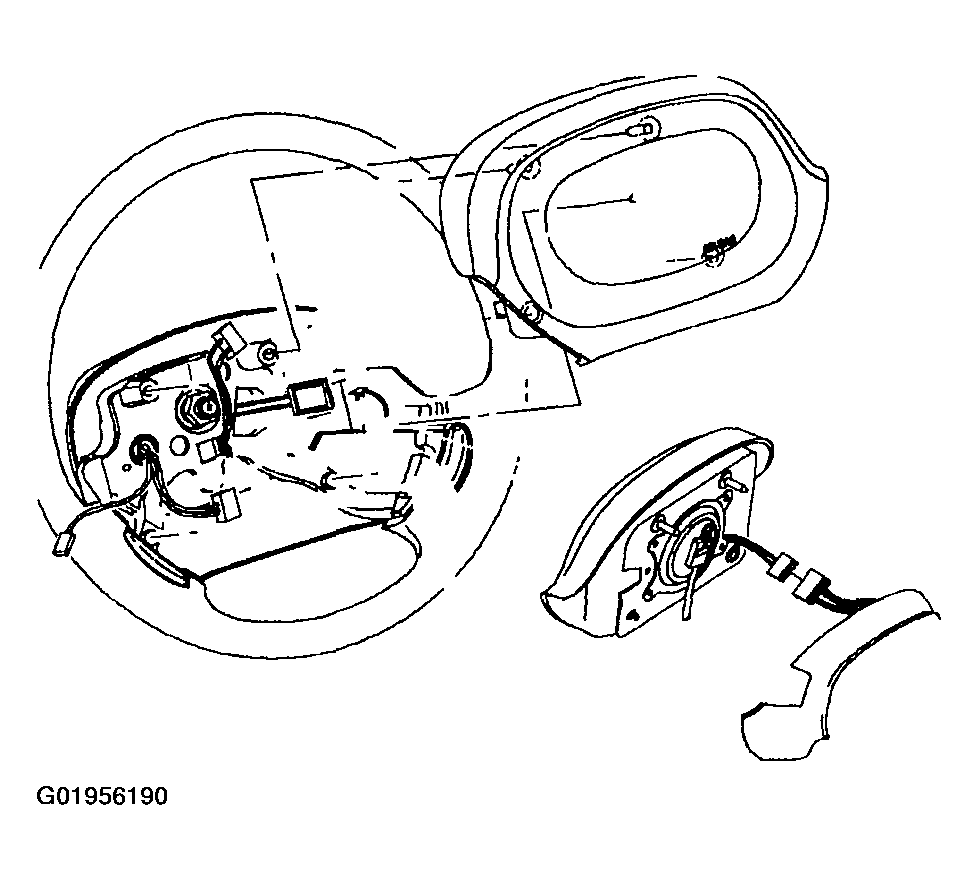

    3. Fig 1: Aligning Inflator Module To Steering Wheel
    G01956190Courtesy of GENERAL MOTORS CORP.
  3. Be sure to seat all four attachment points.
  4. Enable the SIR system. Refer to ACTIVATING SYSTEM .
