Lubrication System Troubleshooting Chart

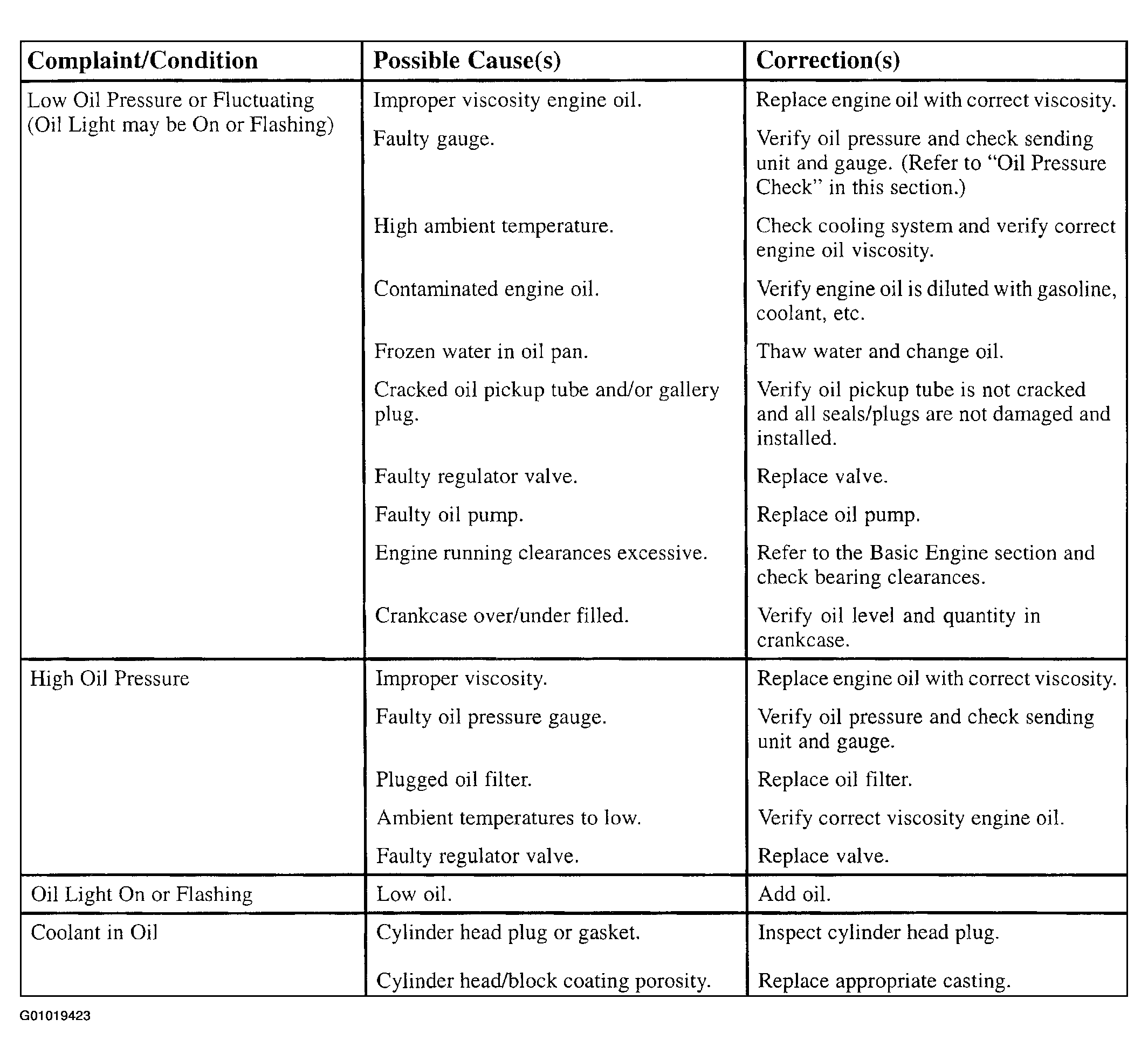

Fig 1: Lubrication System Troubleshooting Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
