Anti-Lock Brake System (Abs) Component Location

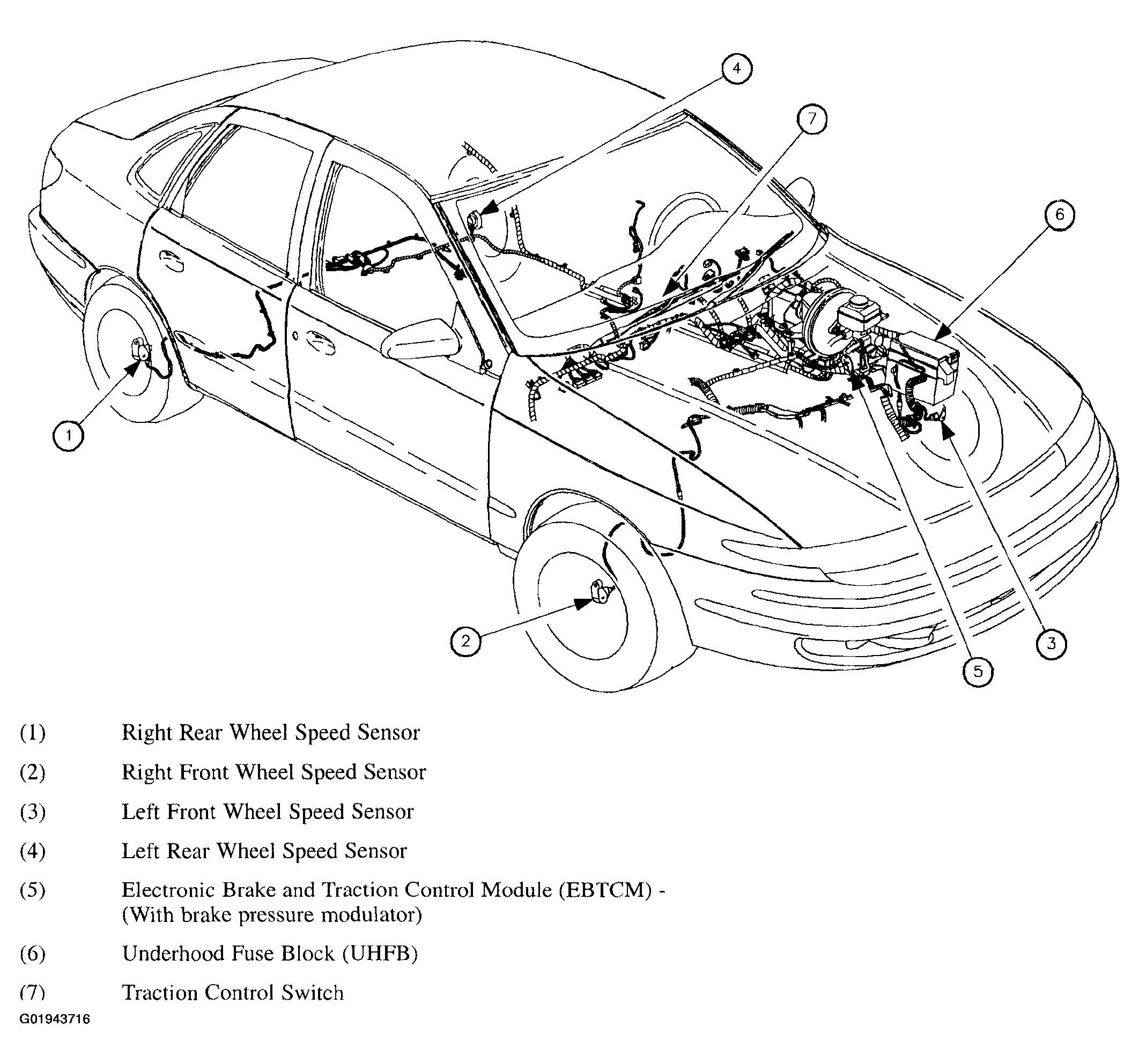

Fig 1: Anti-Lock Brake System (ABS) Component Location
G01943716Courtesy of GENERAL MOTORS CORP.
