HC/Co Diagnostic Chart

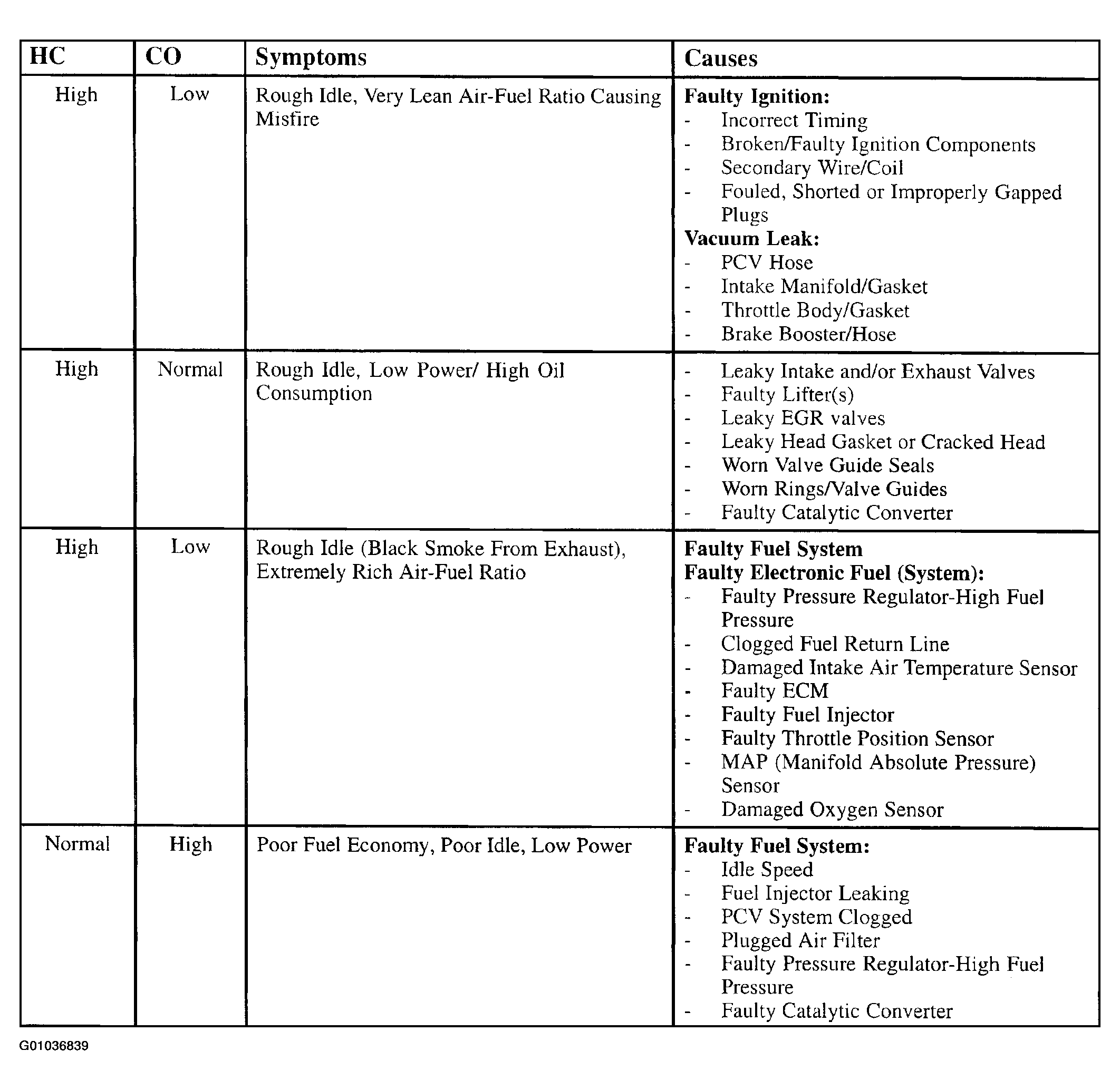

Fig 1: Identifying High HC/CO Symptoms & Causes
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
