Fuel Tank Pressure Sensor: Removal

The fuel tank pressure sensor is located on top of fuel pump module cover.

1. Remove fuel tank from vehicle. Refer to REMOVAL  under FUEL TANK.
2. Disengage electrical connector from fuel tank pressure sensor.
3. Remove retaining nut.
4. Disengage sensor from fuel pump module cover.

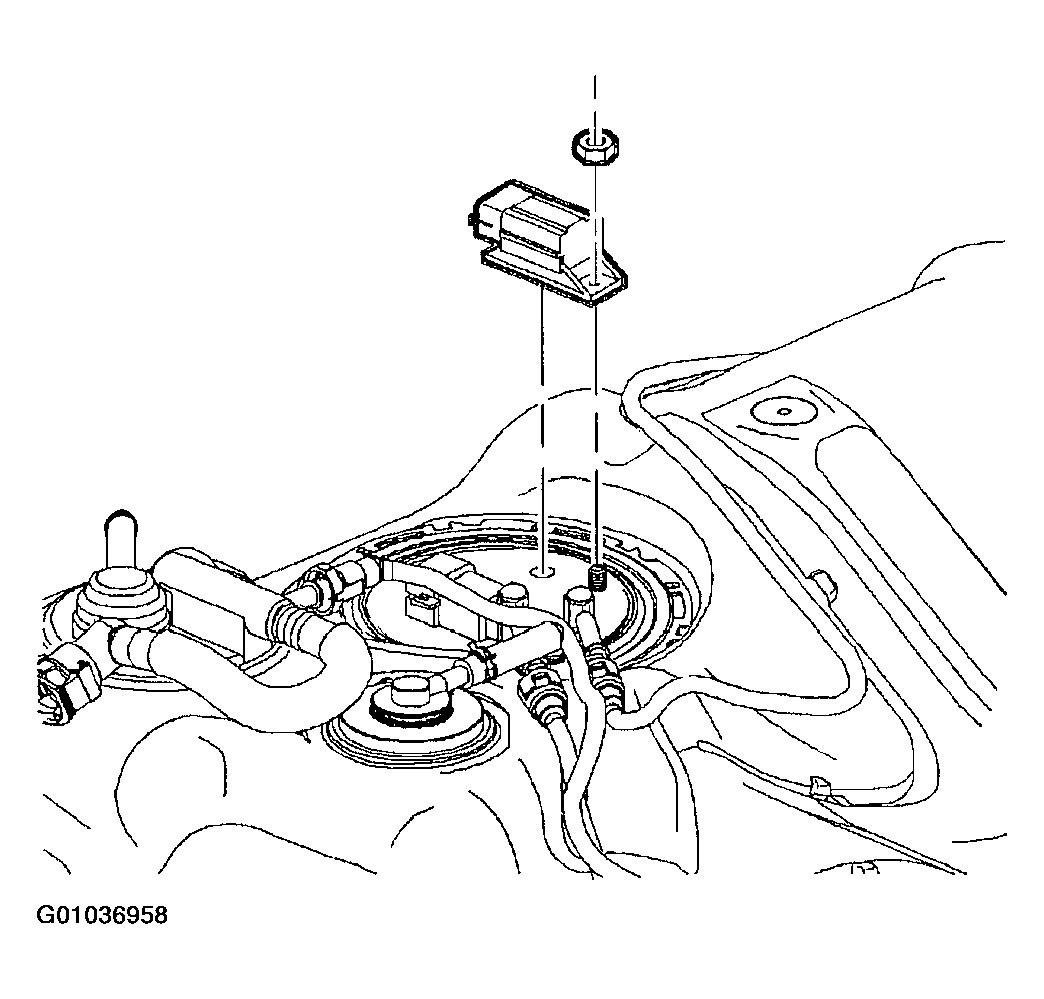

   Fig 1: Removing Fuel Tank Pressure Sensor

   Courtesy of GENERAL MOTORS CORP.
