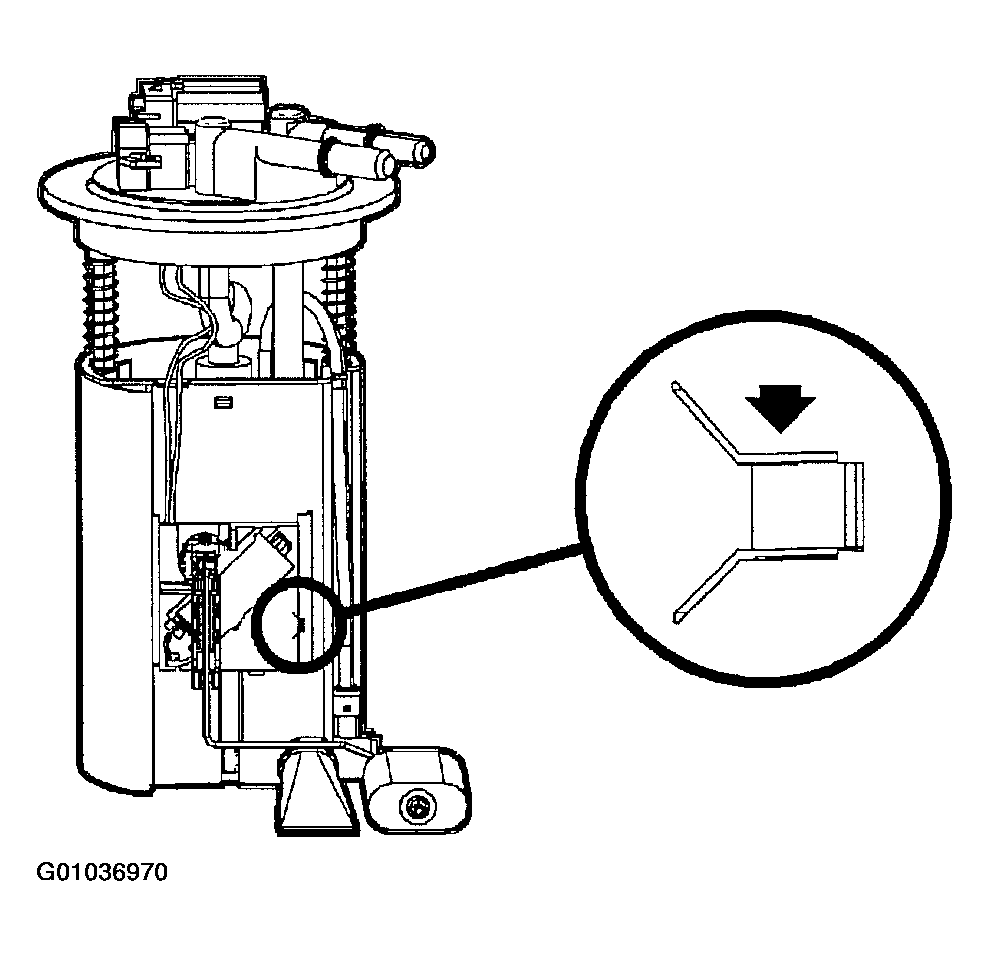

Sender Unit And Float: Installation
- Slide new sender unit into place until click is heard. (Pulling up lightly to ensure sender unit is locked into place.)
IMPORTANT: Remove fuel pump from fuel tank.
- Connect electrical connections.
IMPORTANT: The fuel pump module to tank seal must always be replaced whenever module is removed from fuel tank.
- Install pump module and lock ring using a new tank seal.
- Reconnect fuel lines and electrical connector to fuel pump.
- Install fuel tank. Refer to INSTALLATION under FUEL TANK.
