Connector Identification

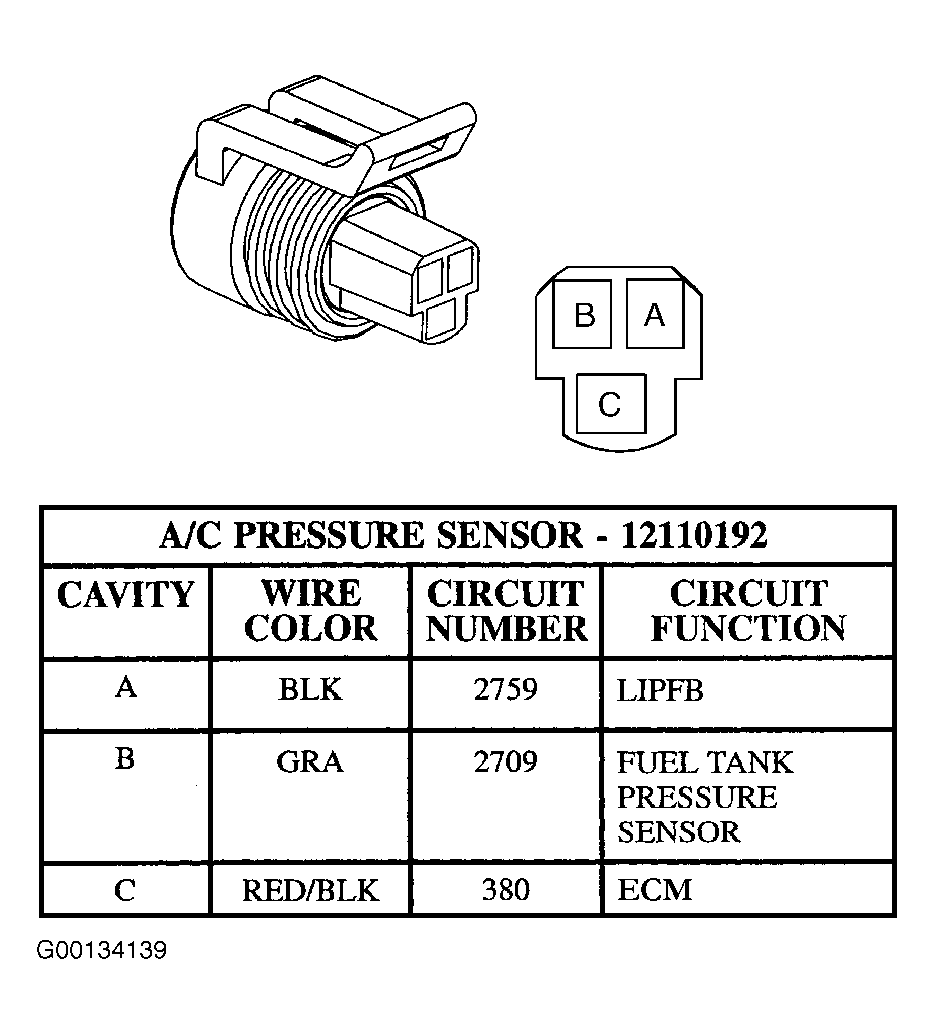

Fig 1: Identifying A/C Pressure Sensor Connector Terminals

G00134139

Courtesy of GENERAL MOTORS CORP.

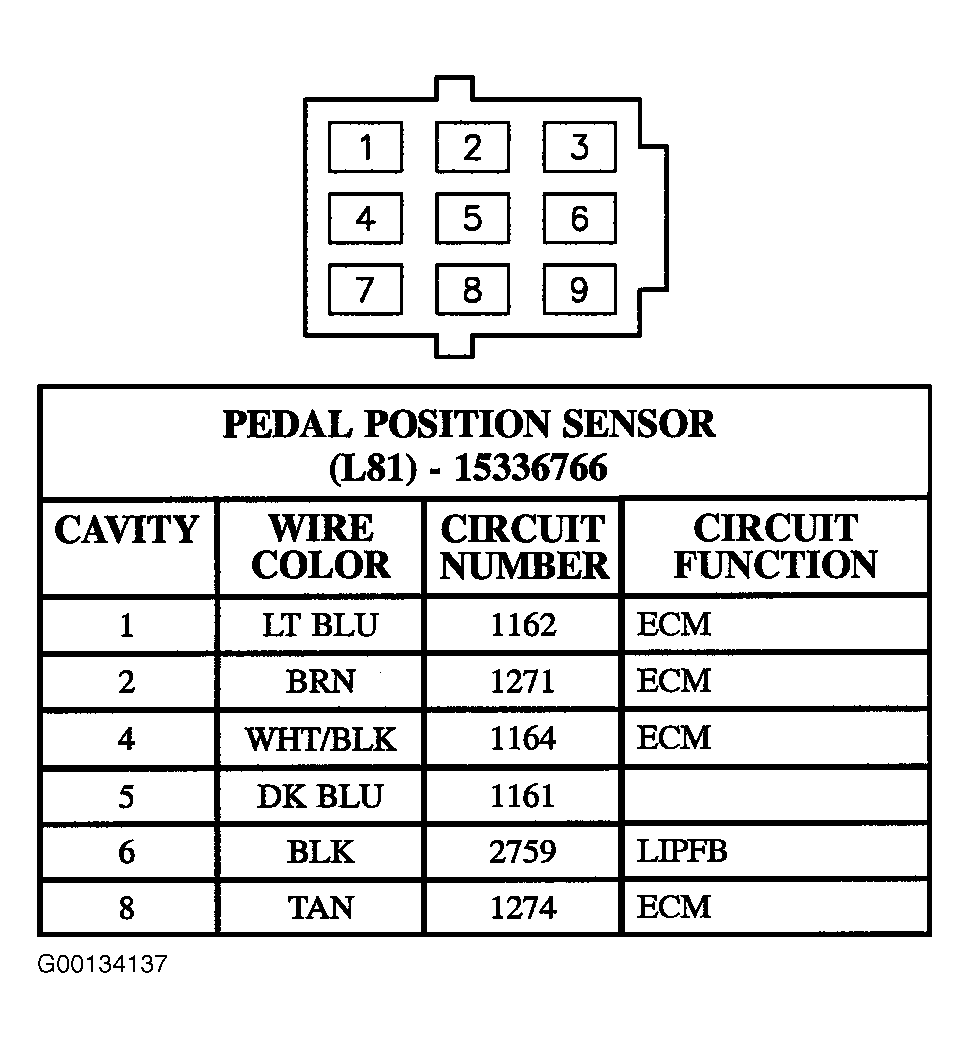

Fig 2: Identifying APP Sensor Connector Terminals

G00134137

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Brake Switch Connector Terminals

G00121171

Courtesy of GENERAL MOTORS CORP.

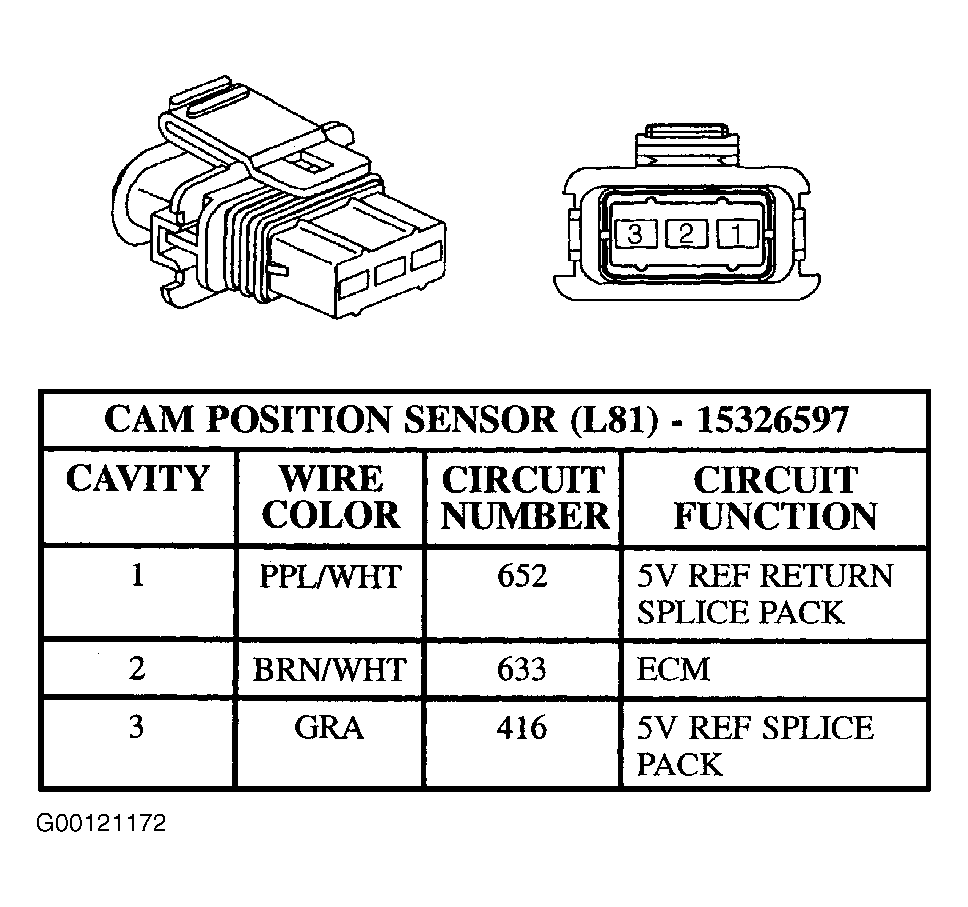

Fig 4: Identifying CMP Sensor Connector Terminals

G00121172

Courtesy of GENERAL MOTORS CORP.

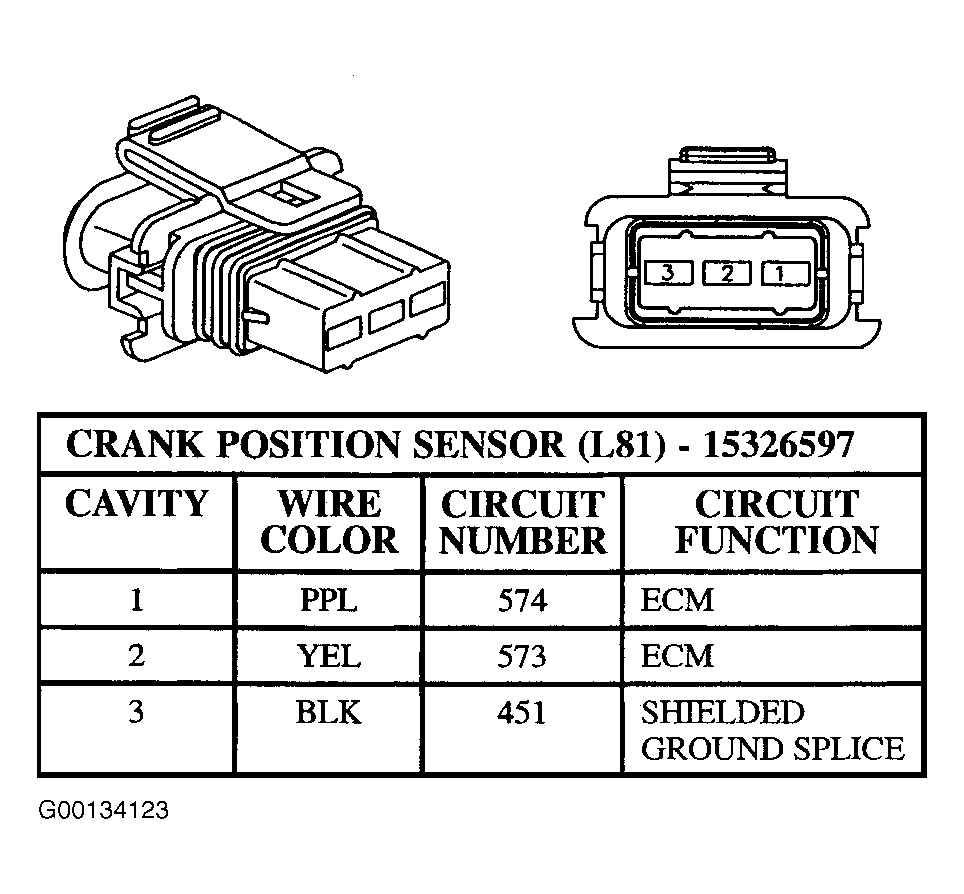

Fig 5: Identifying CKP Sensor Connector Terminals

G00134123

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Cruise Brake Switch Connector Terminals

G00121176

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EBTCM Connector Terminals (1 Of 2)

G00134107

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying EBTCM Connector Terminals (2 Of 2)

G00134108

Courtesy of GENERAL MOTORS CORP.

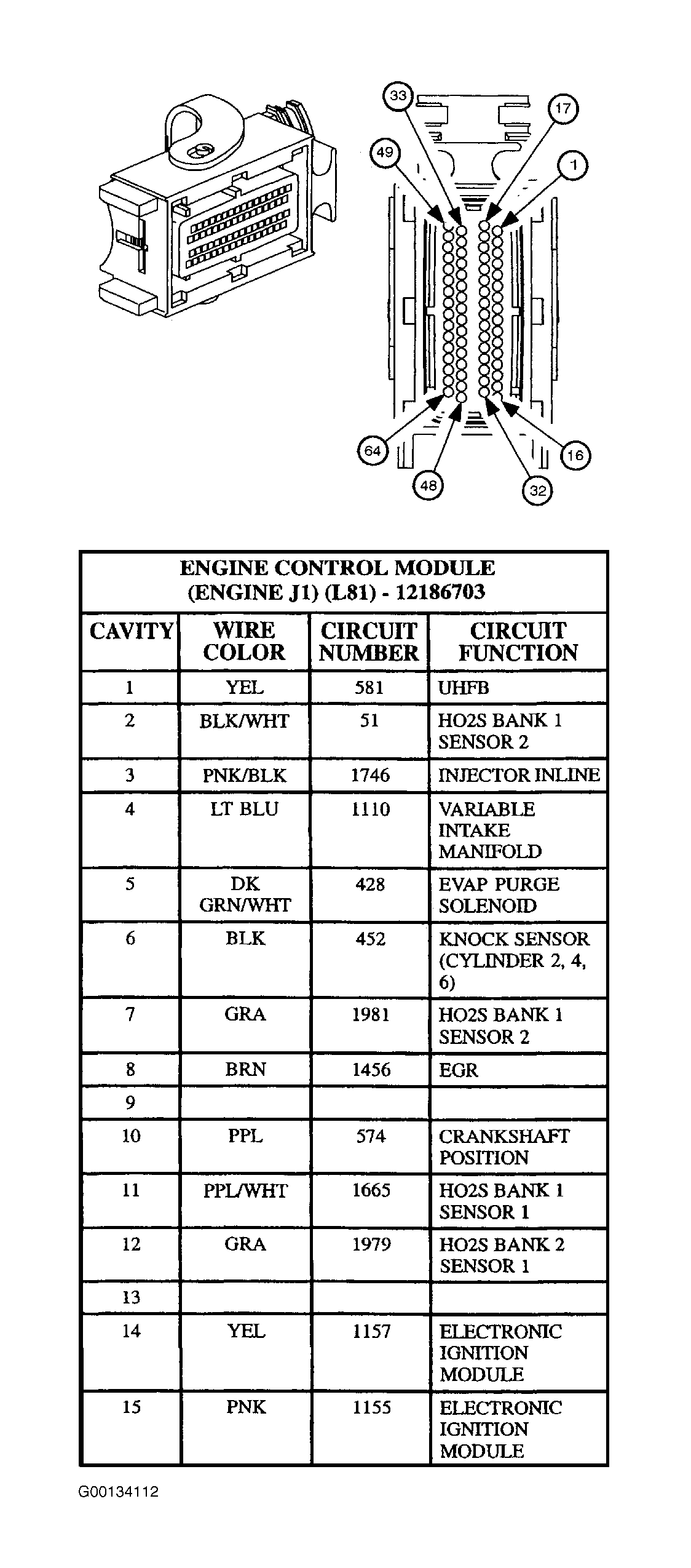

Fig 9: Identifying ECM Connector J1 Terminals (1 Of 5)

G00134112

Courtesy of GENERAL MOTORS CORP.

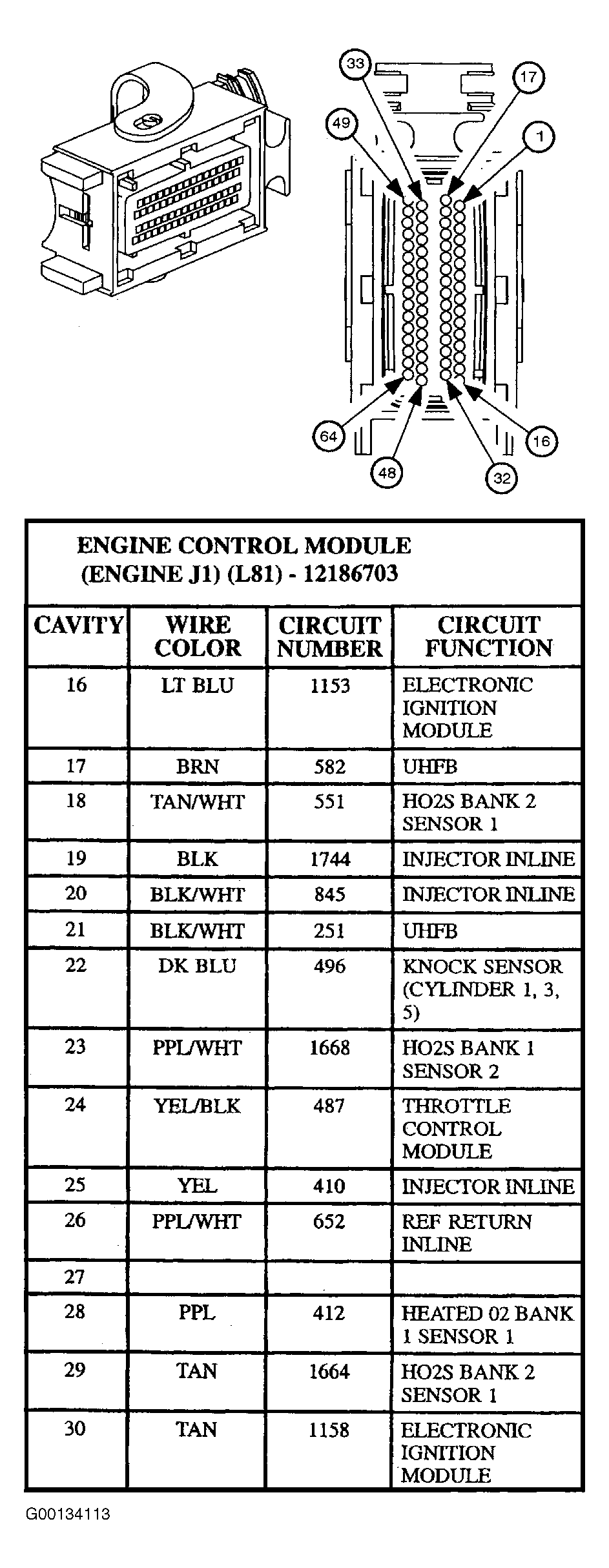

Fig 10: Identifying ECM Connector J1 Terminals (2 Of 5)

G00134113

Courtesy of GENERAL MOTORS CORP.

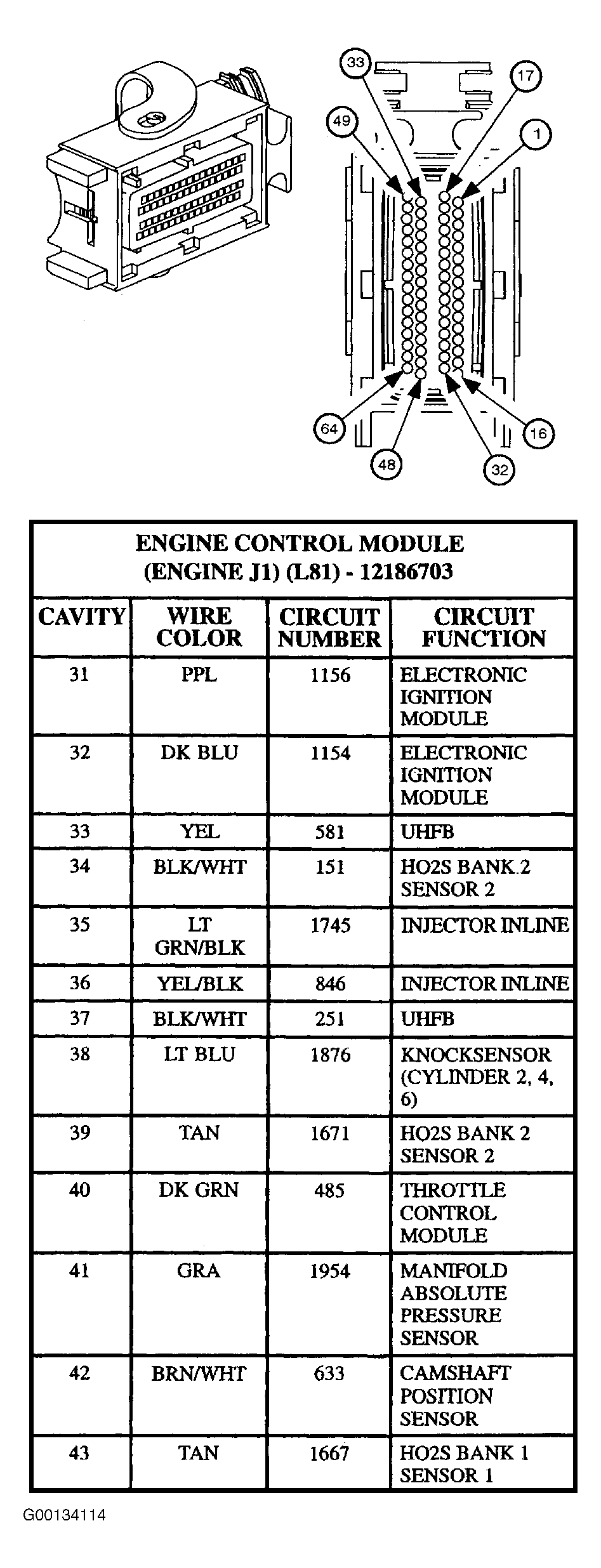

Fig 11: Identifying ECM Connector J1 Terminals (3 Of 5)

G00134114

Courtesy of GENERAL MOTORS CORP.

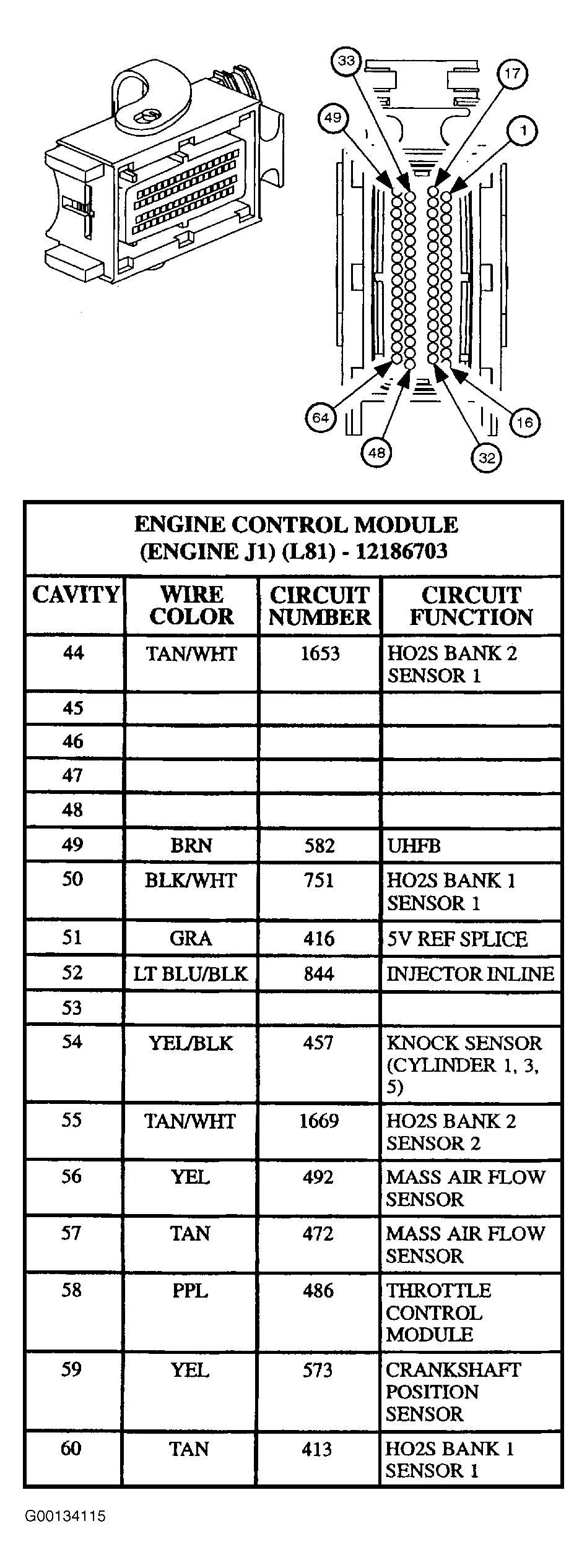

Fig 12: Identifying ECM Connector J1 Terminals (4 Of 5)

G00134115

Courtesy of GENERAL MOTORS CORP.

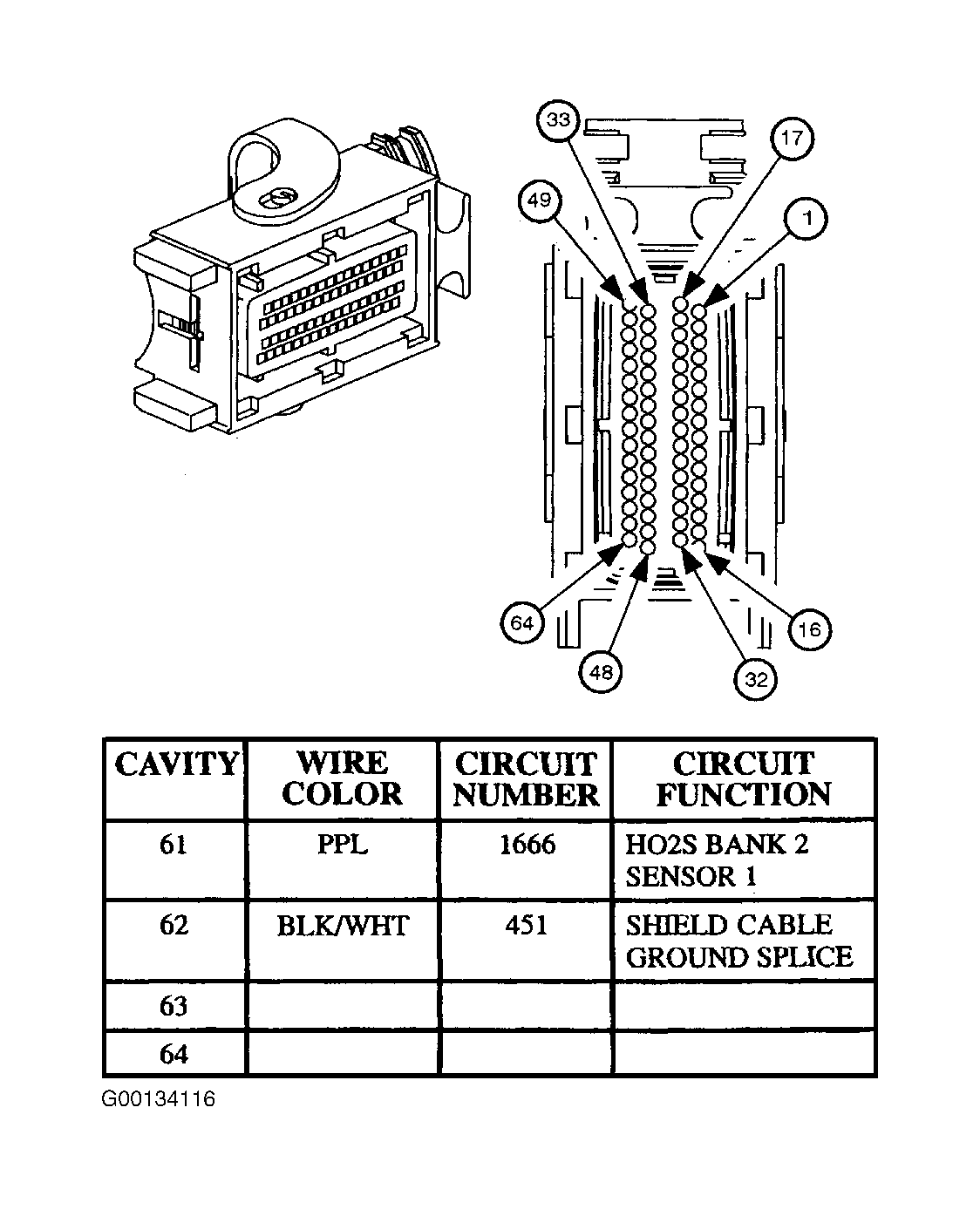

Fig 13: Identifying ECM Connector J1 Terminals (5 Of 5)

G00134116

Courtesy of GENERAL MOTORS CORP.

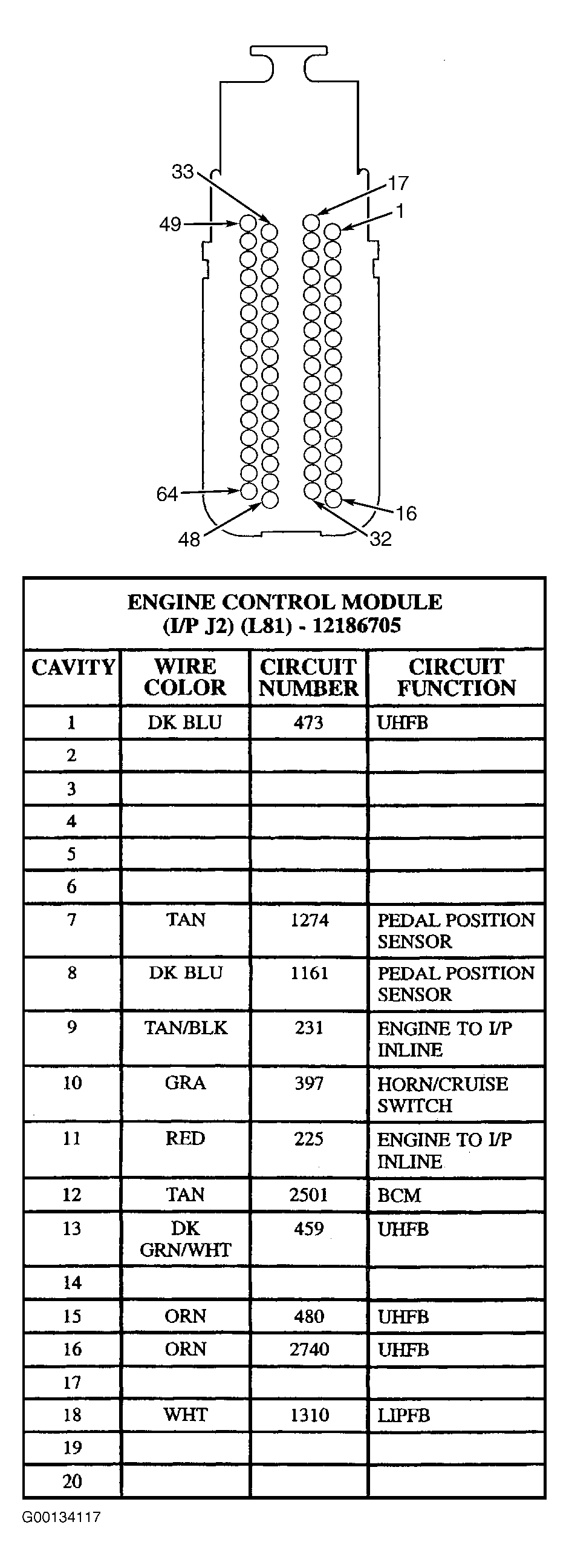

Fig 14: Identifying ECM Connector J2 Terminals (1 Of 4)

G00134117

Courtesy of GENERAL MOTORS CORP.

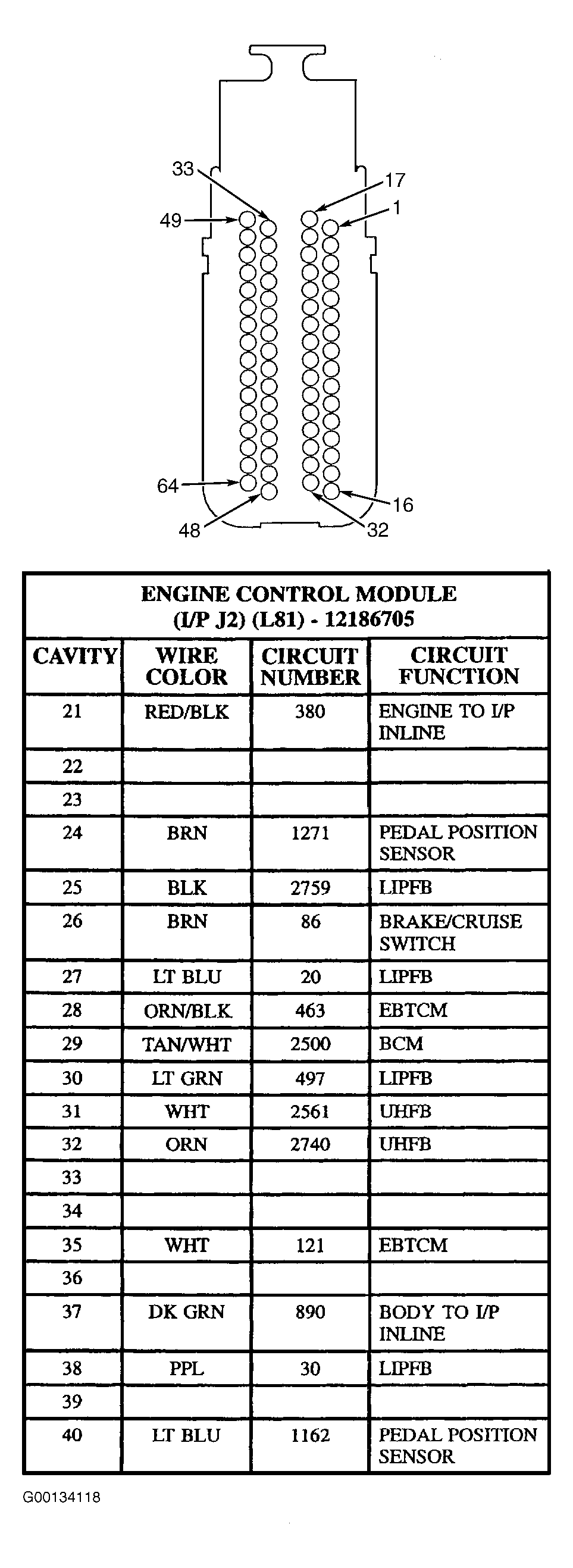

Fig 15: Identifying ECM Connector J2 Terminals (2 Of 4)

G00134118

Courtesy of GENERAL MOTORS CORP.

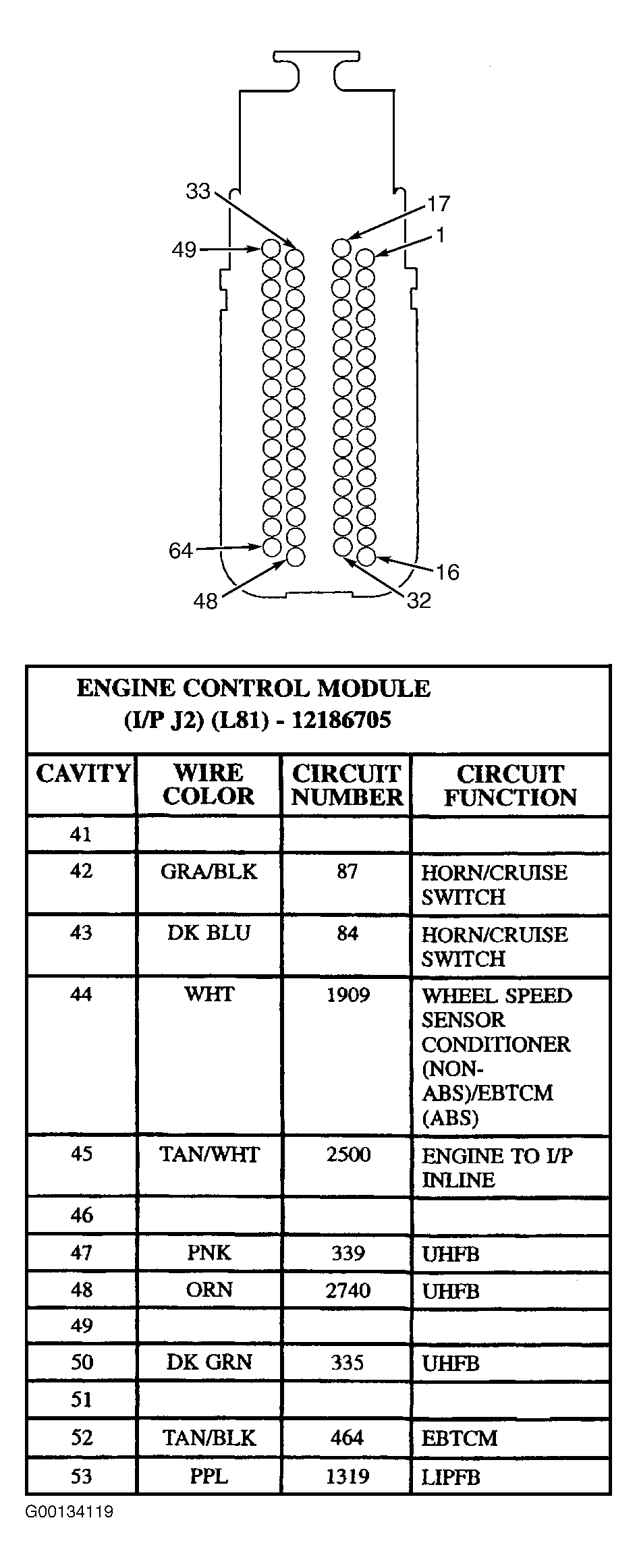

Fig 16: Identifying ECM Connector J2 Terminals (3 Of 4)

G00134119

Courtesy of GENERAL MOTORS CORP.

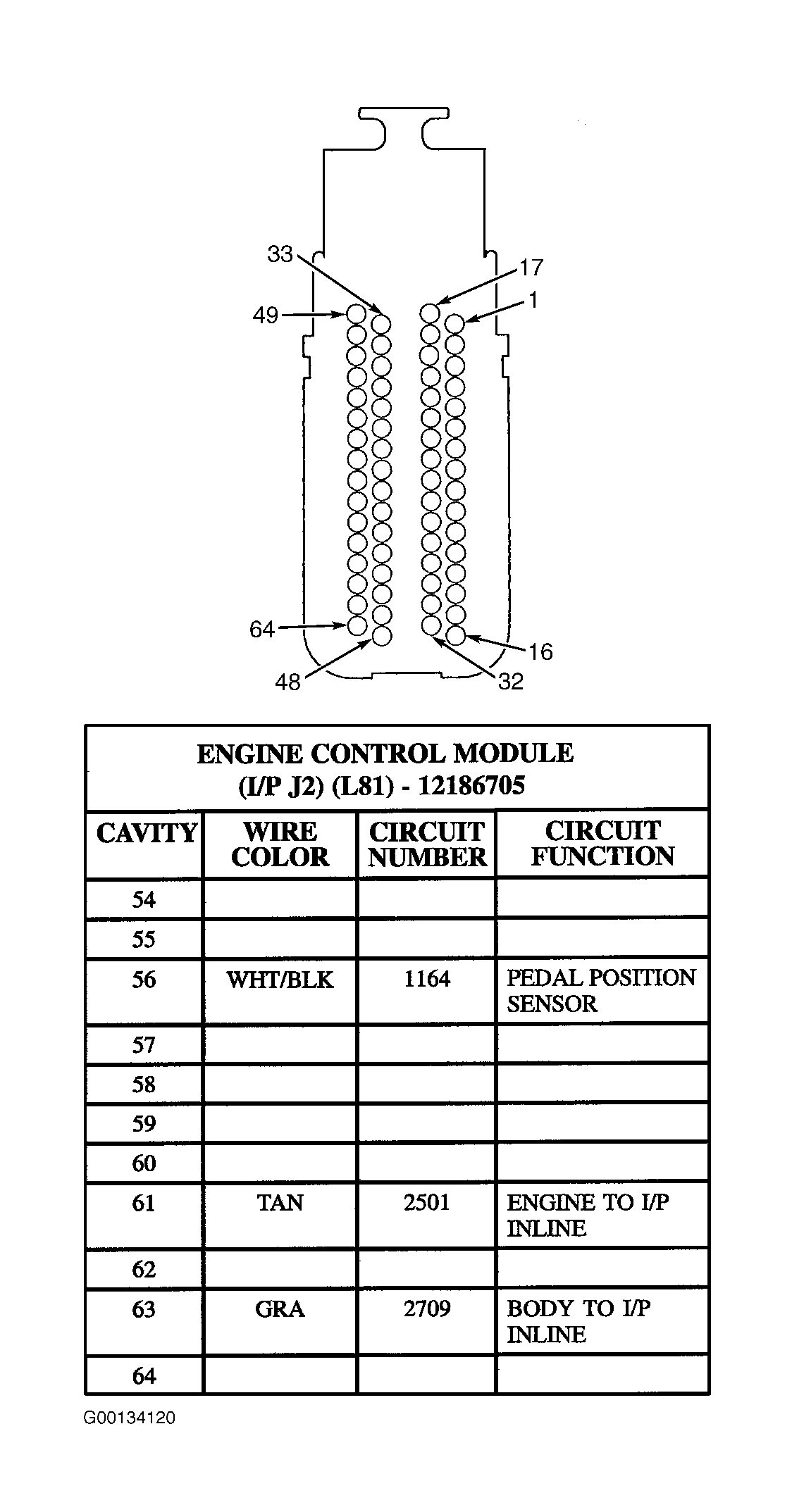

Fig 17: Identifying ECM Connector J2 Terminals (4 Of 4)

G00134120

Courtesy of GENERAL MOTORS CORP.

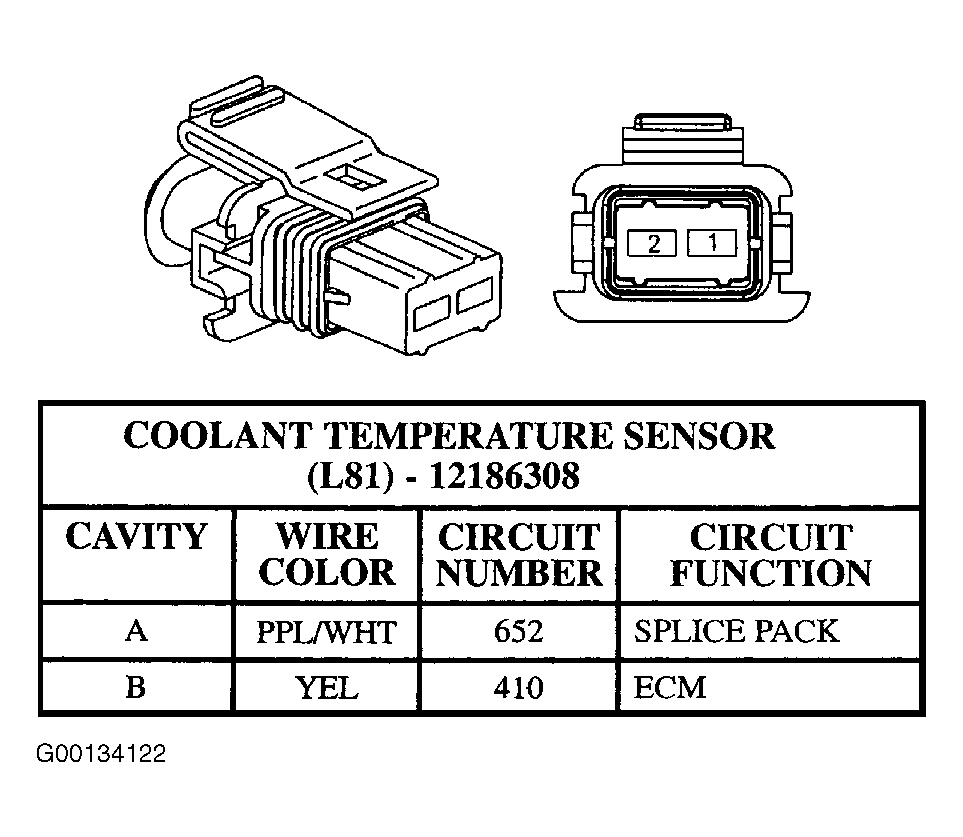

Fig 18: Identifying ECT Sensor Connector Terminals

G00134122

Courtesy of GENERAL MOTORS CORP.

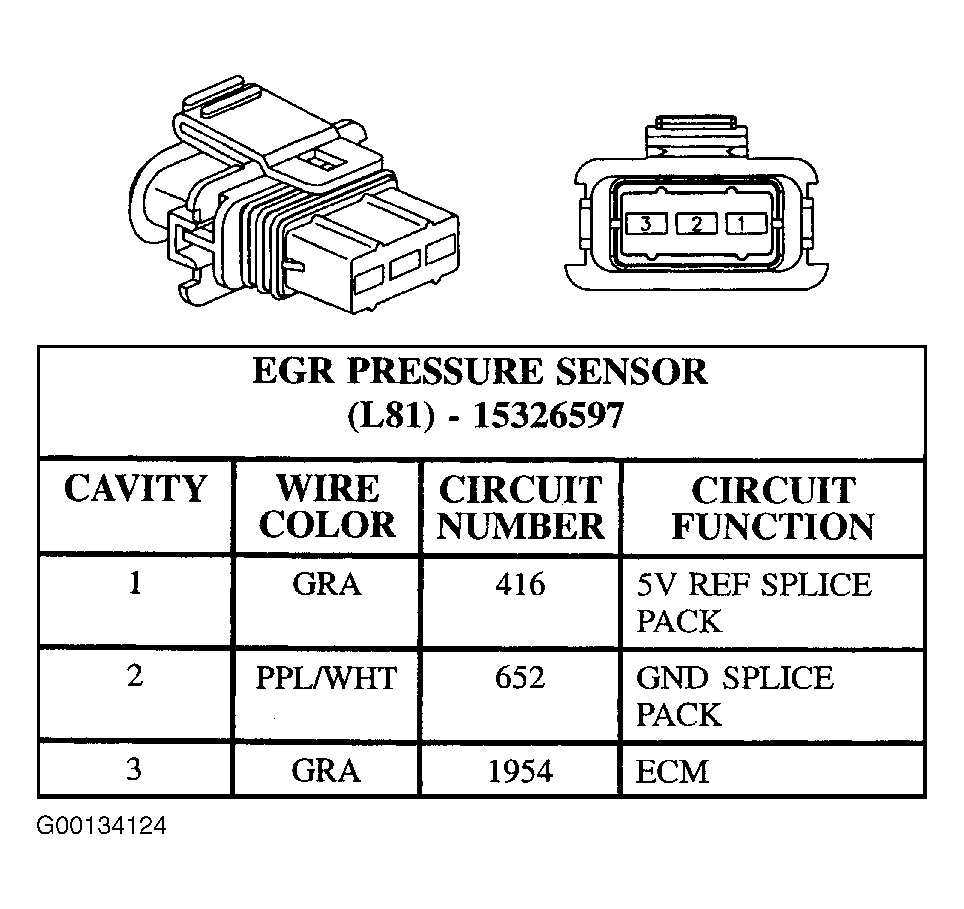

Fig 19: Identifying EGR Pressure Sensor Connector Terminals

G00134124

Courtesy of GENERAL MOTORS CORP.

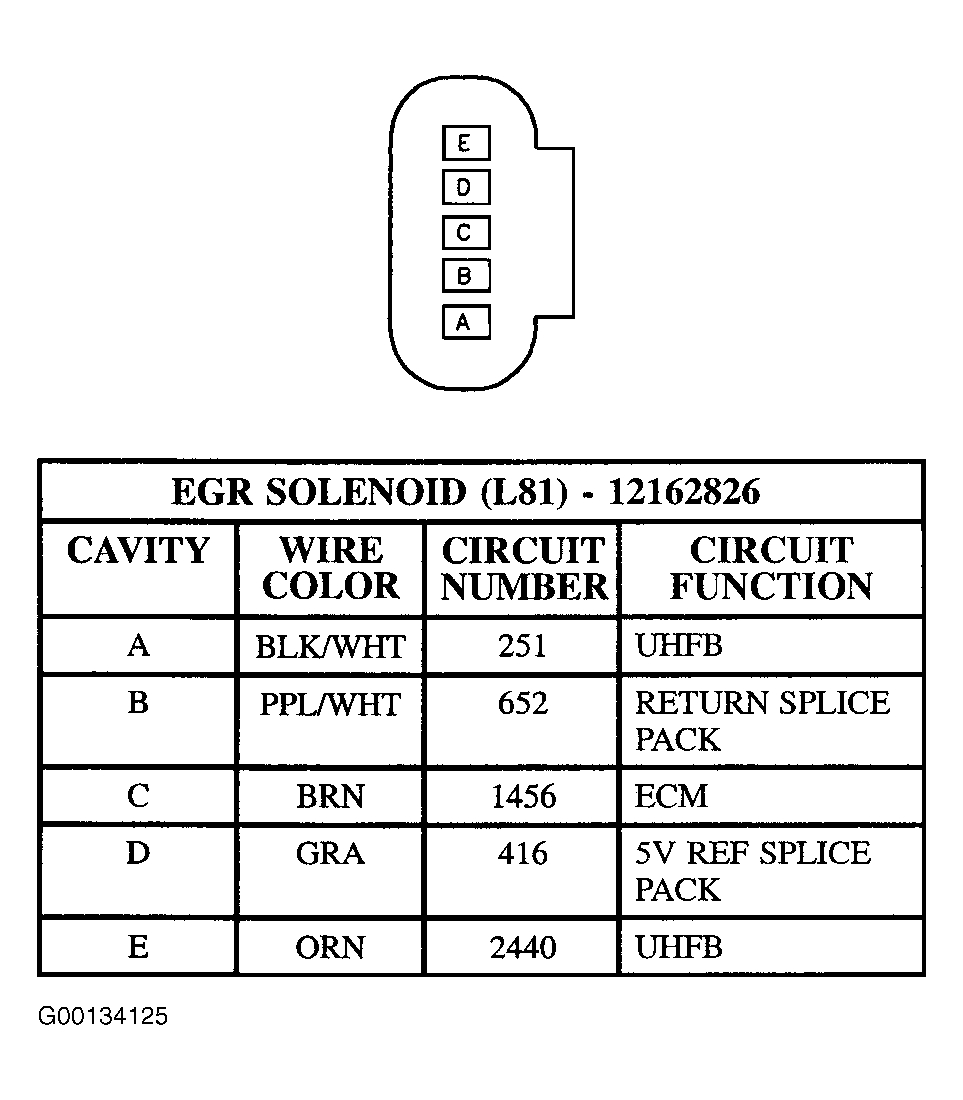

Fig 20: Identifying EGR Solenoid Connector Terminals

G00134125

Courtesy of GENERAL MOTORS CORP.

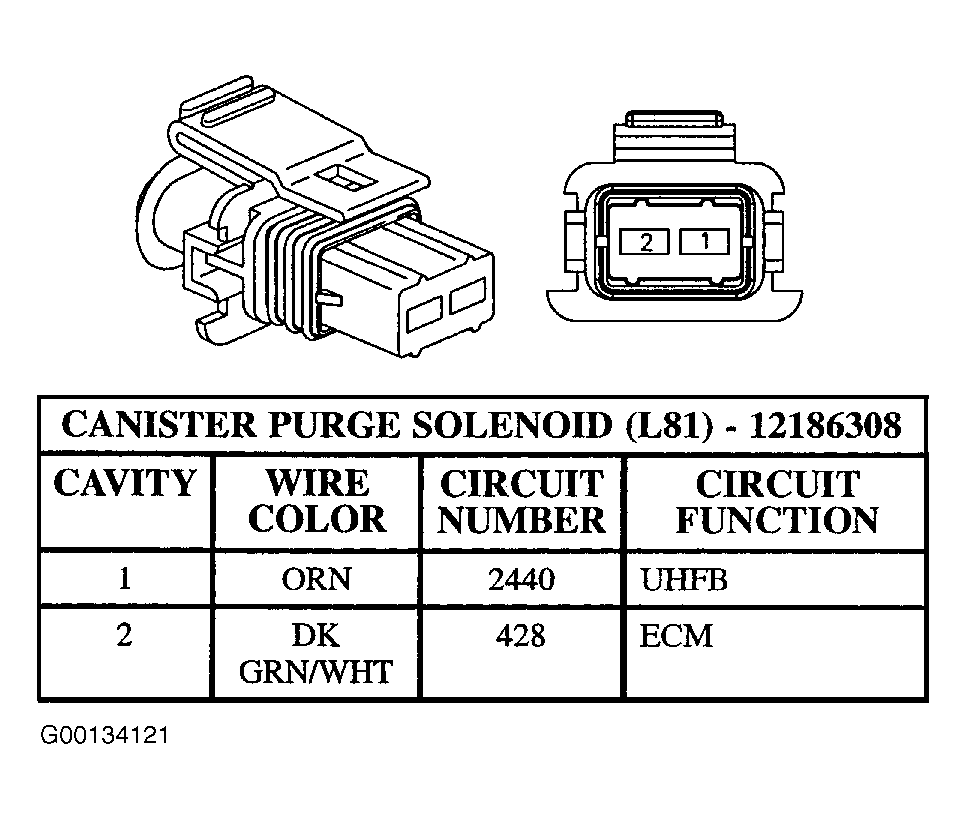

Fig 21: Identifying EVAP Purge Solenoid Connector Terminals

G00134121

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying EVAP Vent Solenoid Connector Terminals

G00121178

Courtesy of GENERAL MOTORS CORP.

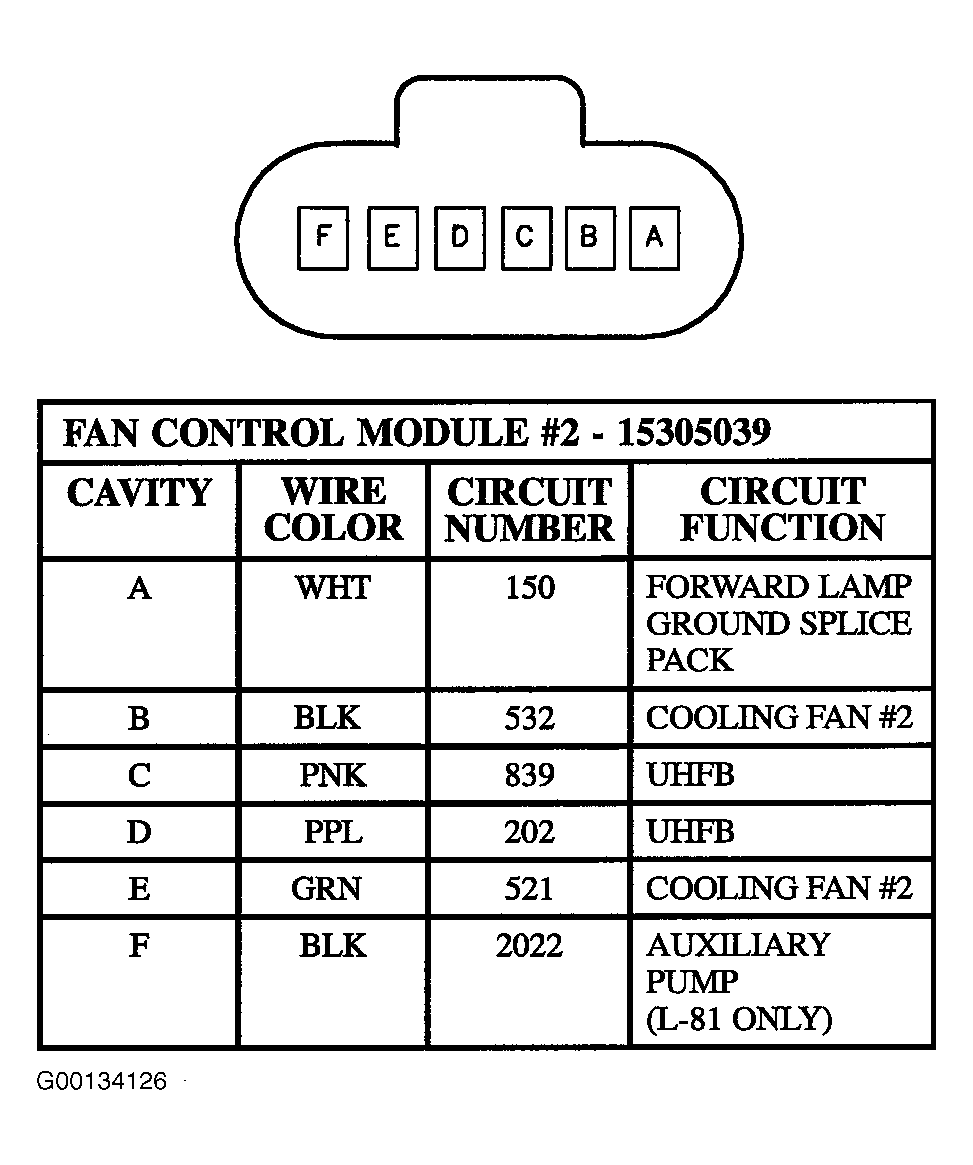

Fig 23: Identifying Fan Control Module Connector (Brown) Terminals

G00134126

Courtesy of GENERAL MOTORS CORP.

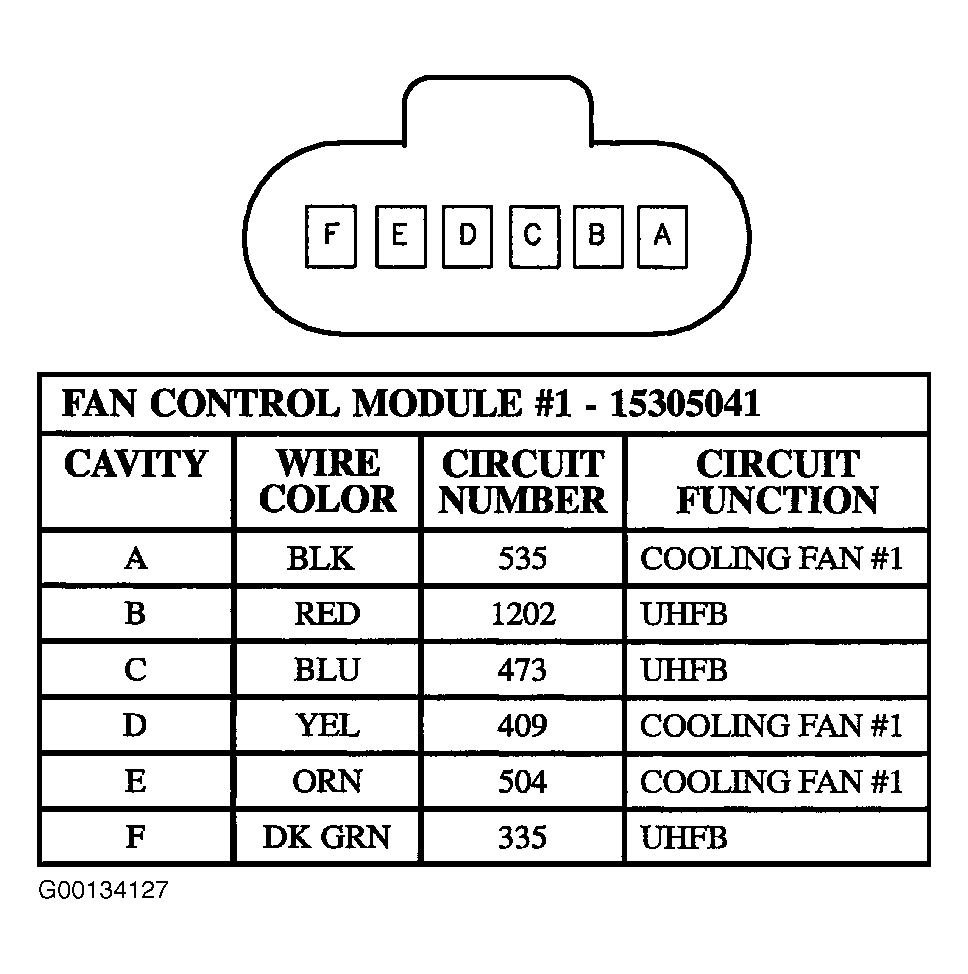

Fig 24: Identifying Fan Control Module Connector (Blue) Terminals

G00134127

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying FTP Sensor Connector Terminals

G00121180

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Fuel Tank In-Line Connector Terminals

G00121179

Courtesy of GENERAL MOTORS CORP.

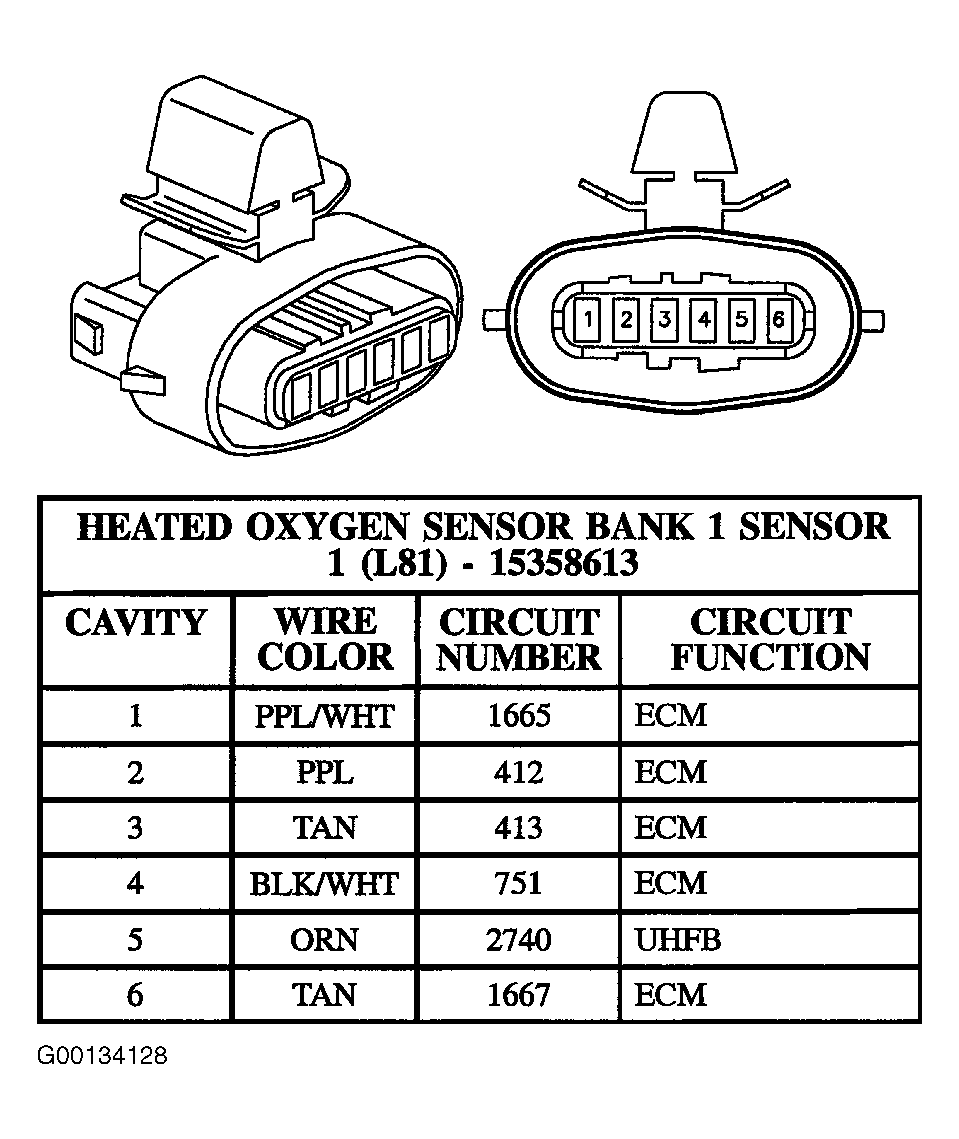

Fig 27: Identifying Heated Oxygen Sensor Bank 1, Sensor 1 Connector Terminals

G00134128

Courtesy of GENERAL MOTORS CORP.

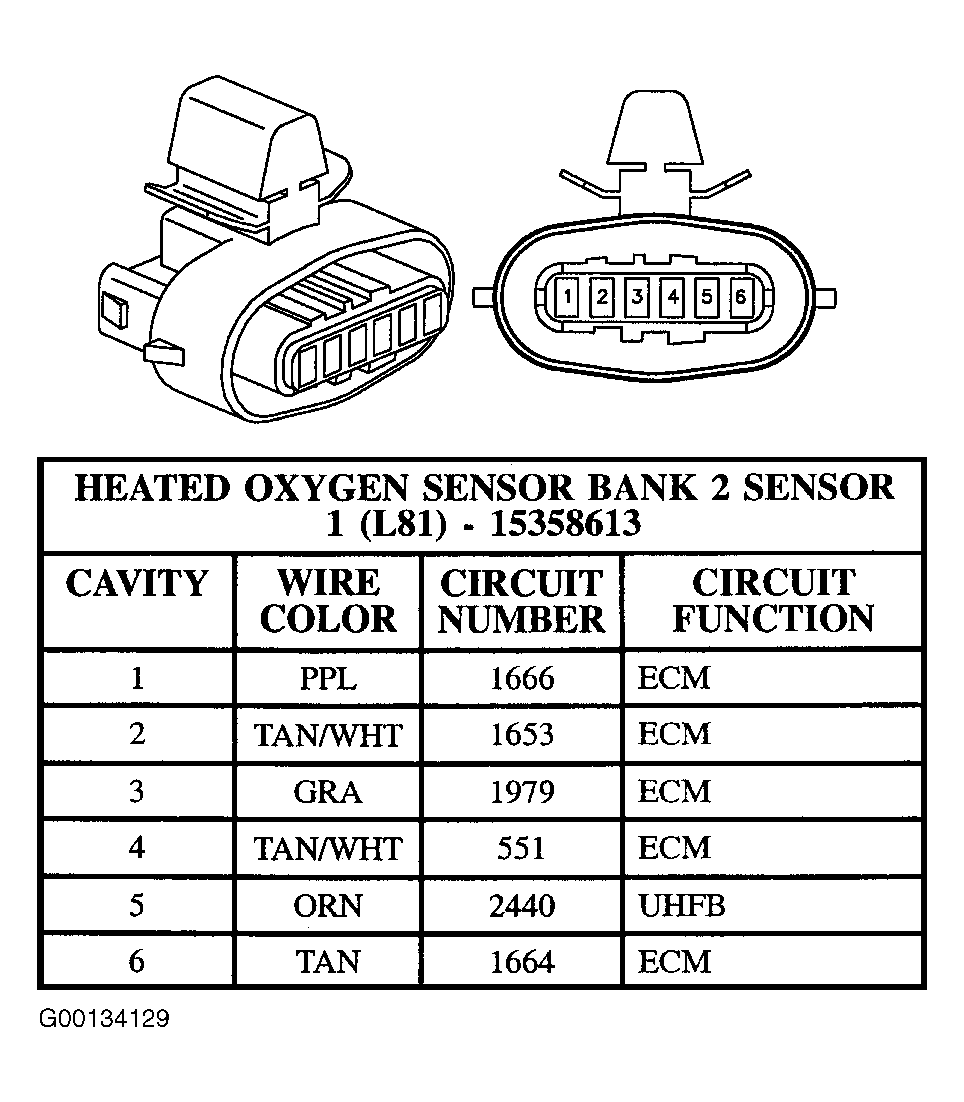

Fig 28: Identifying Heated Oxygen Sensor Bank 2, Sensor 1 Connector Terminals

G00134129

Courtesy of GENERAL MOTORS CORP.

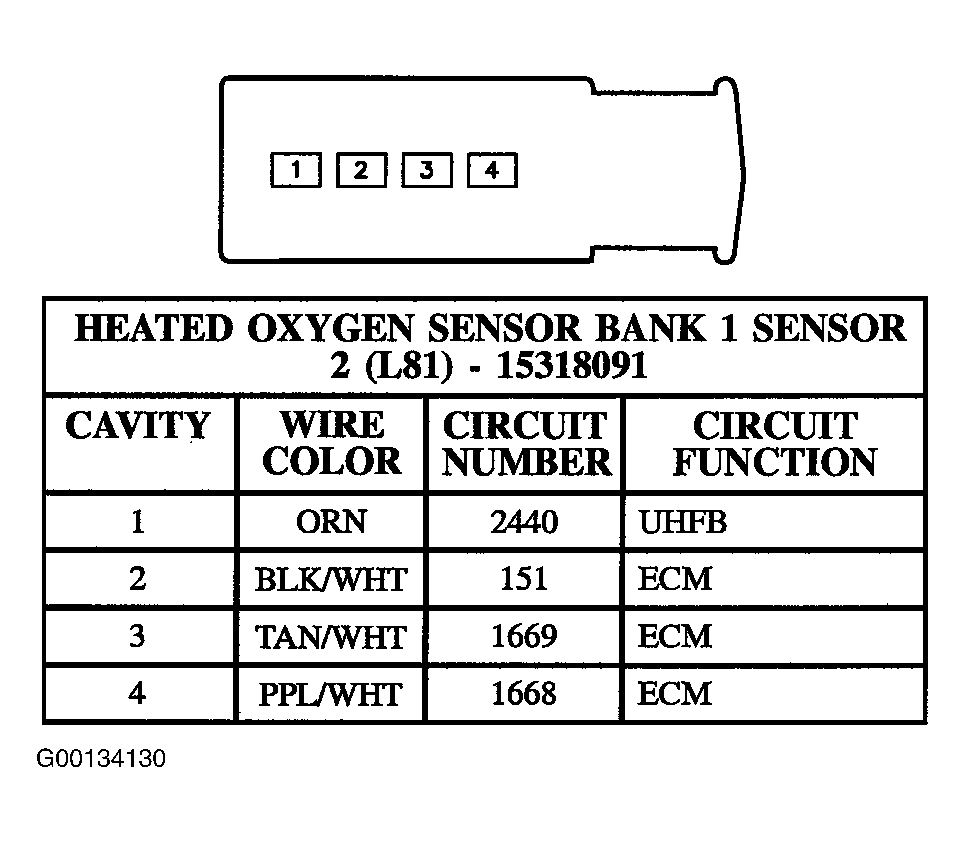

Fig 29: Identifying Heated Oxygen Sensor Bank 1, Sensor 2 Connector Terminals

G00134130

Courtesy of GENERAL MOTORS CORP.

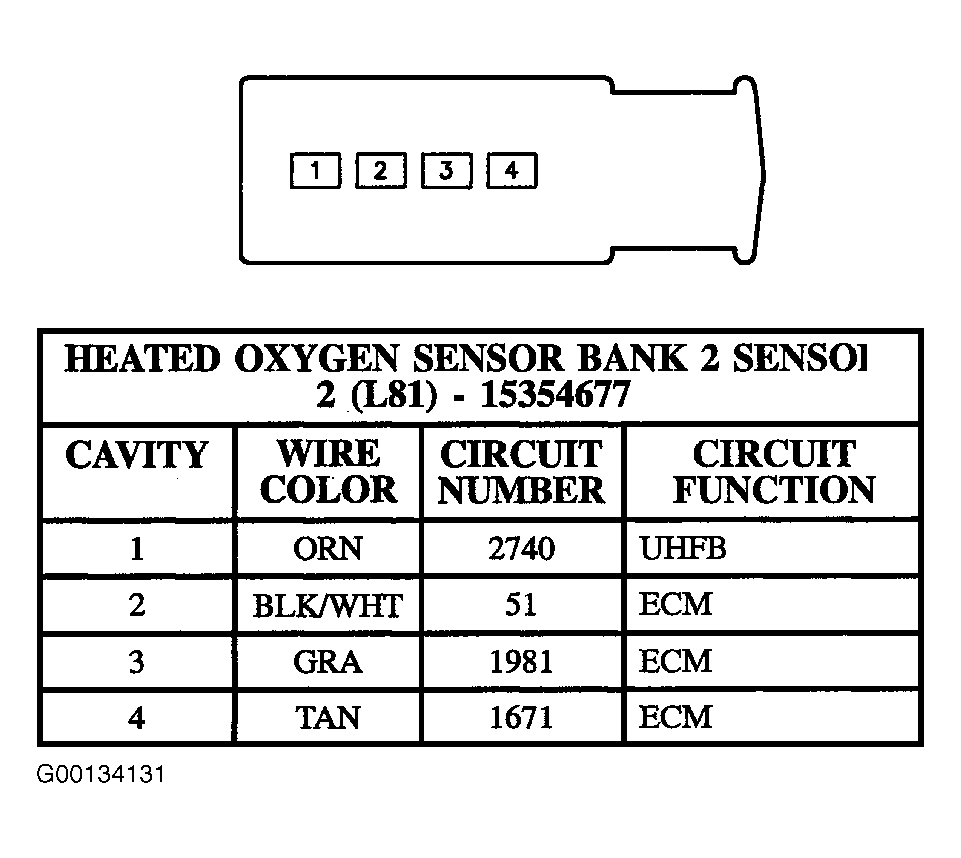

Fig 30: Identifying Heated Oxygen Sensor Bank 2, Sensor 2 Connector Terminals

G00134131

Courtesy of GENERAL MOTORS CORP.

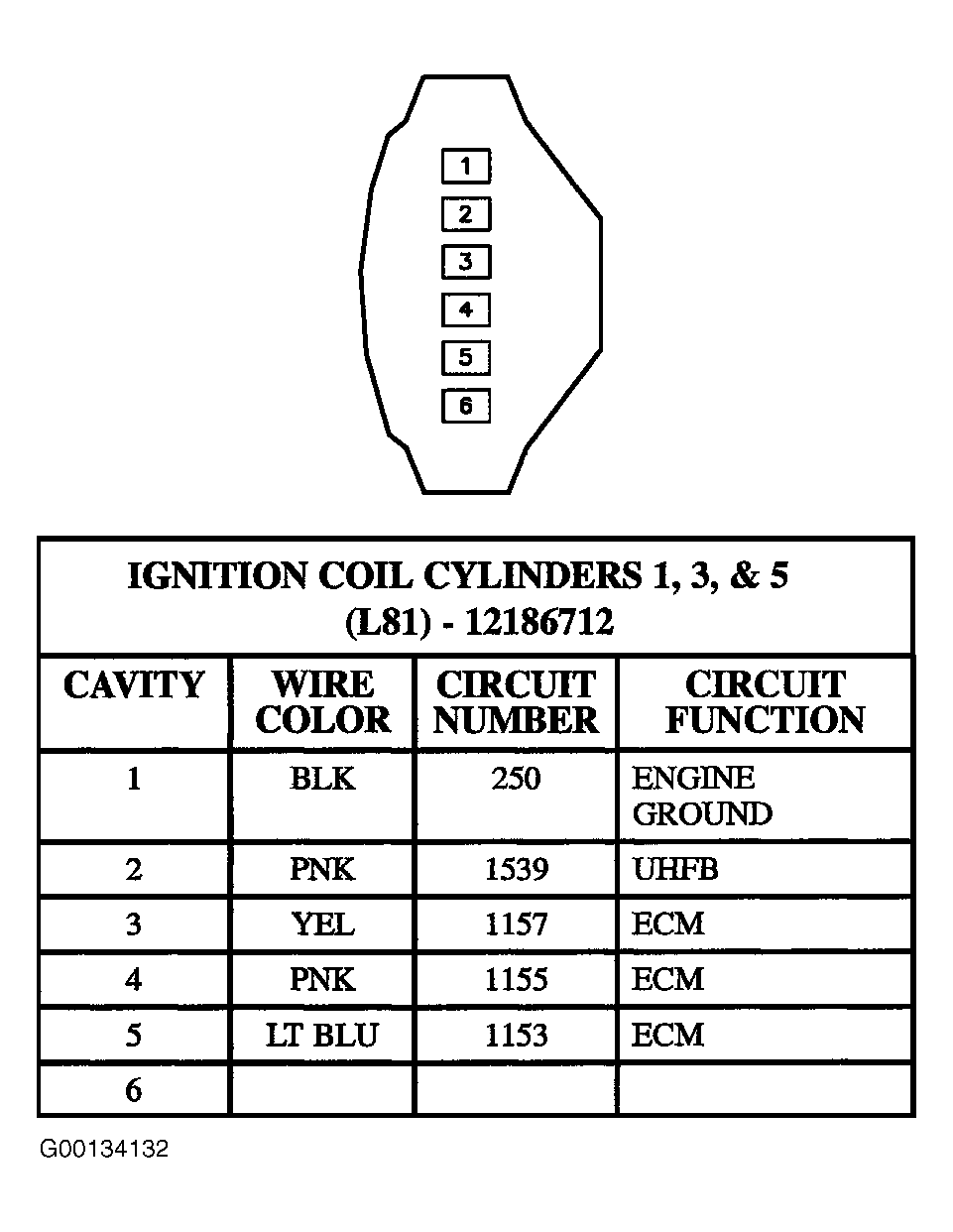

Fig 31: Identifying Ignition Coil Cylinders 1, 3 & 5 Connector Terminals

G00134132

Courtesy of GENERAL MOTORS CORP.

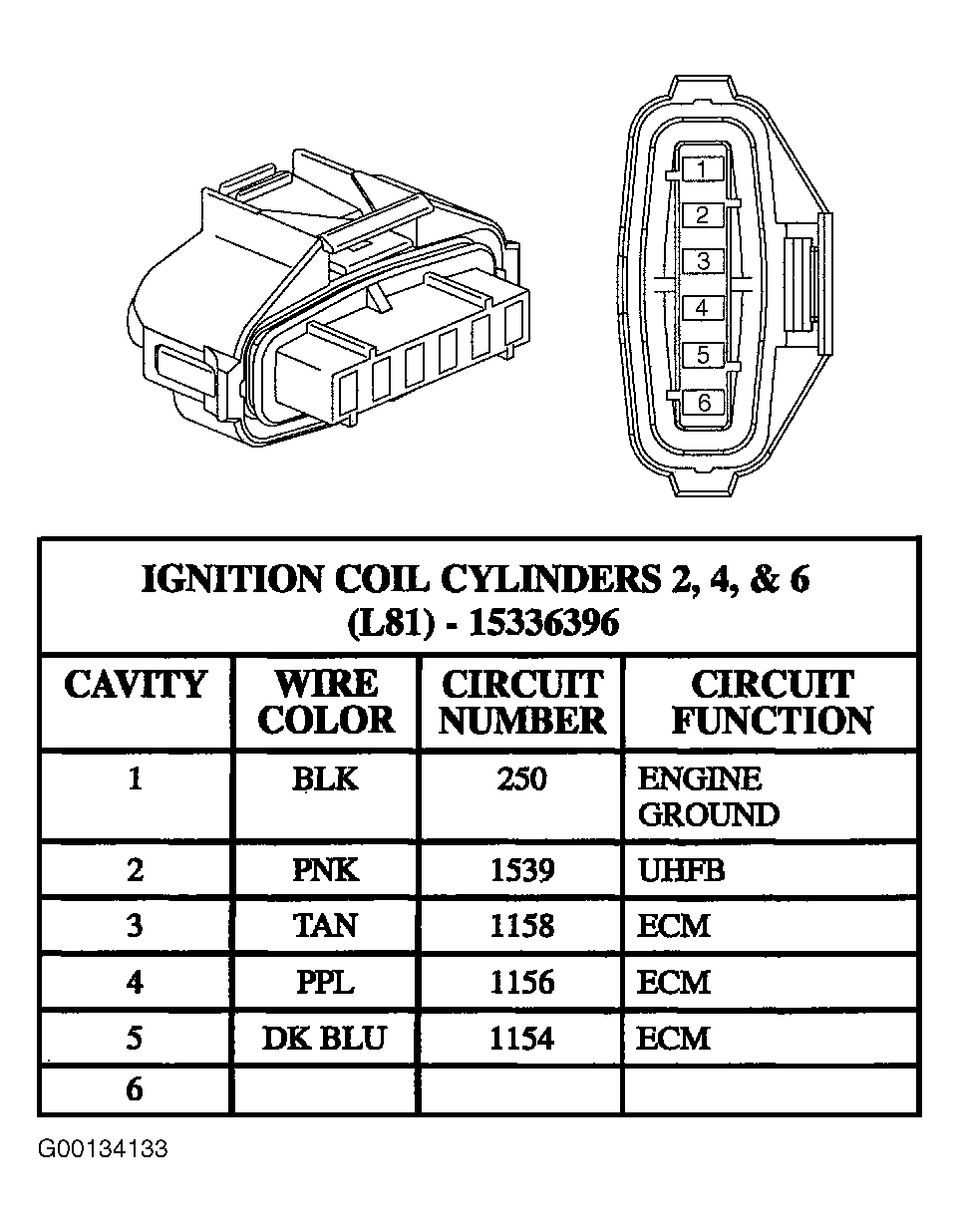

Fig 32: Identifying Ignition Coil Cylinders 2, 4 & 6 Connector Terminals

G00134133

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Knock Sensor Bank 1 Connector Terminals

G00134134

Courtesy of GENERAL MOTORS CORP.

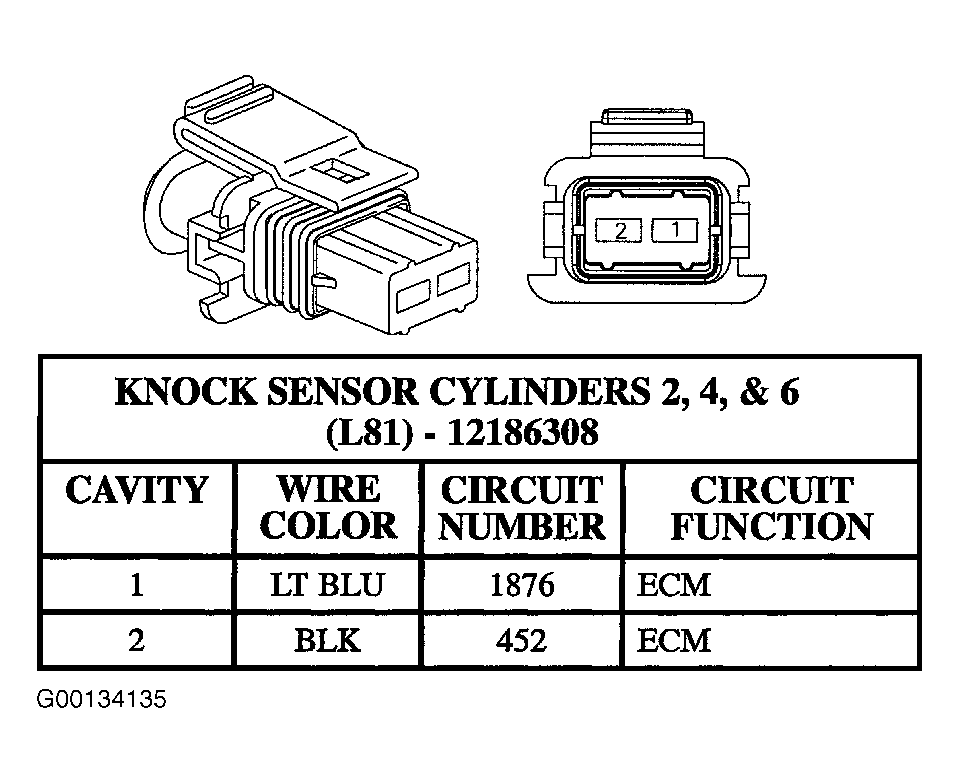

Fig 34: Identifying Knock Sensor Bank 2 Connector Terminals

G00134135

Courtesy of GENERAL MOTORS CORP.

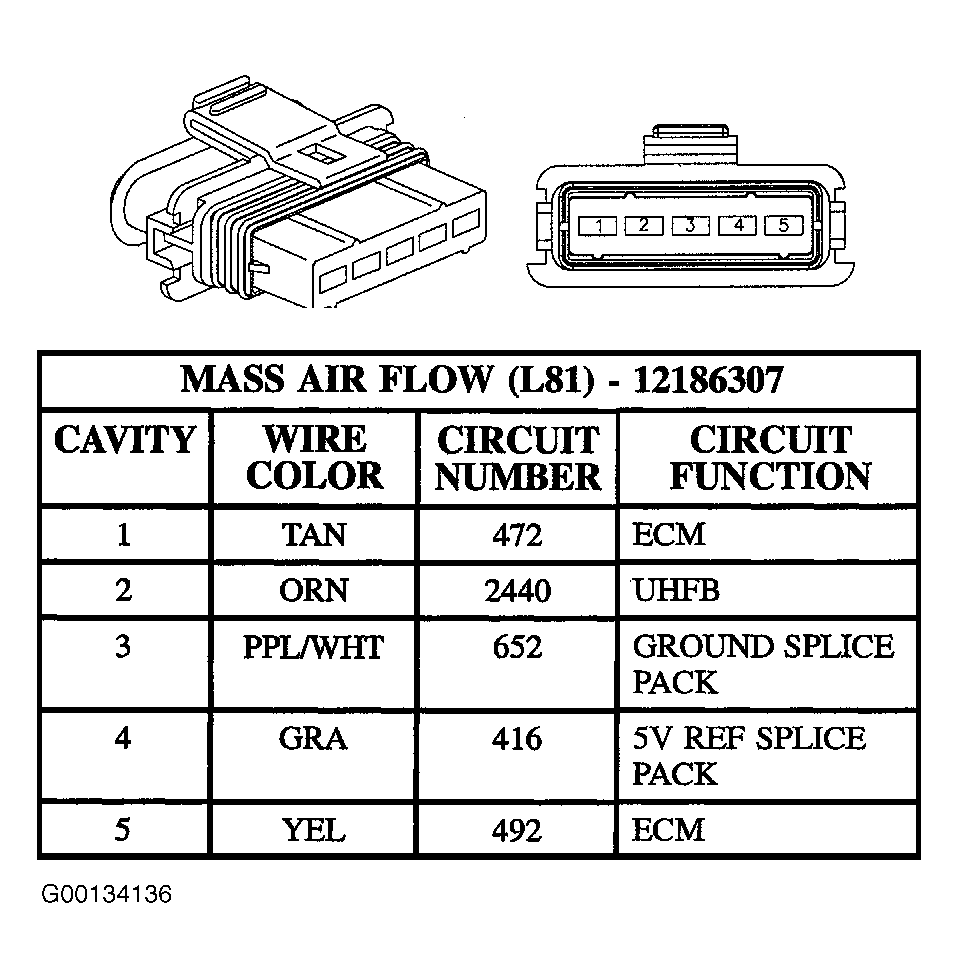

Fig 35: Identifying MAF Sensor Connector Terminals

G00134136

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying Transmission Range Switch 4-Pin Connector Terminals

G00134103

Courtesy of GENERAL MOTORS CORP.

Fig 37: Identifying Transmission Range Switch 7-Pin Connector Terminals

G00134104

Courtesy of GENERAL MOTORS CORP.

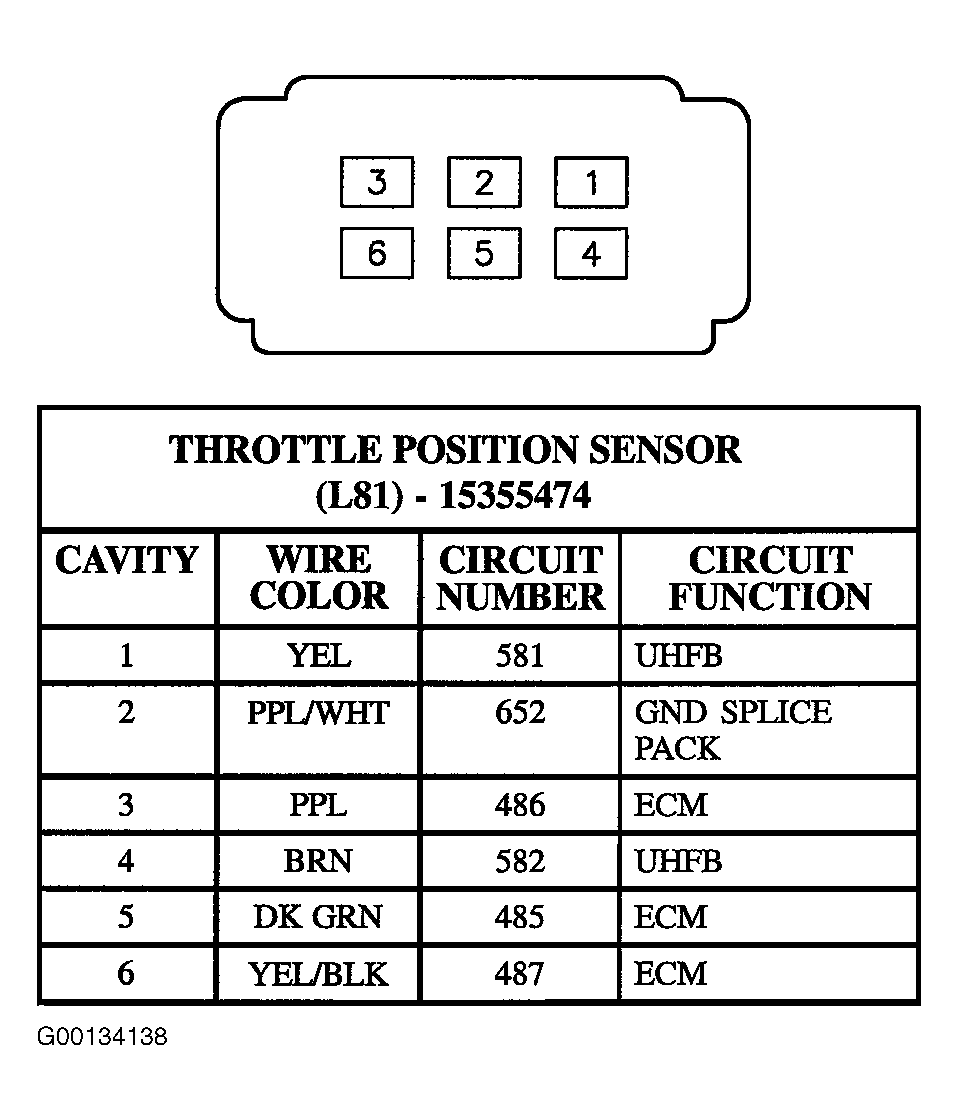

Fig 38: Identifying TP Sensor Connector Terminals

G00134138

Courtesy of GENERAL MOTORS CORP.
