Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

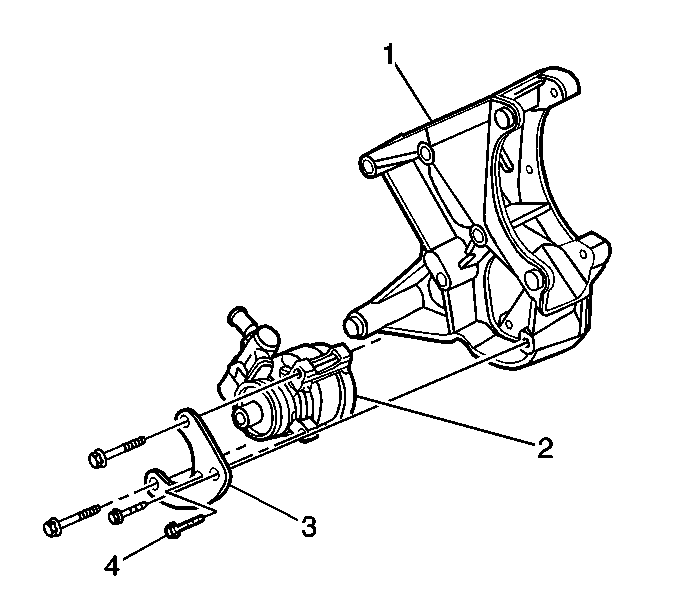

    Fig 1: Power Steering Pump Rear Bracket, Power Steering Pump & Mounting Bolts
    GM663512Courtesy of GENERAL MOTORS CORP.
  1. Install the following components to the power steering pump rear bracket (1):
    • The power steering pump (2).
    • The power steering pump front bracket (3).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering pump mounting bolts (4) to the power steering pump (2).

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the power steering reservoir outlet pipe/hose to the power steering pump. Refer to Power Steering Reservoir Outlet Pipe/Hose Replacement .
  4. Install the power steering pressure hose to the power steering pump. Refer to Power Steering Pressure Pipe/Hose Replacement .
  5. Install the power steering pump pulley. Refer to Power Steering Pulley Replacement .
  6. Install the power steering fluid reservoir. Refer to Remote Power Steering Fluid Reservoir Replacement .
  7. Install the Brake Pressure Modulator Valve (BPMV) bracket. Refer to Brake Pressure Modulator Valve (BPMV) Bracket Replacement in Antilock Brake System.
  8. Install the Brake Pressure Modulator Valve (BPMV). Refer to Brake Pressure Modulator Valve (BPMV) Replacement in Antilock Brake System.
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
