Wheel Alignment Specifications
>>
Specifications
>>
S Series
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
S Series

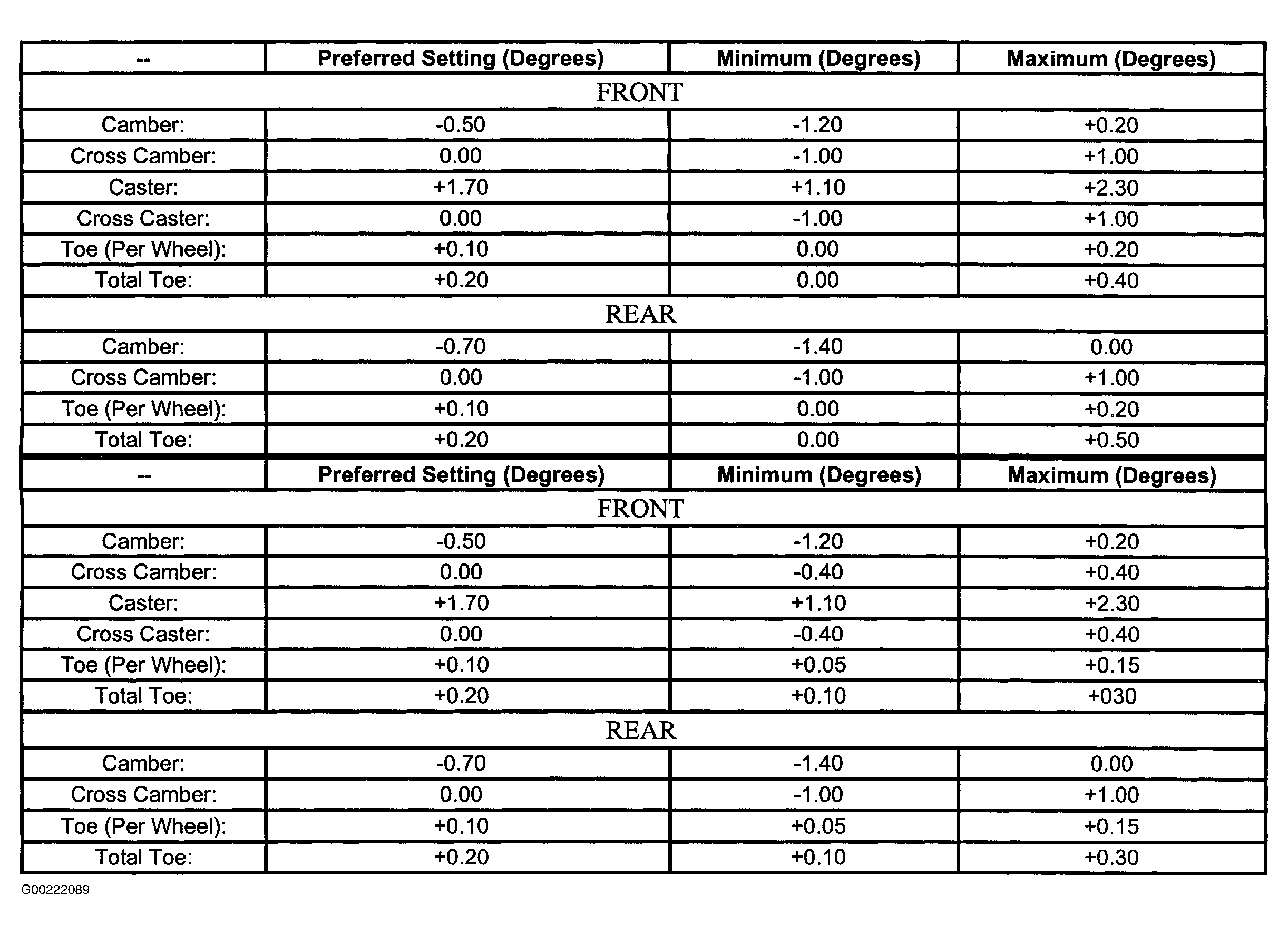

Fig 1: Wheel Alignment Specifications (S Series)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
