Wheel Alignment Specifications: Specifications: VUE

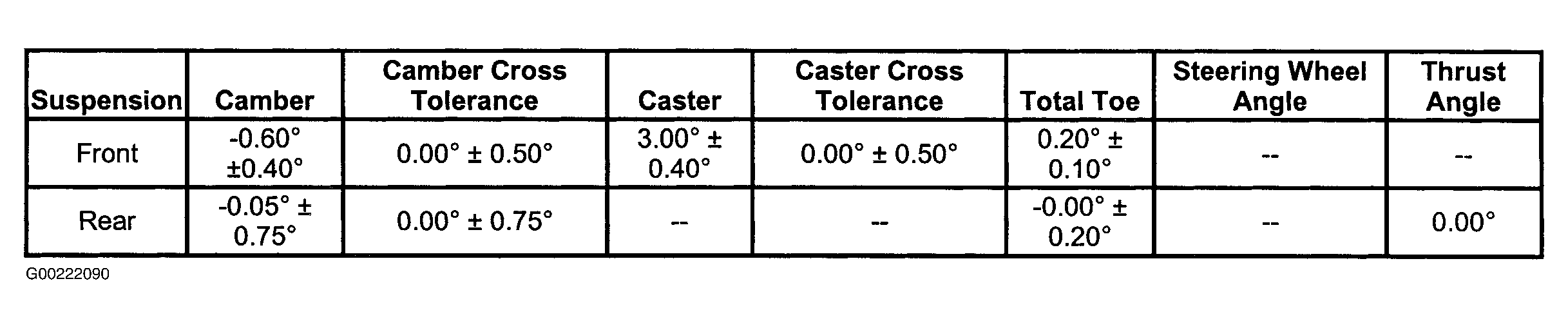

Fig 1: Wheel Alignment Specifications (Vue)

G00222090

Courtesy of GENERAL MOTORS CORP.
