Modify Cruise Control Module

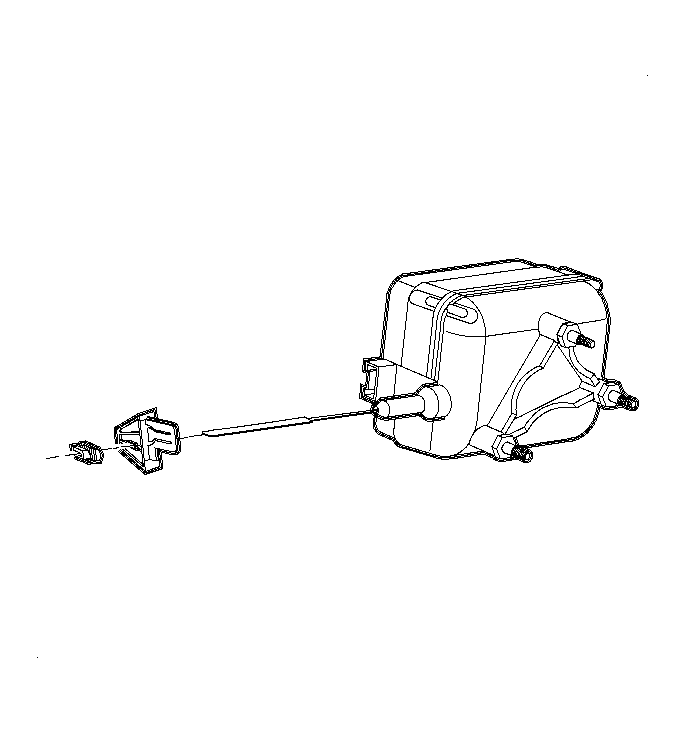

Fig 1: Modifying Cruise Control Module For RHD Vehicles (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The cruise control module must be modified as described in the following procedure before installing it on a RHD domestic vehicle.

Depress the release tab on the adjuster and slide the adjuster off the cruise control module rod.
Remove and discard the accelerator pedal bracket.

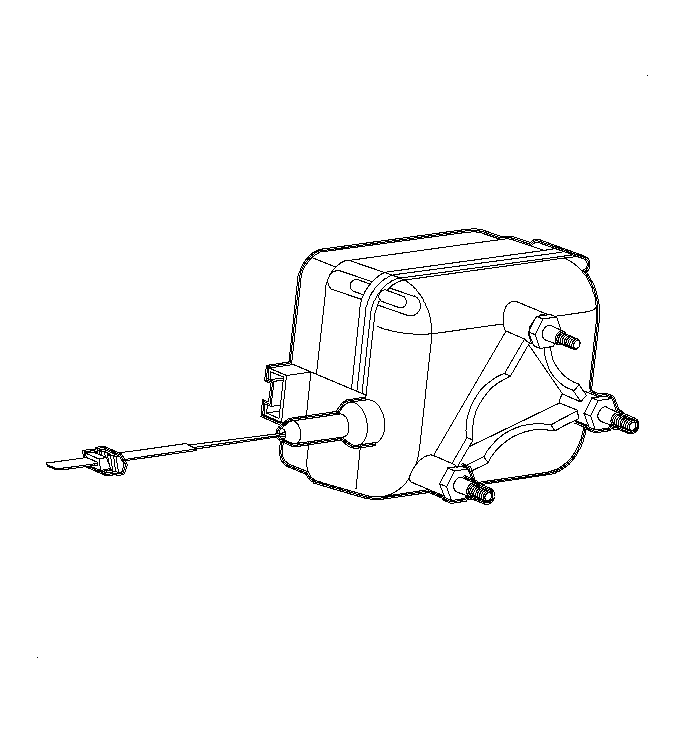

Fig 2: Modifying Cruise Control Module For RHD Vehicles (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Install the adjuster on the cruise module rod. The adjuster and rod are keyed to ensure proper orientation.
Confirm that the adjuster is locked to the rod by pulling the adjuster rearward (the adjuster should slide forward but not rearward when properly installed).
