Connector Identification

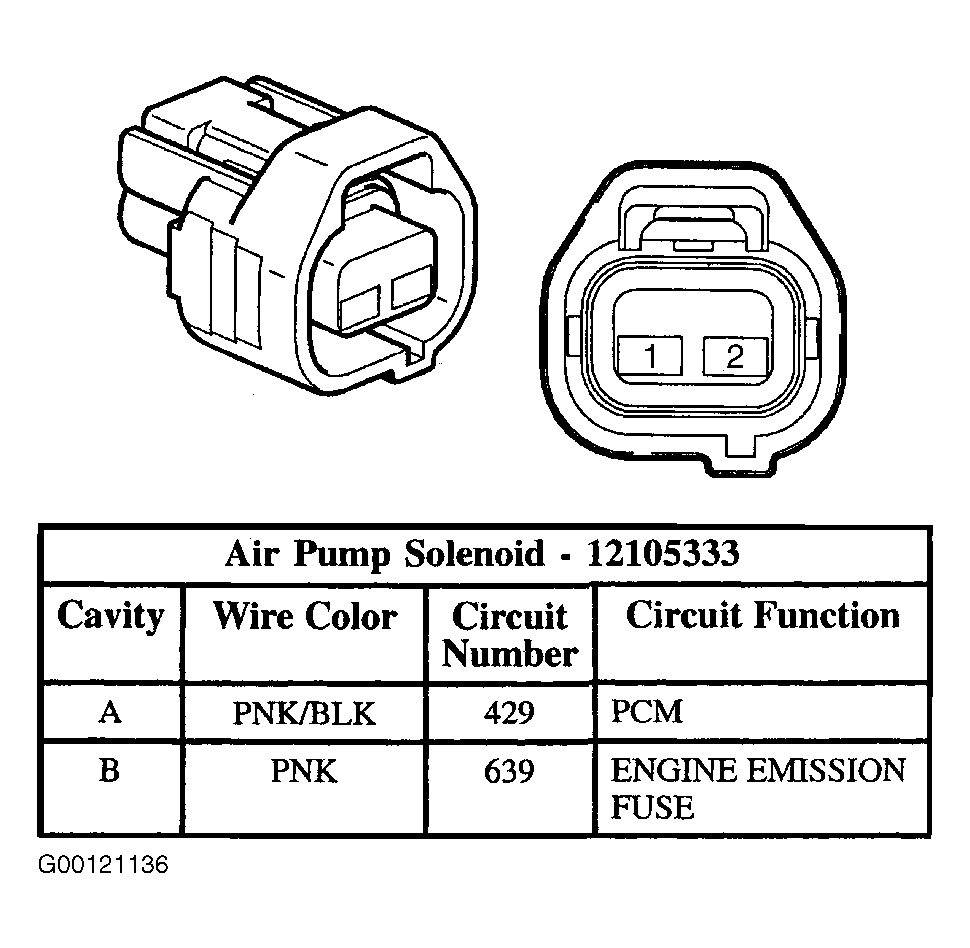

Fig 1: Identifying AIR Pump Solenoid Connector Terminals

G00121136

Courtesy of GENERAL MOTORS CORP.

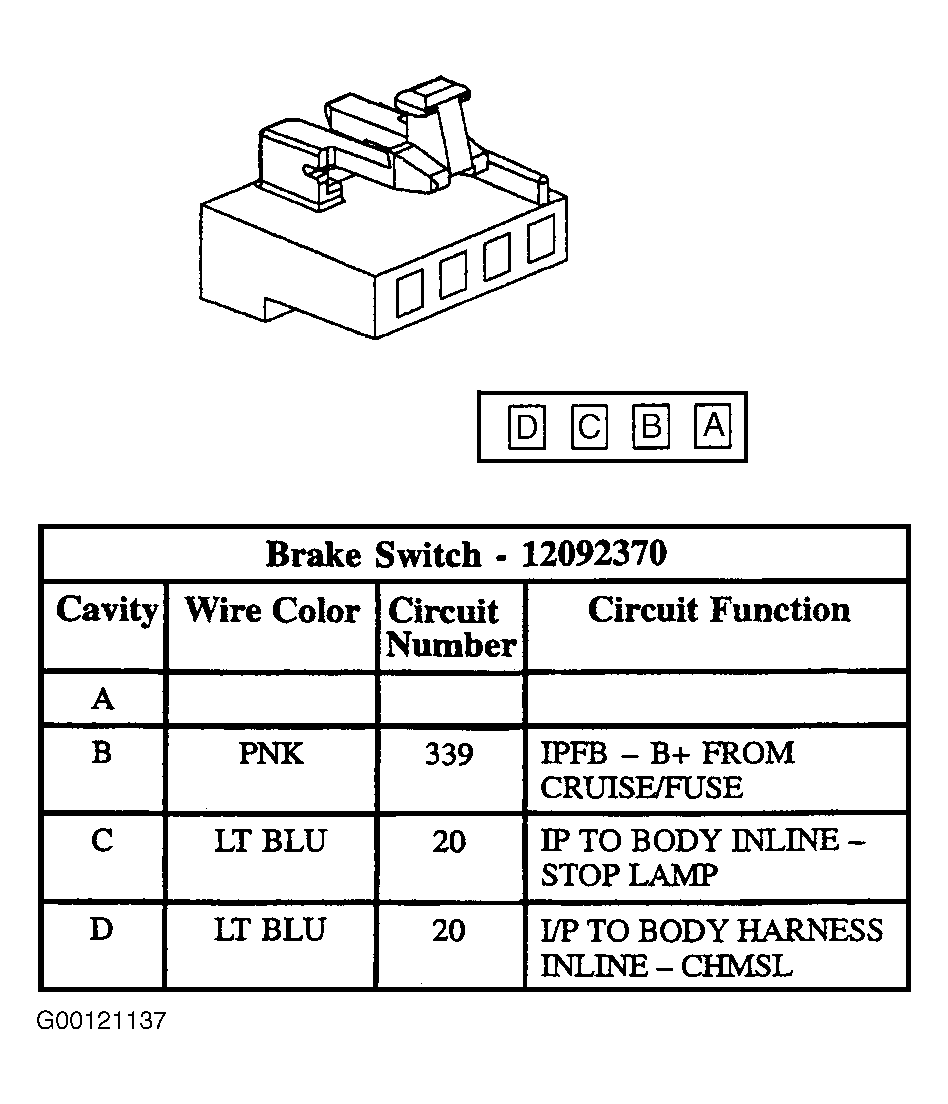

Fig 2: Identifying Brake Switch Black Connector Terminals

G00121137

Courtesy of GENERAL MOTORS CORP.

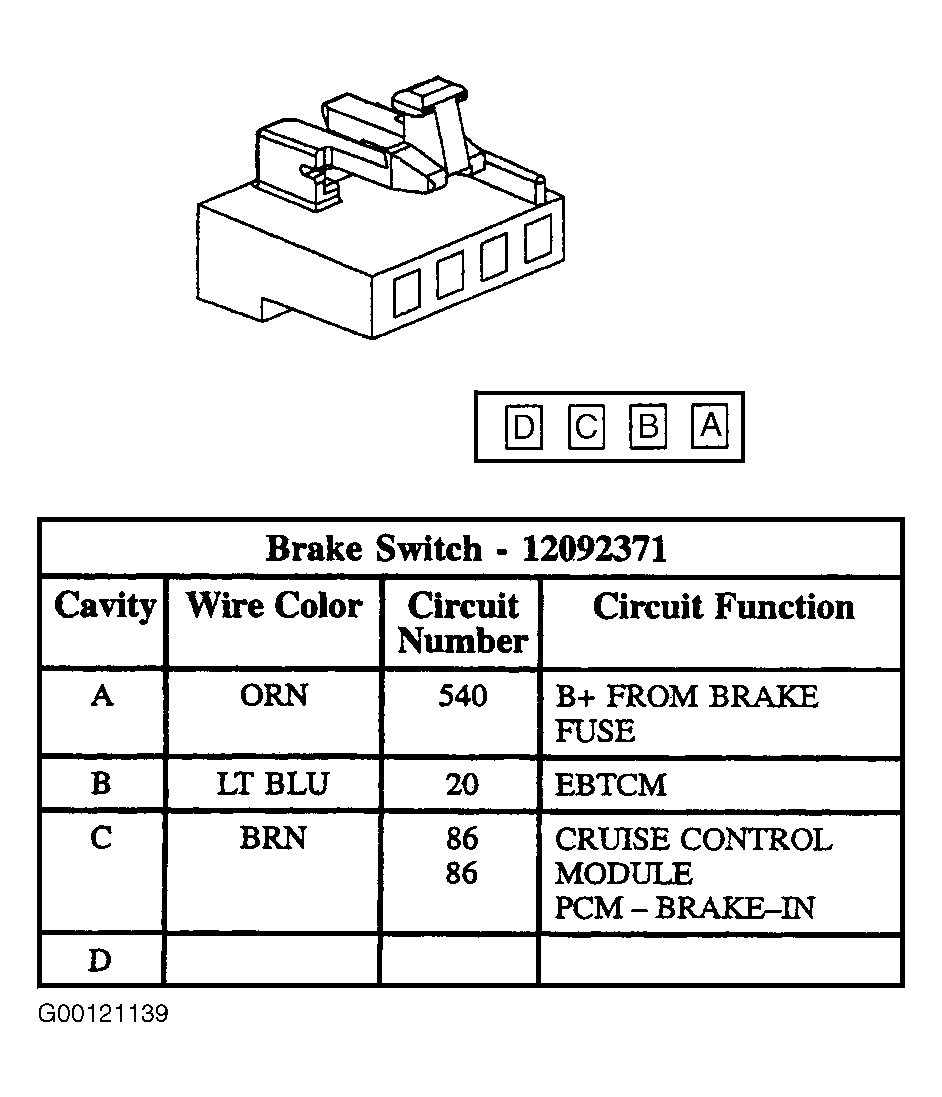

Fig 3: Identifying Brake Switch Gray Connector Terminals

G00121139

Courtesy of GENERAL MOTORS CORP.

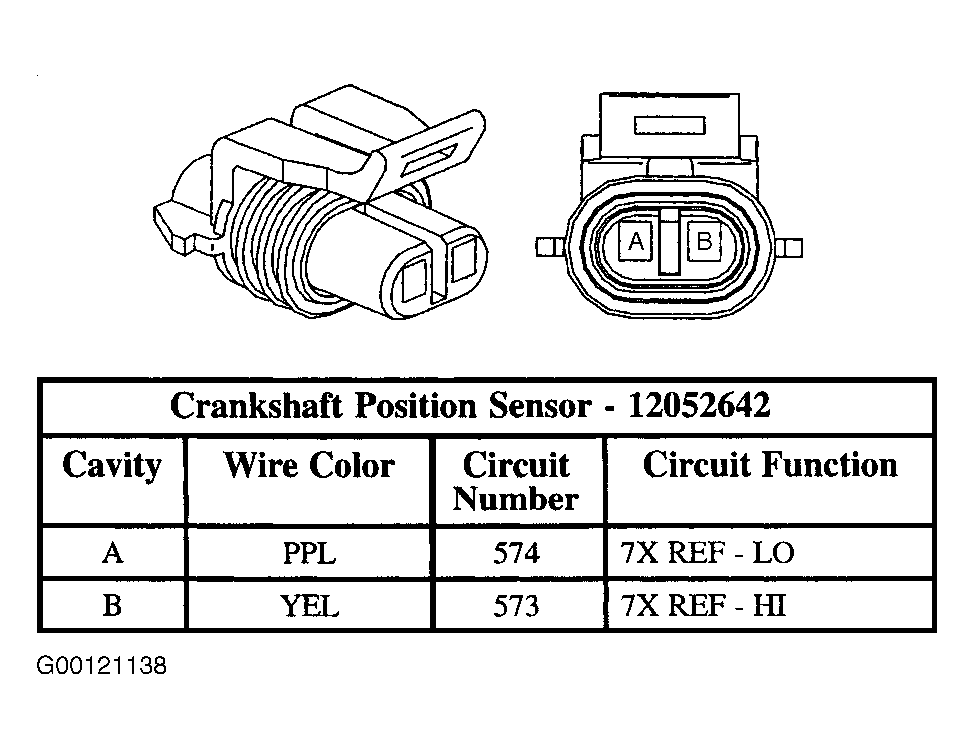

Fig 4: Identifying CKP Sensor Connector Terminals

G00121138

Courtesy of GENERAL MOTORS CORP.

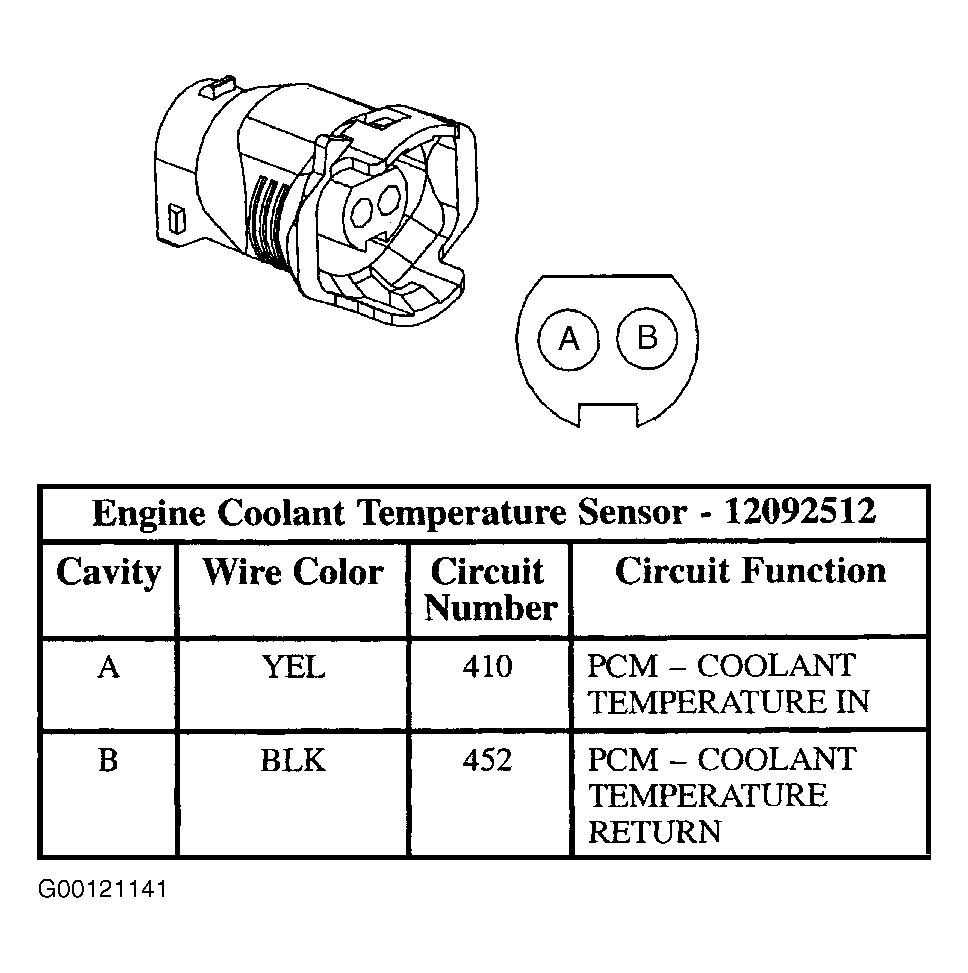

Fig 5: Identifying ECT Sensor Connector Terminals

G00121141

Courtesy of GENERAL MOTORS CORP.

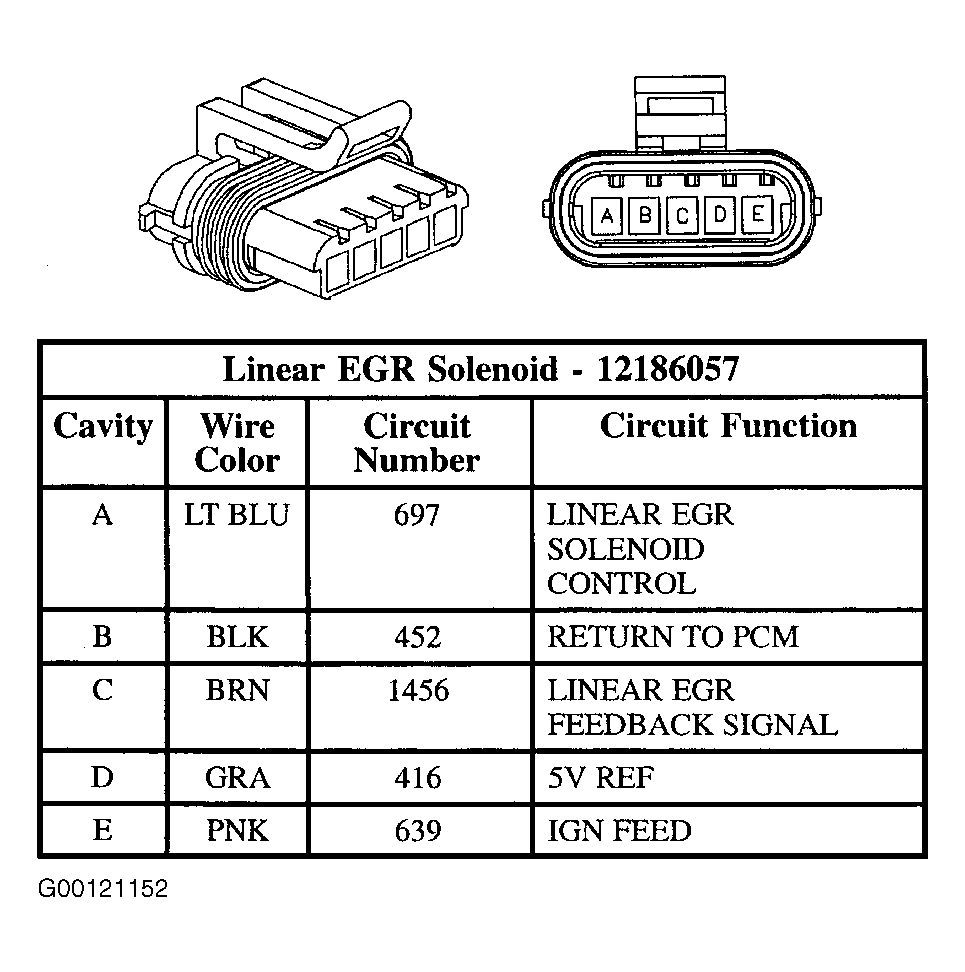

Fig 6: Identifying EGR Solenoid Connector Terminals

G00121152

Courtesy of GENERAL MOTORS CORP.

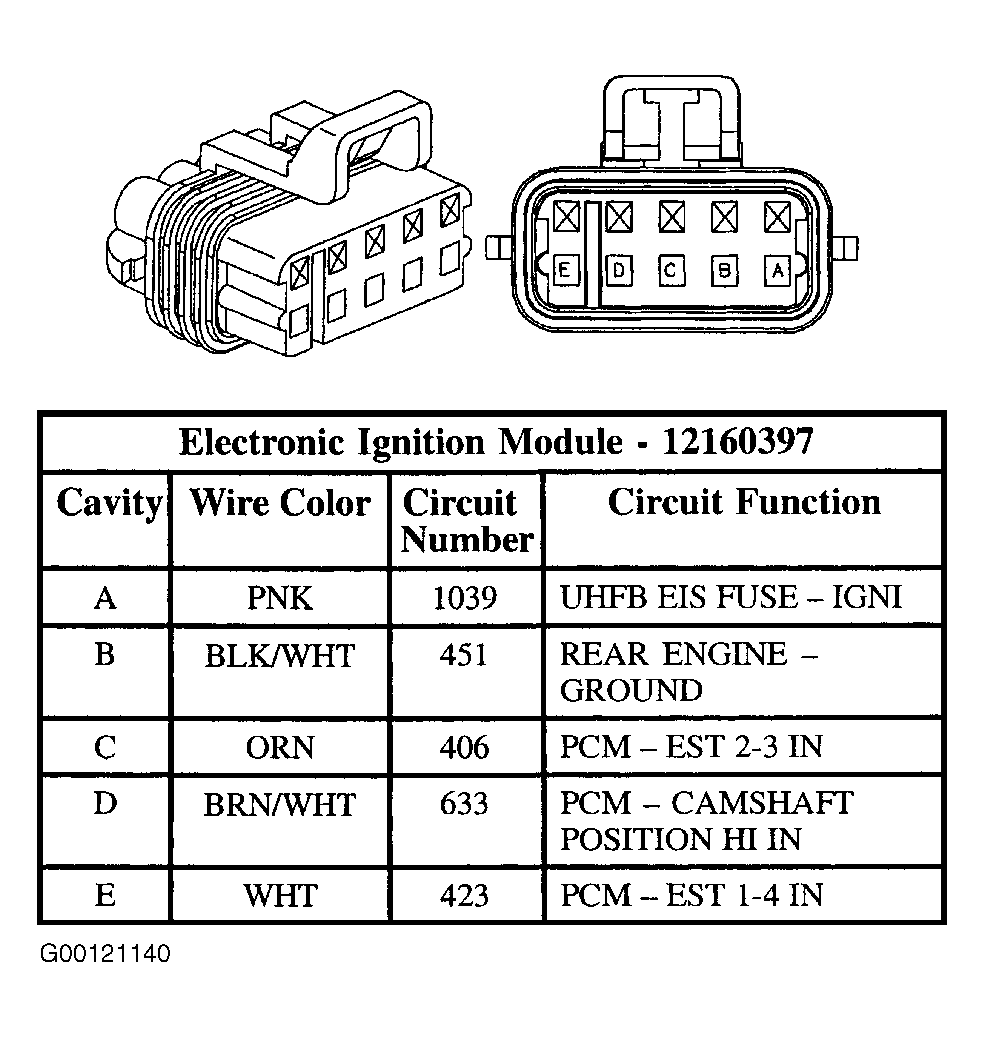

Fig 7: Identifying Electronic Ignition Module Connector Terminals

G00121140

Courtesy of GENERAL MOTORS CORP.

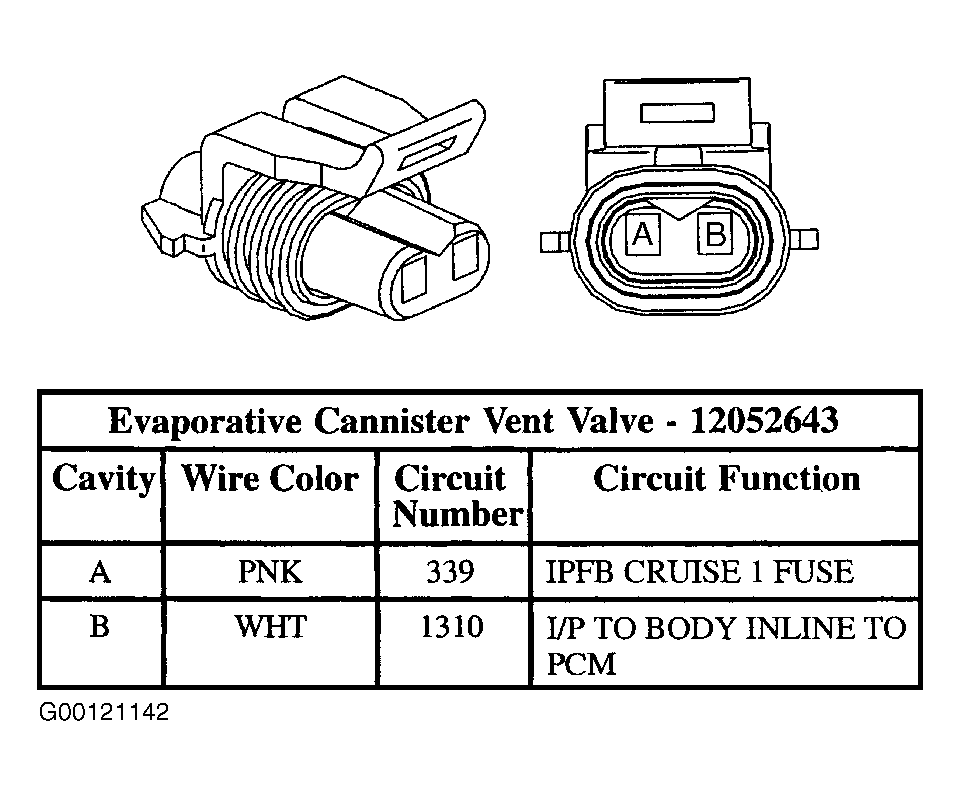

Fig 8: Identifying EVAP Vent Valve Connector Terminals

G00121142

Courtesy of GENERAL MOTORS CORP.

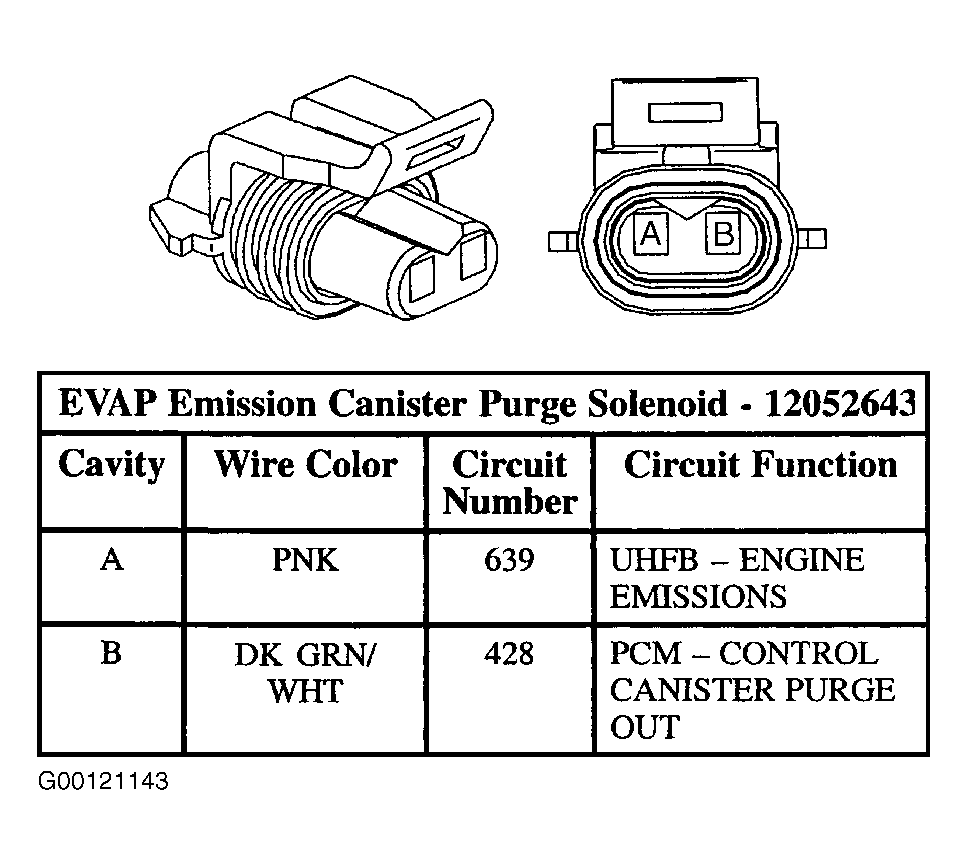

Fig 9: Identifying EVAP Purge Solenoid Connector Terminals

G00121143

Courtesy of GENERAL MOTORS CORP.

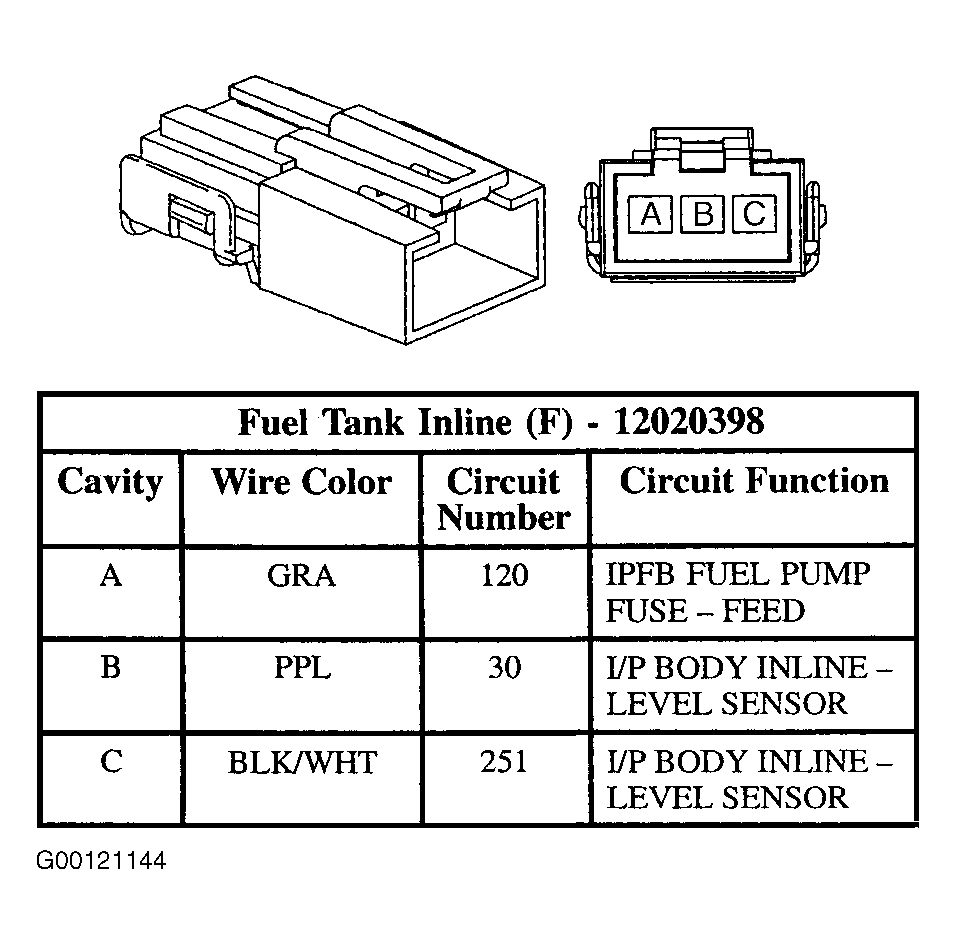

Fig 10: Identifying Fuel Tank In-Line Connector Terminals

G00121144

Courtesy of GENERAL MOTORS CORP.

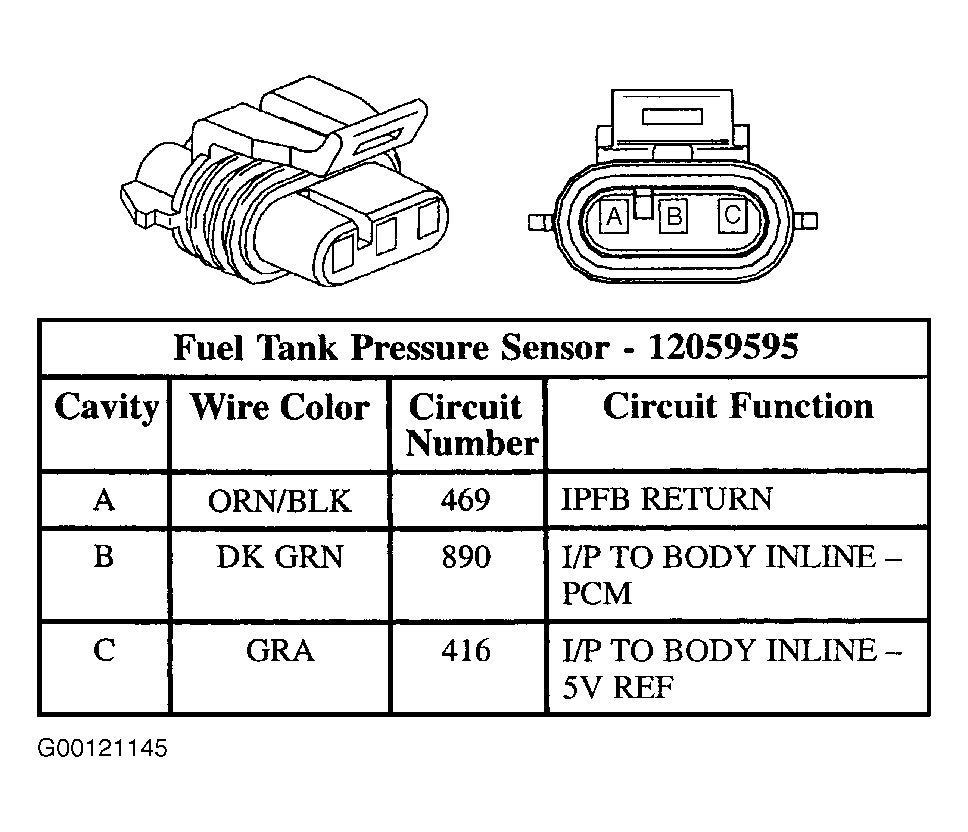

Fig 11: Identifying Fuel Tank Pressure Sensor Connect Terminals

G00121145

Courtesy of GENERAL MOTORS CORP.

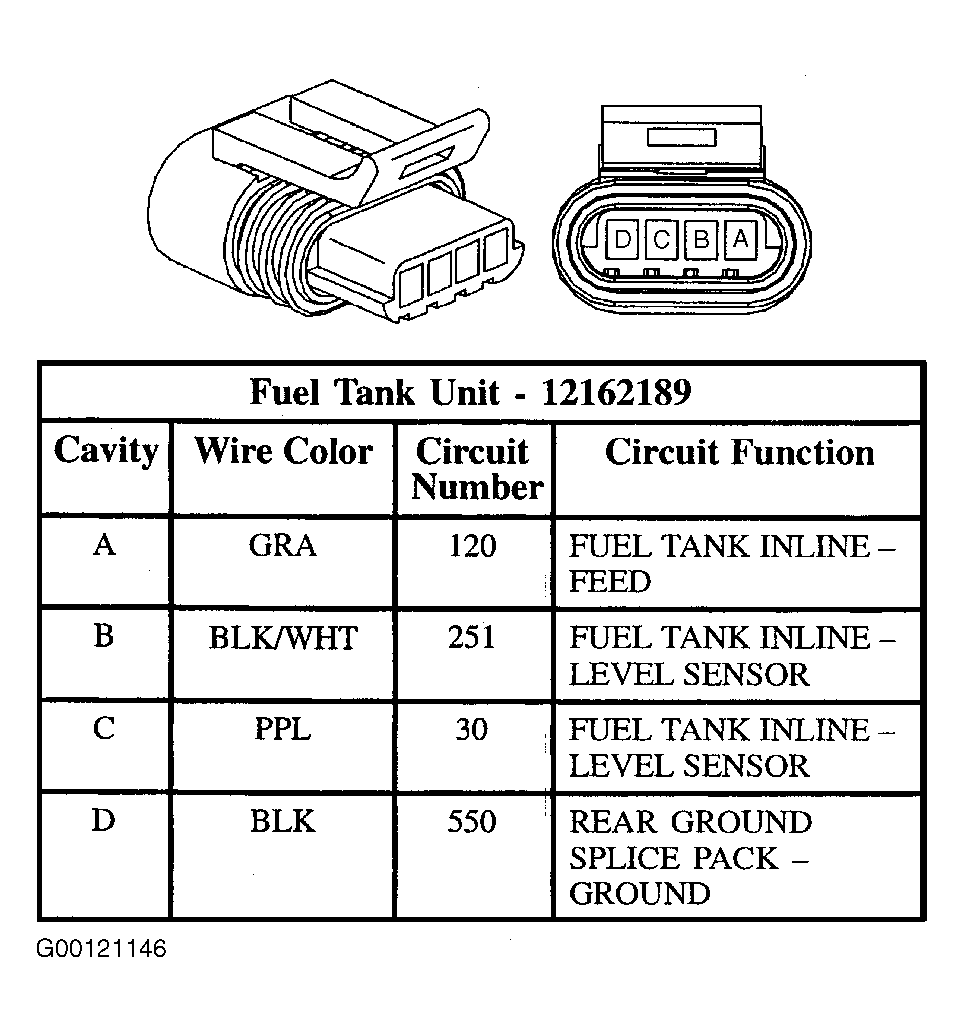

Fig 12: Identifying Fuel Tank Unit Connector Terminals

G00121146

Courtesy of GENERAL MOTORS CORP.

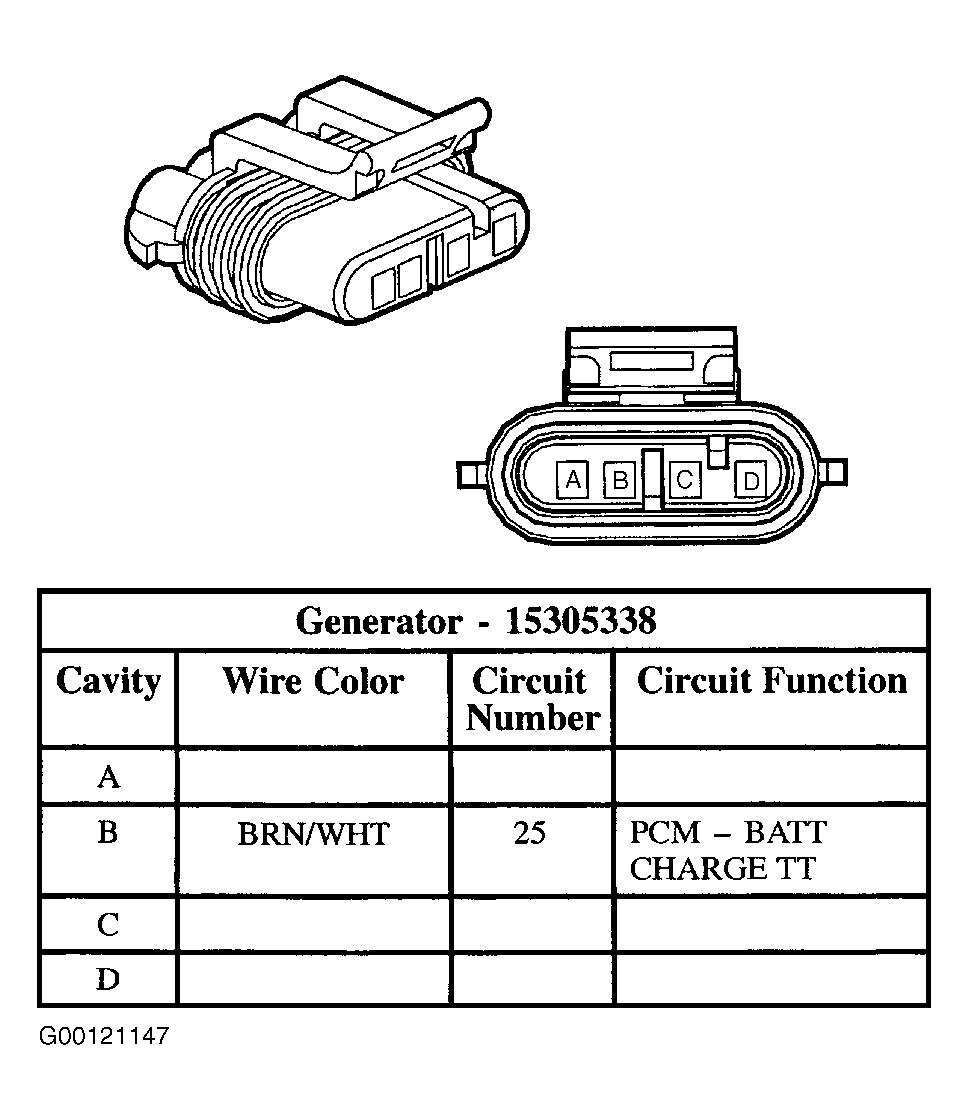

Fig 13: Identifying Generator Connector Terminals

G00121147

Courtesy of GENERAL MOTORS CORP.

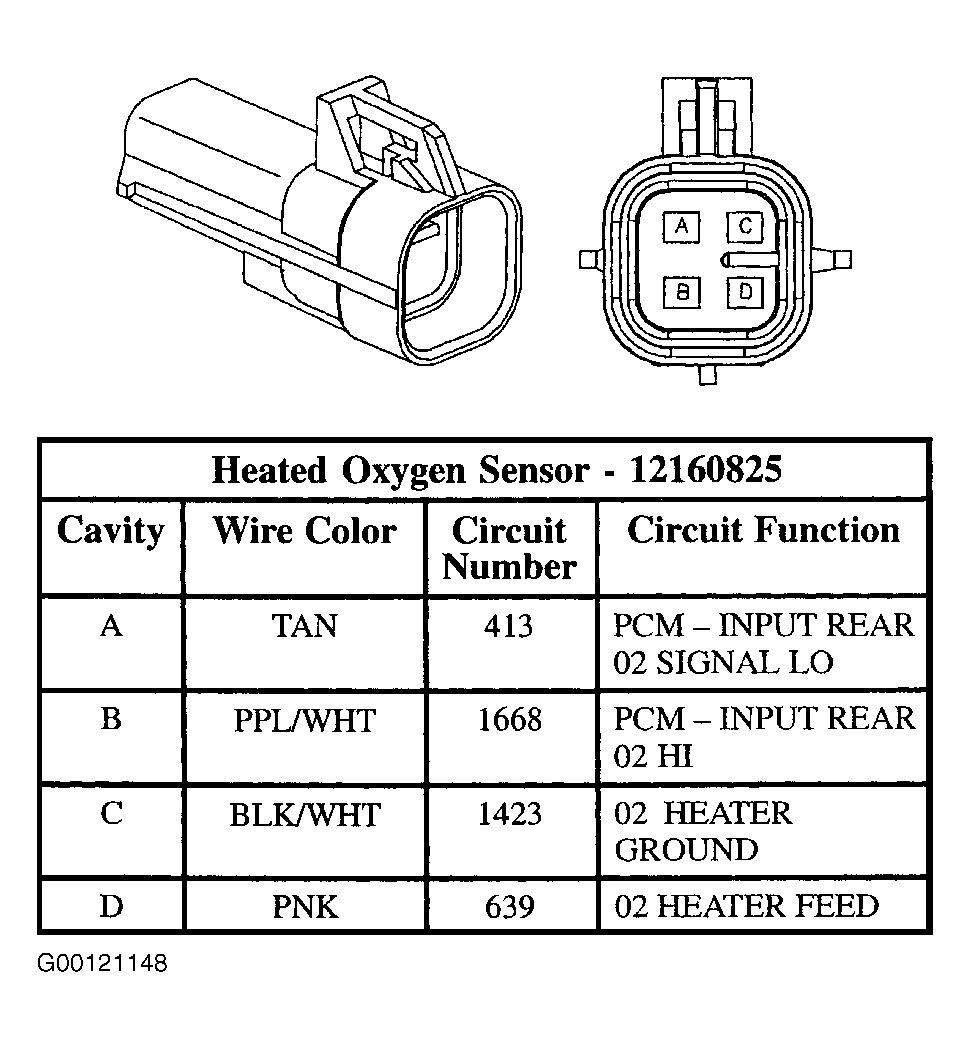

Fig 14: Identifying Heated Oxygen Sensor Connector Terminals

G00121148

Courtesy of GENERAL MOTORS CORP.

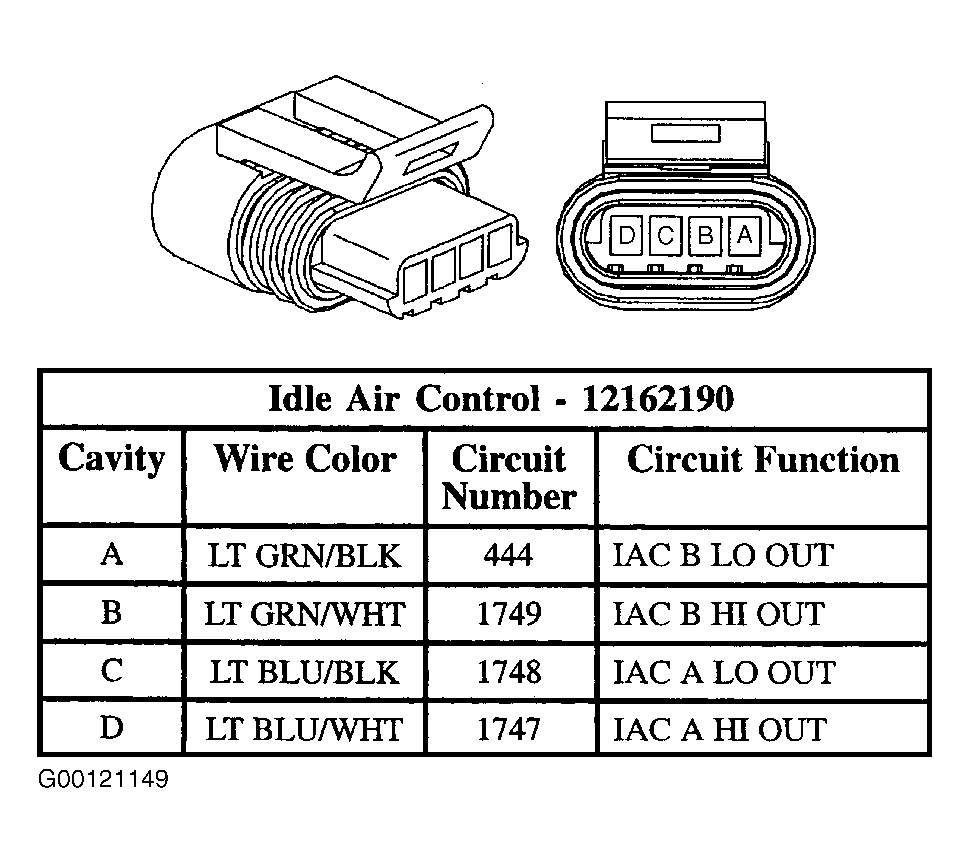

Fig 15: Identifying IAC Valve Connector Terminals

G00121149

Courtesy of GENERAL MOTORS CORP.

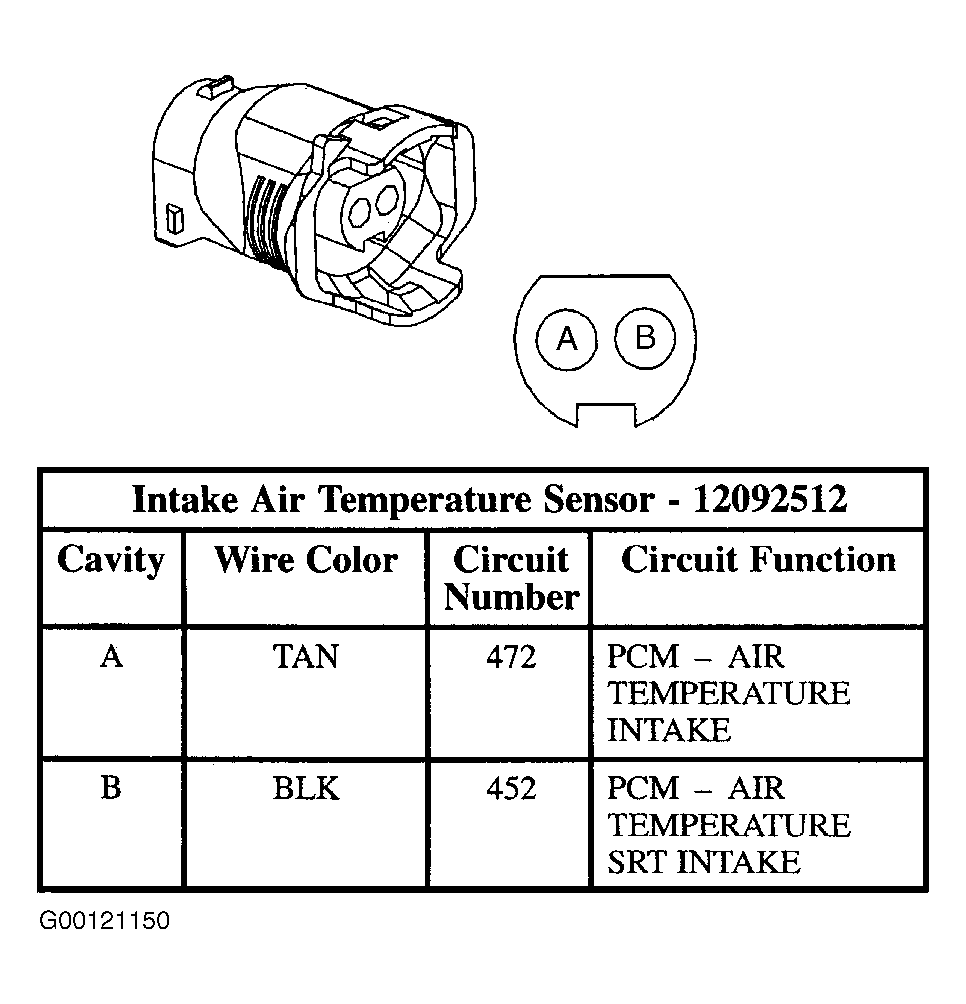

Fig 16: Identifying IAT Sensor Connector Terminals

G00121150

Courtesy of GENERAL MOTORS CORP.

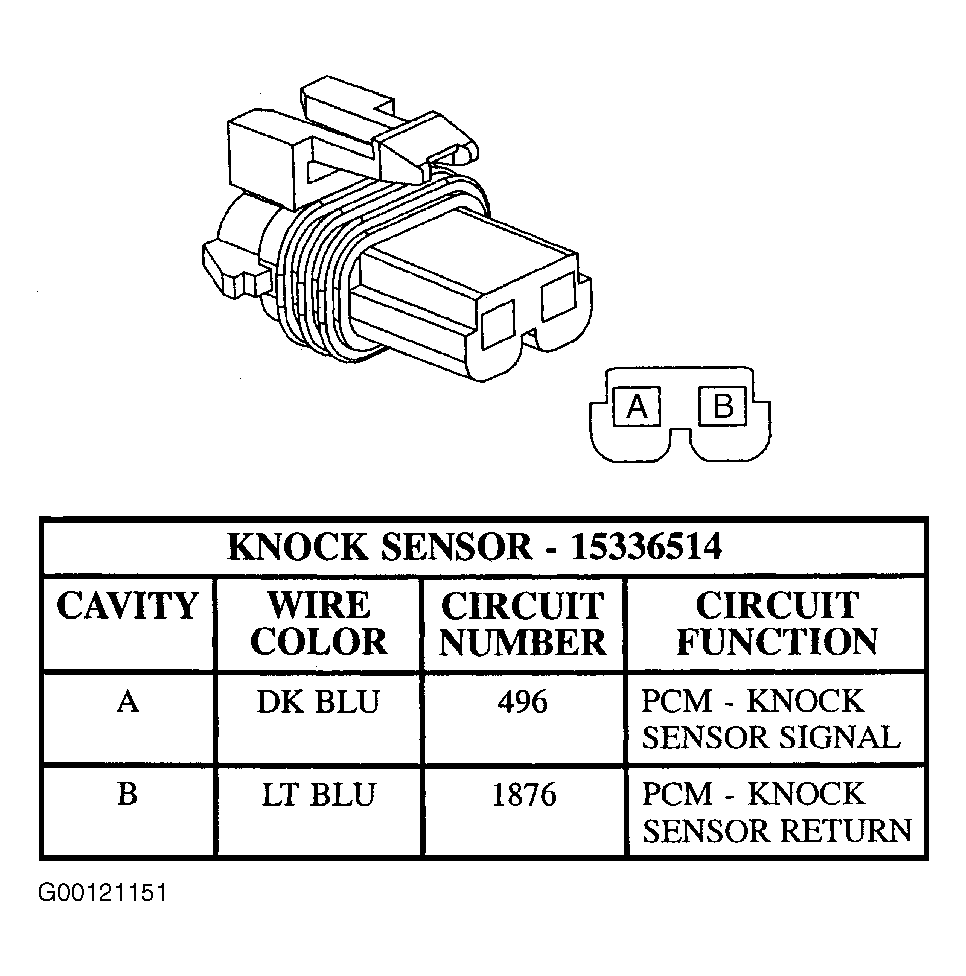

Fig 17: Identifying Knock Sensor Connector Terminals

G00121151

Courtesy of GENERAL MOTORS CORP.

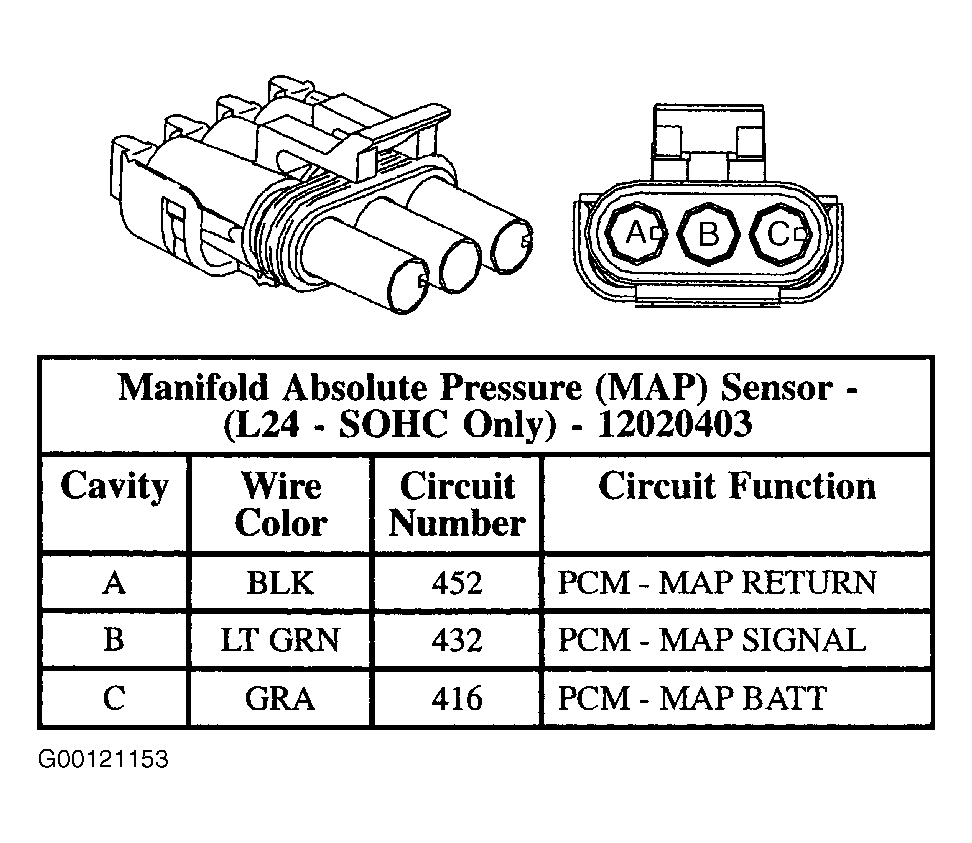

Fig 18: Identifying MAP Sensor Connector Terminals

G00121153

Courtesy of GENERAL MOTORS CORP.

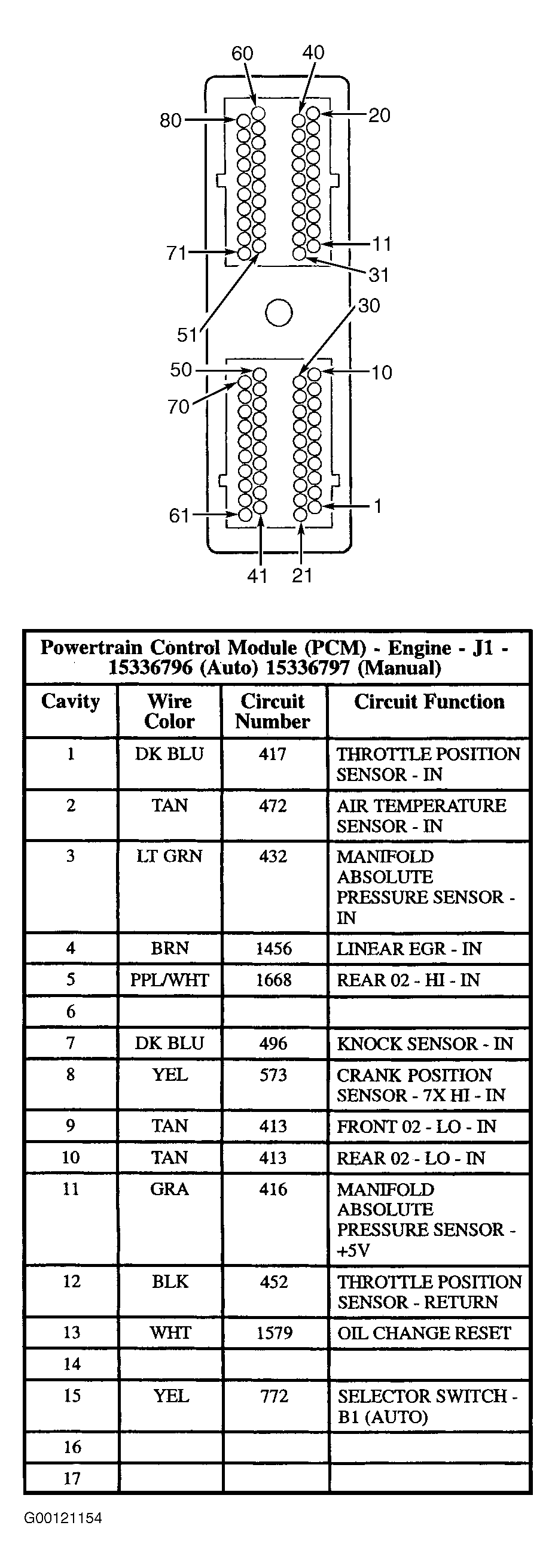

Fig 19: Identifying PCM Connector J1 Terminals (1 Of 5)

G00121154

Courtesy of GENERAL MOTORS CORP.

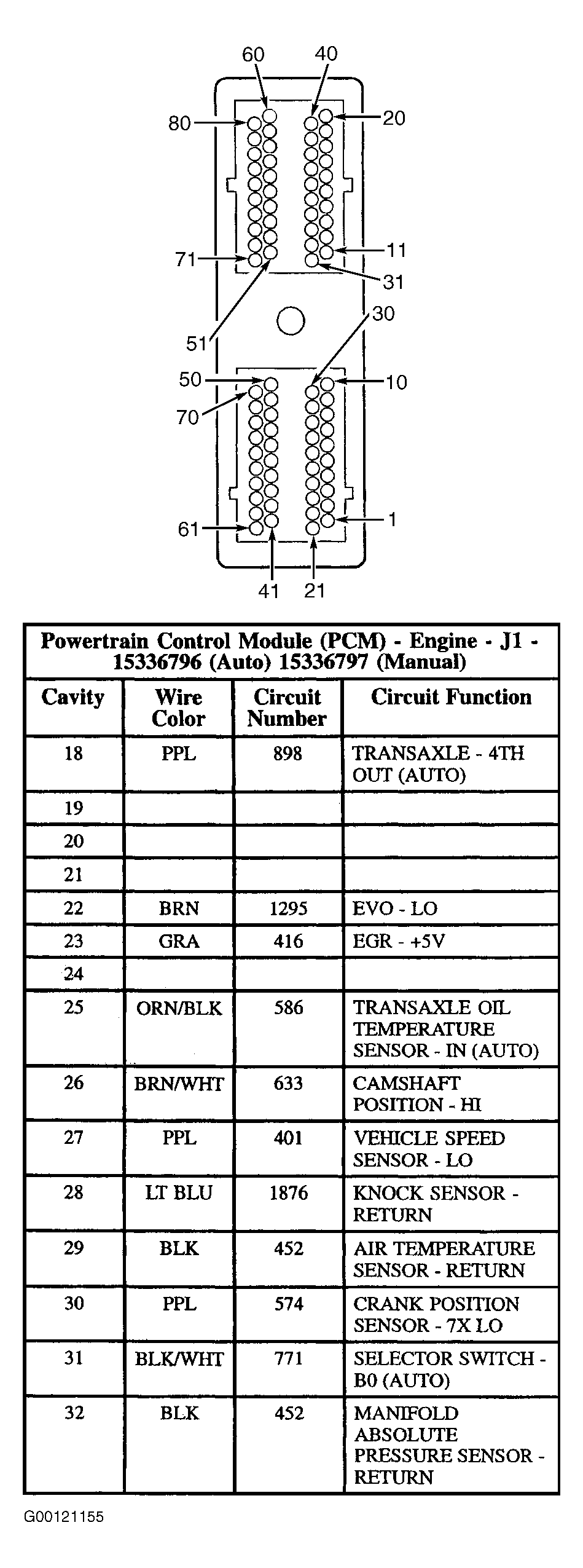

Fig 20: Identifying PCM Connector J1 Terminals (2 Of 5)

G00121155

Courtesy of GENERAL MOTORS CORP.

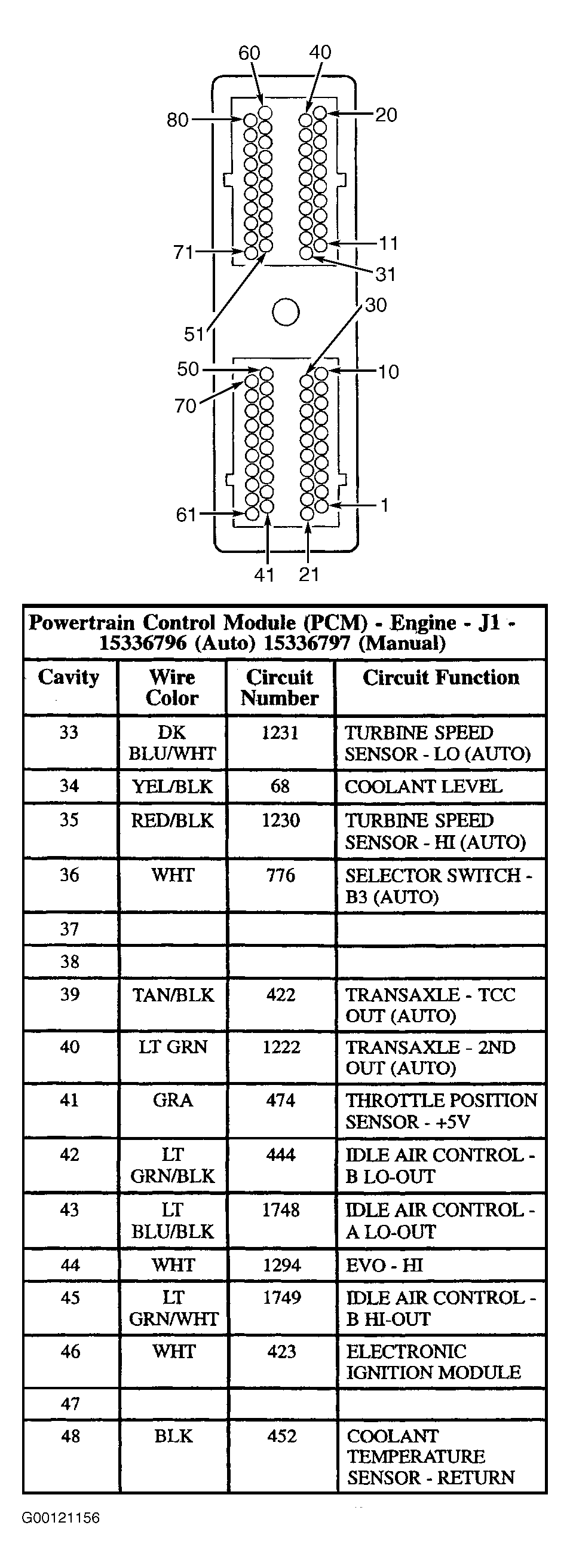

Fig 21: Identifying PCM Connector J1 Terminals (3 Of 5)

G00121156

Courtesy of GENERAL MOTORS CORP.

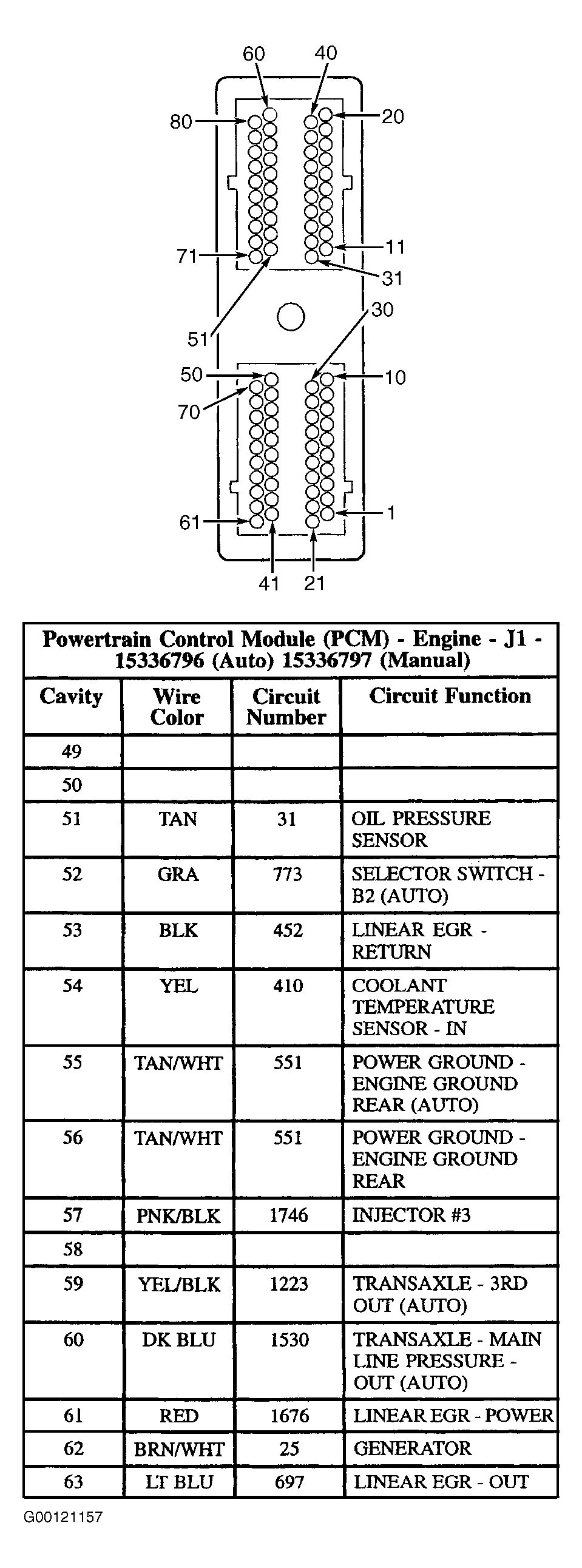

Fig 22: Identifying PCM Connector J1 Terminals (4 Of 5)

G00121157

Courtesy of GENERAL MOTORS CORP.

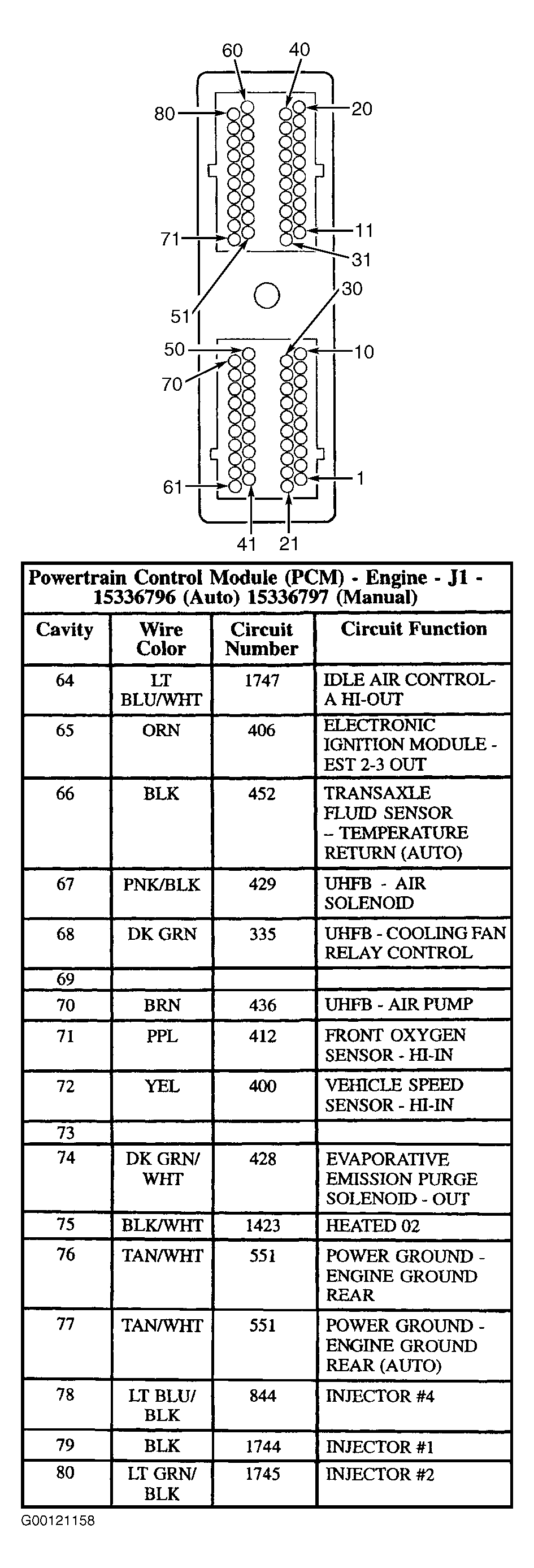

Fig 23: Identifying PCM Connector J1 Terminals (5 Of 5)

G00121158

Courtesy of GENERAL MOTORS CORP.

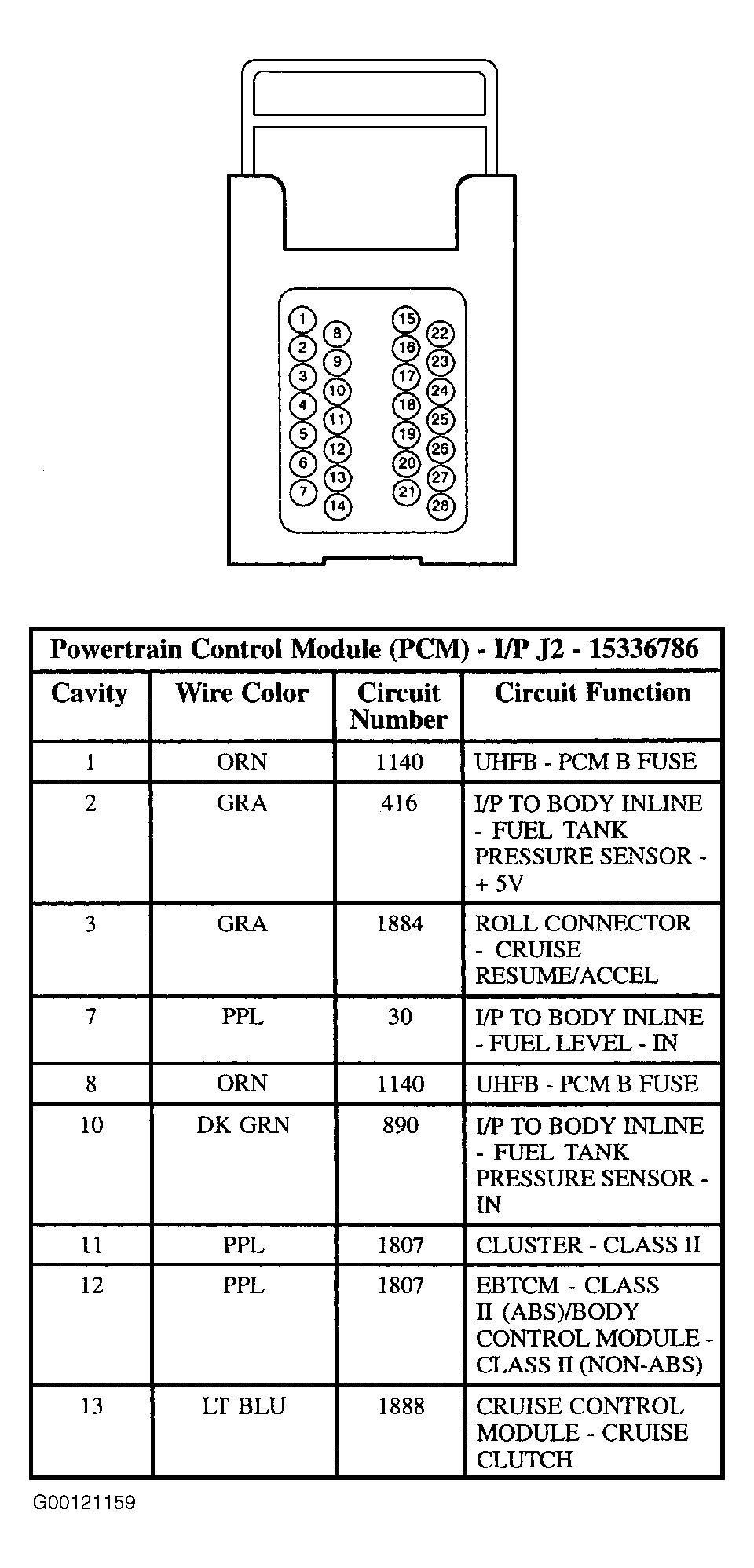

Fig 24: Identifying PCM Connector J2 Terminals (1 Of 2)

G00121159

Courtesy of GENERAL MOTORS CORP.

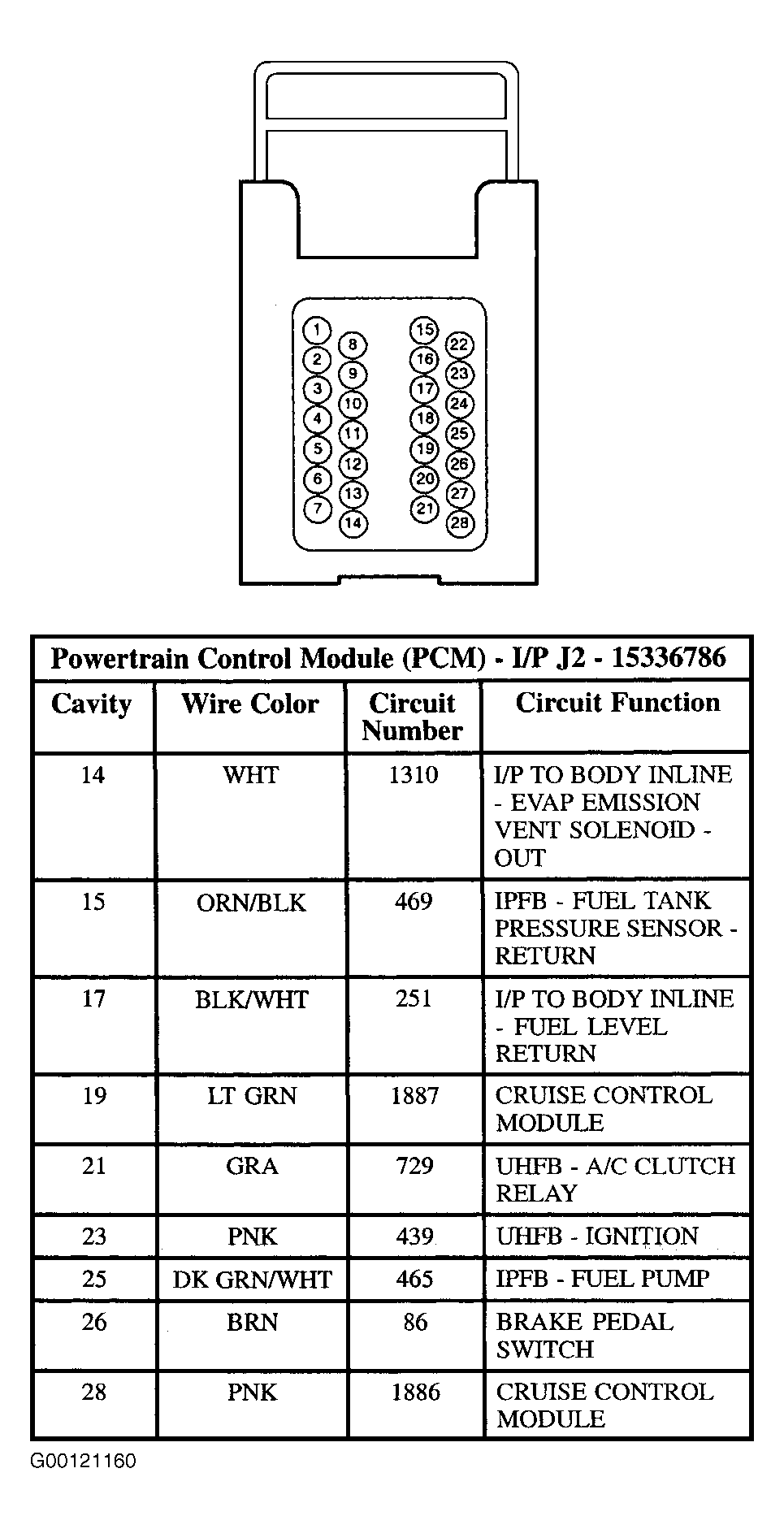

Fig 25: Identifying PCM Connector J2 Terminals (2 Of 2)

G00121160

Courtesy of GENERAL MOTORS CORP.

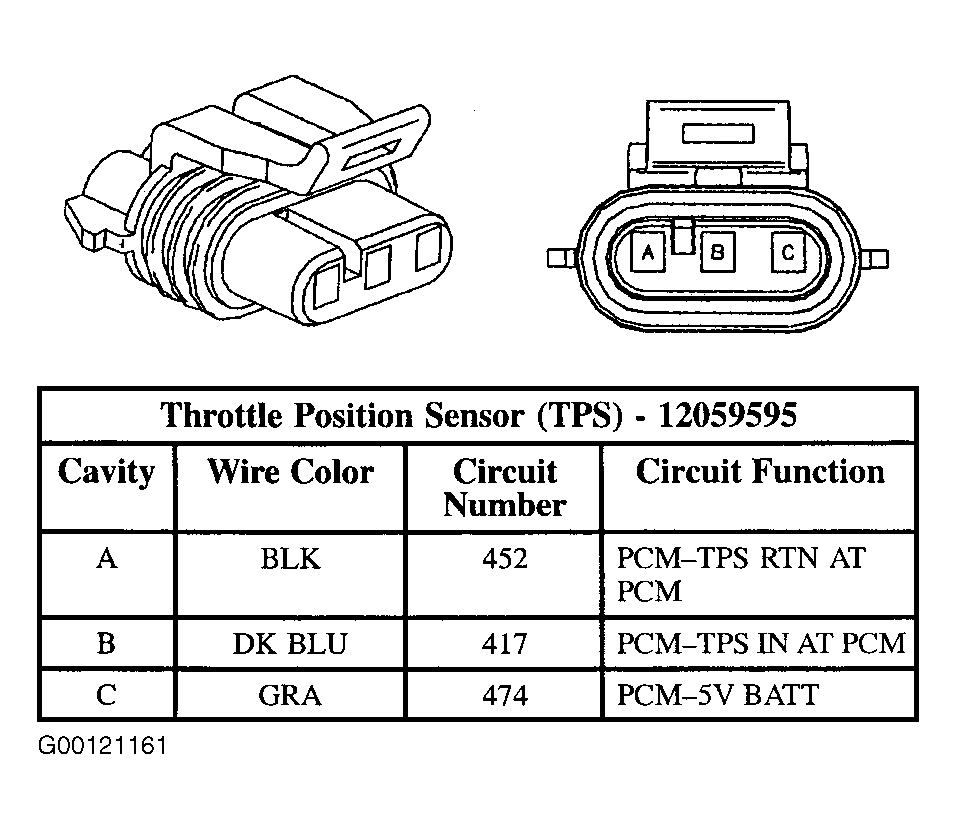

Fig 26: Identifying TPS Connector Terminals

G00121161

Courtesy of GENERAL MOTORS CORP.

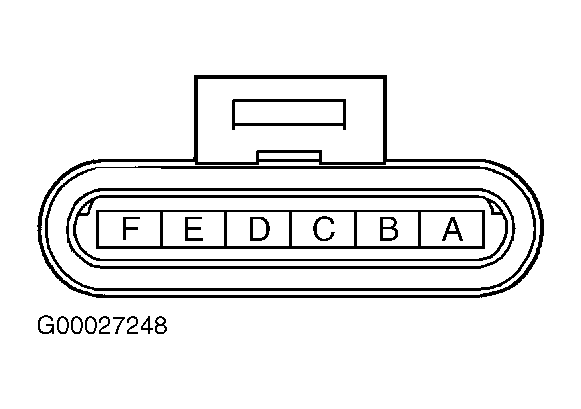

Fig 27: Identifying Transaxle Range Switch Connector Terminals

G00027248

Courtesy of GENERAL MOTORS CORP.

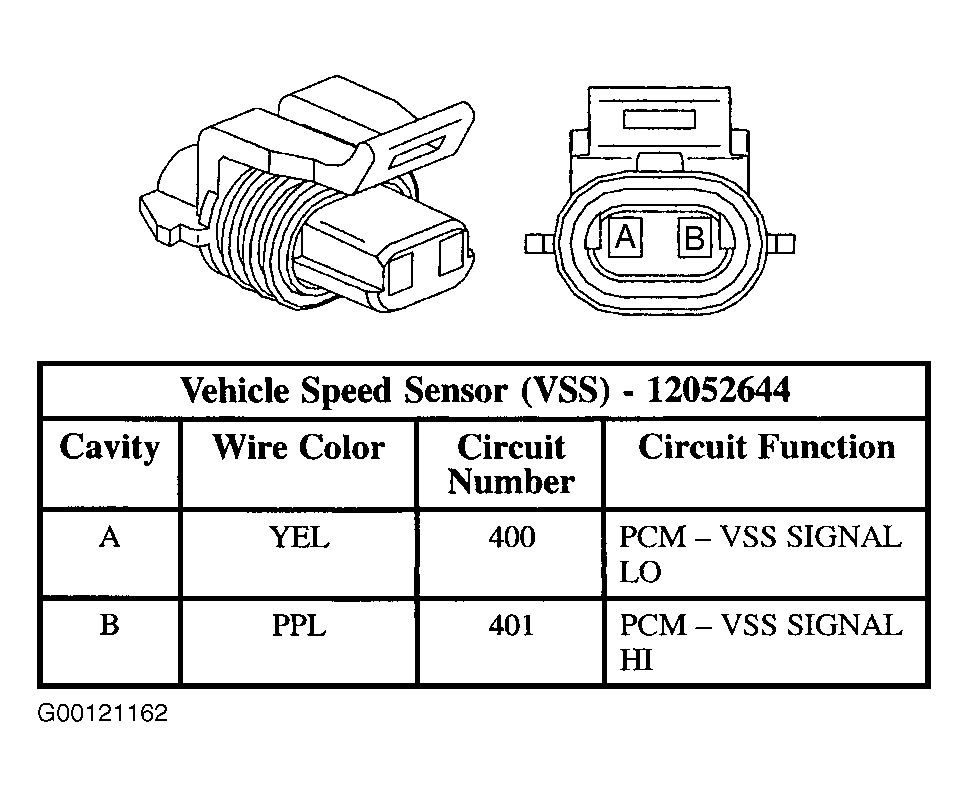

Fig 28: Identifying VSS Connector Terminals

G00121162

Courtesy of GENERAL MOTORS CORP.
