Body Control System Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

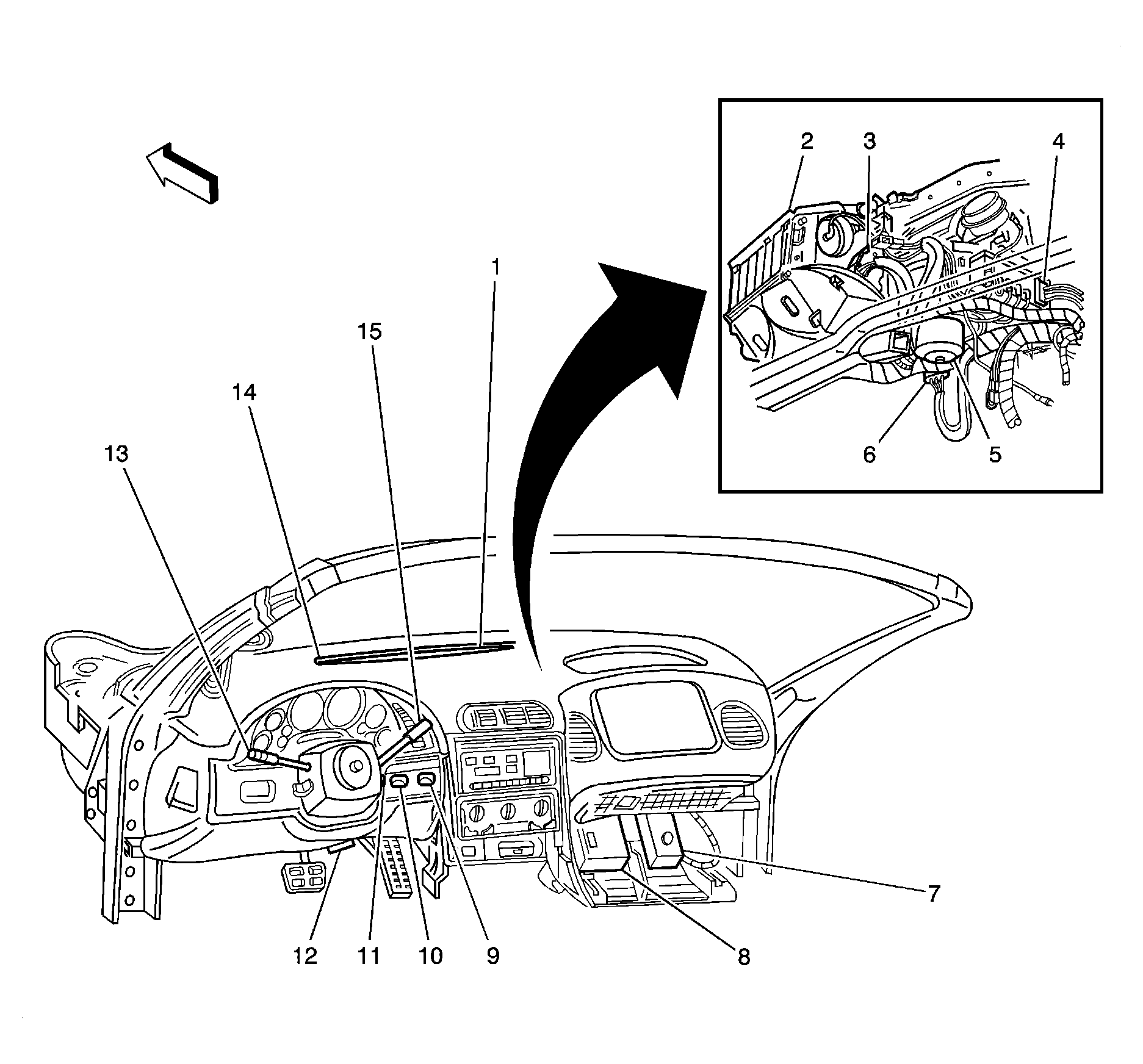

| Callout | Component Name |
|---|---|
| 1 | Sunload Sensor |
| 2 | HVAC Module Assembly |
| 3 | Air Temperature Actuator (C60) |
| 4 | Vacuum Control Assembly (CJ2) |
| 5 | Blower Motor |
| 6 | Blower Motor Control Processor |
| 7 | Fuse Block-IP |
| 8 | Body Control Module (BCM) |
| 9 | Ignition Switch |
| 10 | Air Temperature Sensor - Inside |
| 11 | Telescoping Actuator Switch |
| 12 | Data Link Connector (DLC) |
| 13 | Multifunction Turn Signal Lever |
| 14 | Ambient Light Sensor |
| 15 | Windshield Wiper/Washer Switch |
