Thrust Angles Description

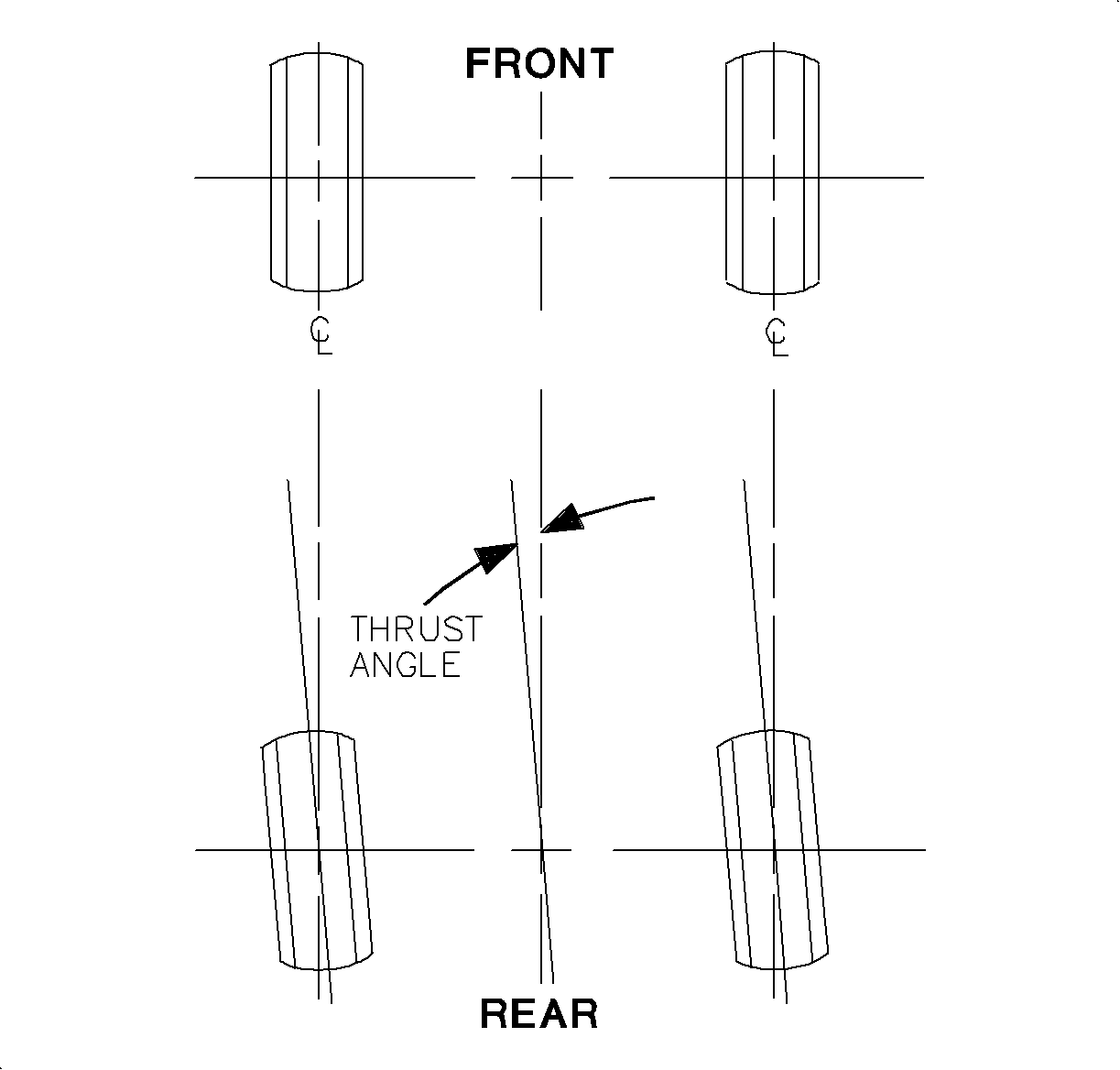

Fig 1: Determining Thrust Angle

Courtesy of GENERAL MOTORS CORP.

Thrust angle is the angle between the geometric centerline of the vehicle and the direction that the rear wheels track. Ideally, the thrust angle is equal to zero.

(LR Toe° - RR Toe°) divided by 2 = Thrust Angle°
