Component Locations

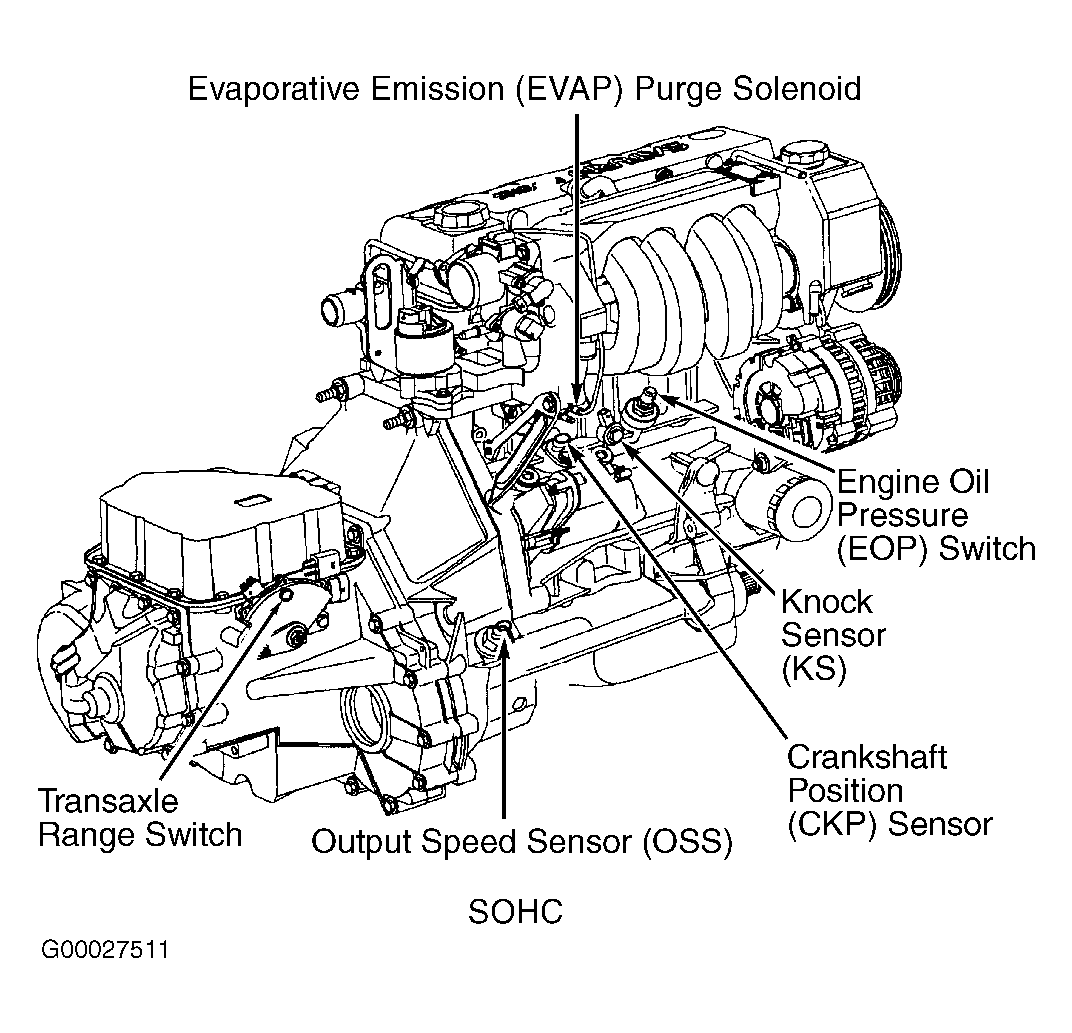

Fig 1: Locating CKP Sensor, EVAP Purge Solenoid, Knock Sensor, Output Speed Sensor & Transmission Range Switch - SOHC

Courtesy of GENERAL MOTORS CORP.

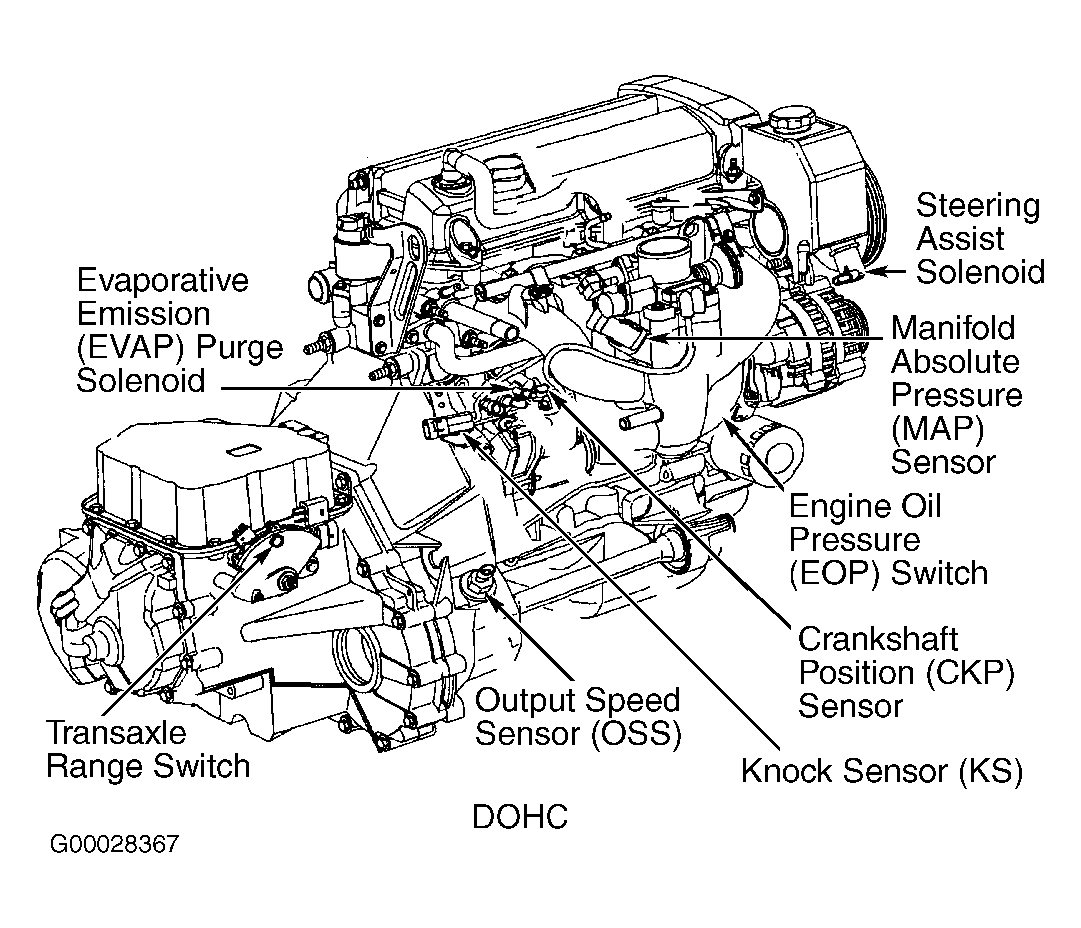

Fig 2: Locating CKP Sensor, EVAP Purge Solenoid, Knock Sensor, MAP Sensor, Output Speed Sensor & Transmission Range Switch - DOHC

Courtesy of GENERAL MOTORS CORP.

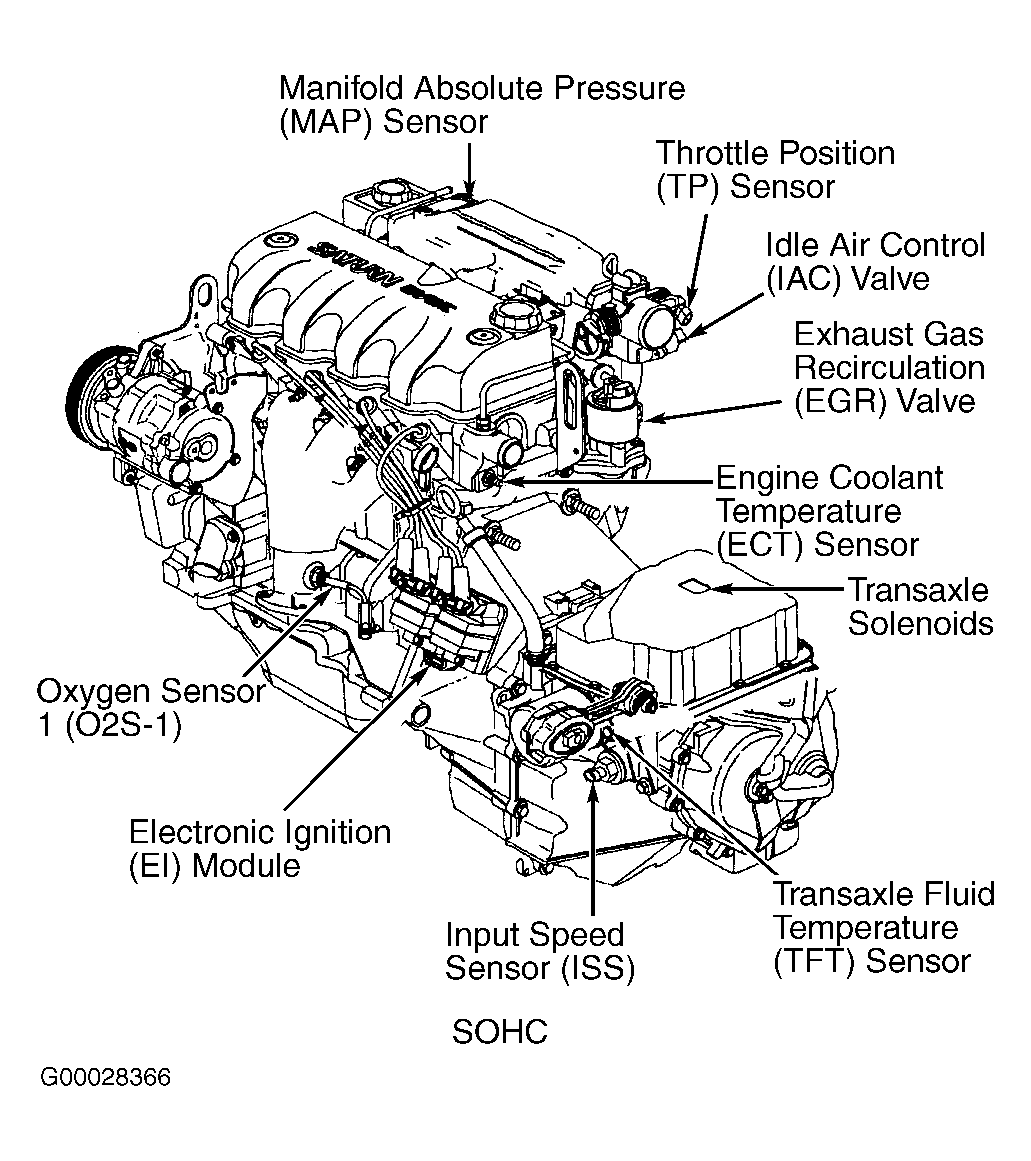

Fig 3: Locating EGR Valve, Electronic Ignition Module, IAC Valve, & ECT, O2S1, MAP & TP Sensors - SOHC

Courtesy of GENERAL MOTORS CORP.

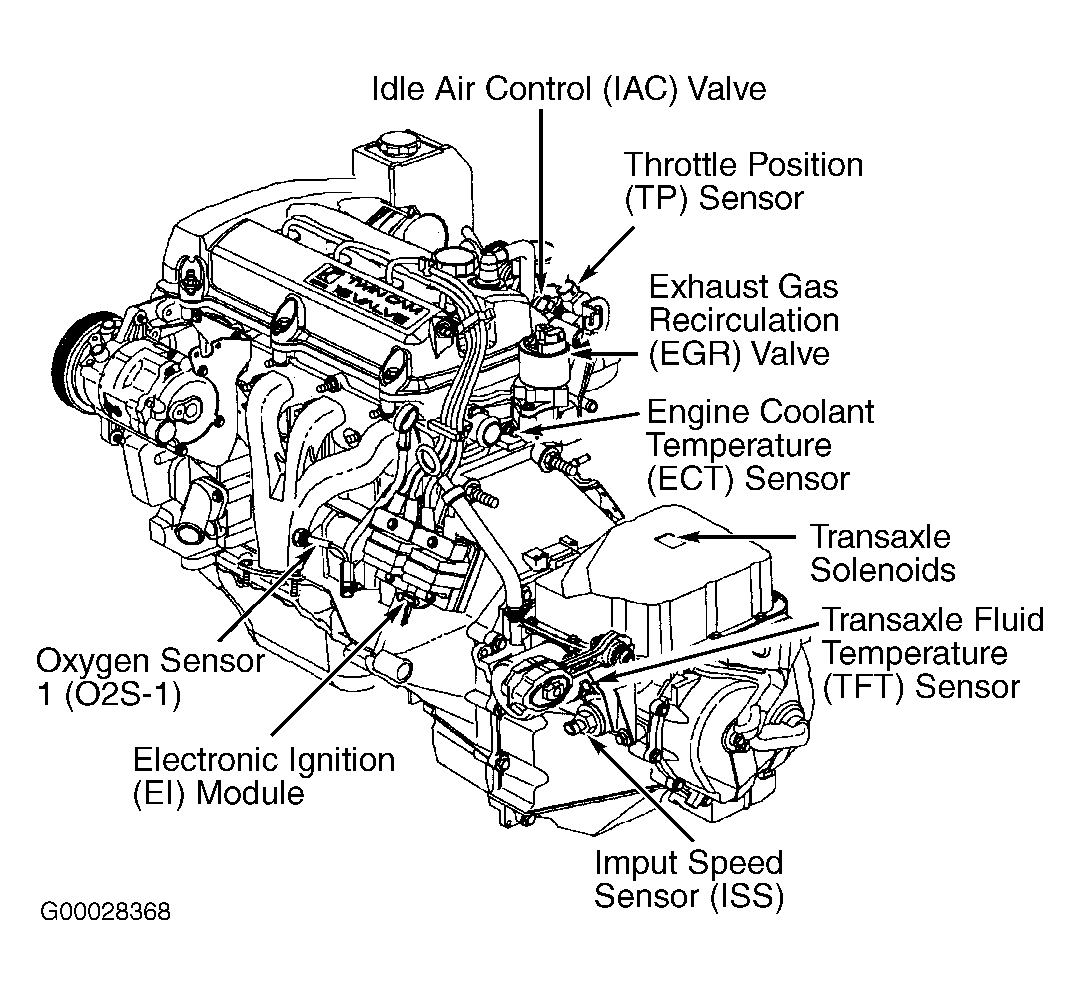

Fig 4: Locating EGR Valve, Electronic Ignition Module, IAC Valve, & ECT, O2S1 & TP Sensors - DOHC

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating PCM

Courtesy of GENERAL MOTORS CORP.
