Brake Lamp

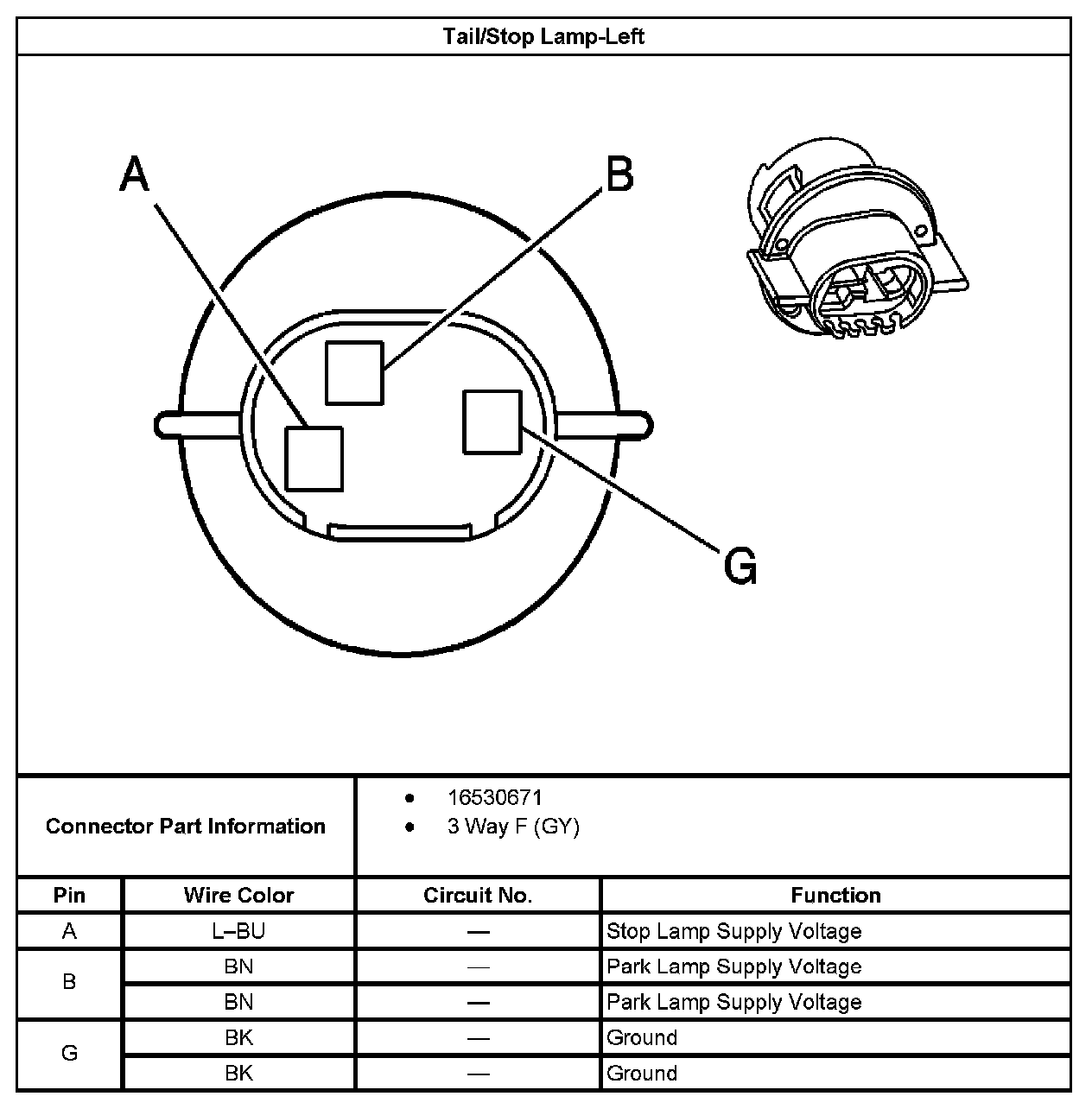

Tail/Stop Lamp - Left:

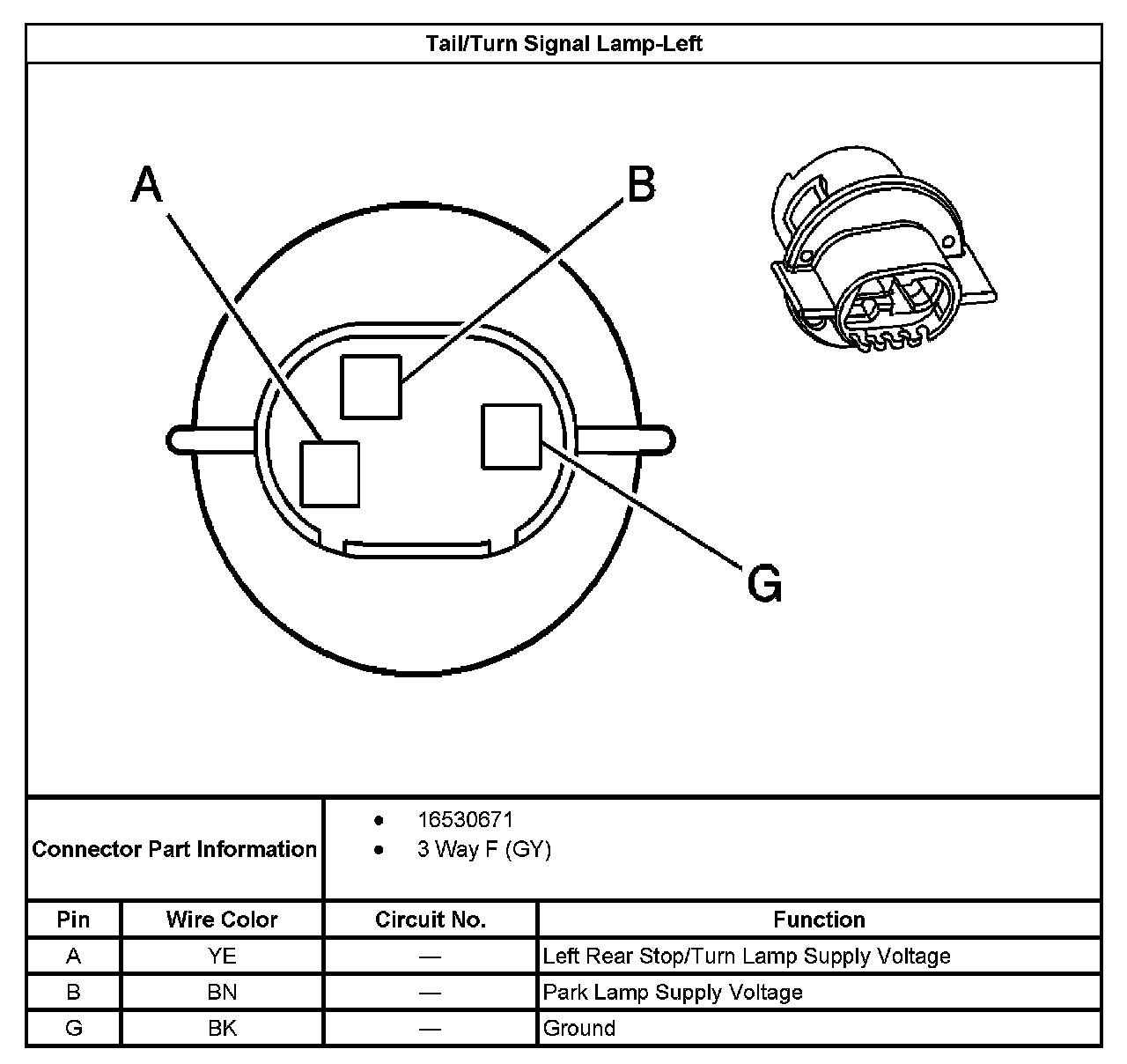

Tail/Turn Signal Lamp - Left:

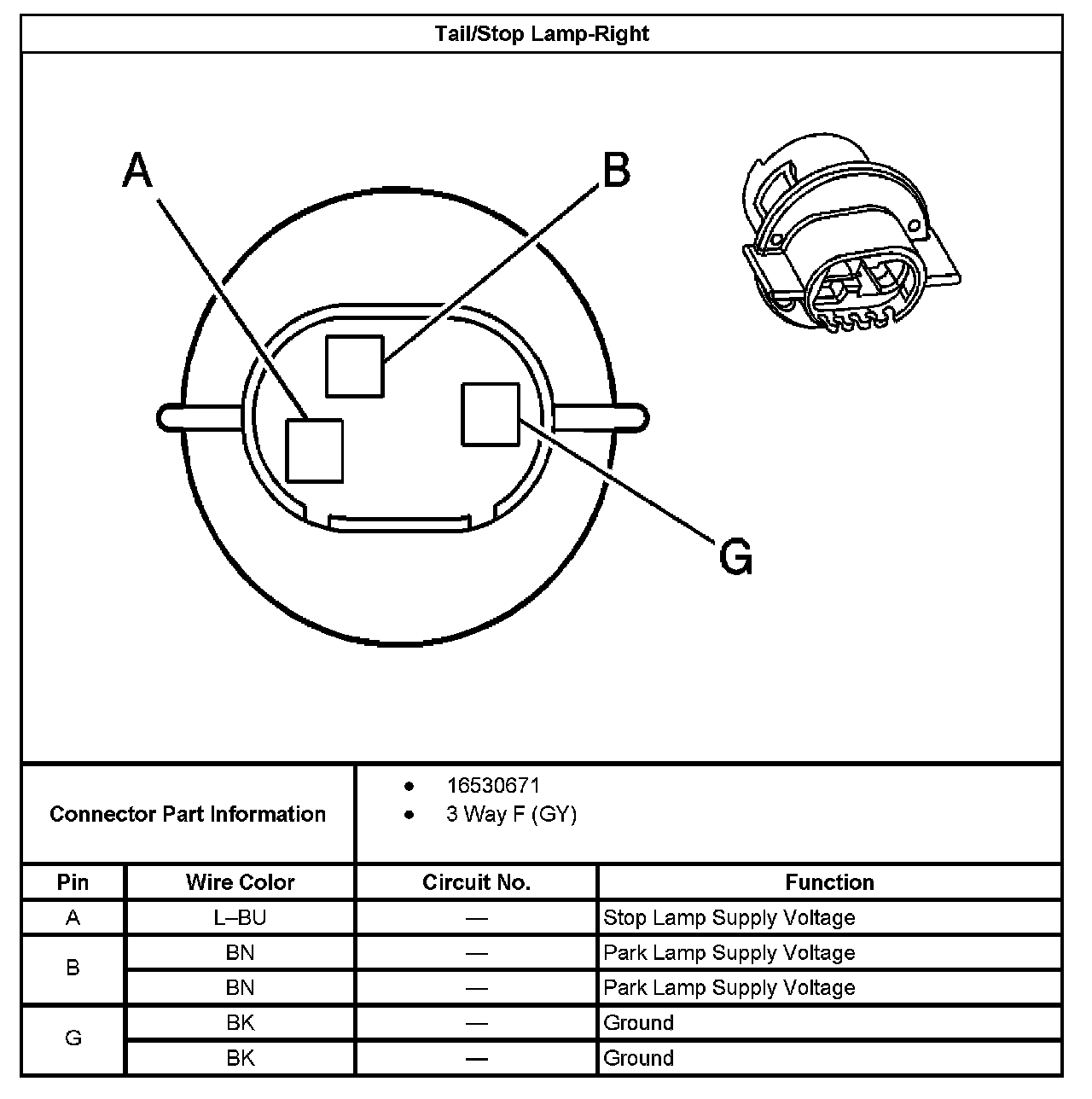

Tail/Stop Lamp - Right:

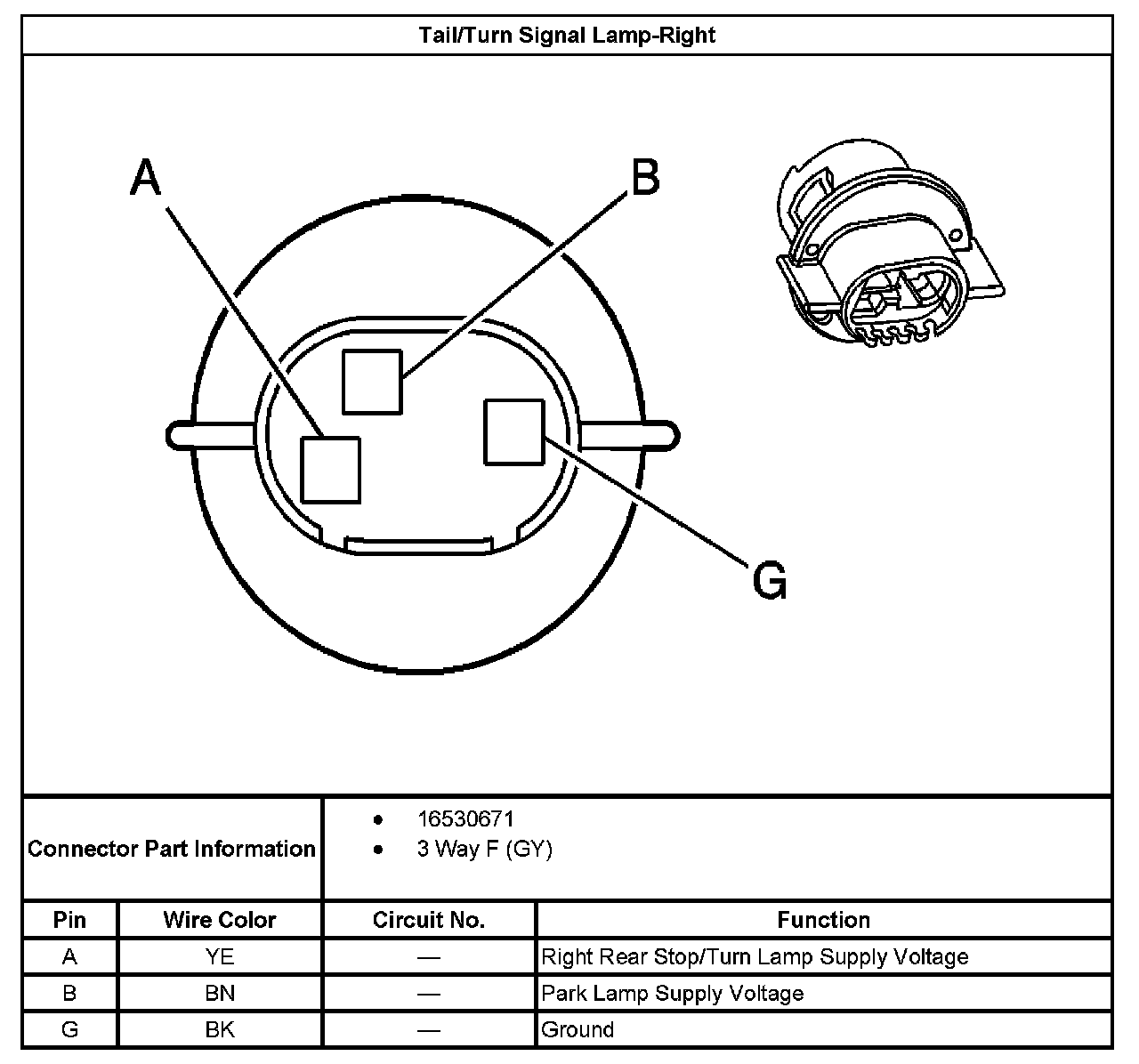

Tail/Turn Signal Lamp - Right:
