Power Window Motor

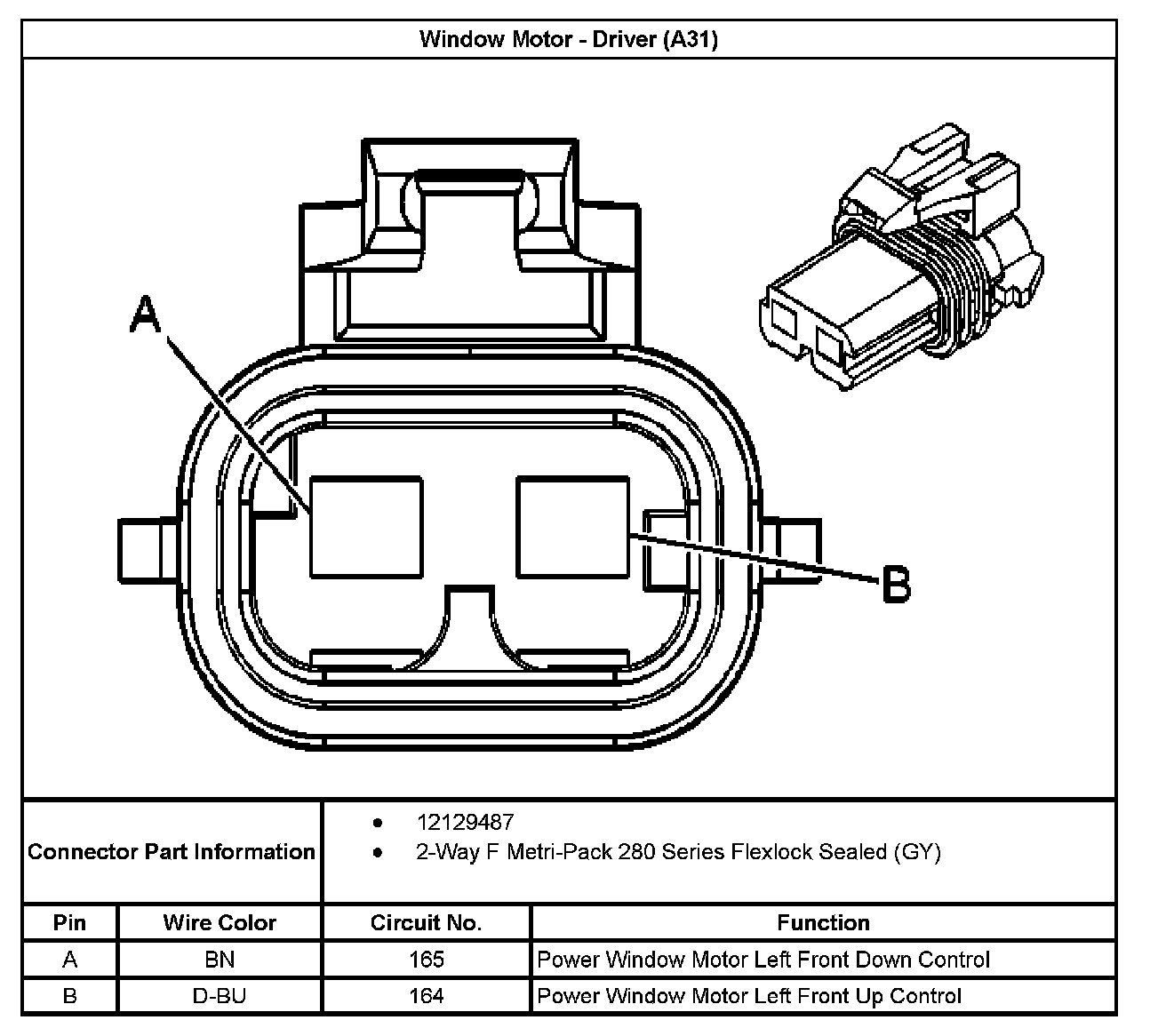

Window Motor - Driver (With RPO Code A31):

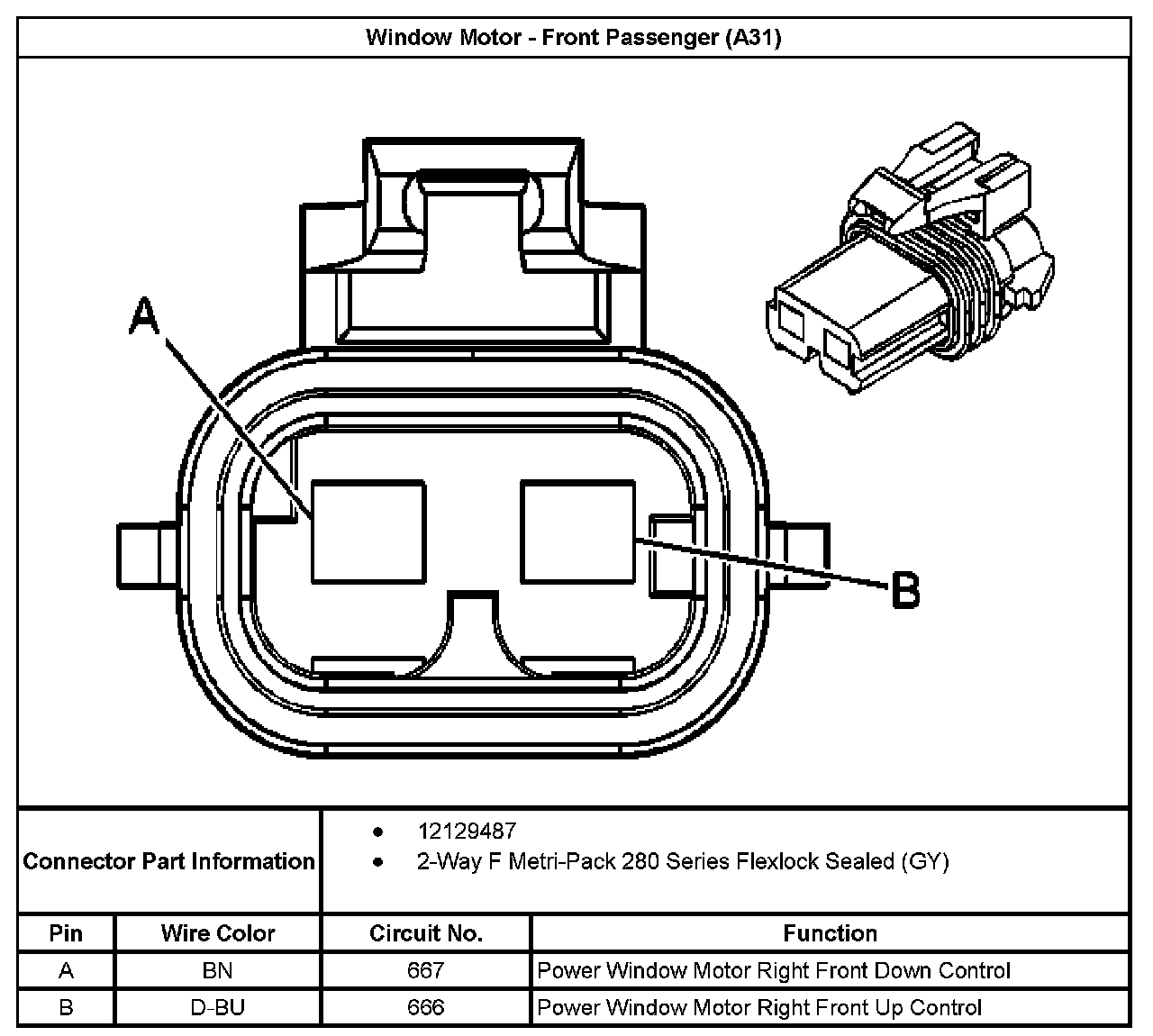

Window Motor - Front Passenger (With RPO Code A31):

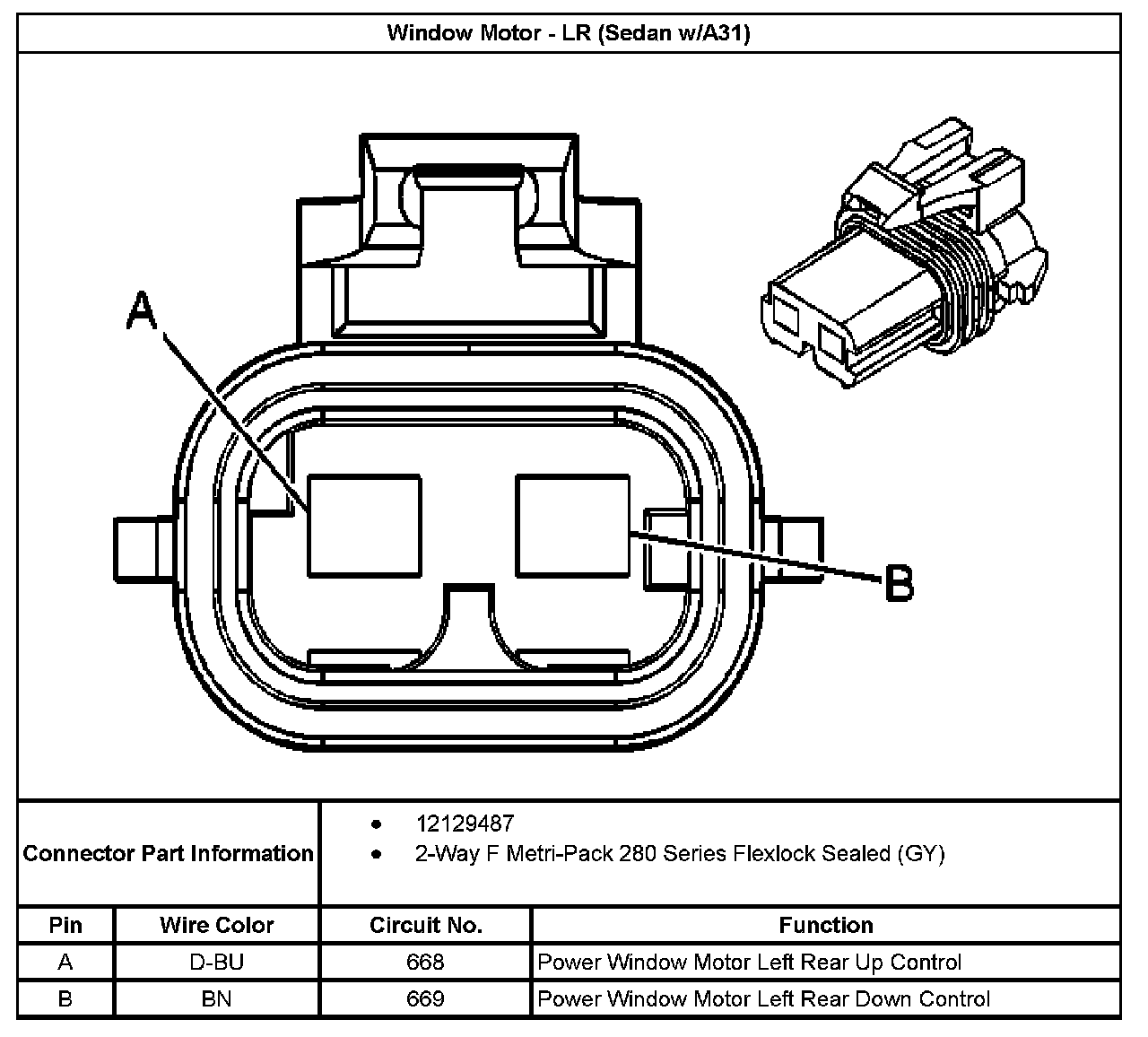

Window Motor - LR (Sedan With RPO Code A31):

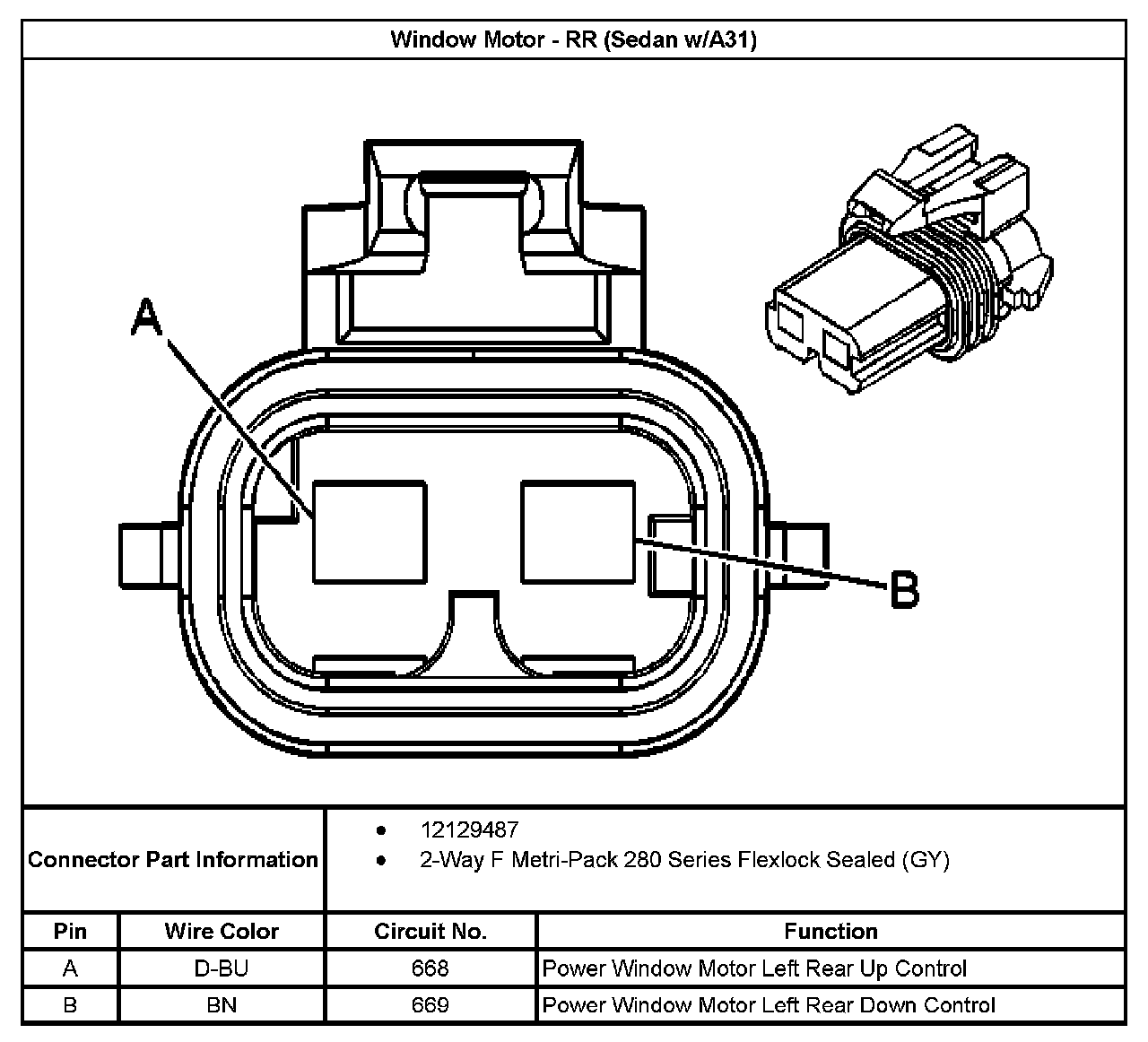

Window Motor - RR (Sedan With RPO Code A31):
