Window Switch - Driver

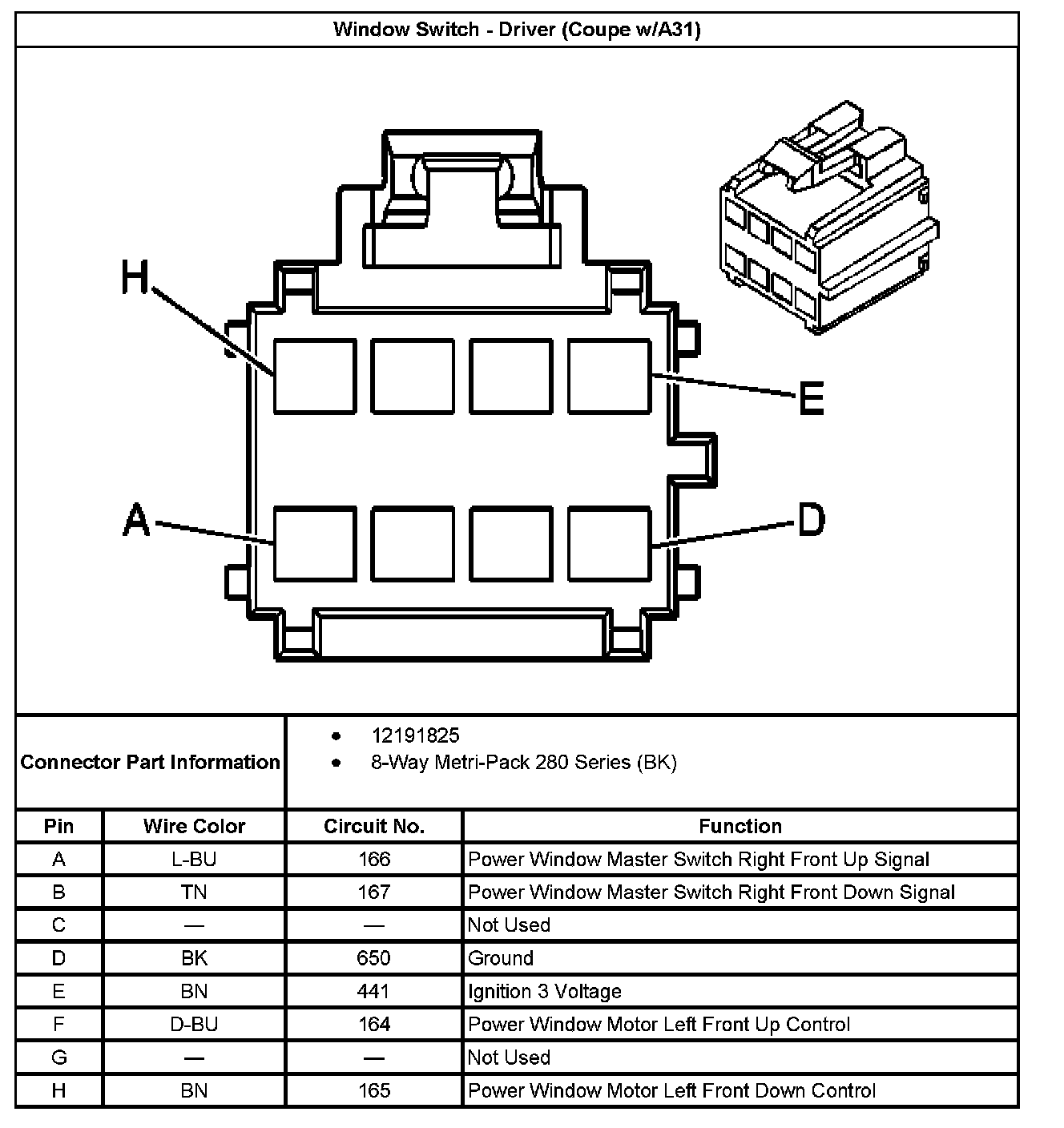

Window Switch - Driver (Coupe With RPO Code A31):

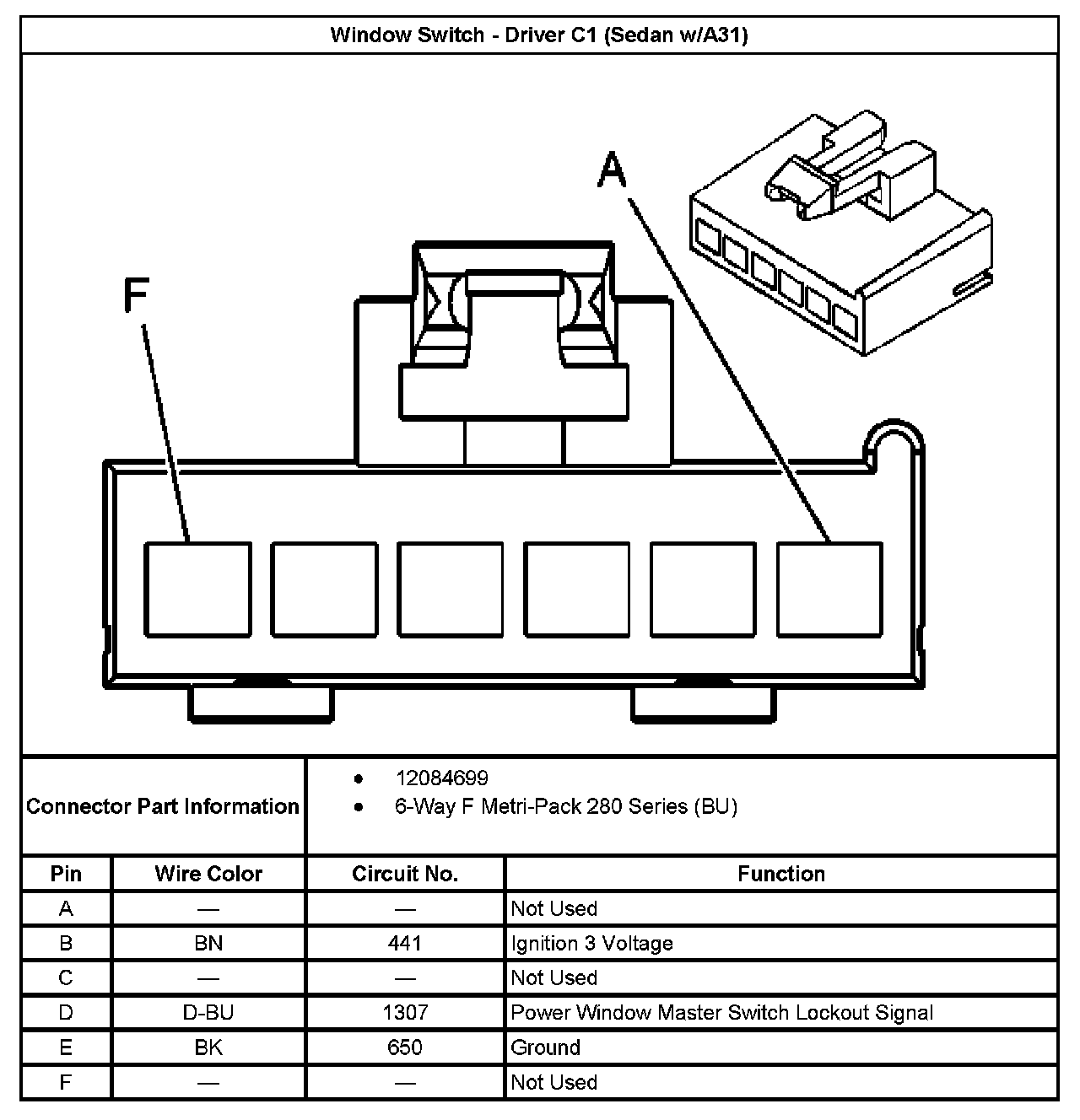

Window Switch - Driver C1 (Sedan With RPO Code A31):

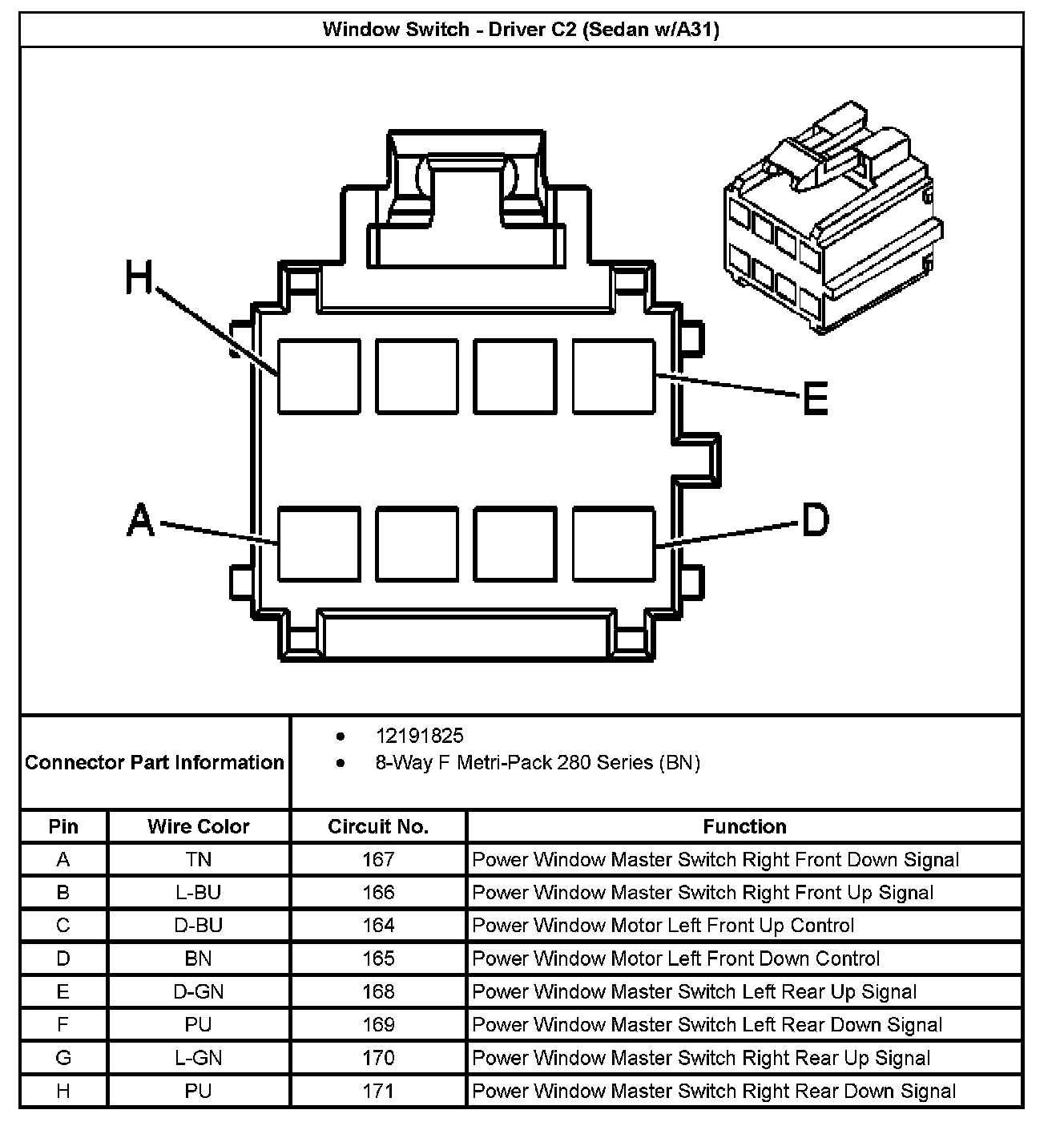

Window Switch - Driver C2 (Sedan With RPO Code A31):
