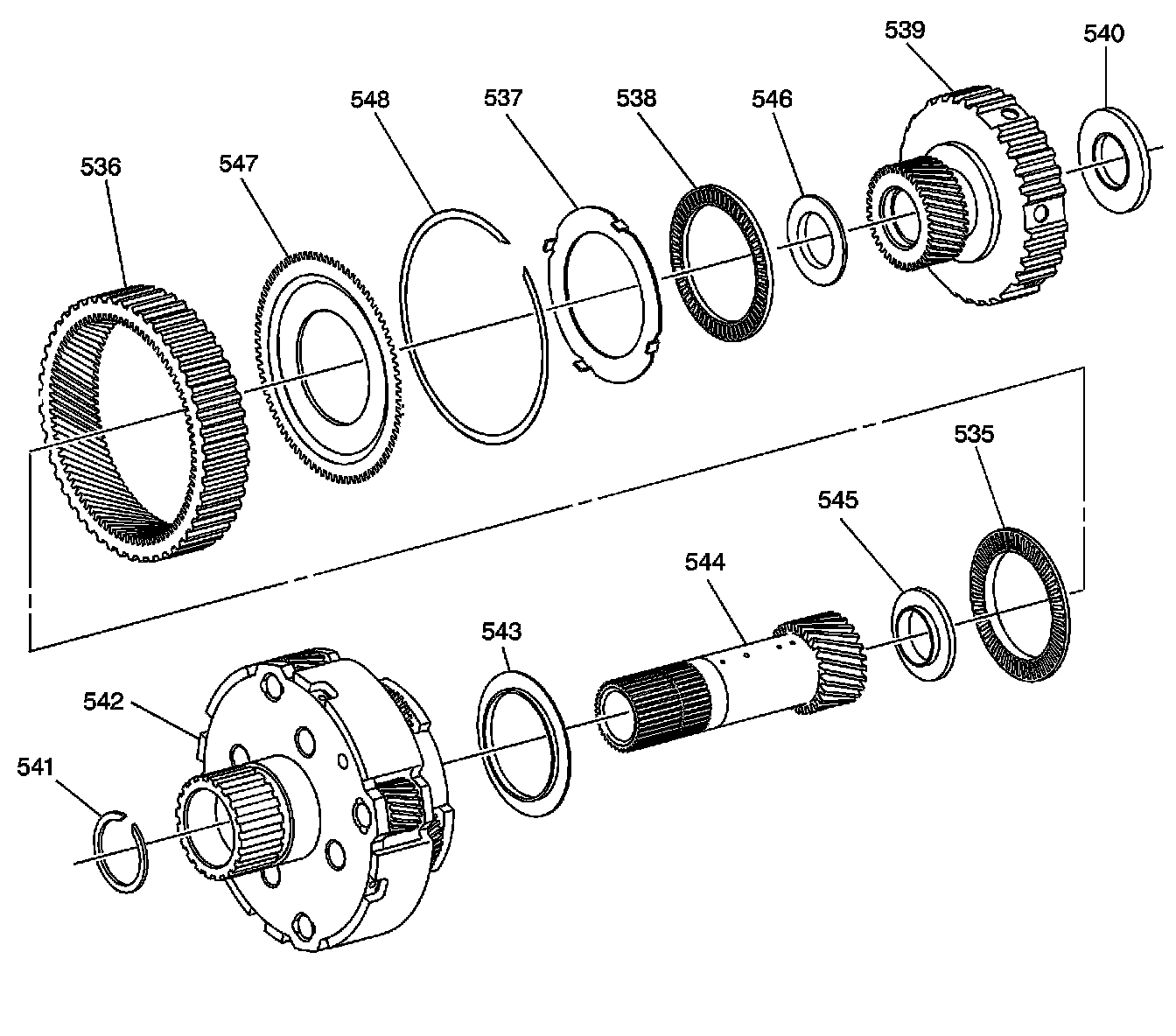

Rear Internal Gear Assembly

Rear Internal Gear Assembly





535 - Rear Internal Gear Thrust Bearing Assembly
536 - Rear Internal Gear
537 - Rear Sun Gear Thrust Bearing Race
538 - Rear Sun Gear Thrust Bearing Assembly
539 - Rear Sun Gear Assembly
540 - Input Shaft Thrust Bearing Assembly
541 - Front Sun Gear Retaining Ring
542 - Front Carrier Assembly
543 - Front Carrier Thrust Bearing Race
544 - Front Sun Gear
545 - Front Sun Gear Thrust Bearing Assembly
546 - Front Sun Gear Thrust Bearing Race
547 - Rear Internal Gear Flange
548 - Rear Internal Gear Flange Retaining Ring
