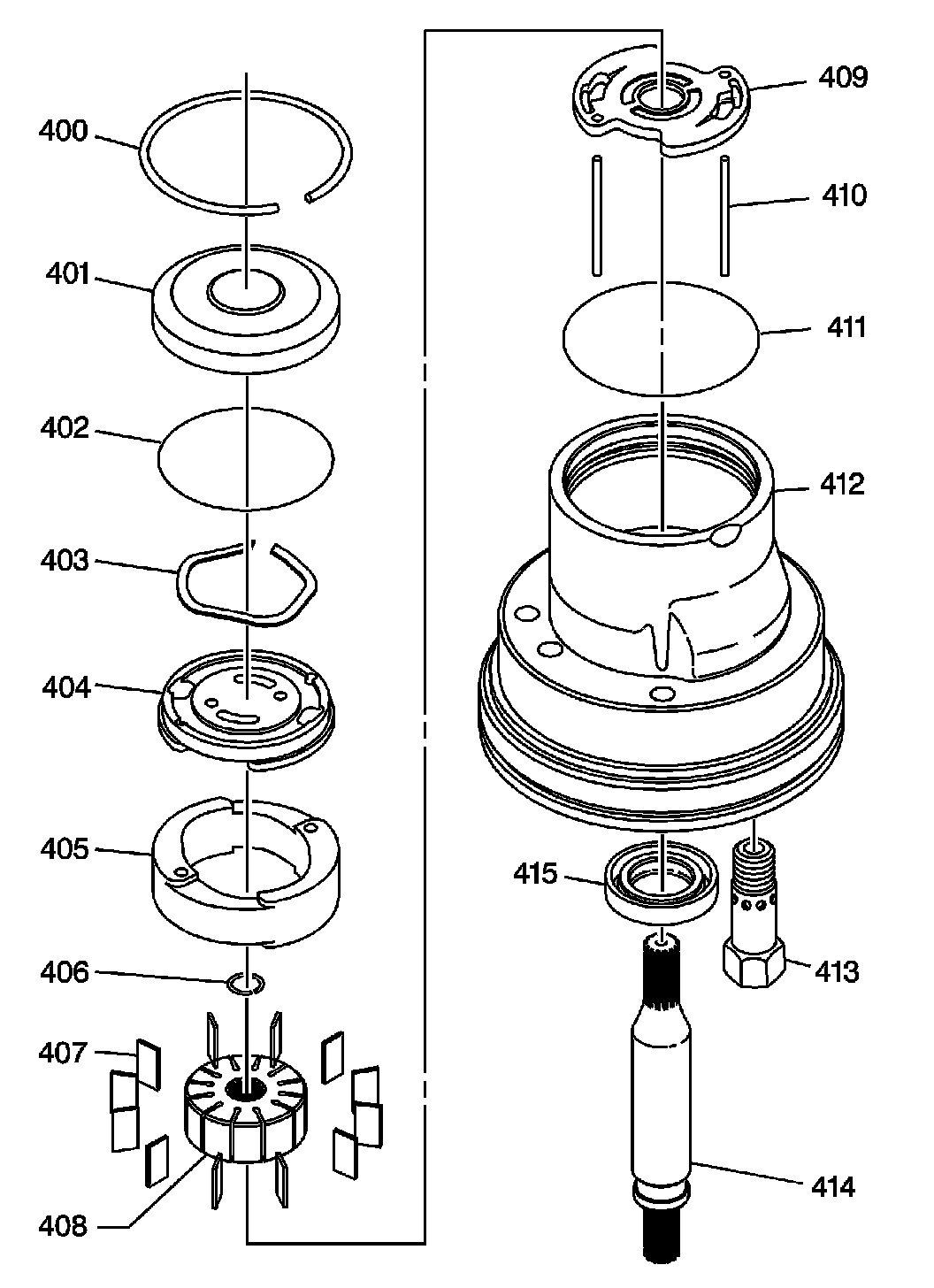

Transmission Fluid Pump Disassembled View

(400) End Cover Retaining Ring
(401) Pump End Cover
(402) Pump End Cover O-Ring Seal
(403) Pressure Plate Spring
(404) Pressure Plate
(405) Cam Ring
(406) Pump Drive Shaft Retaining Ring
(407) Pump Rotor Vane
(408) Pump Rotor
(409) Pump Thrust Plate
(410) Cam Ring Dowel Pin
(411) Pump O-Ring Seal - Inner
(412) Pump Housing
(413) Pressure Relief Assembly
(414) Pump Drive Shaft
(415) Pump Drive Shaft Seal
