Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain and Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

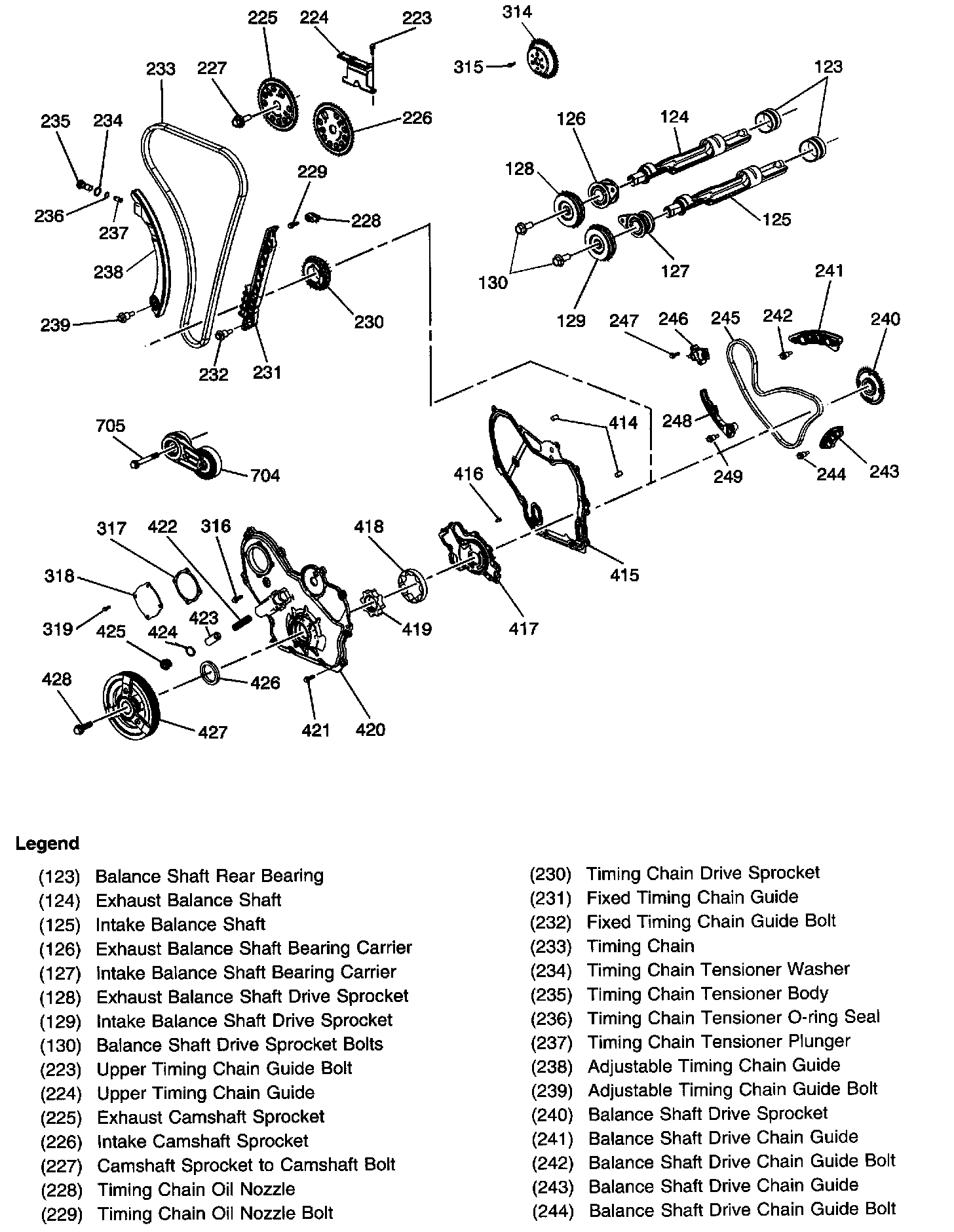

Timing Chain and Components

Part 1 Of 2:

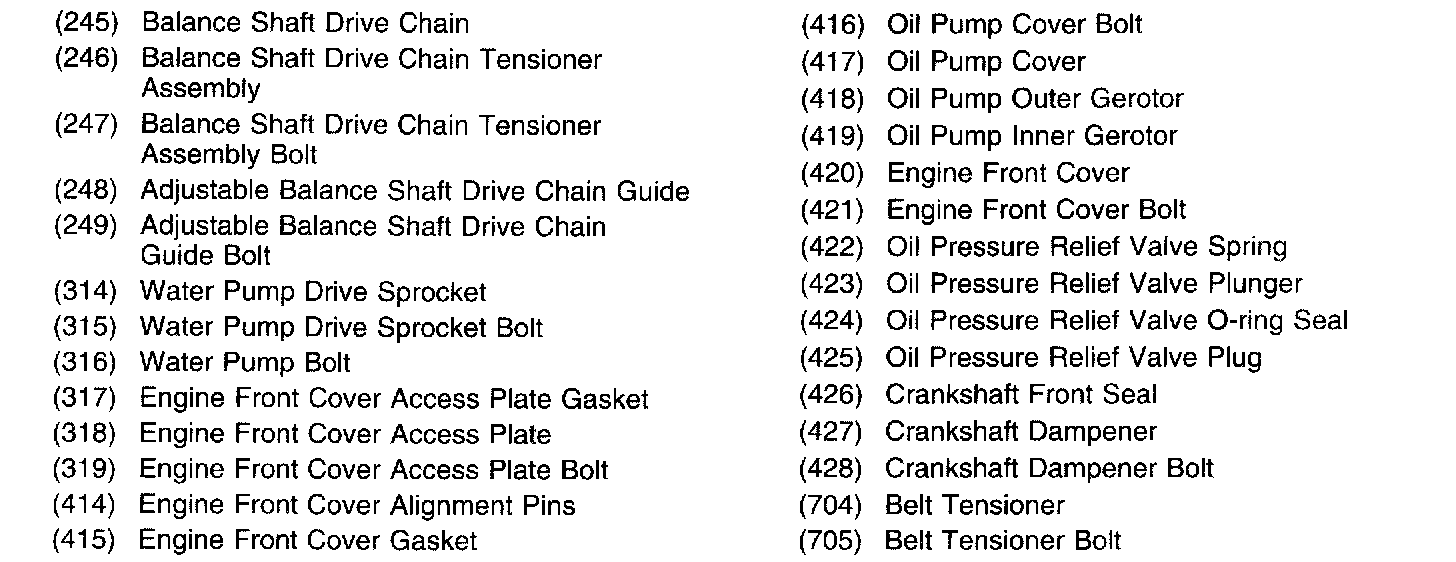

Part 2 Of 2:
