Transmission Position Sensor/Switch: Diagrams

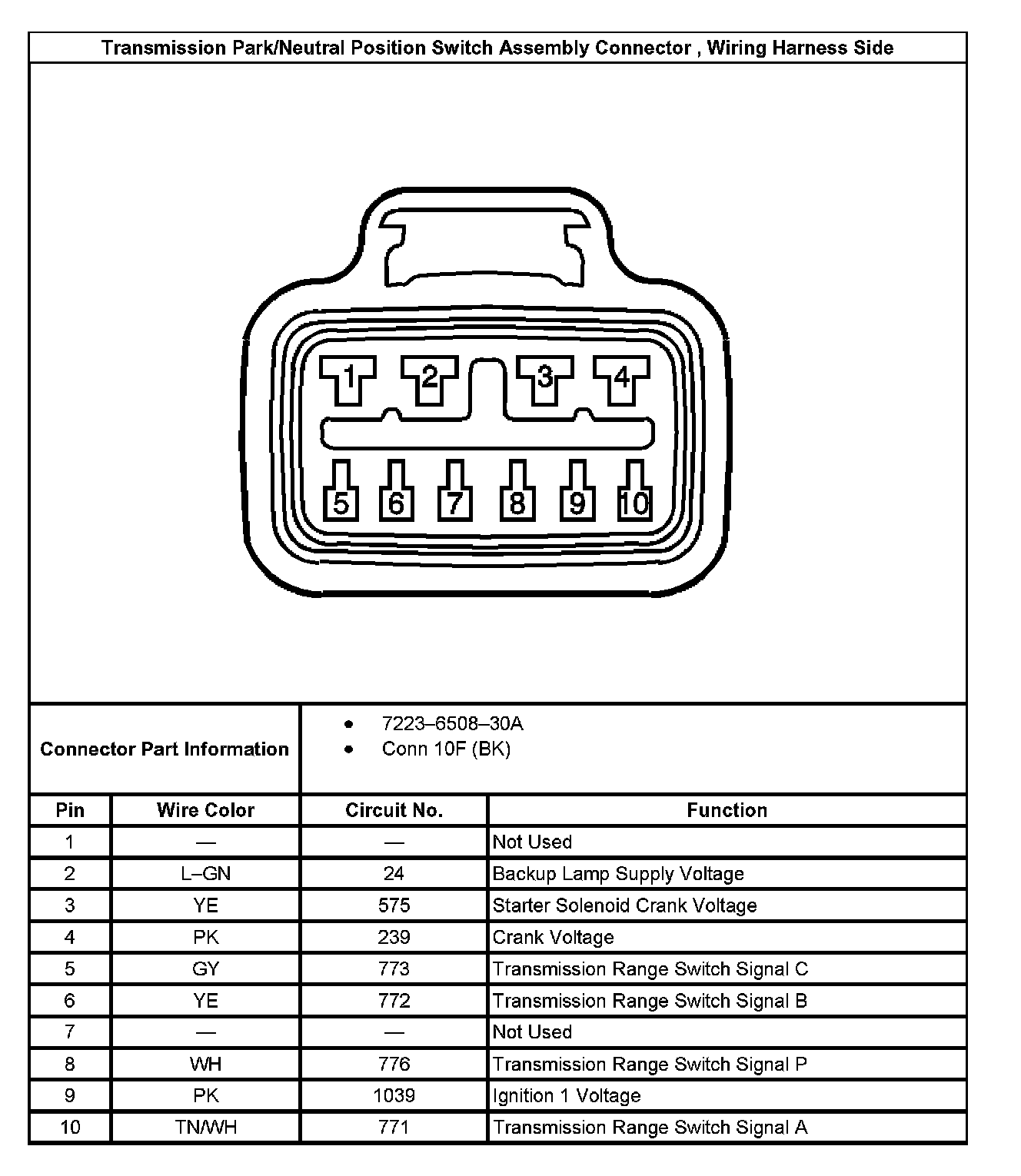

Transmission Park/Neutral Position Switch Assembly Connector, Wiring Harness Side
