Body Control Module (BCM) C4

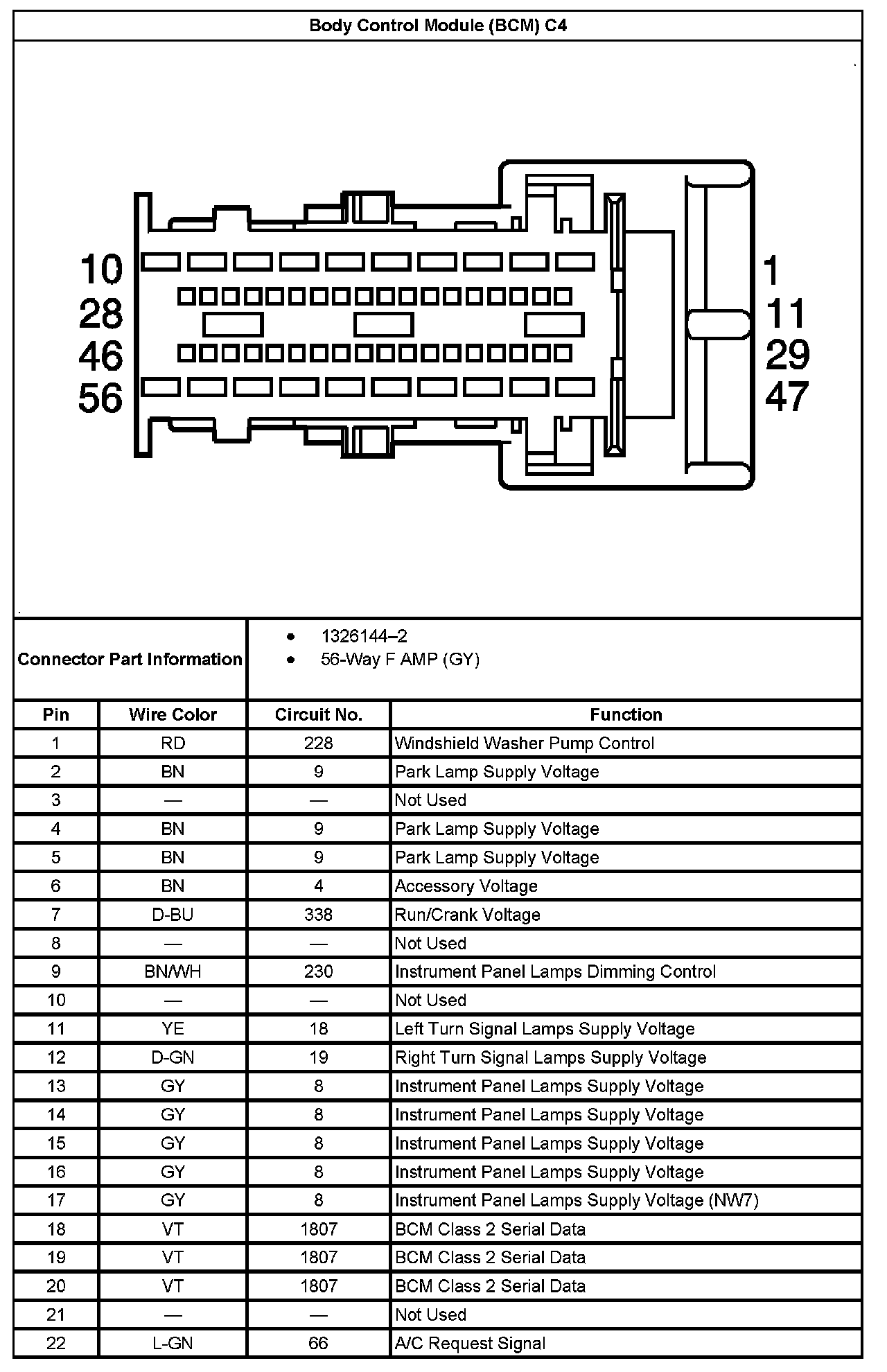

Body Control Module (BCM) C4 Part 1:

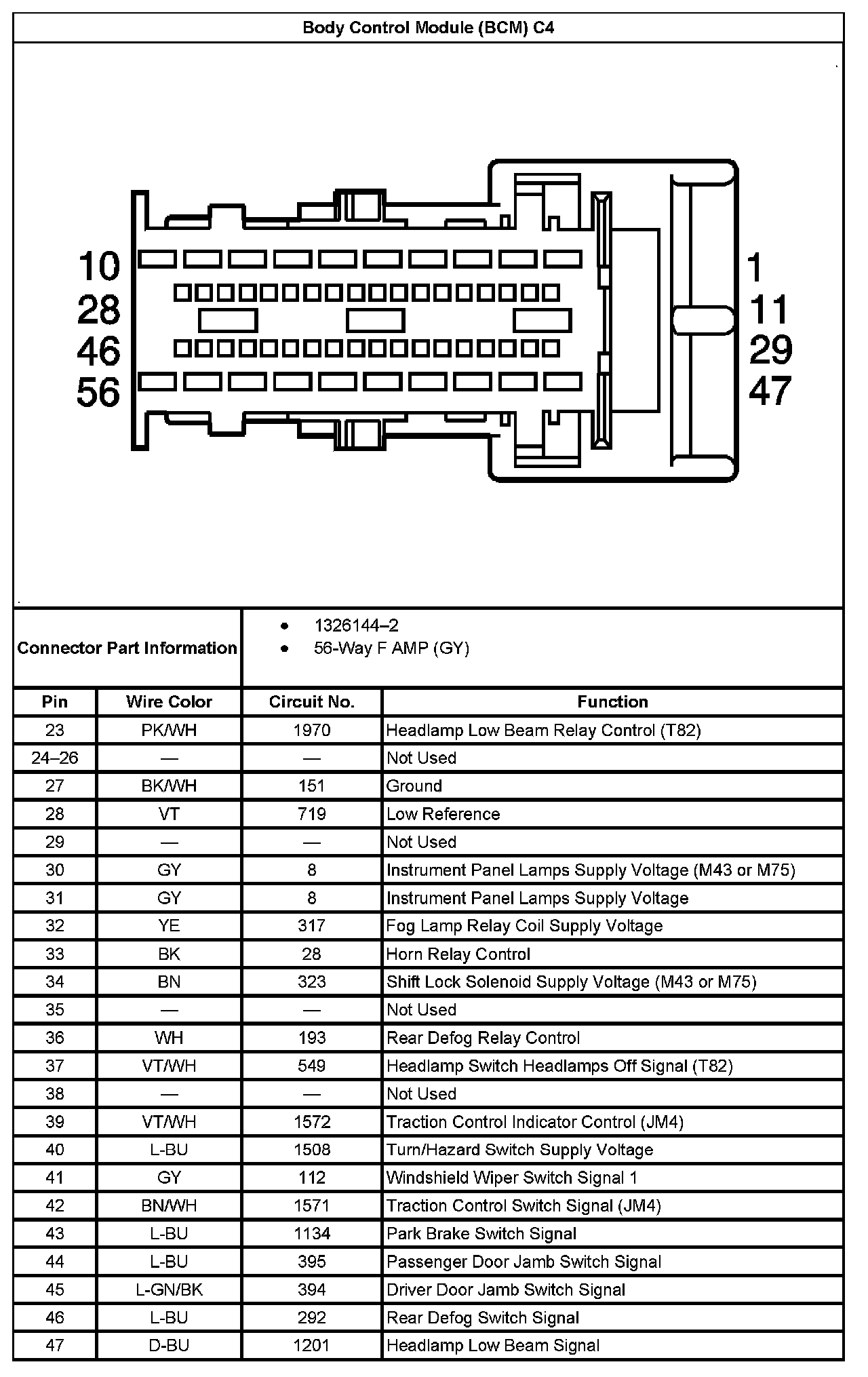

Body Control Module (BCM) C4 Part 2:

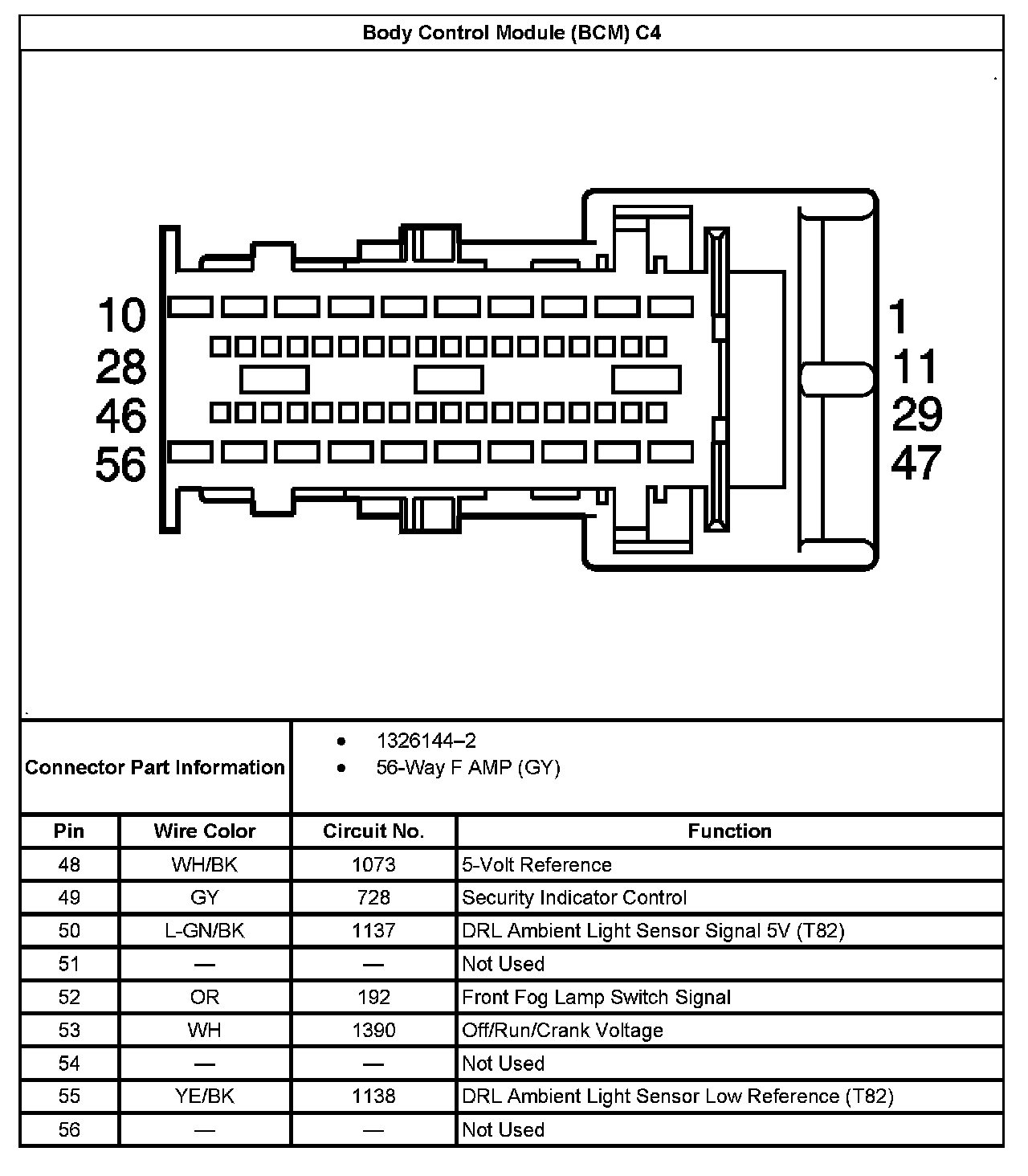

Body Control Module (BCM) C4 Part 3:
