Wiper Drive System Module Replacement

WIPER DRIVE SYSTEM MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the wiper arms.
2. Remove the air inlet grille panel.




3. Disconnect the wiring connector from the wiper motor.

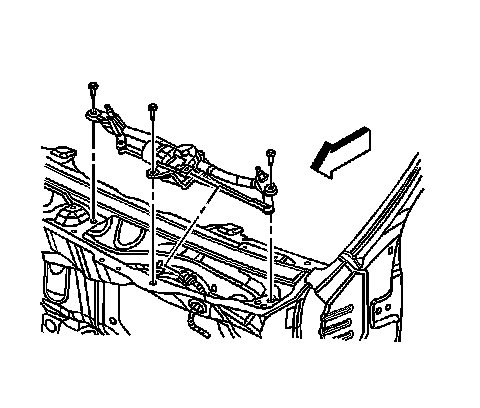

4. Remove the fasteners attaching the wiper module to the plenum.
5. Remove the wiper module assembly from the plenum.

INSTALLATION PROCEDURE




1. Install the wiper module assembly into the plenum.
2. Install the fasteners attaching the wiper module assembly to the plenum.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 10 N.m (89 lb in)

3. Connect the wiring connector to the wiper motor.
4. Install the air inlet grille panel.
5. Install the wiper arms.
