Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Locating Body Control Module & Junction Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Front Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Rear Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Right Rear Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

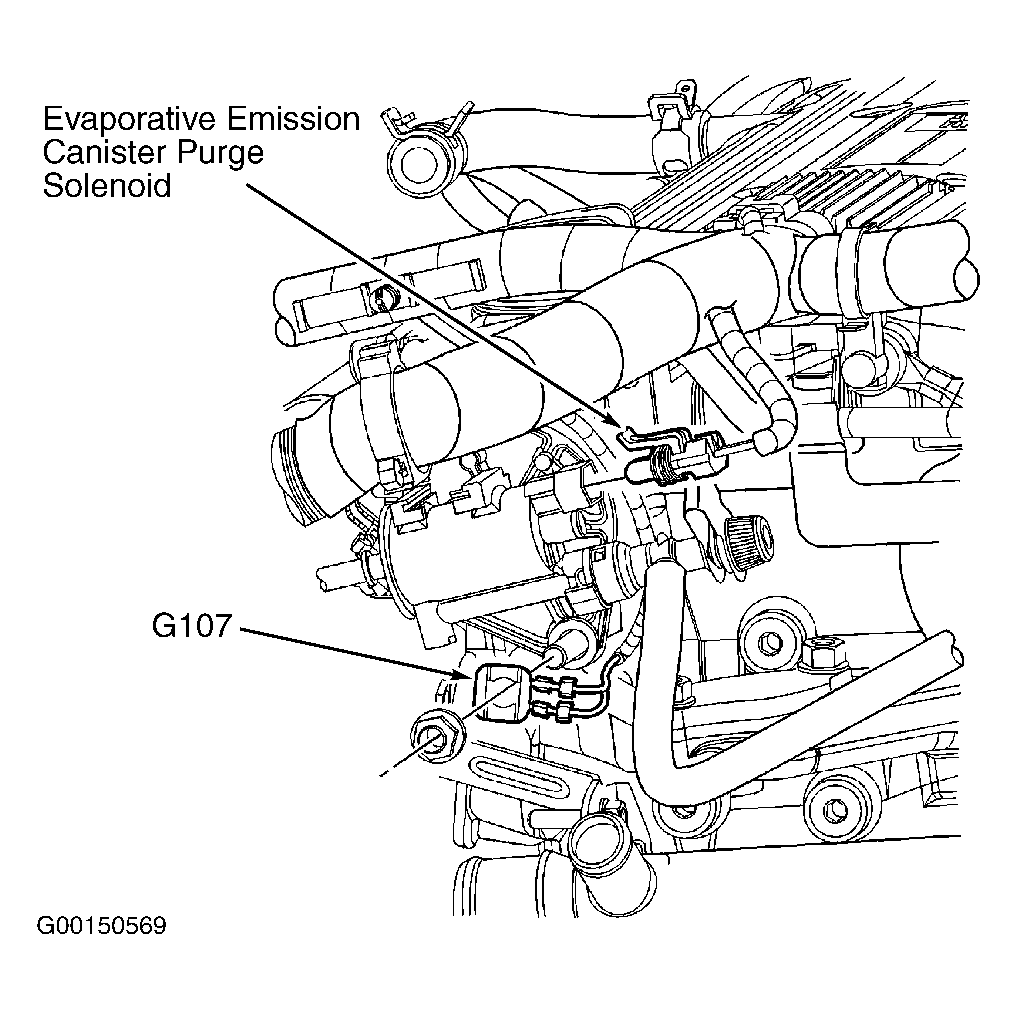

Fig 5: Rear Of Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

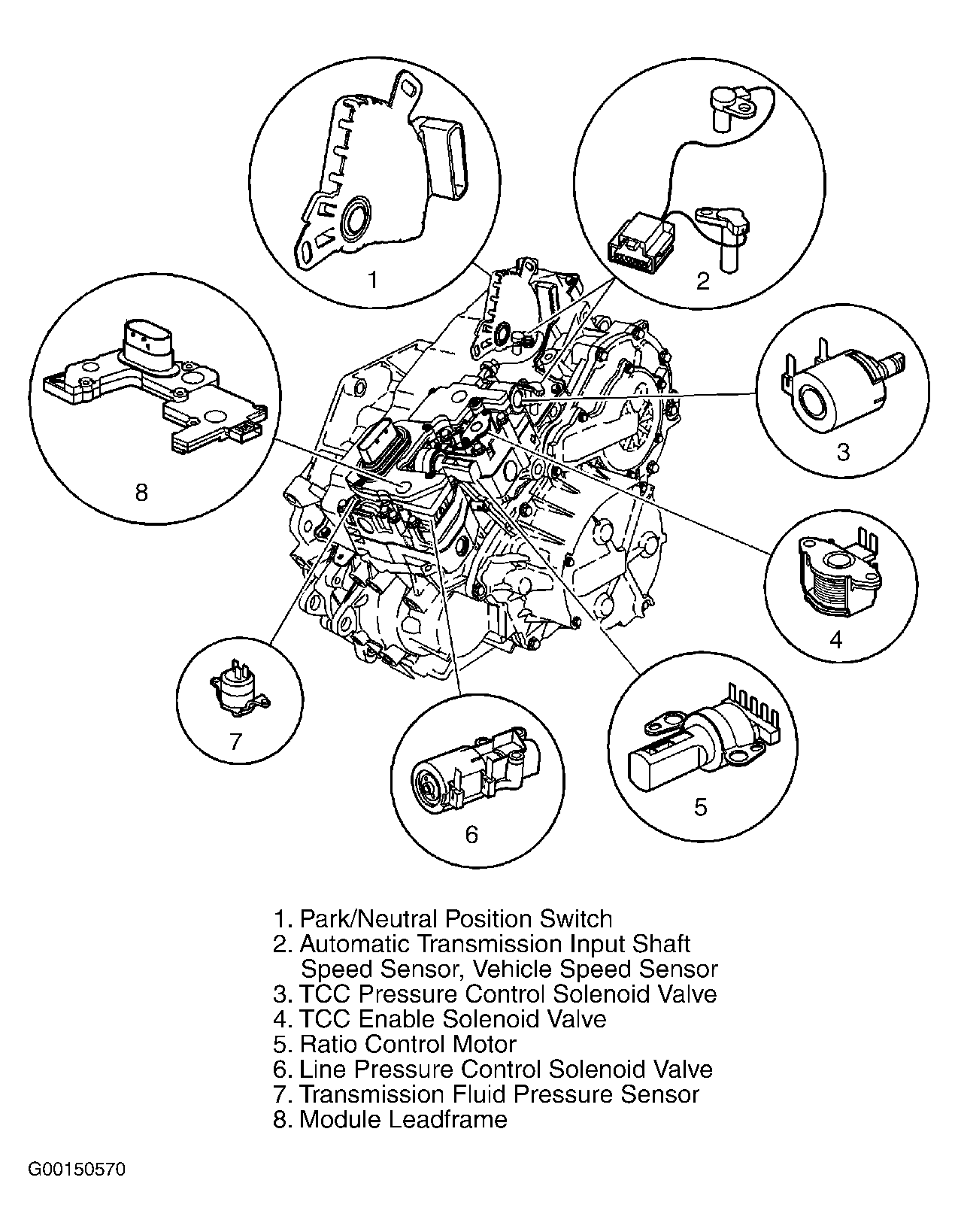

Fig 6: Transmission (CVT2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

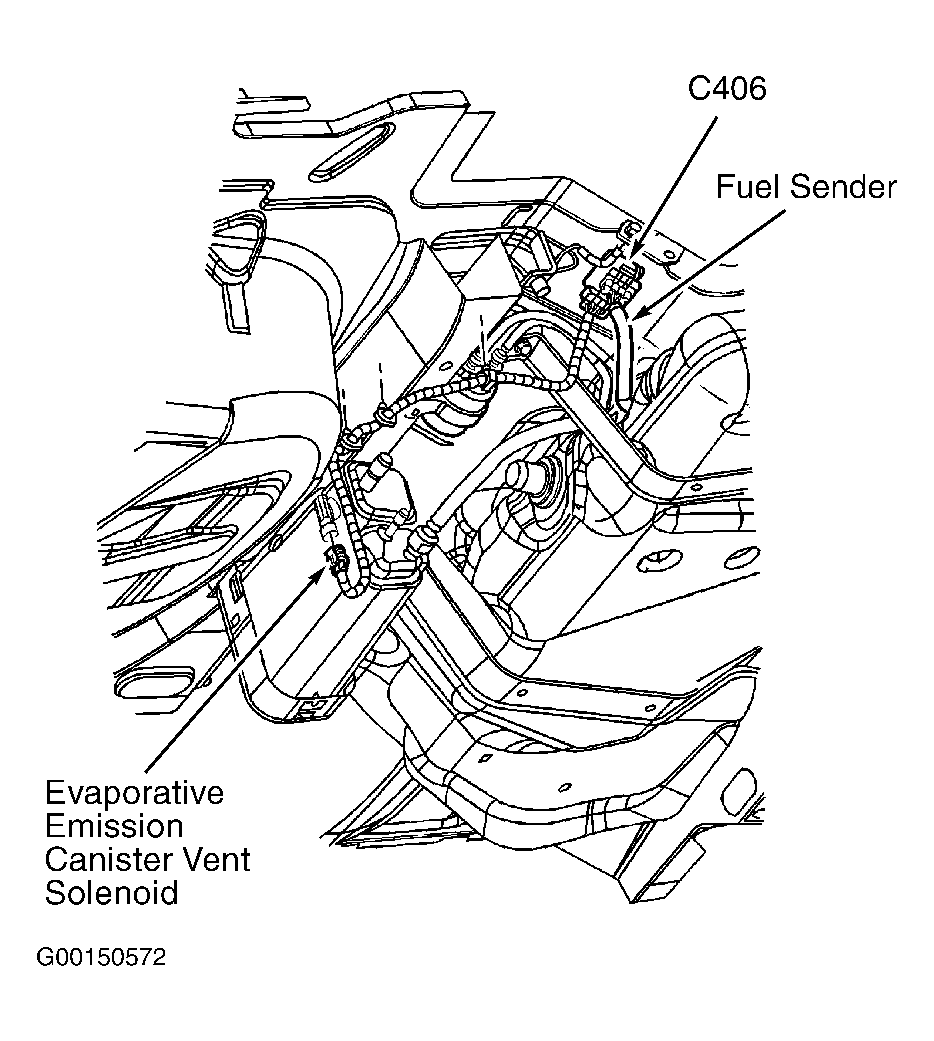

Fig 8: Right Rear Underside Of Vehicle

Courtesy of GENERAL MOTORS CORP.
