Component Locations

NOTE: For locations of starting system components, see Fig 1 -Fig 3 .

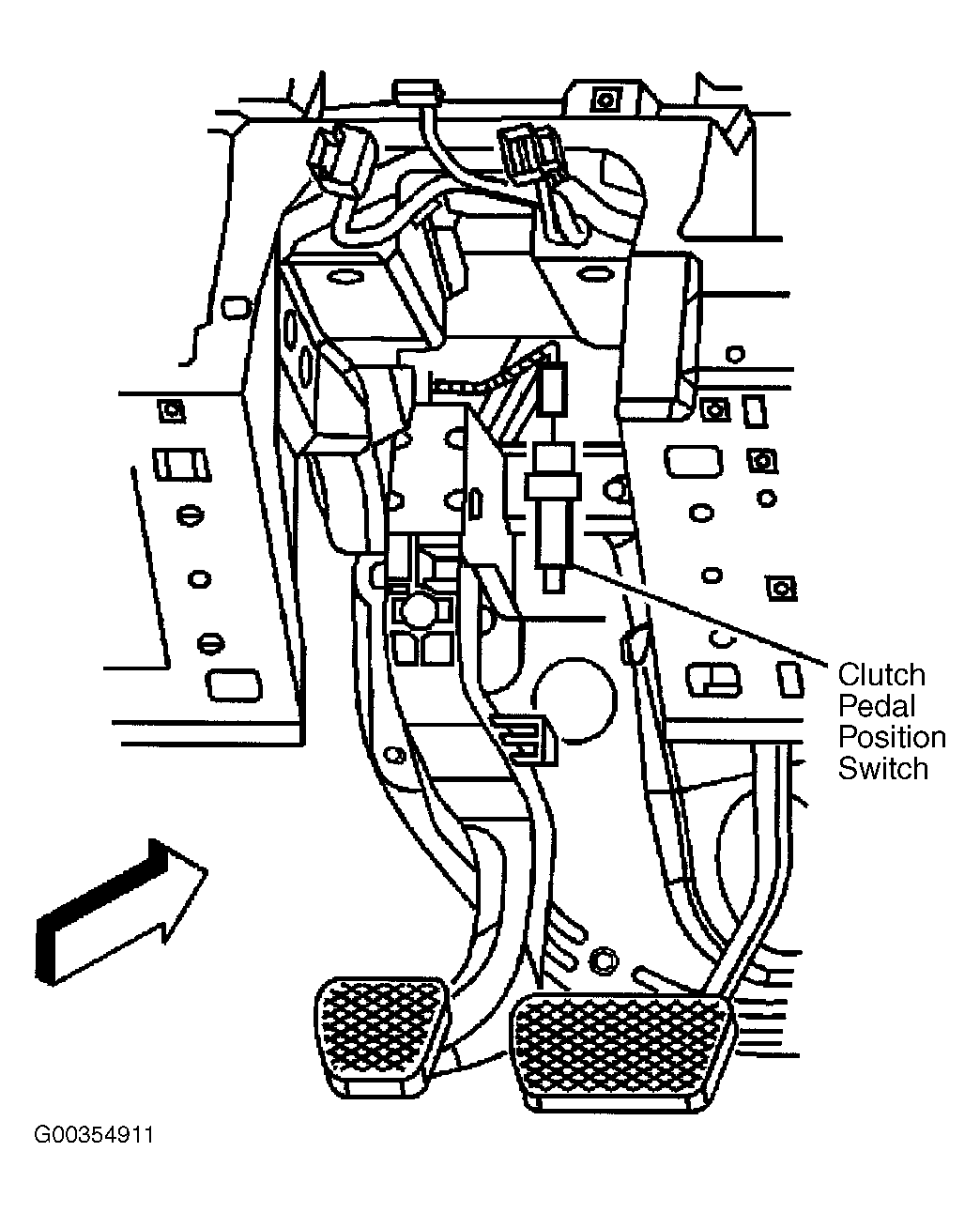

Fig 1: Locating Clutch Pedal Position Switch

Courtesy of GENERAL MOTORS CORP.

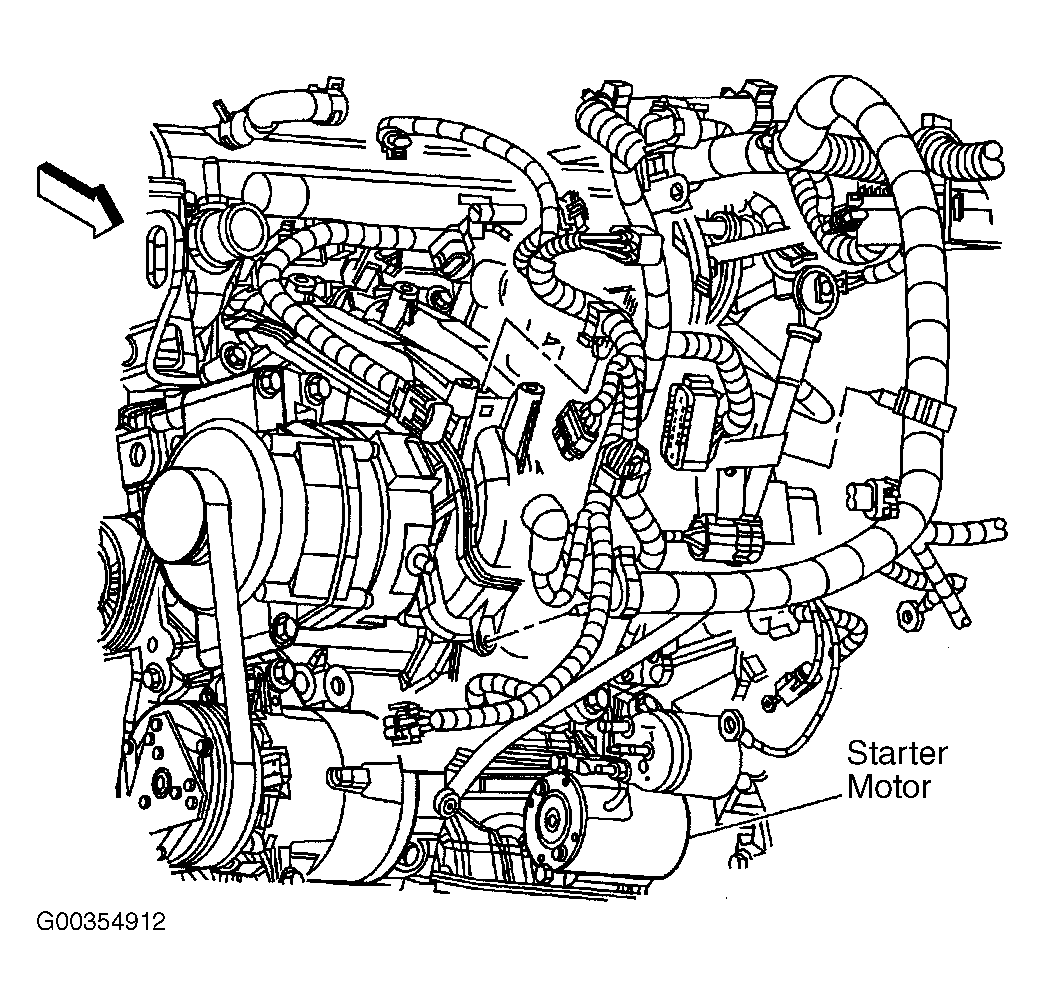

Fig 2: Locating Starter Motor

Courtesy of GENERAL MOTORS CORP.

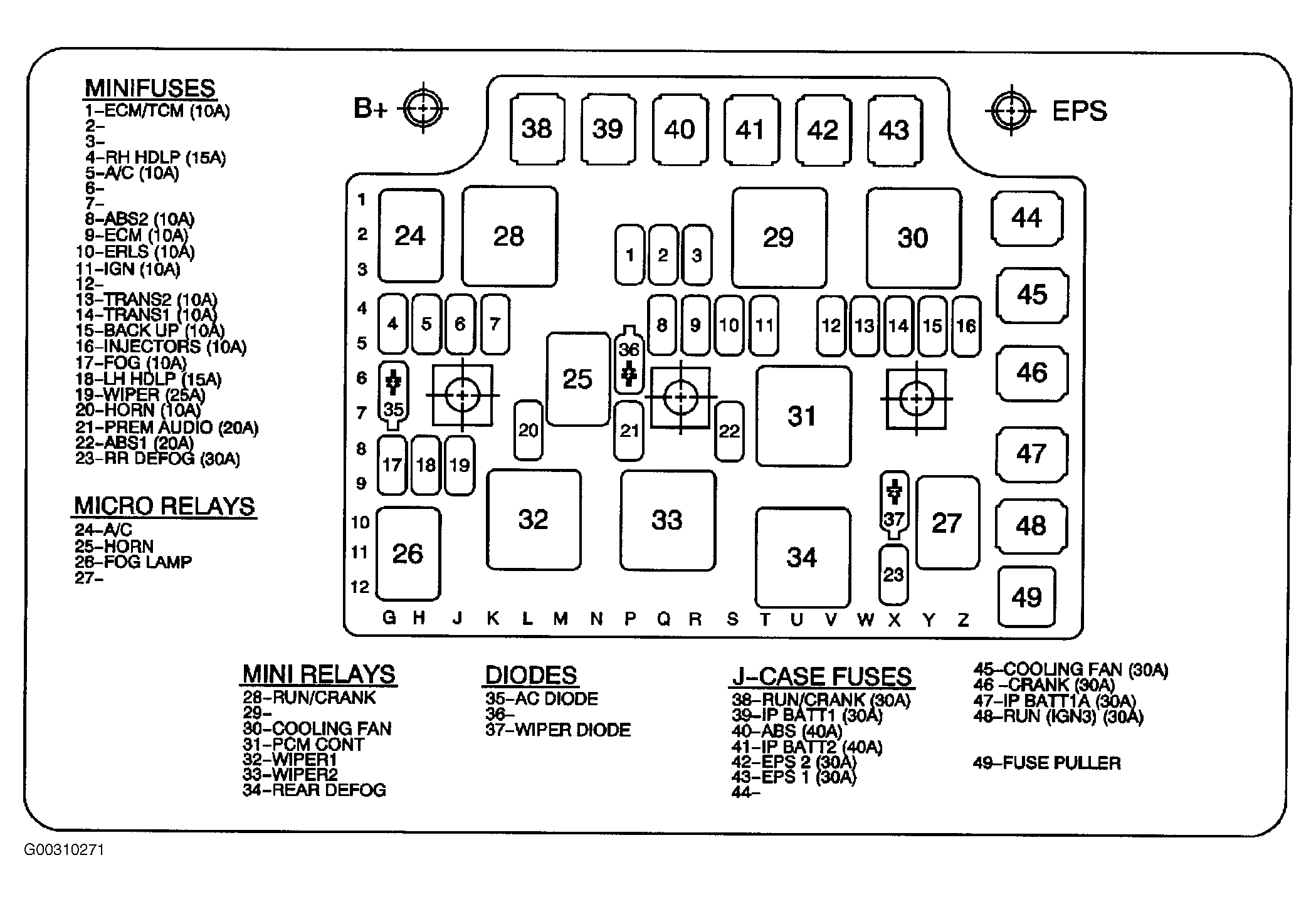

Fig 3: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.
