Component Locations

Fig 1: Locating CKP Sensor, ECM, Engine Oil Pressure Switch, Knock Sensor, ICM, MAP Sensor & TCM

Courtesy of GENERAL MOTORS CORP.

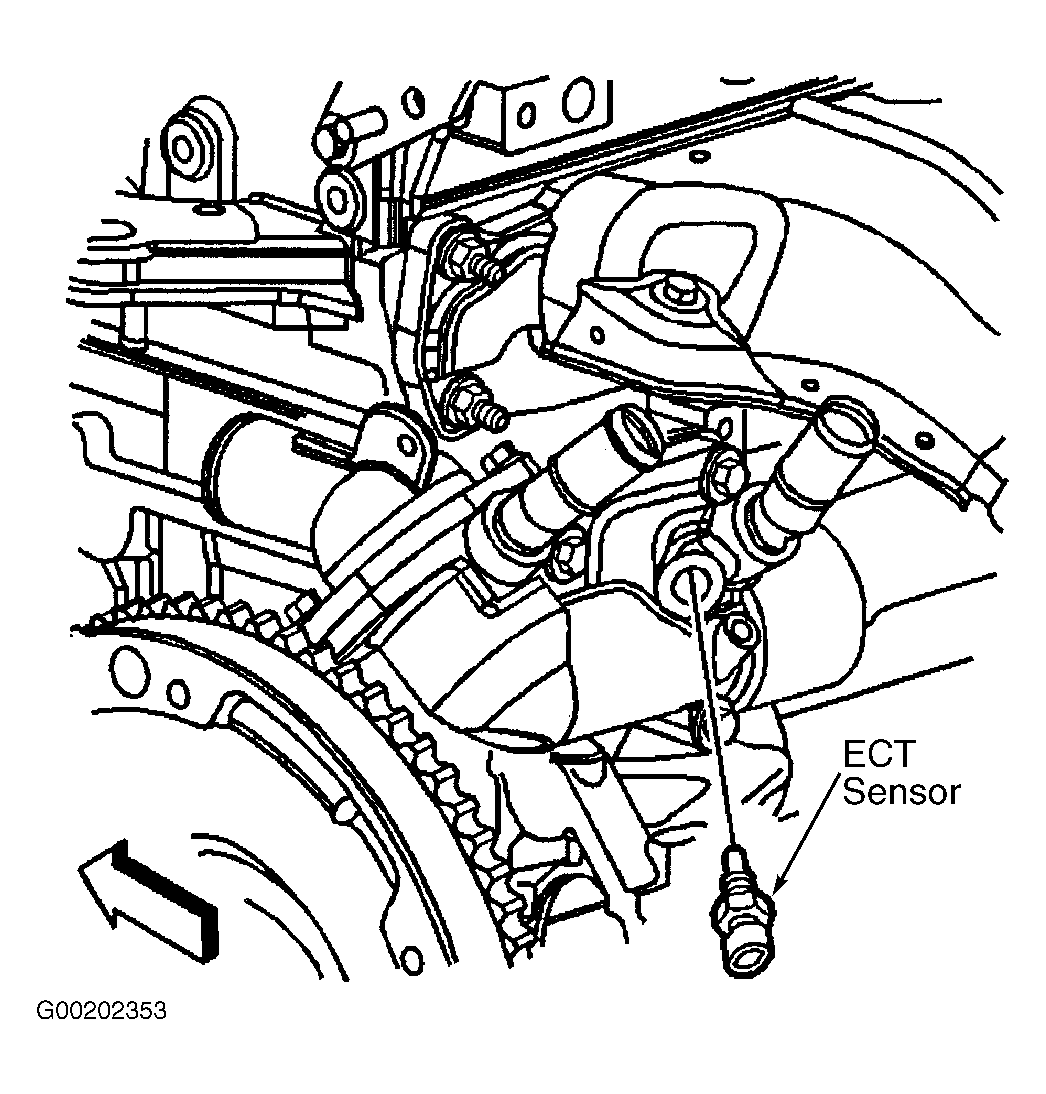

Fig 2: Locating ECT Sensor

Courtesy of GENERAL MOTORS CORP.

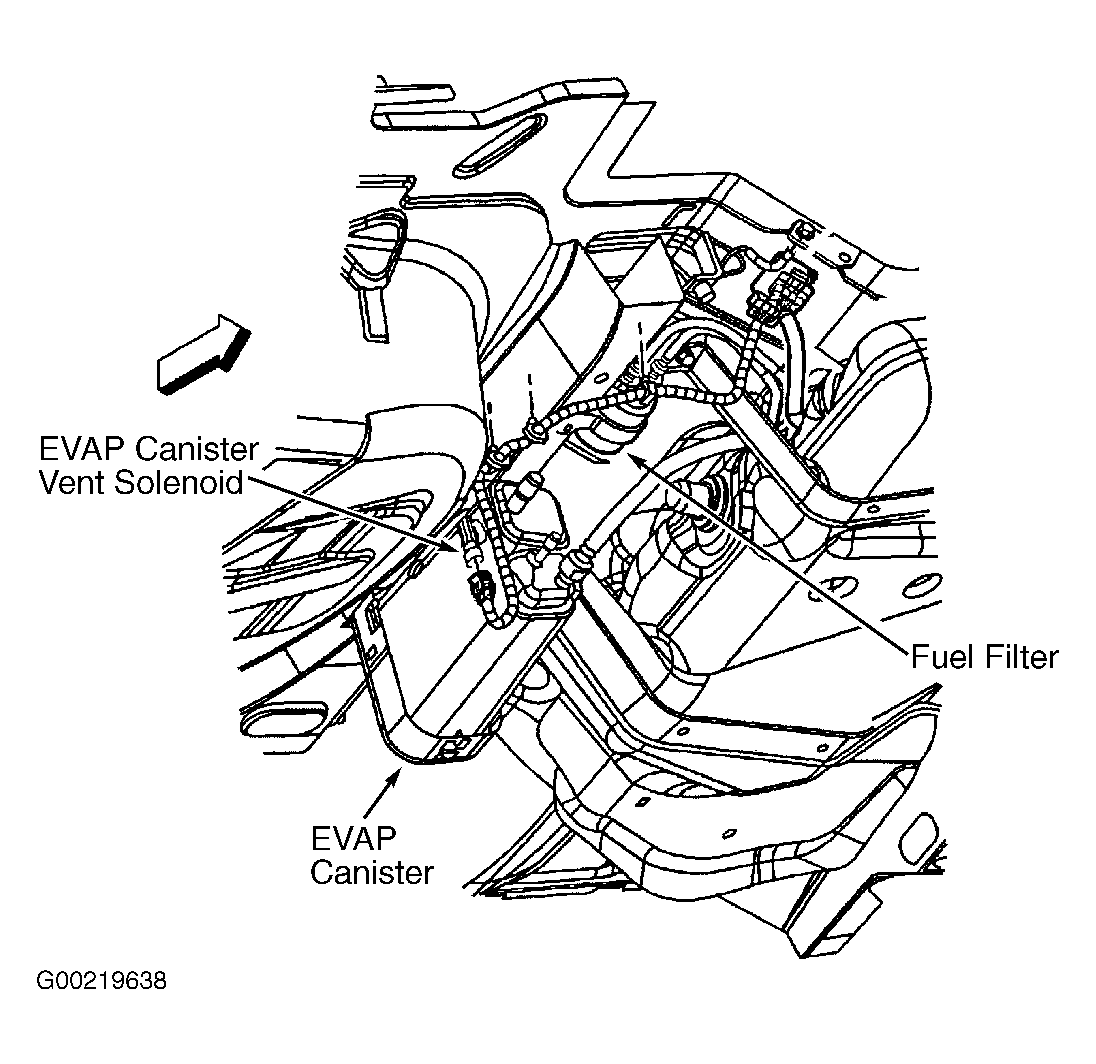

Fig 3: Locating EVAP Canister, EVAP Canister Vent Solenoid & Fuel Filter

Courtesy of GENERAL MOTORS CORP.

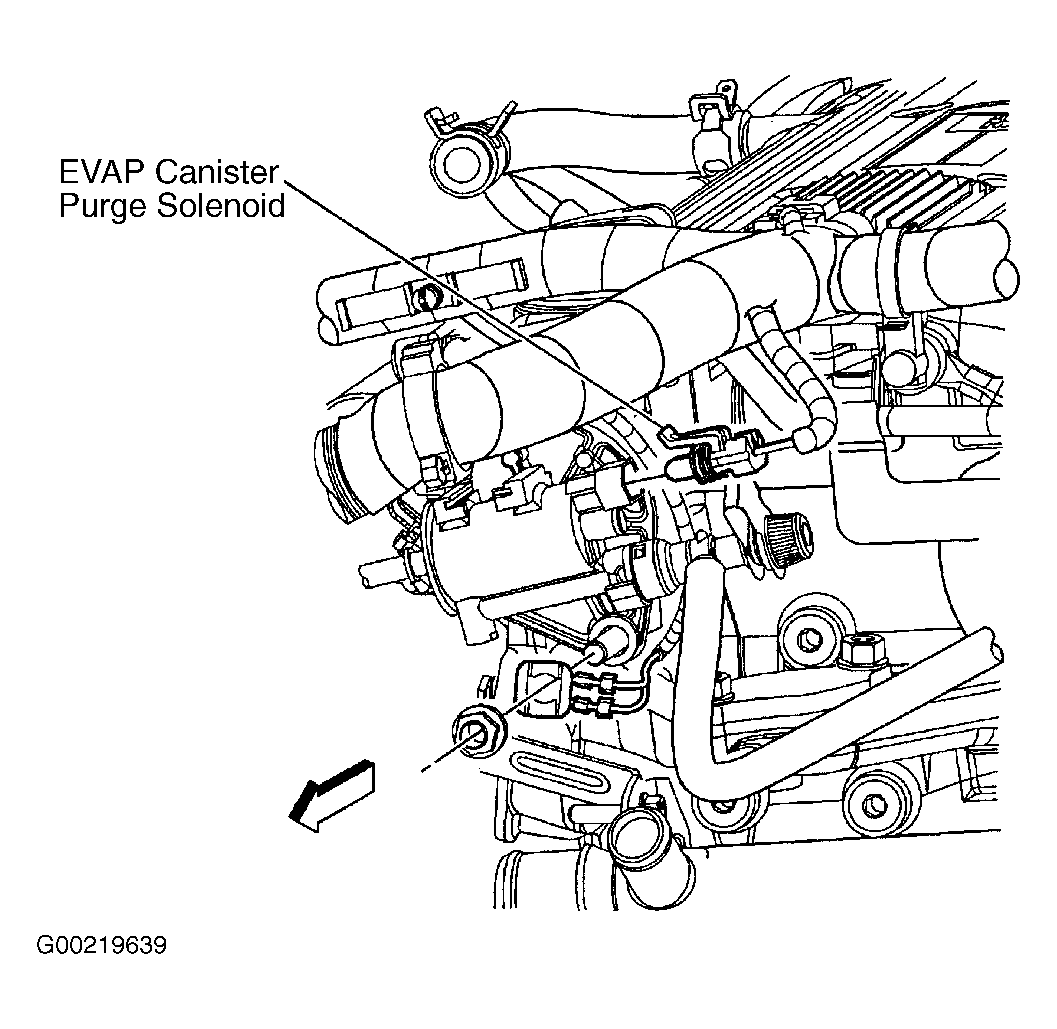

Fig 4: Locating EVAP Canister Purge Solenoid

Courtesy of GENERAL MOTORS CORP.

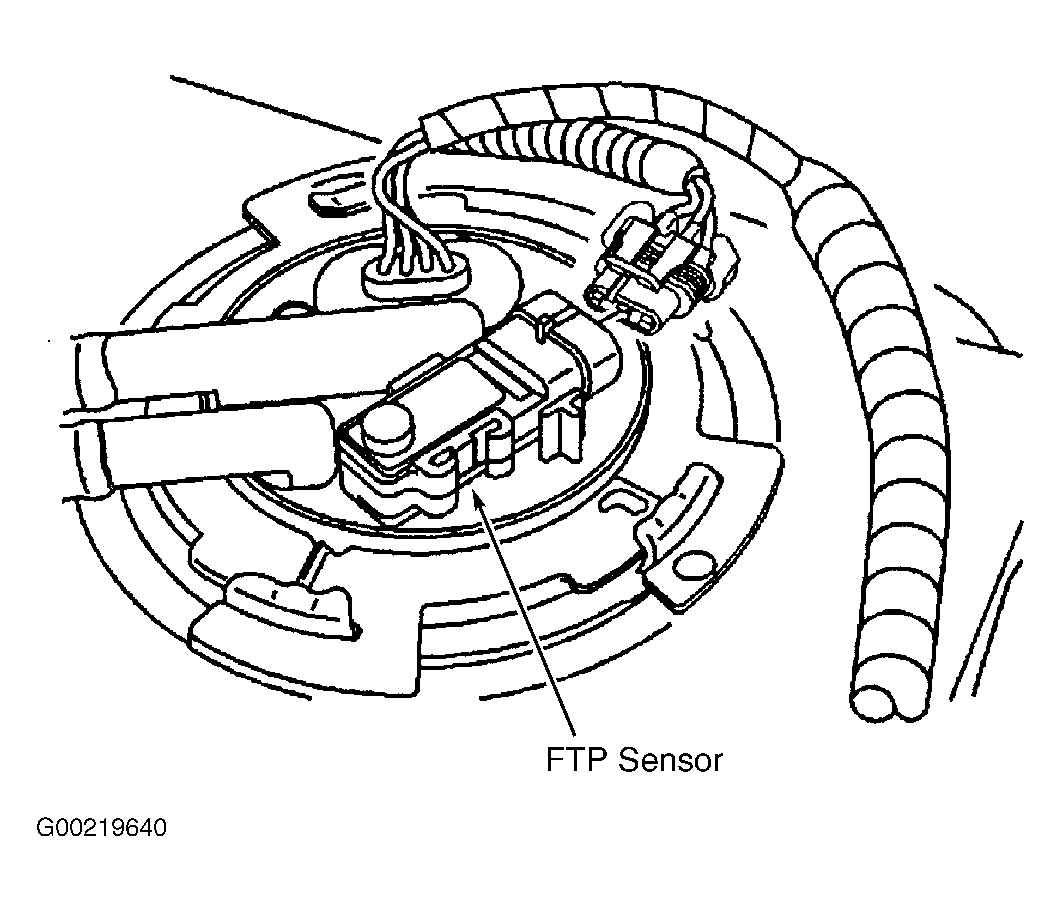

Fig 5: Locating FTP Sensor

Courtesy of GENERAL MOTORS CORP.

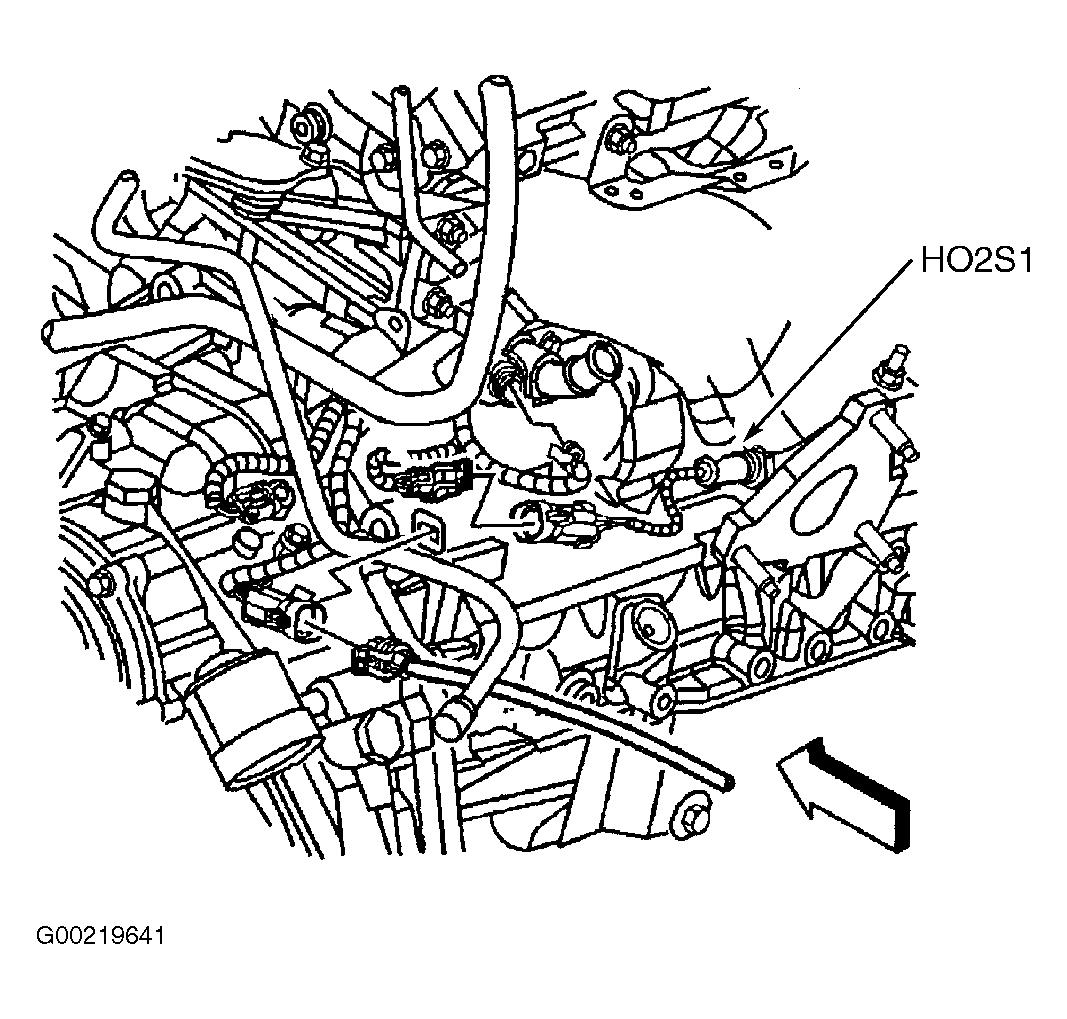

Fig 6: Locating HO2S 1

Courtesy of GENERAL MOTORS CORP.

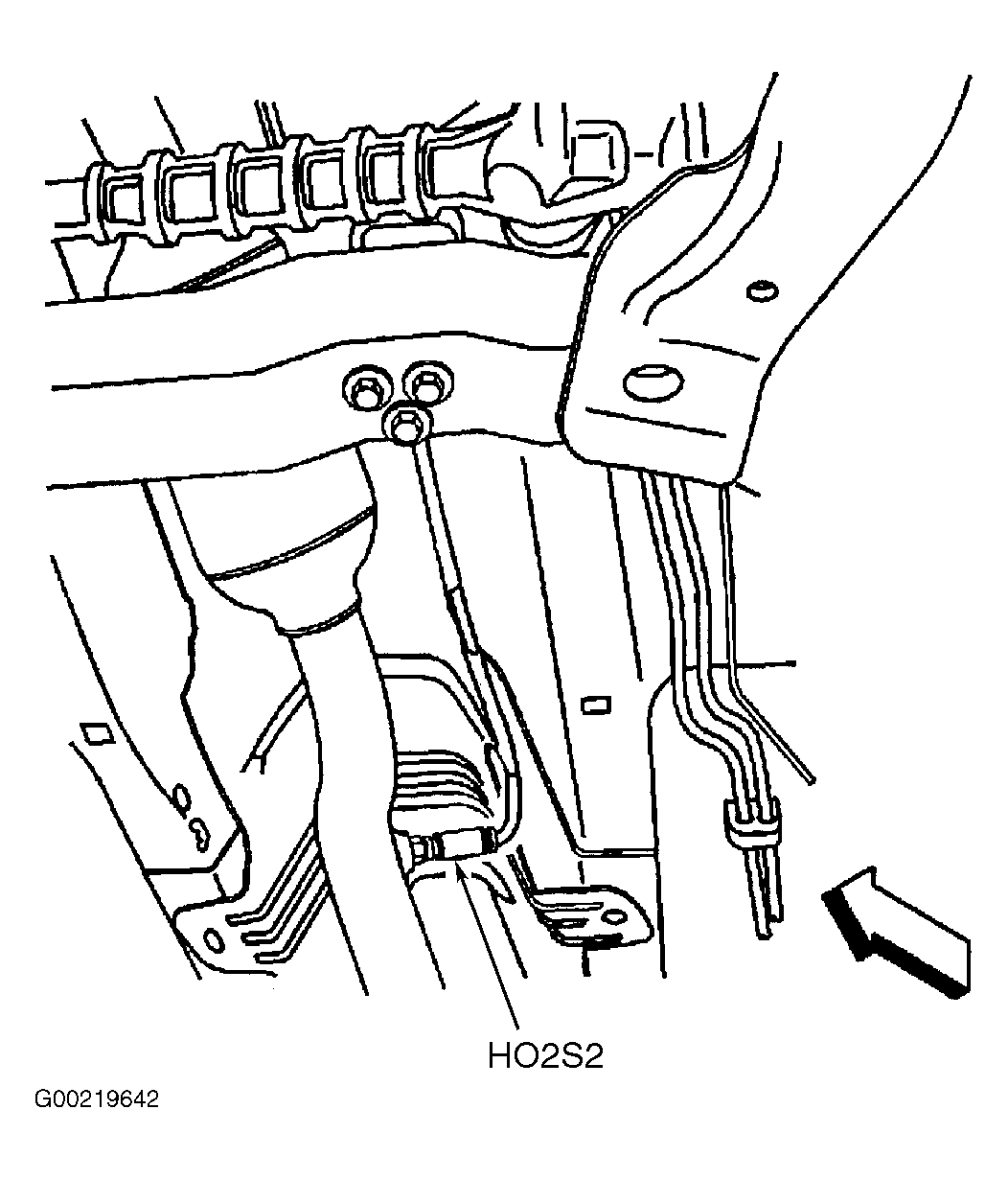

Fig 7: Locating HO2S 2

Courtesy of GENERAL MOTORS CORP.

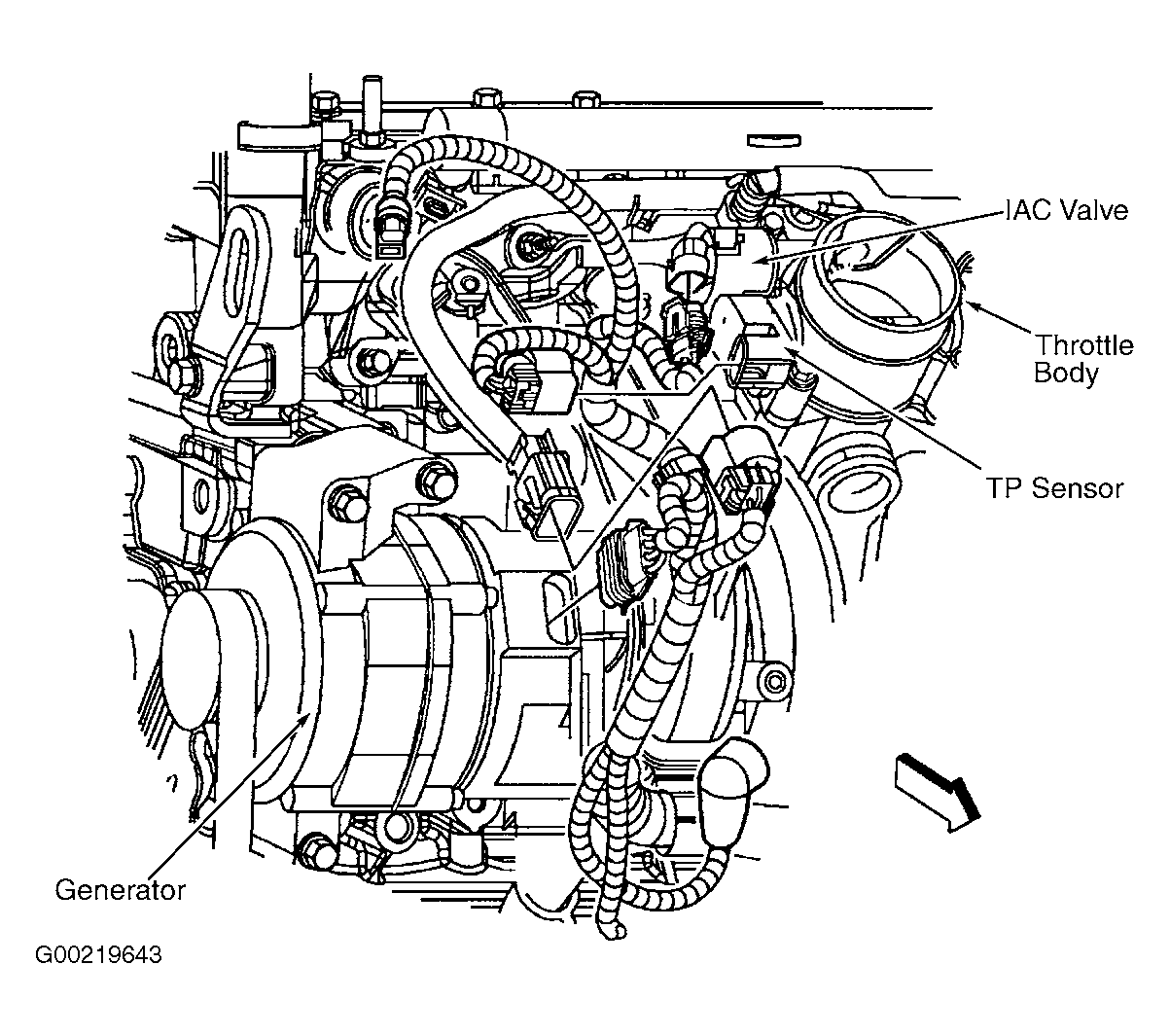

Fig 8: Locating IAC Valve & TP Sensor

Courtesy of GENERAL MOTORS CORP.

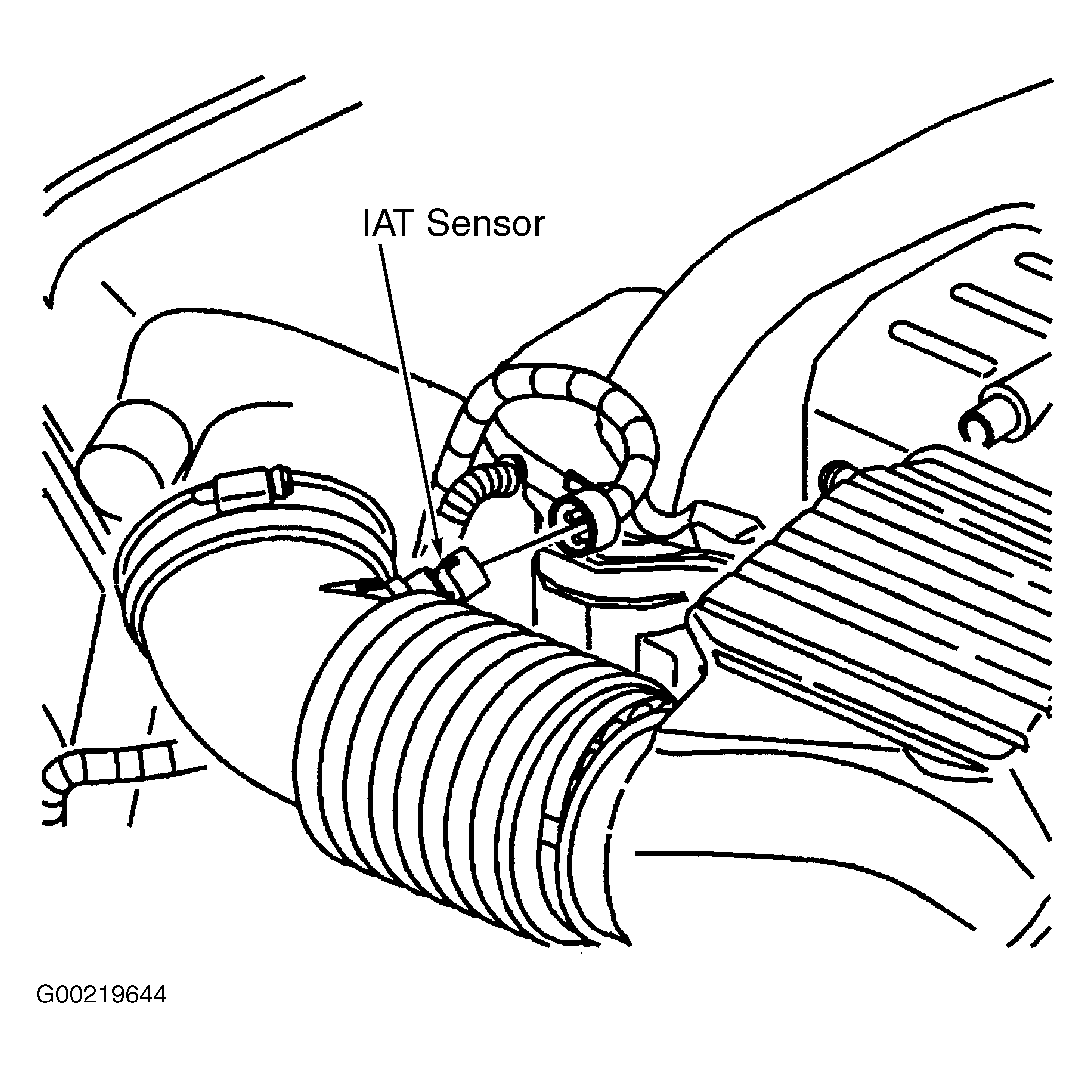

Fig 9: Locating IAT Sensor

Courtesy of GENERAL MOTORS CORP.

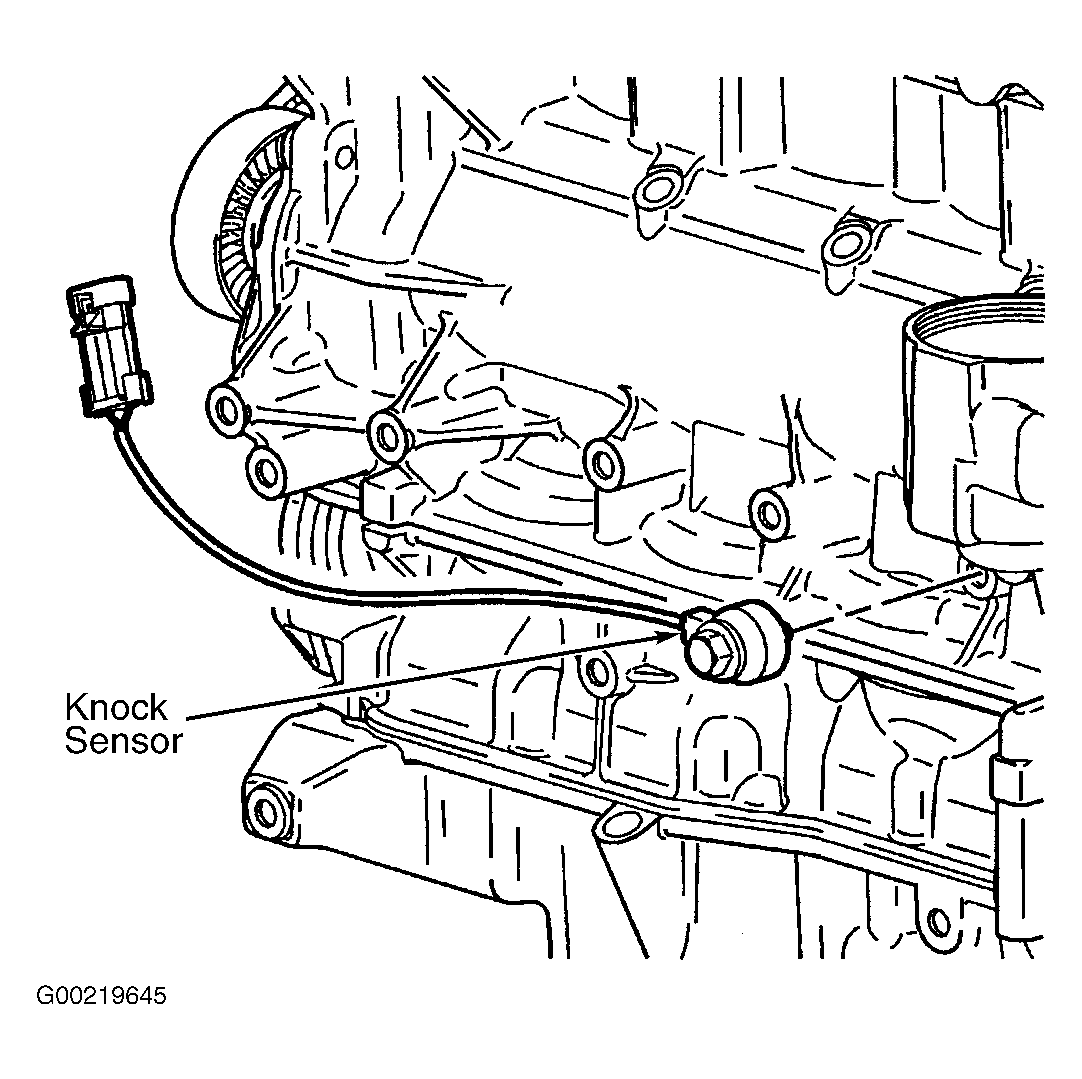

Fig 10: Locating Knock Sensor

Courtesy of GENERAL MOTORS CORP.
