Connector Identification

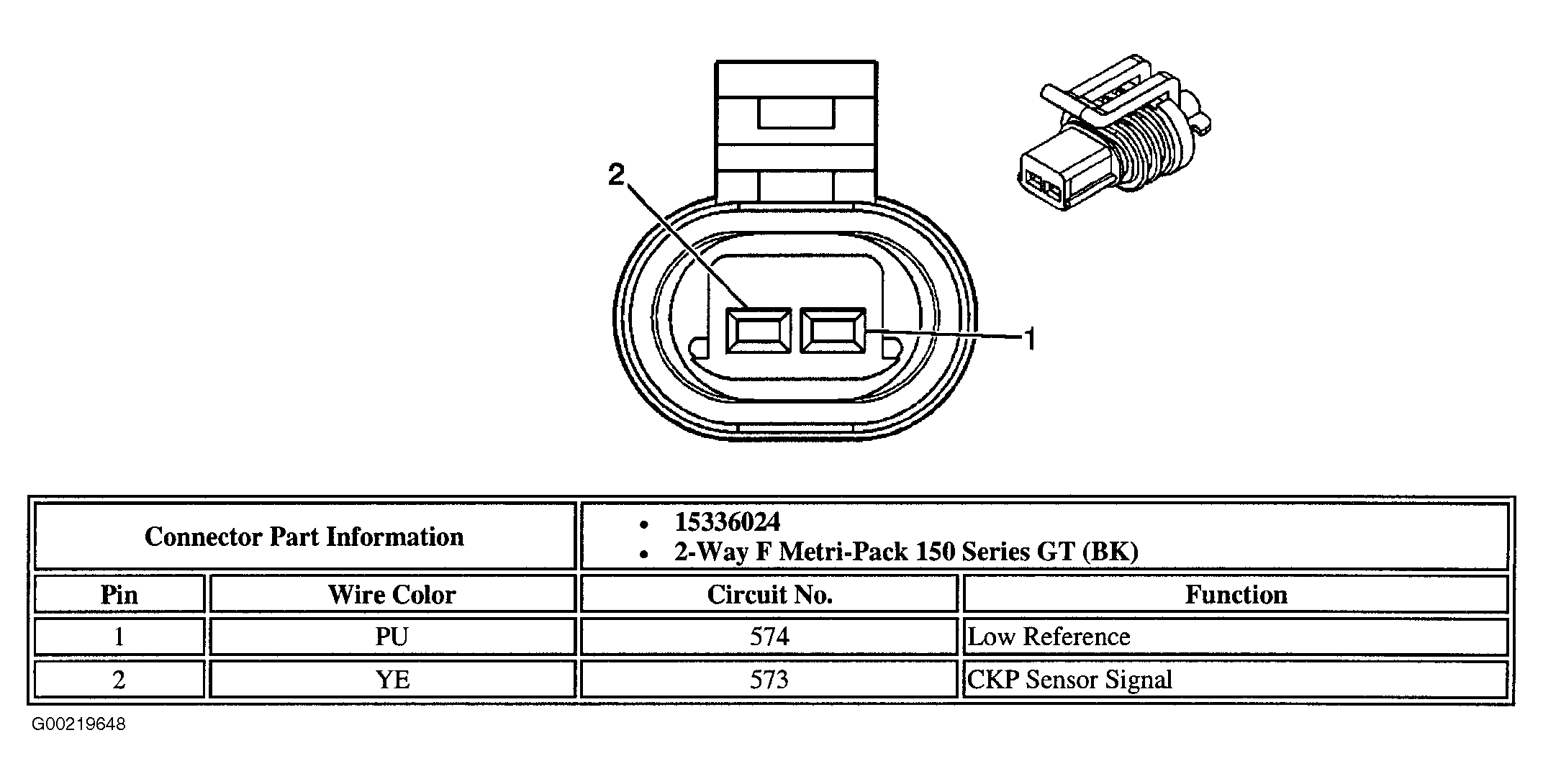

Fig 1: Identifying Crankshaft Position Sensor Harness Connector Terminals
G00219648Courtesy of GENERAL MOTORS CORP.

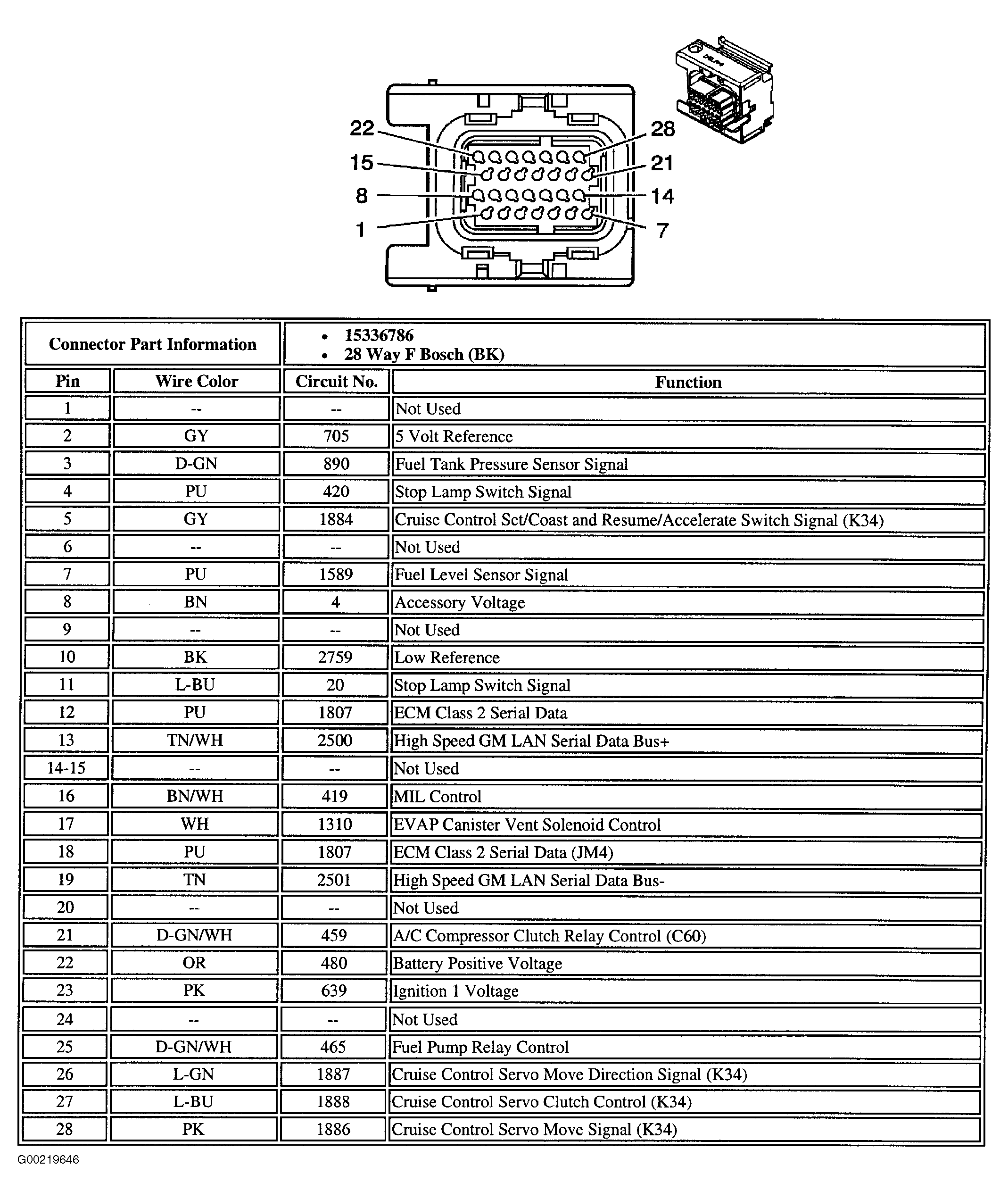

Fig 2: Identifying ECM C1 Harness Connector Terminals
G00219646Courtesy of GENERAL MOTORS CORP.

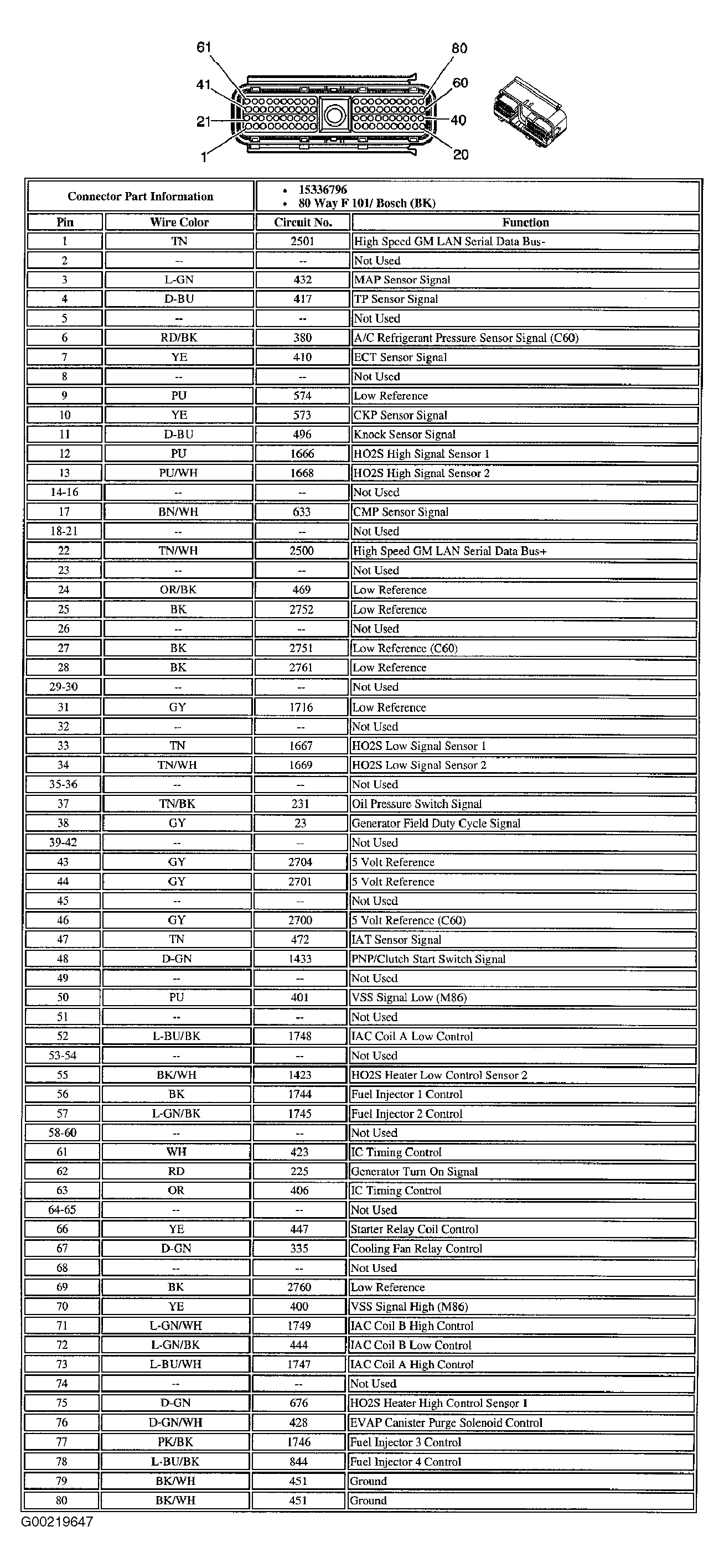

Fig 3: Identifying ECM C2 Harness Connector Terminals
G00219647Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying ECT Sensor Harness Connector Terminals
G00219649Courtesy of GENERAL MOTORS CORP.

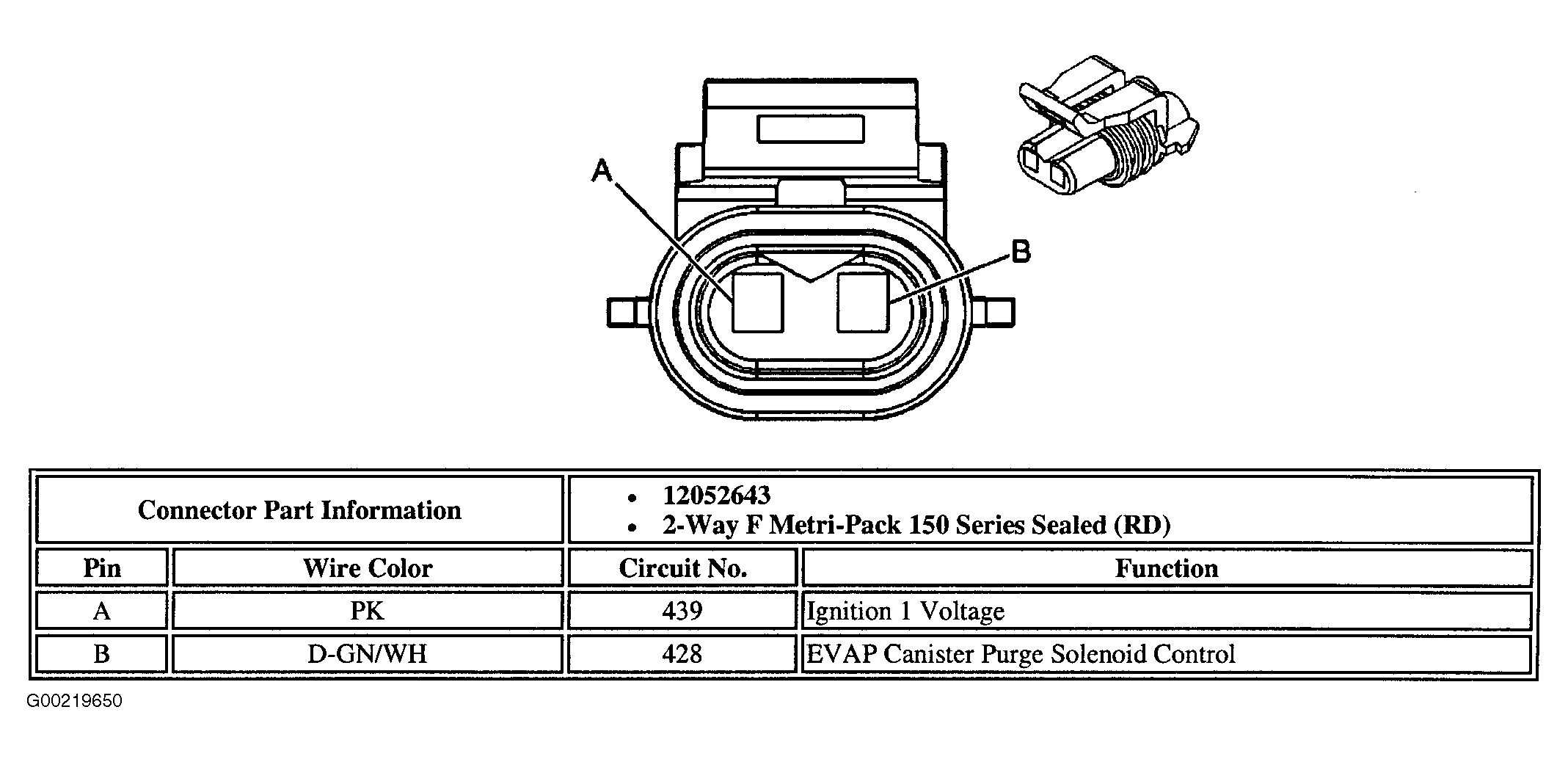

Fig 5: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals
G00219650Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals
G00219651Courtesy of GENERAL MOTORS CORP.

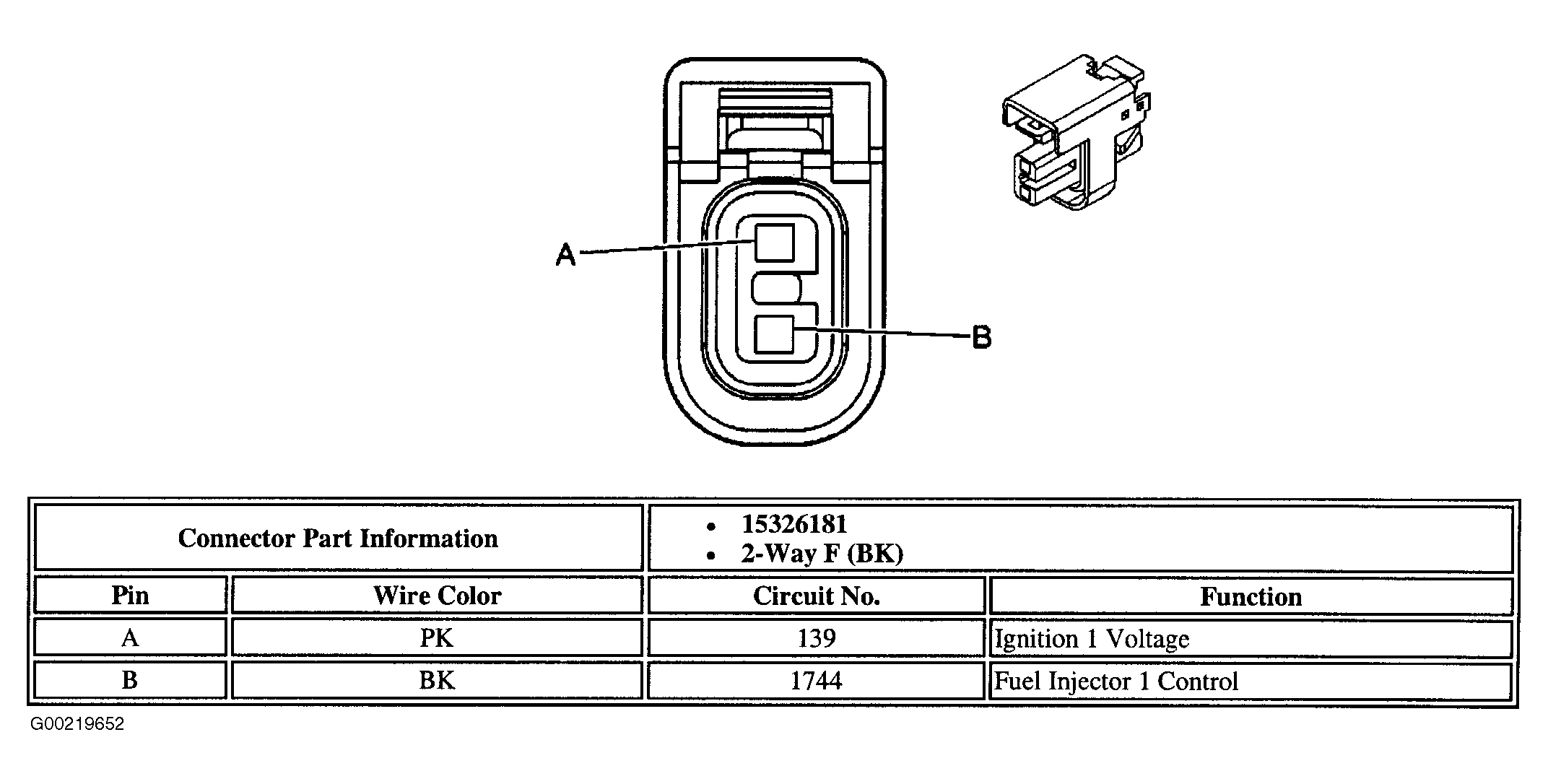

Fig 7: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00219652Courtesy of GENERAL MOTORS CORP.

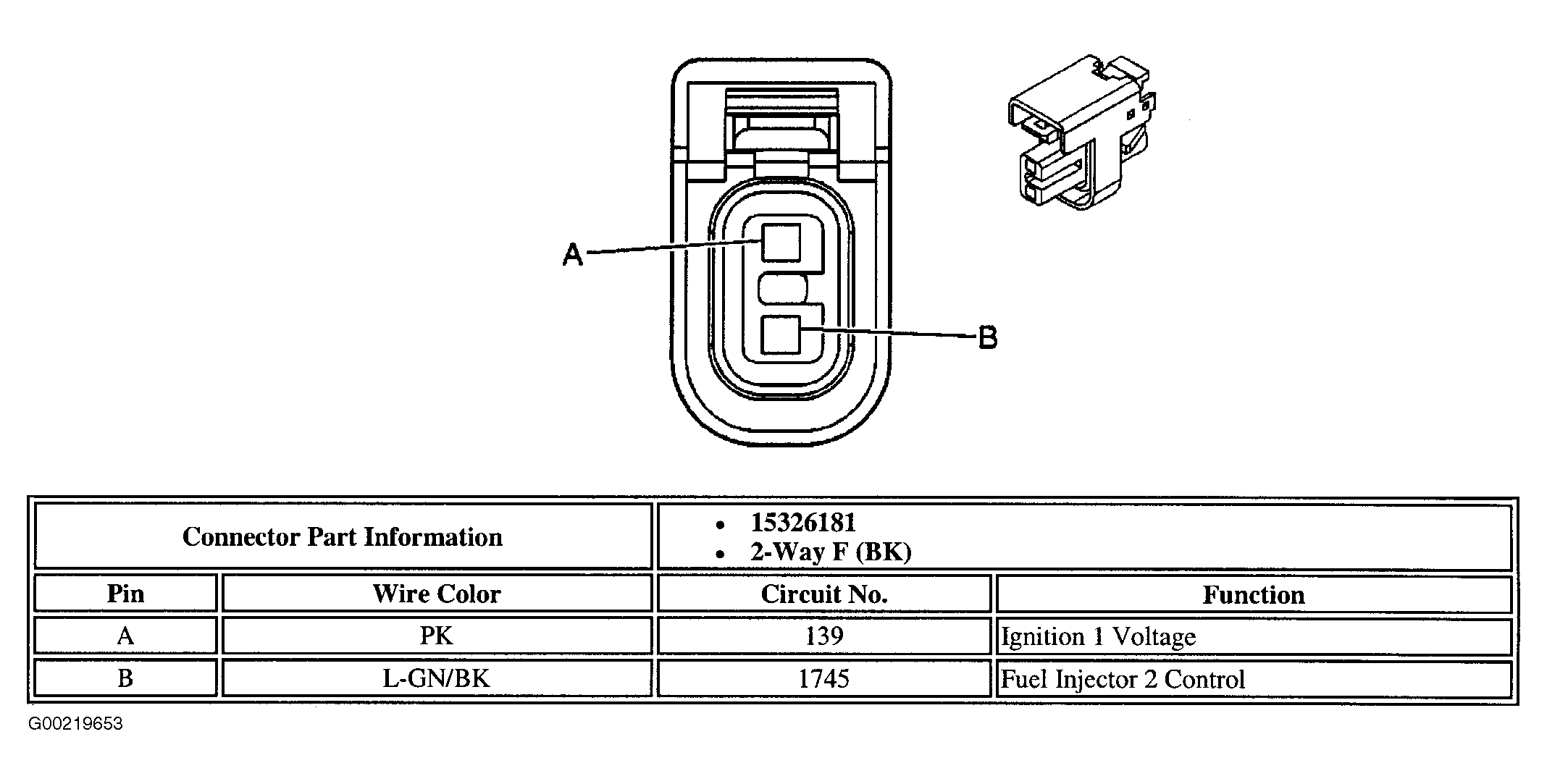

Fig 8: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00219653Courtesy of GENERAL MOTORS CORP.

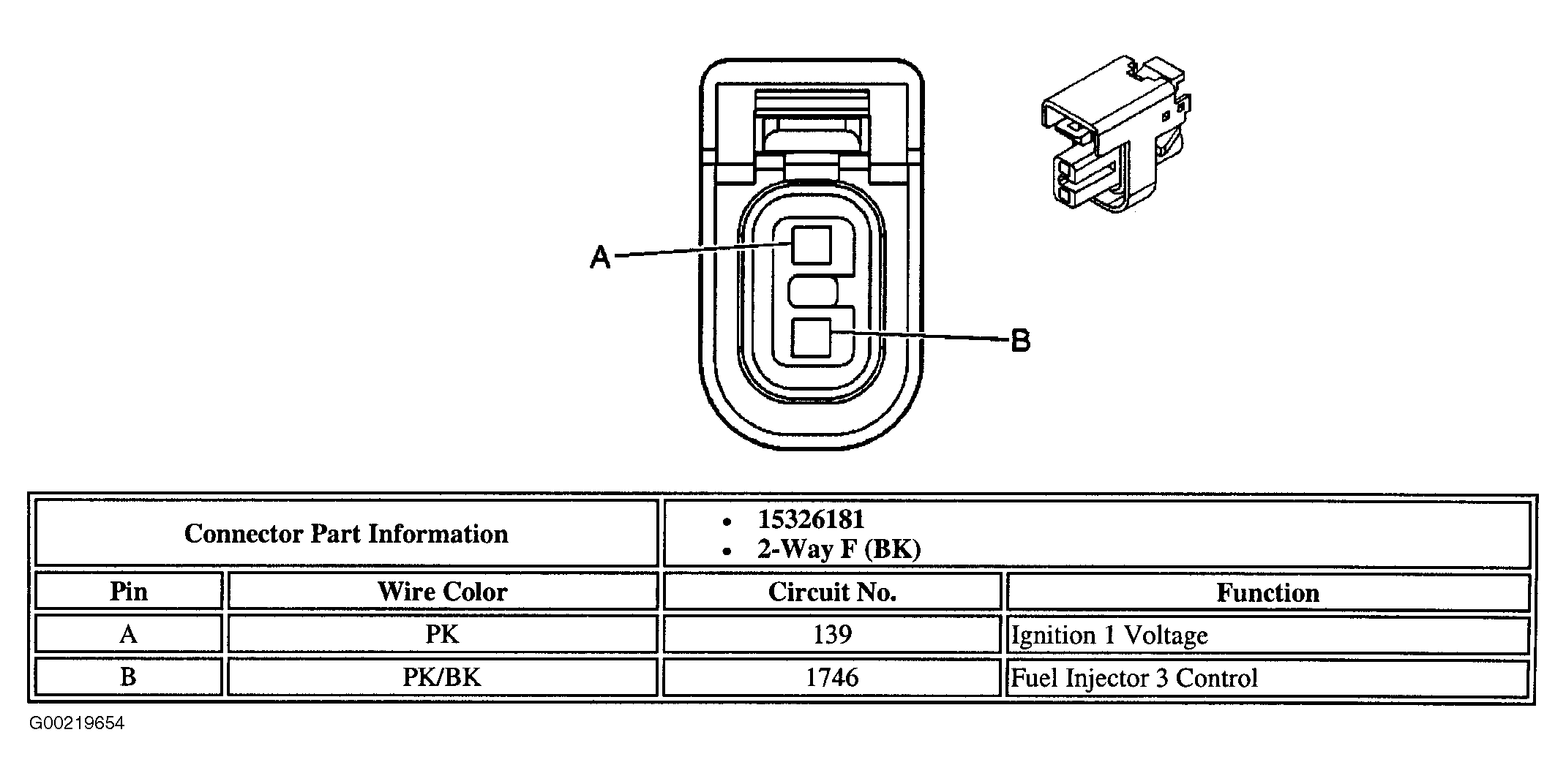

Fig 9: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00219654Courtesy of GENERAL MOTORS CORP.

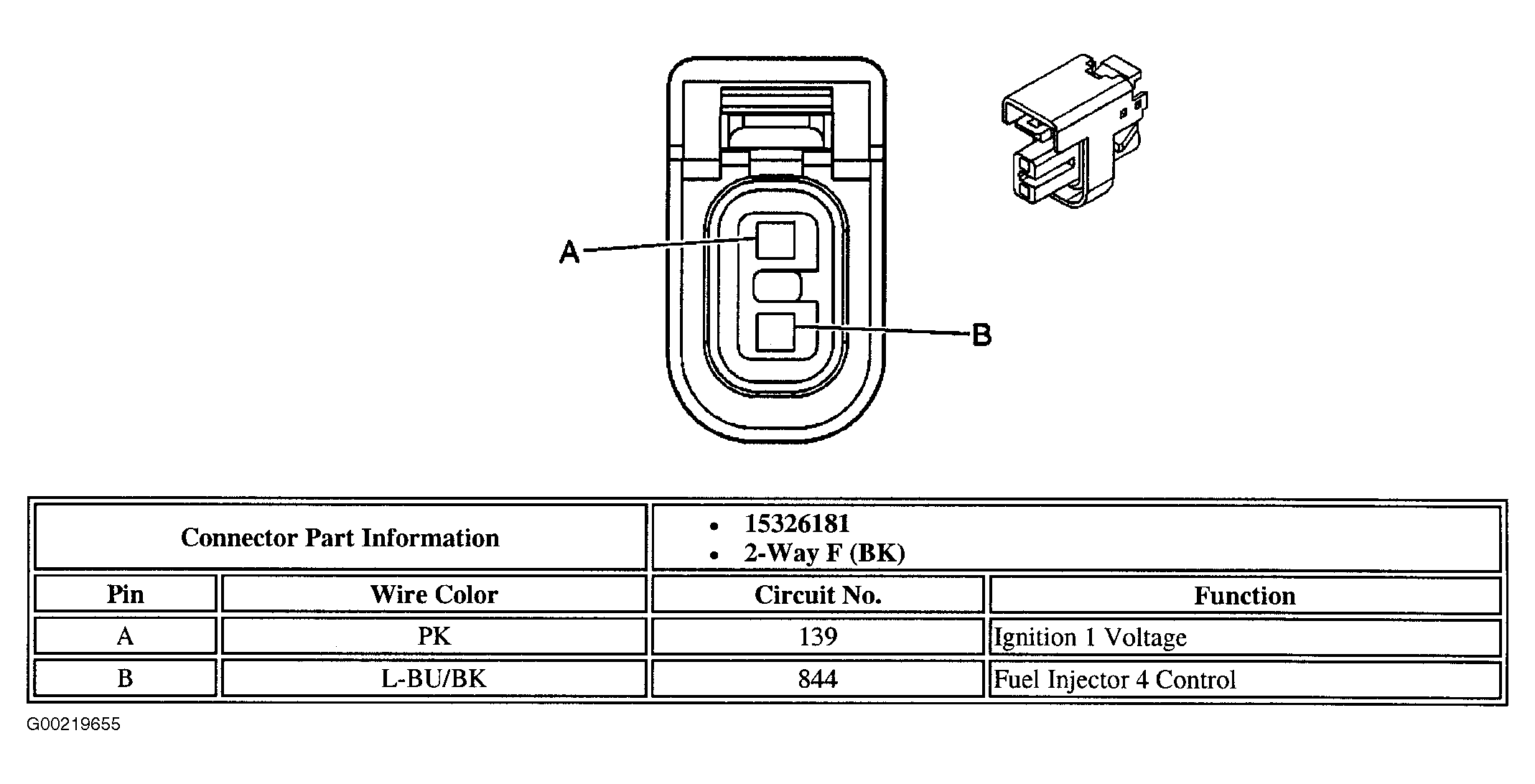

Fig 10: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00219655Courtesy of GENERAL MOTORS CORP.

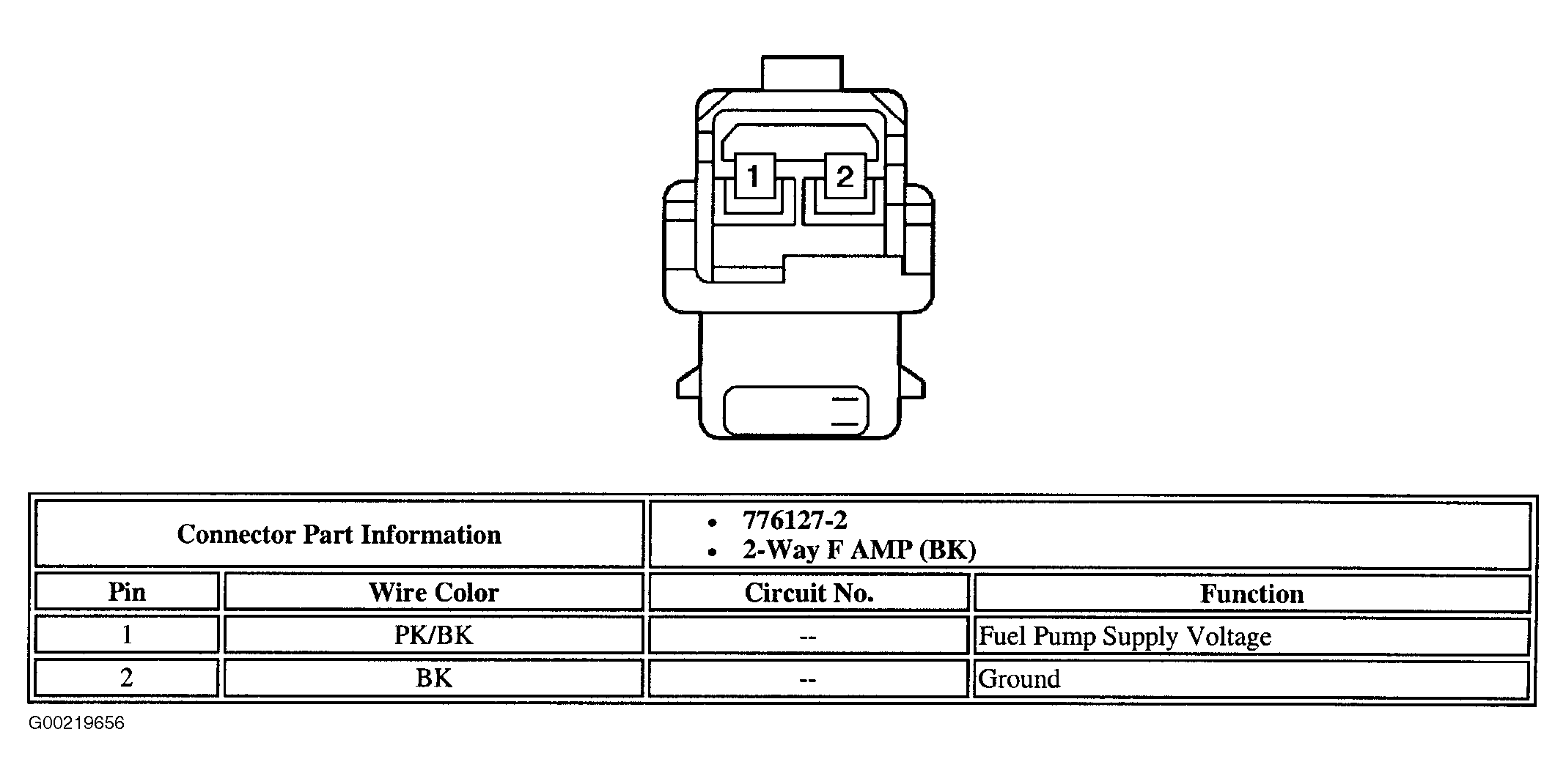

Fig 11: Identifying Fuel Pump Harness Connector Terminals
G00219656Courtesy of GENERAL MOTORS CORP.

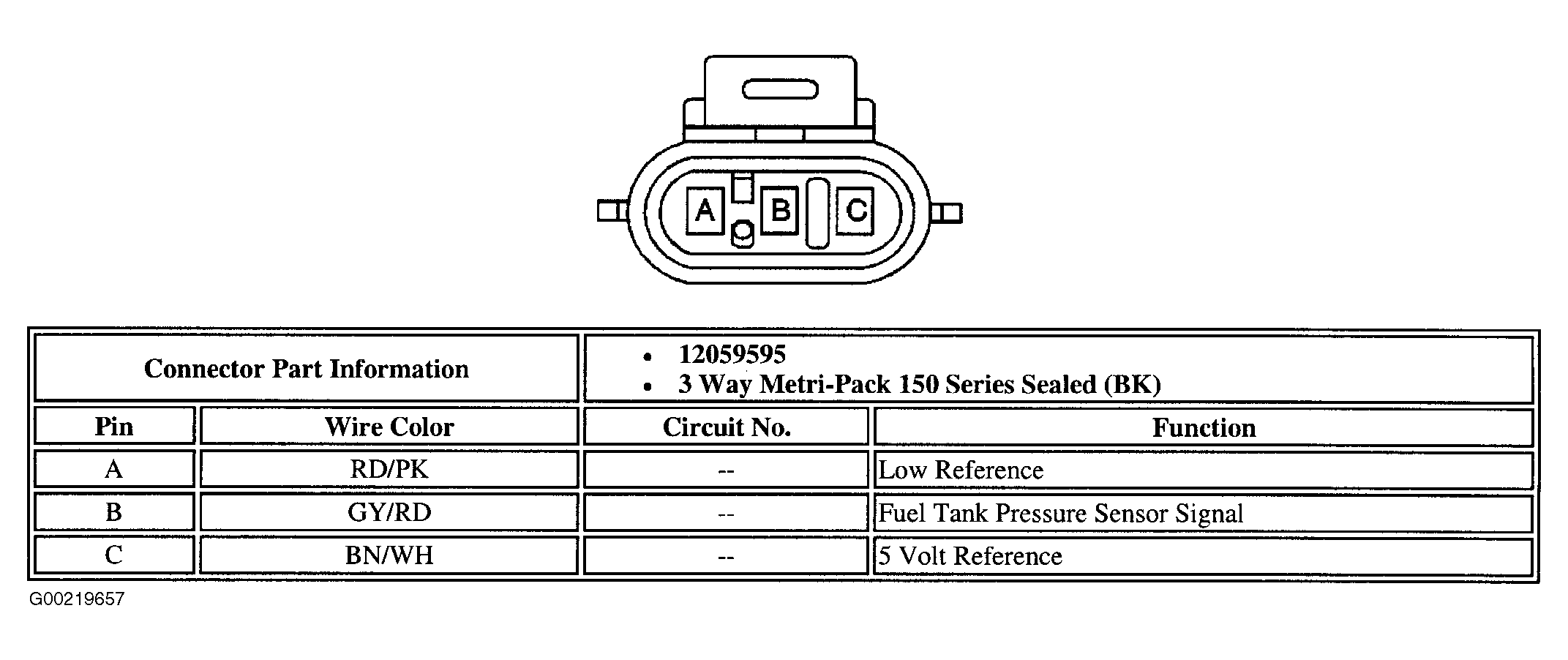

Fig 12: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals
G00219657Courtesy of GENERAL MOTORS CORP.

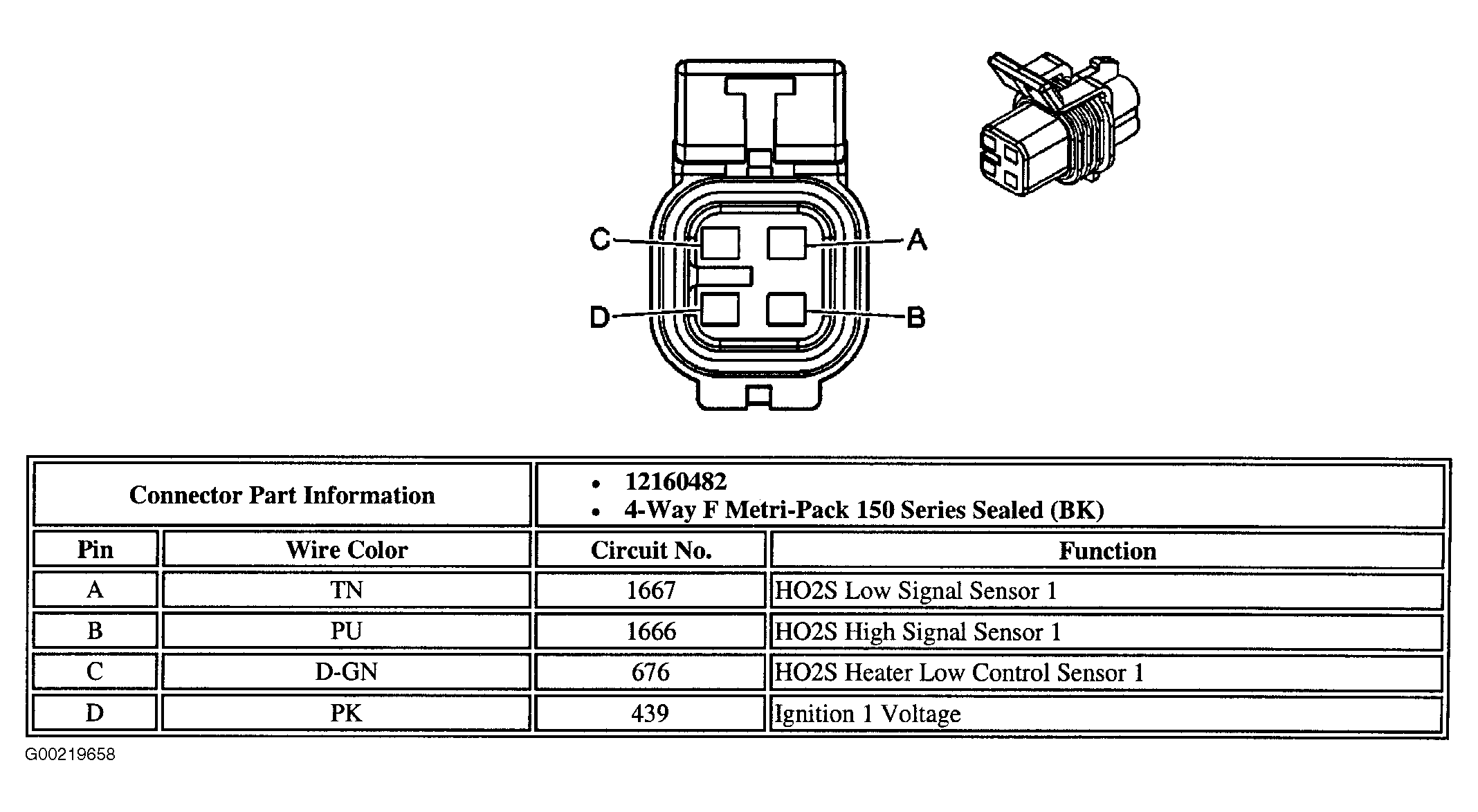

Fig 13: Identifying HO2S 1 Harness Connector Terminals
G00219658Courtesy of GENERAL MOTORS CORP.

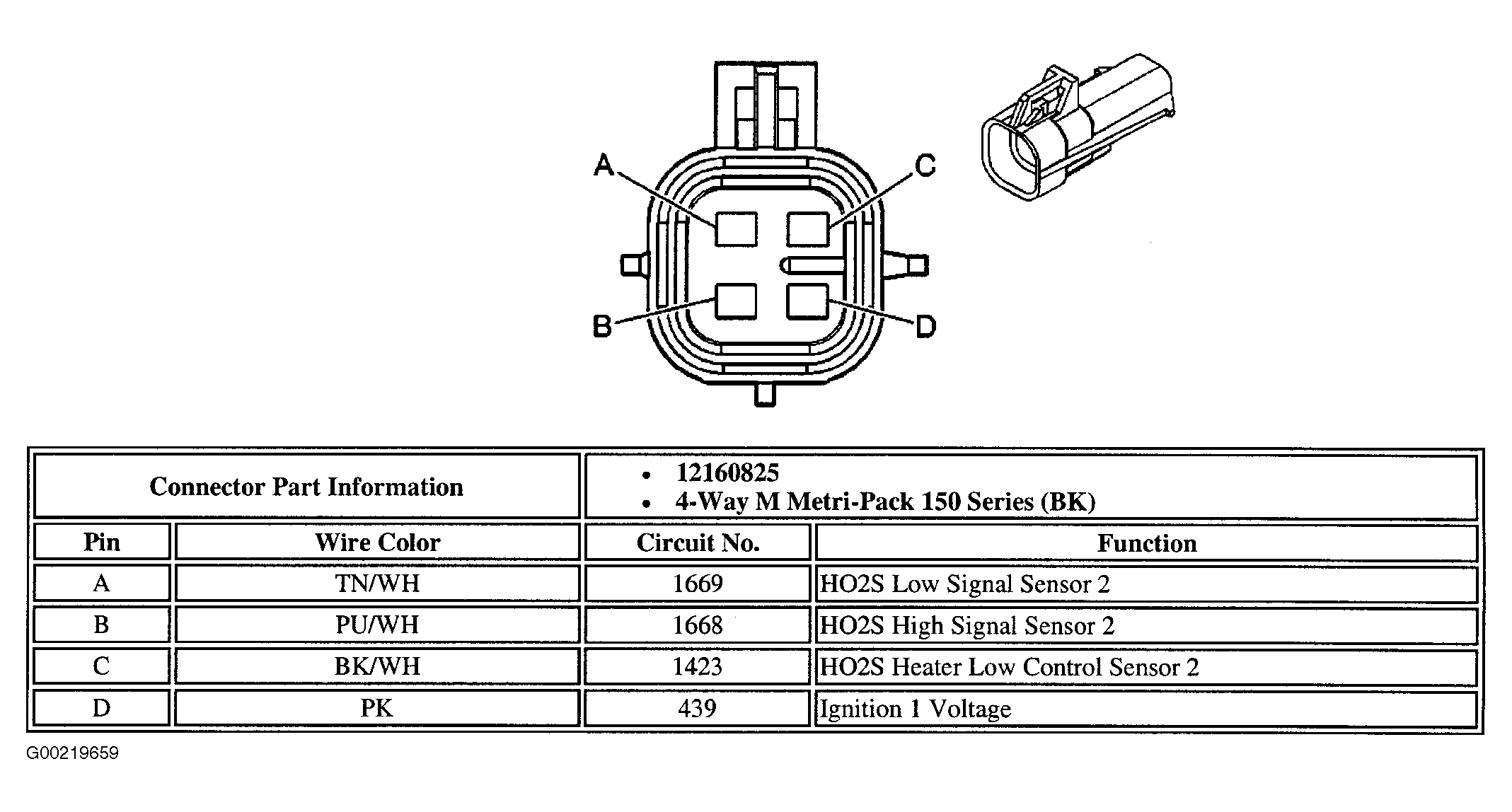

Fig 14: Identifying HO2S 2 Harness Connector Terminals
G00219659Courtesy of GENERAL MOTORS CORP.

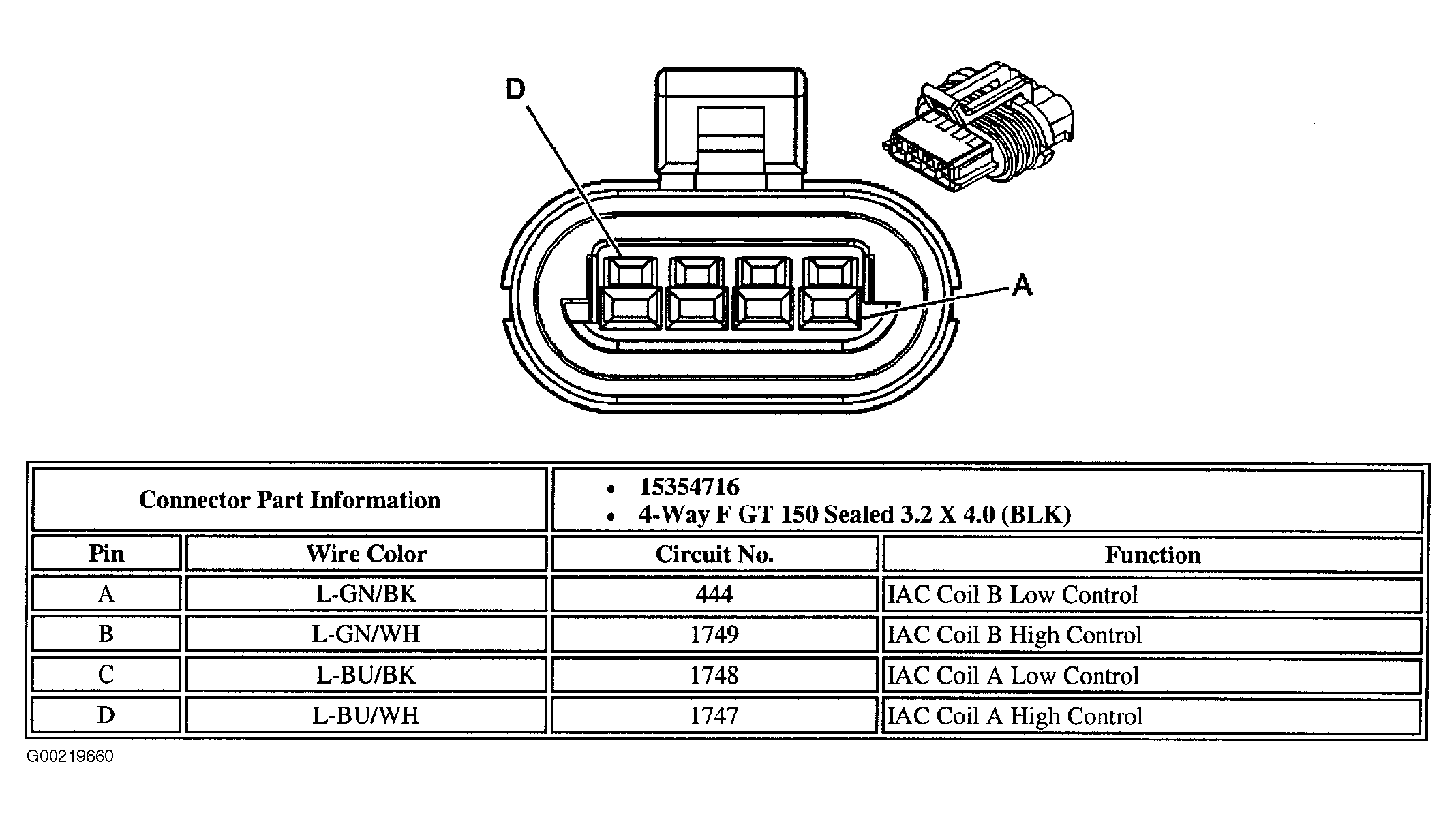

Fig 15: Identifying IAC Valve Harness Connector Terminals
G00219660Courtesy of GENERAL MOTORS CORP.

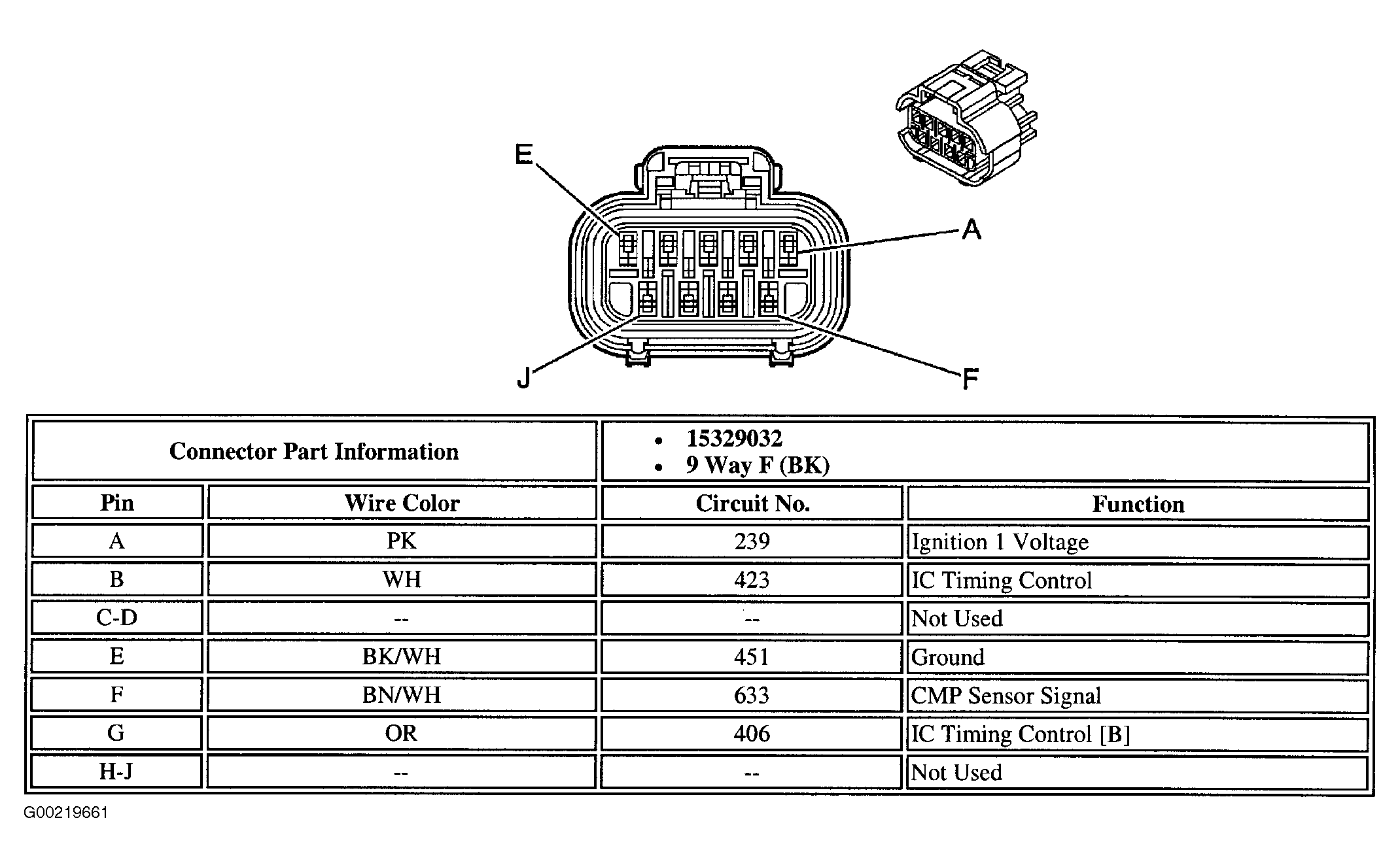

Fig 16: Identifying Ignition Control Module Harness Connector Terminals
G00219661Courtesy of GENERAL MOTORS CORP.

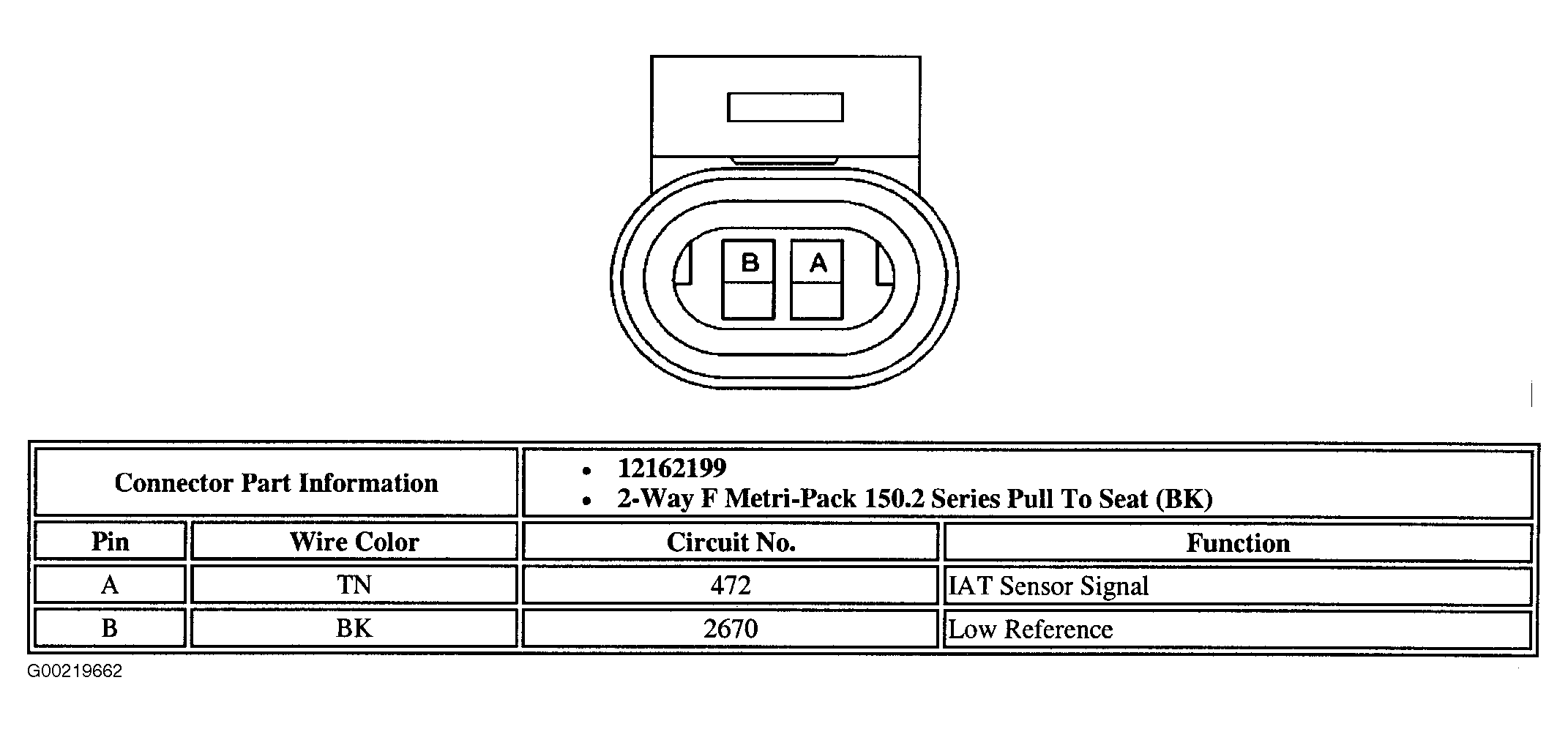

Fig 17: Identifying Intake Air Temperature Sensor Harness Connector Terminals
G00219662Courtesy of GENERAL MOTORS CORP.

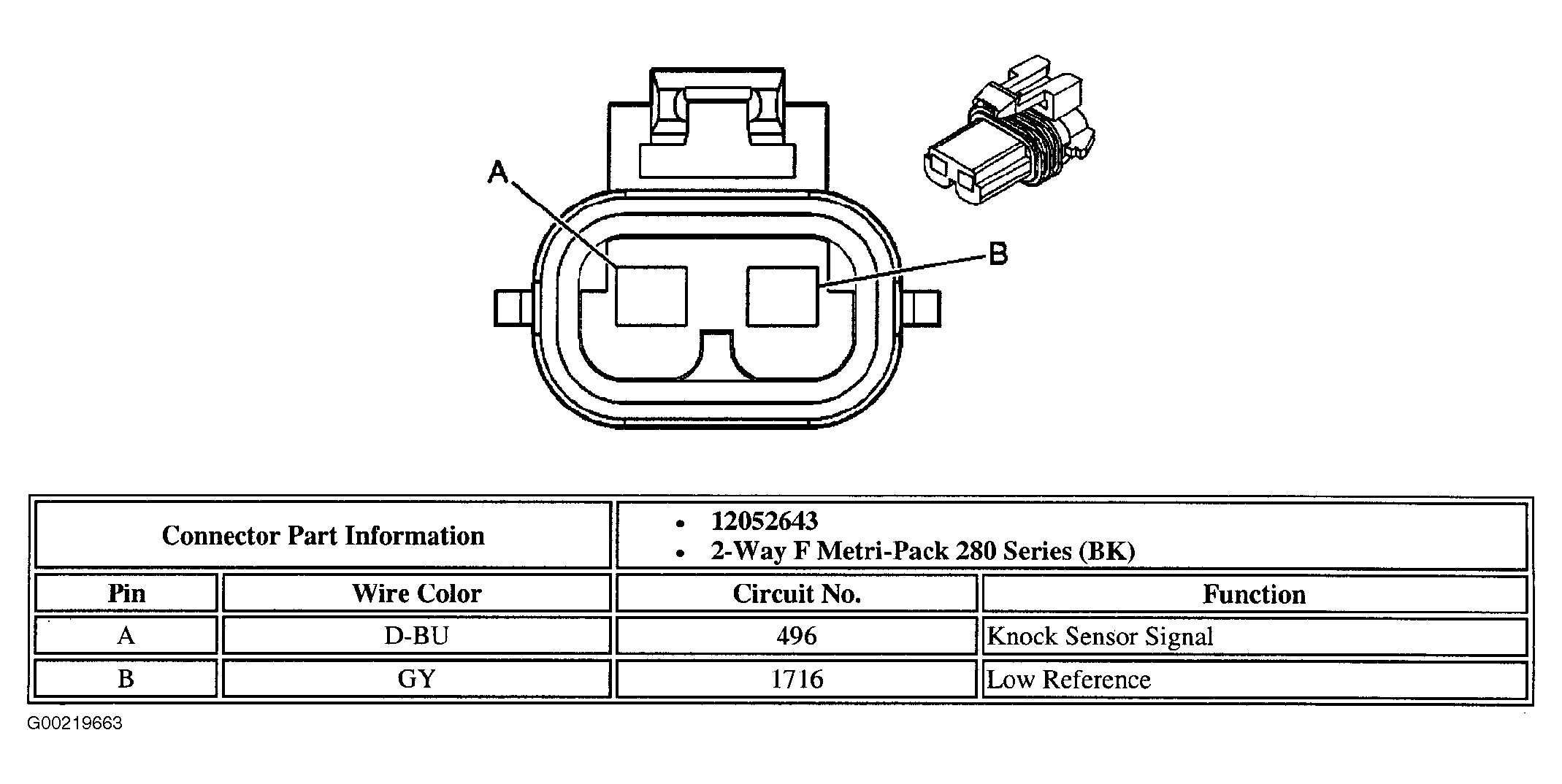

Fig 18: Identifying Knock Sensor Harness Connector Terminals
G00219663Courtesy of GENERAL MOTORS CORP.

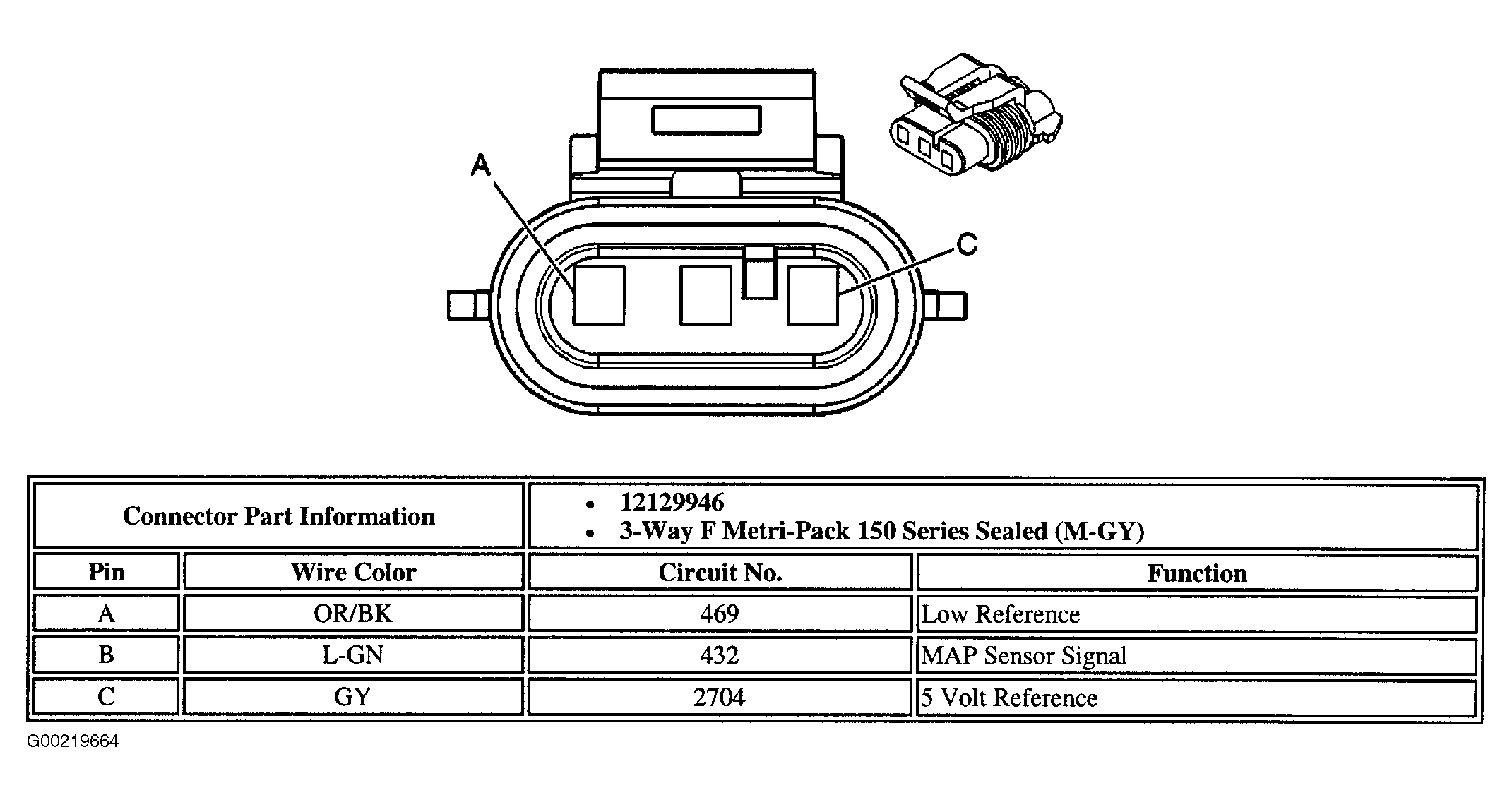

Fig 19: Identifying MAP Sensor Harness Connector Terminals
G00219664Courtesy of GENERAL MOTORS CORP.

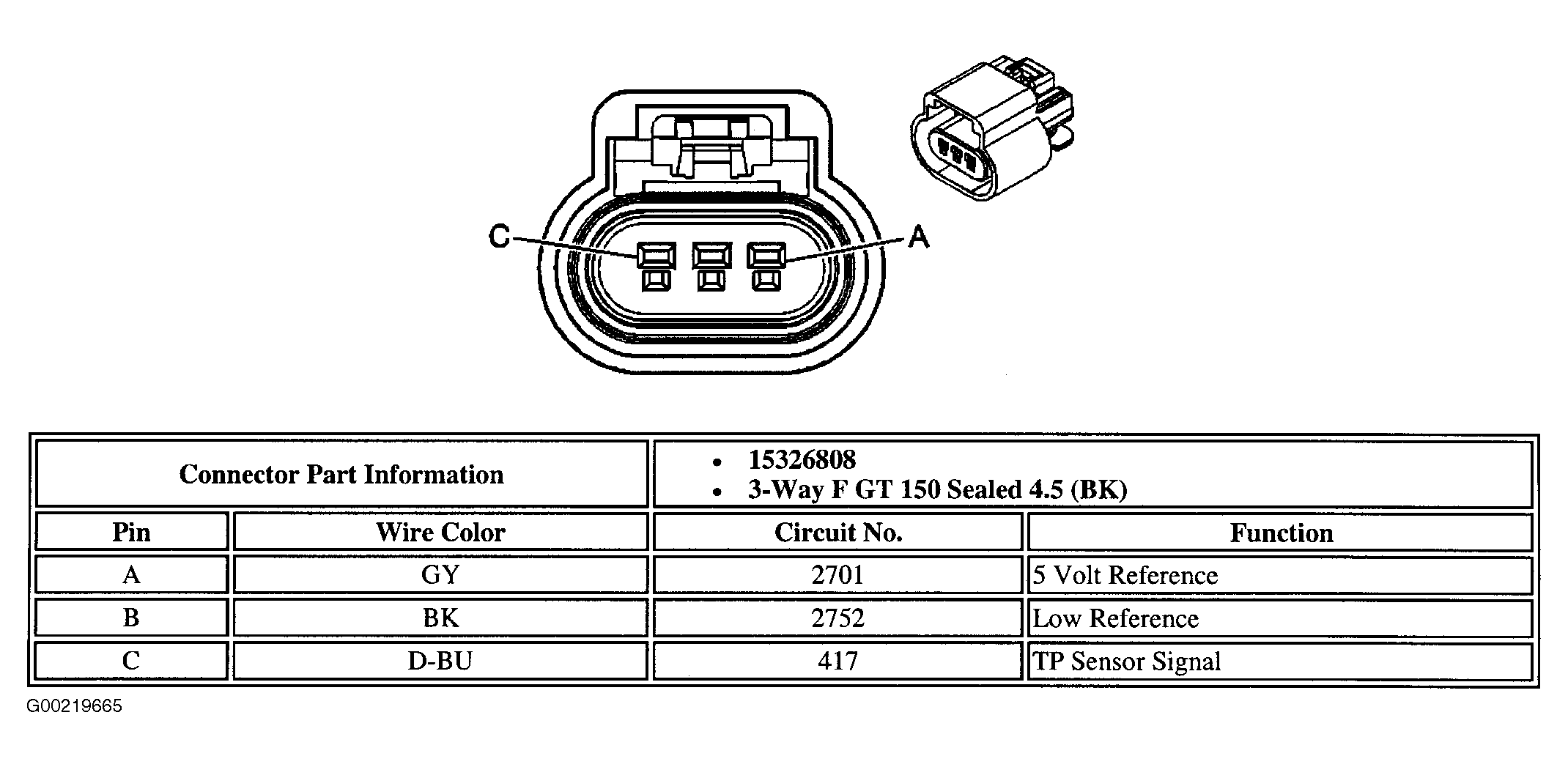

Fig 20: Identifying TP Sensor Harness Connector Terminals
G00219665Courtesy of GENERAL MOTORS CORP.
