Installation Procedure

  1. Install the shift control indicator into the indicator bezel.

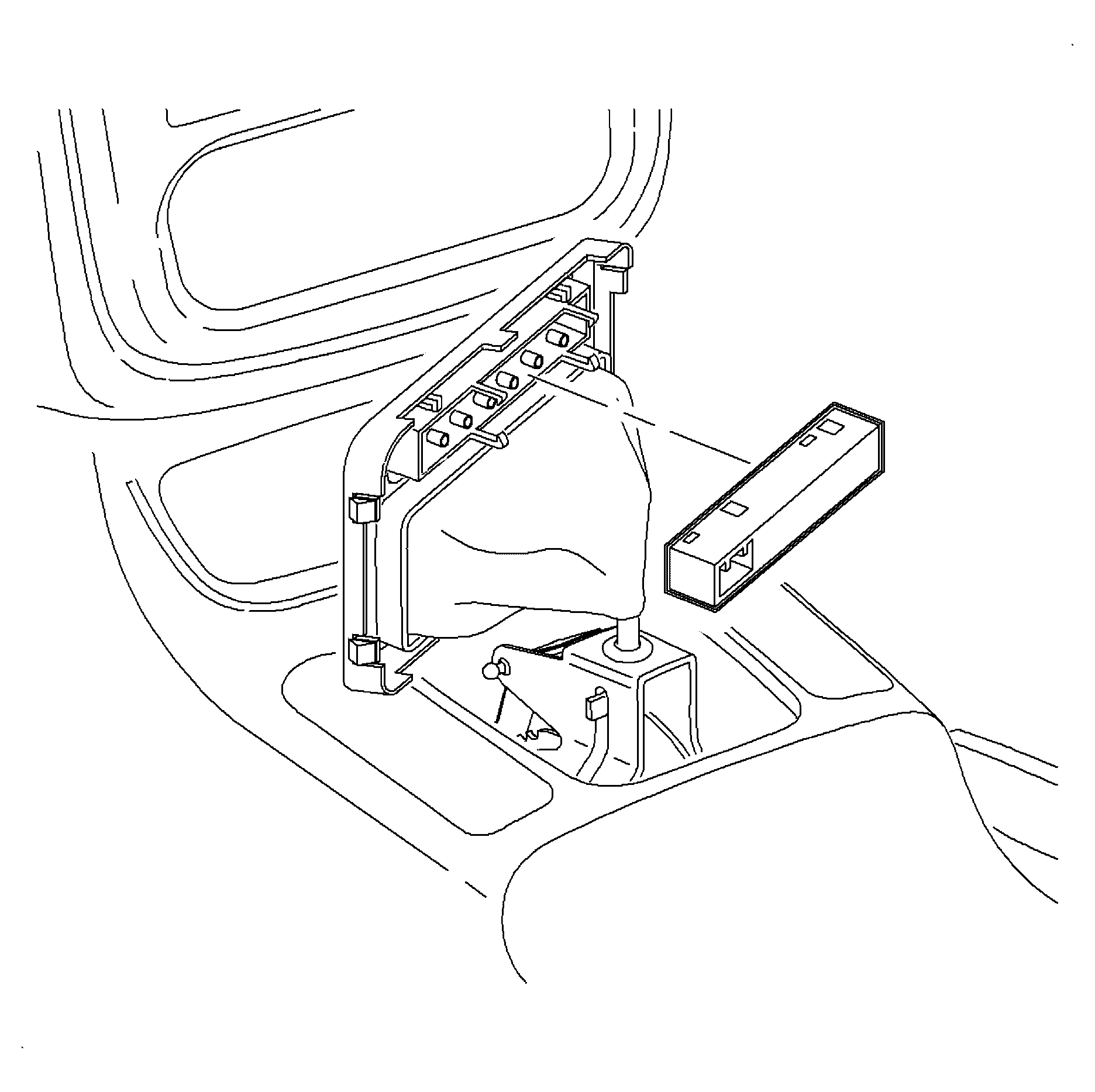

    Fig 1: Removing & Installing Shift Indicator
    GM893891Courtesy of GENERAL MOTORS CORP.
  2. Connect the indicator bezel electrical connector.
  3. Install the indicator bezel into the console opening.

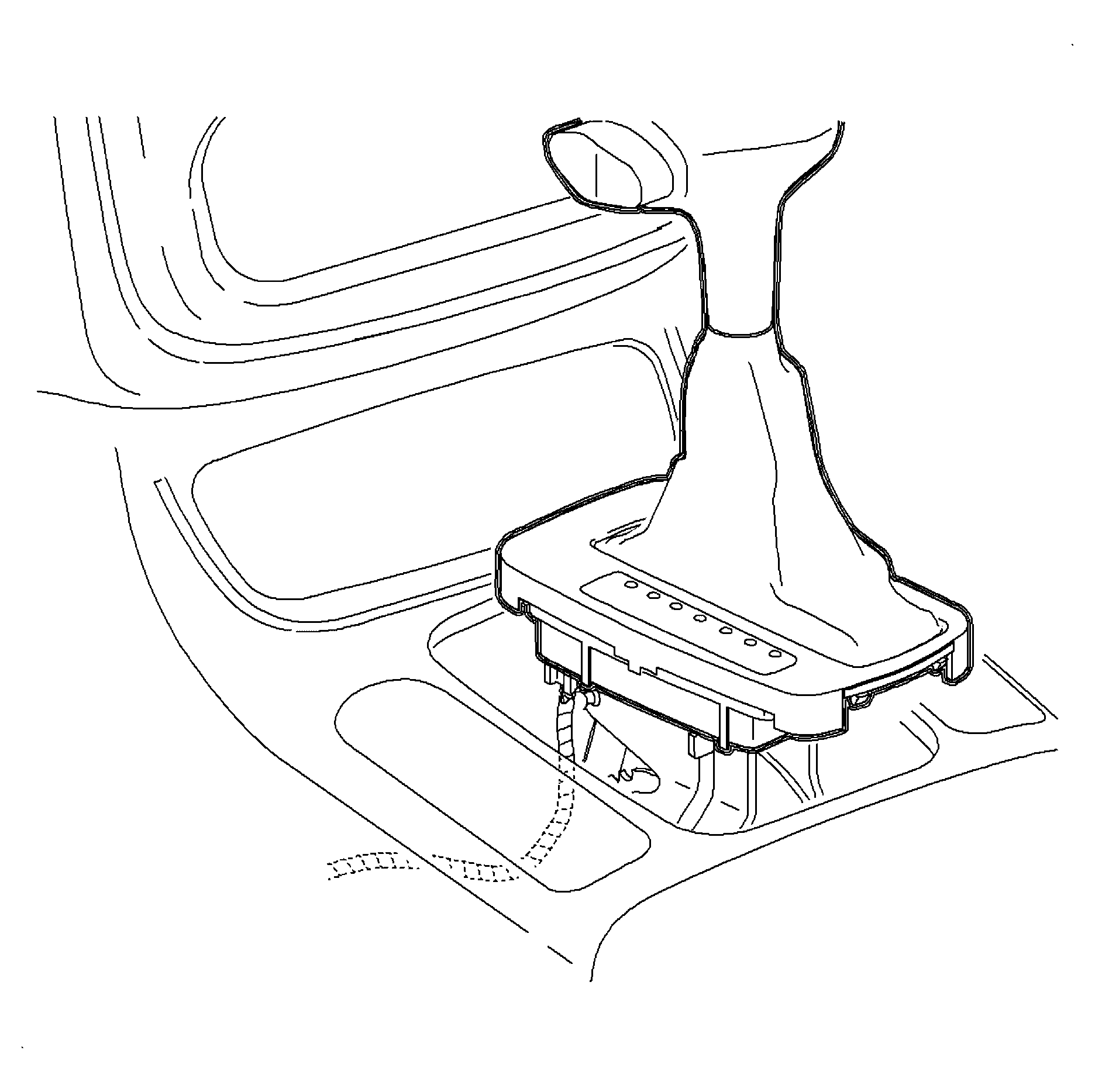

    Fig 2: Removing & Installing Indicator Bezel
    GM893817Courtesy of GENERAL MOTORS CORP.
