Diagnostic Procedure

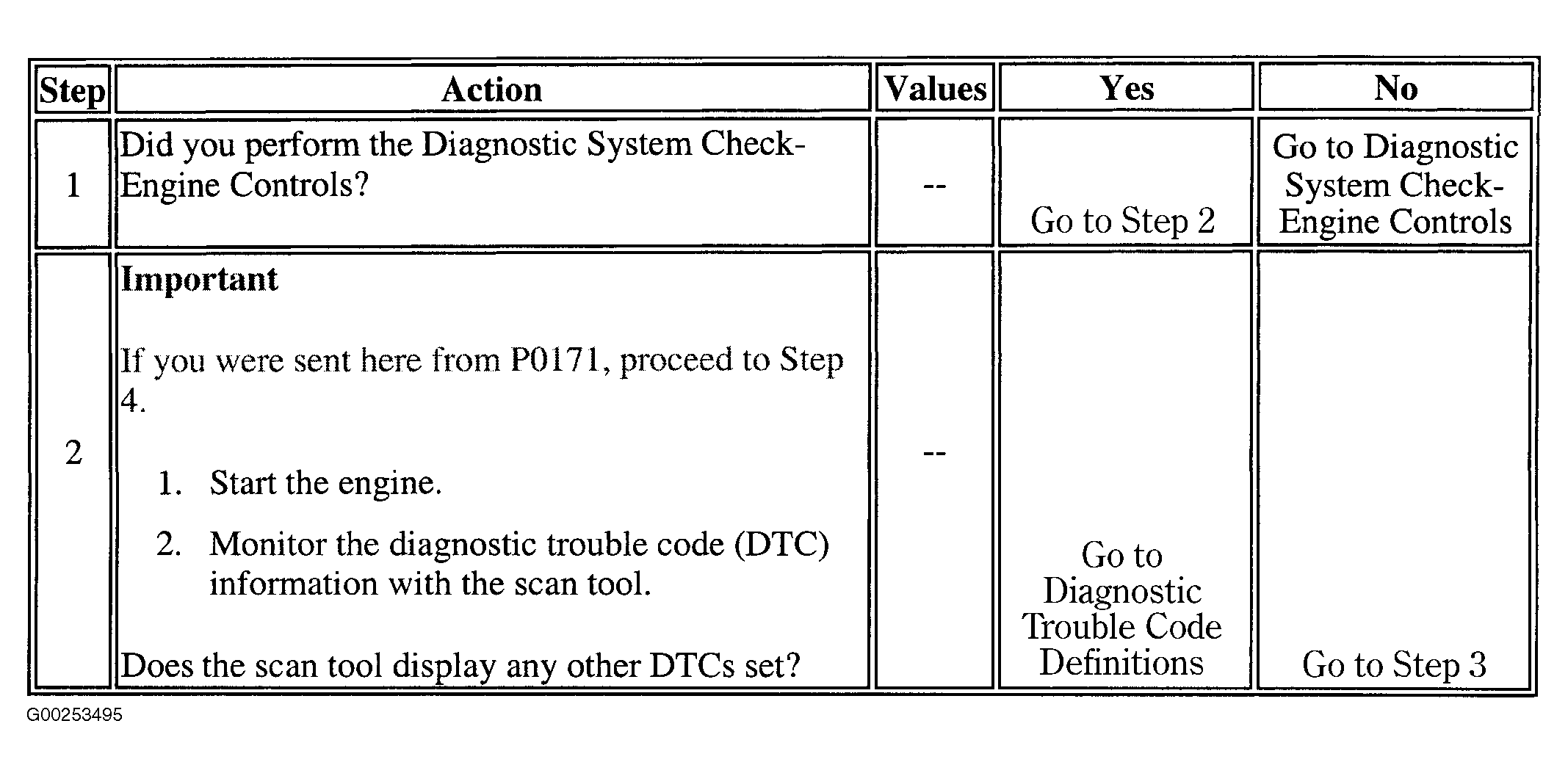

Fig 1: DTC P0101: MAF System Performance (Steps 1 & 2)
G00253495Courtesy of GENERAL MOTORS CORP.

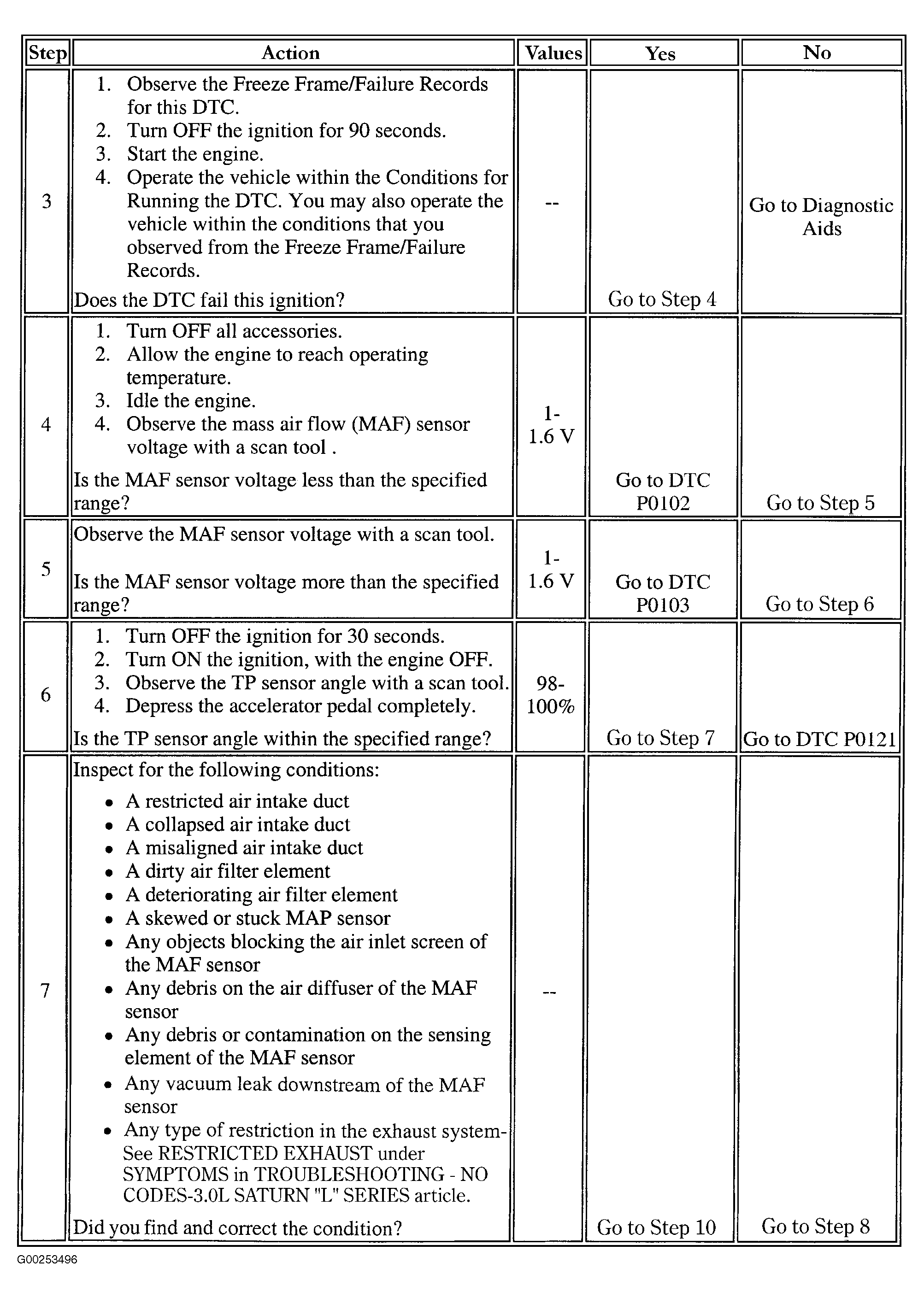

Fig 2: DTC P0101: MAF System Performance (Steps 3-7)
G00253496Courtesy of GENERAL MOTORS CORP.

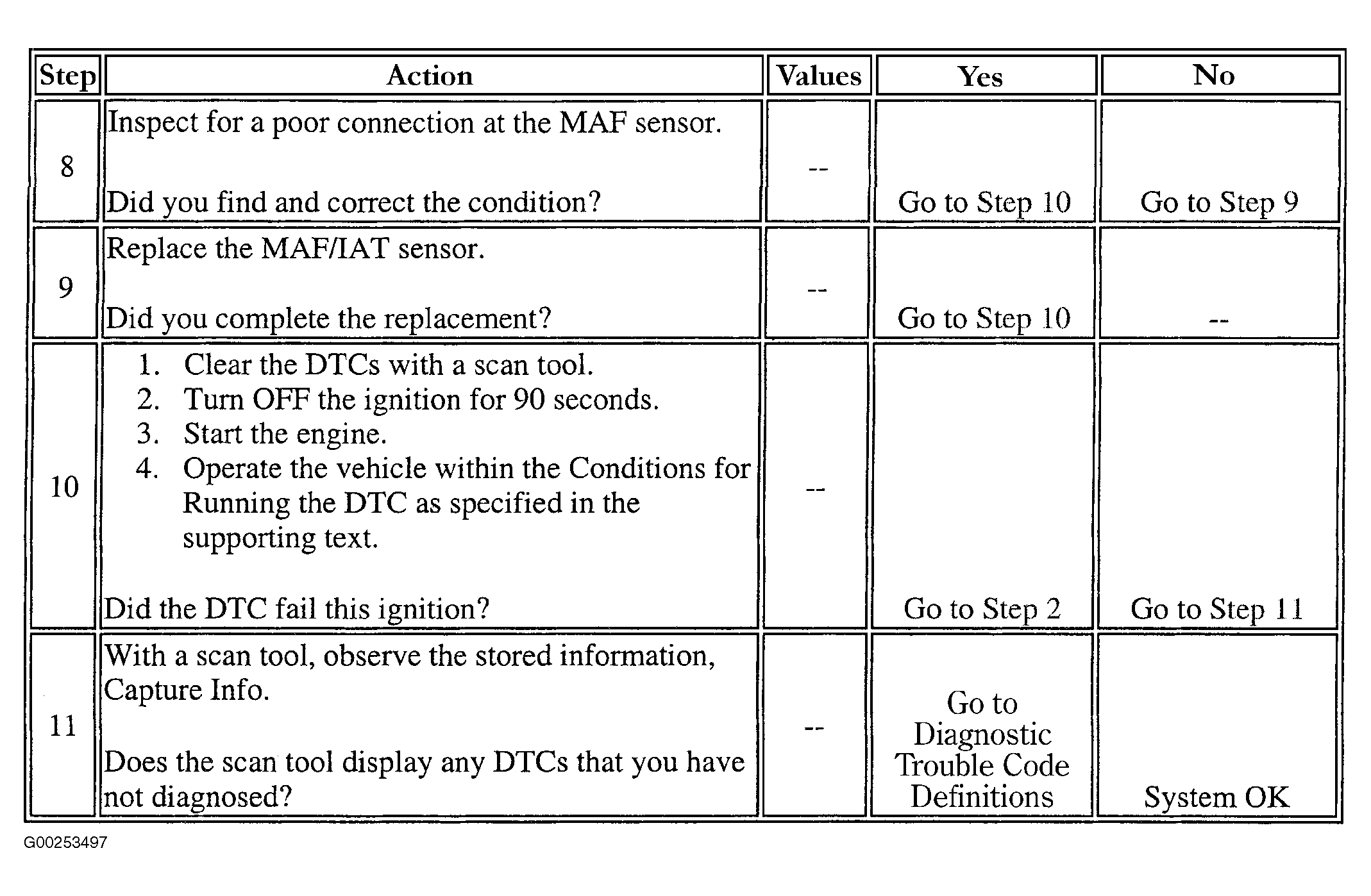

Fig 3: DTC P0101: MAF System Performance (Steps 8-11)
G00253497Courtesy of GENERAL MOTORS CORP.
