Diagnostic Procedure

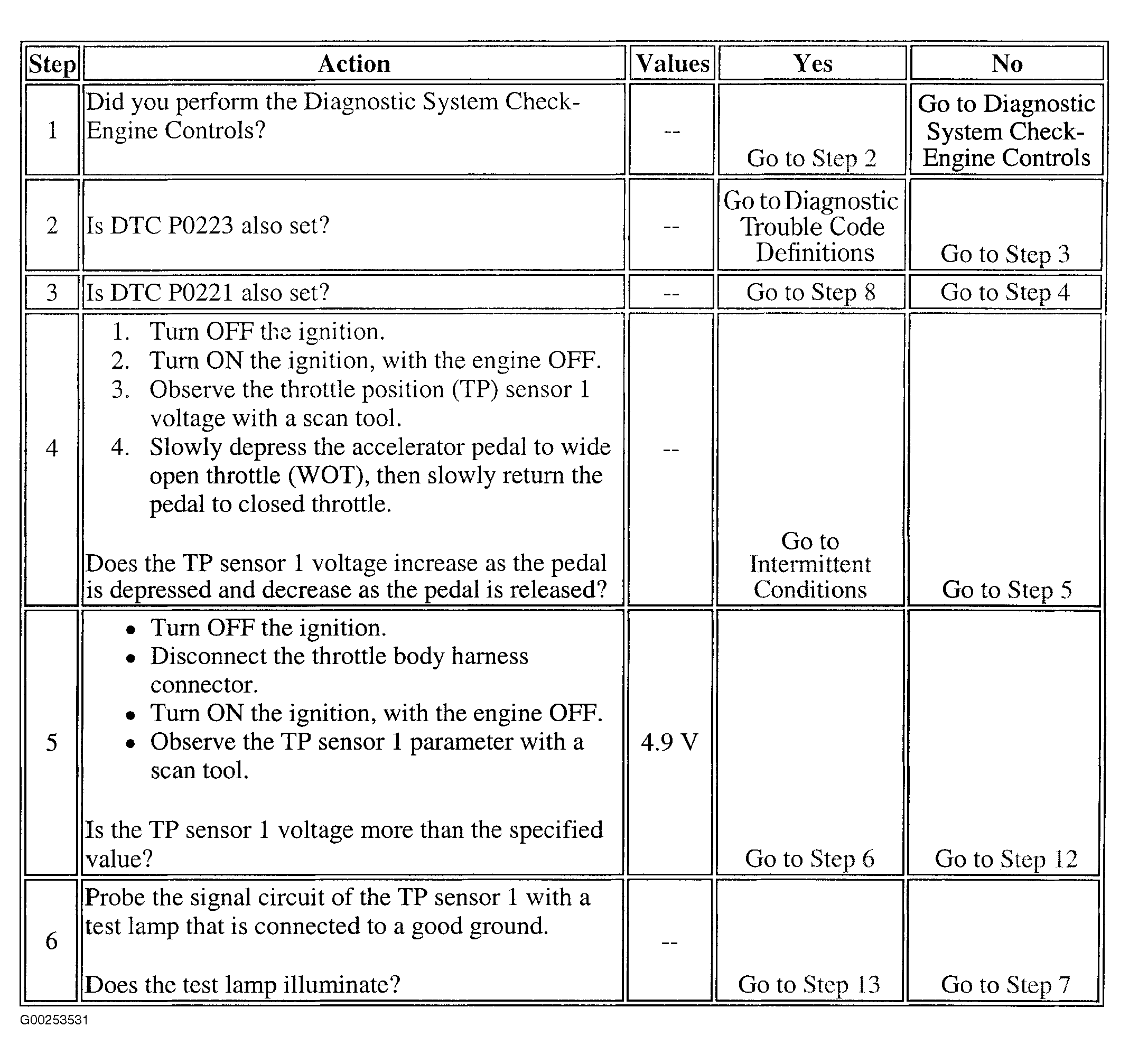

Fig 1: DTC P0121: TP Sensor No. 1 Circuit Performance (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

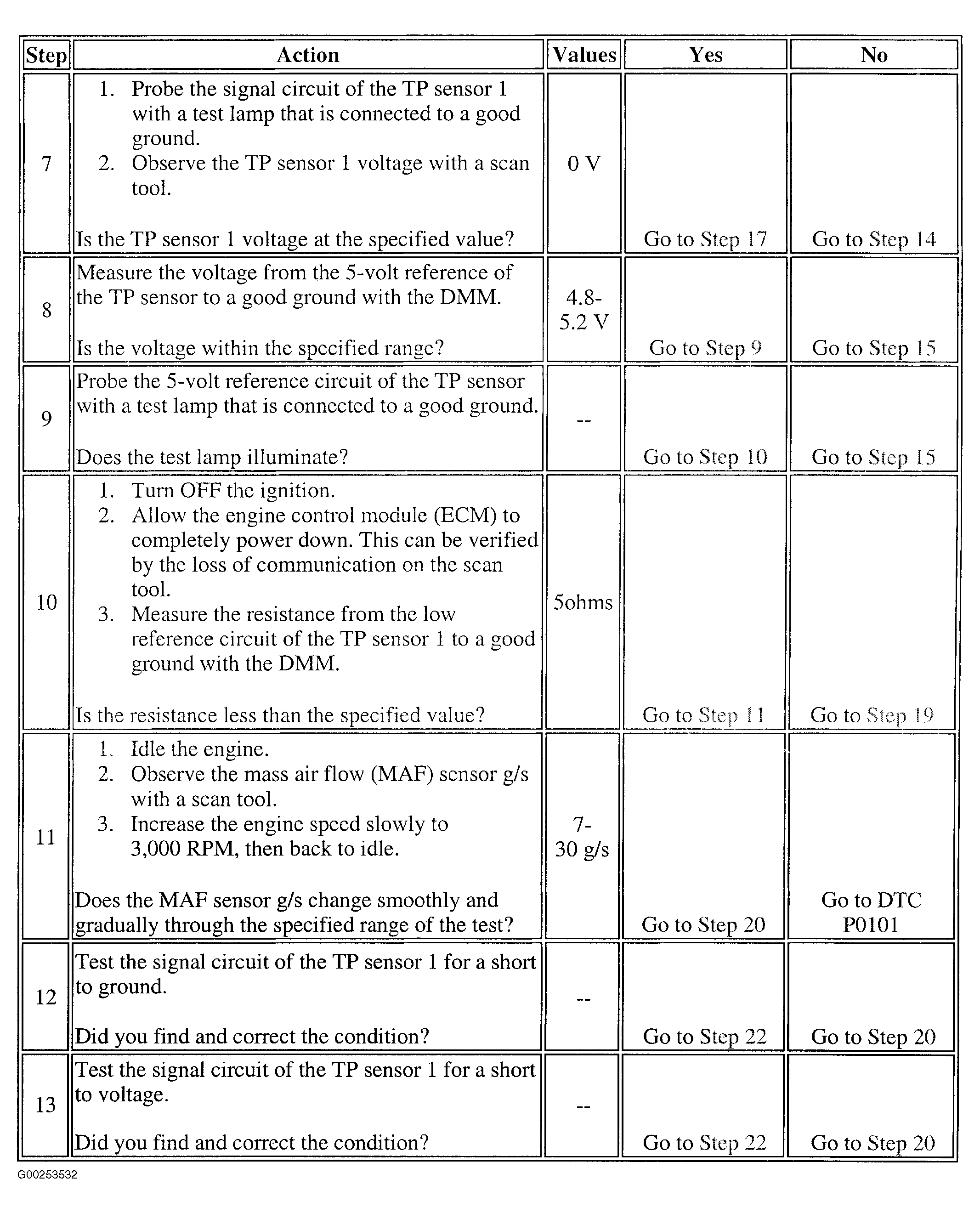

Fig 2: DTC P0121: TP Sensor No. 1 Circuit Performance (Steps 7-13)

Courtesy of GENERAL MOTORS CORP.

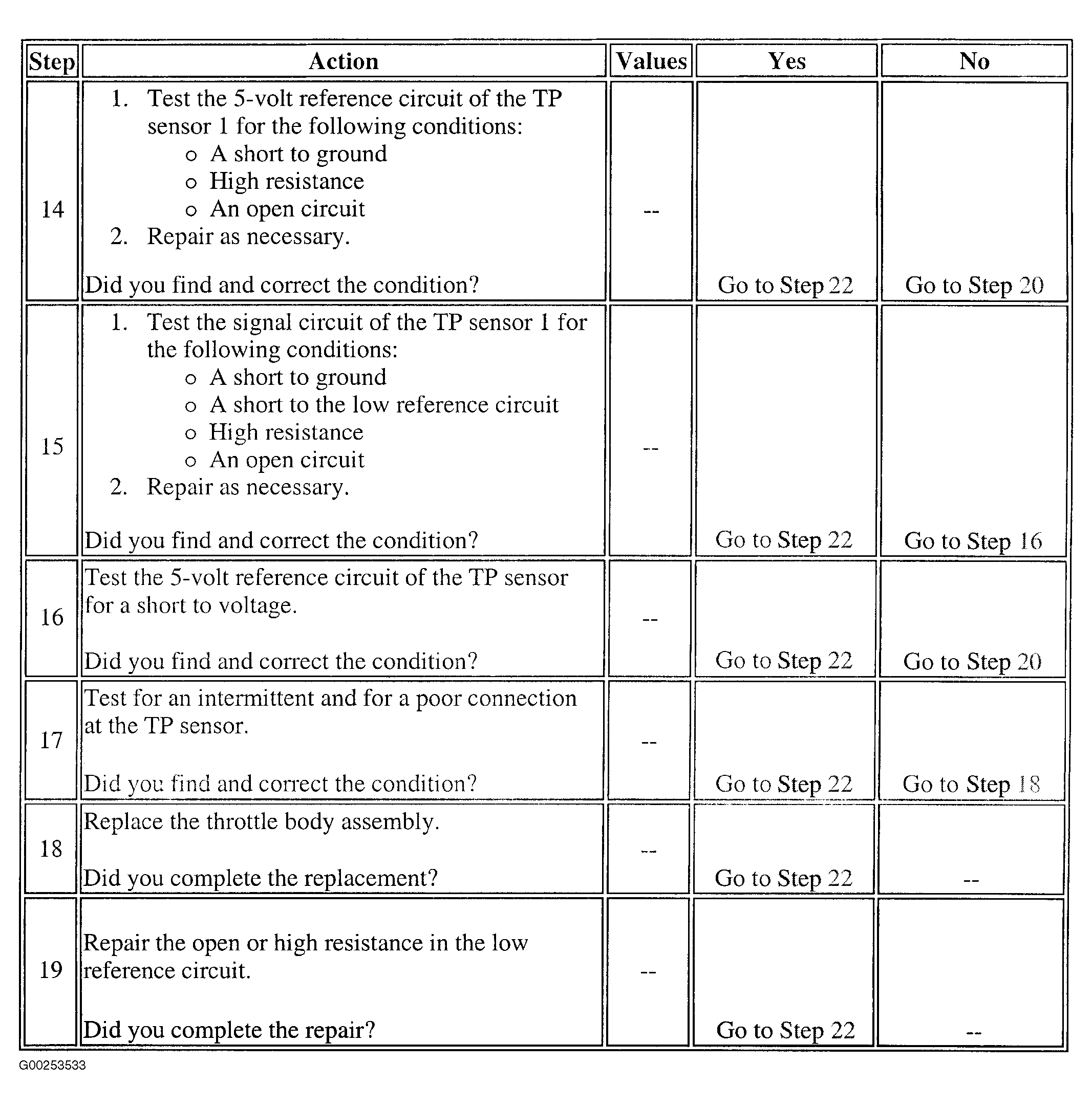

Fig 3: DTC P0121: TP Sensor No. 1 Circuit Performance (Steps 14-19)

Courtesy of GENERAL MOTORS CORP.

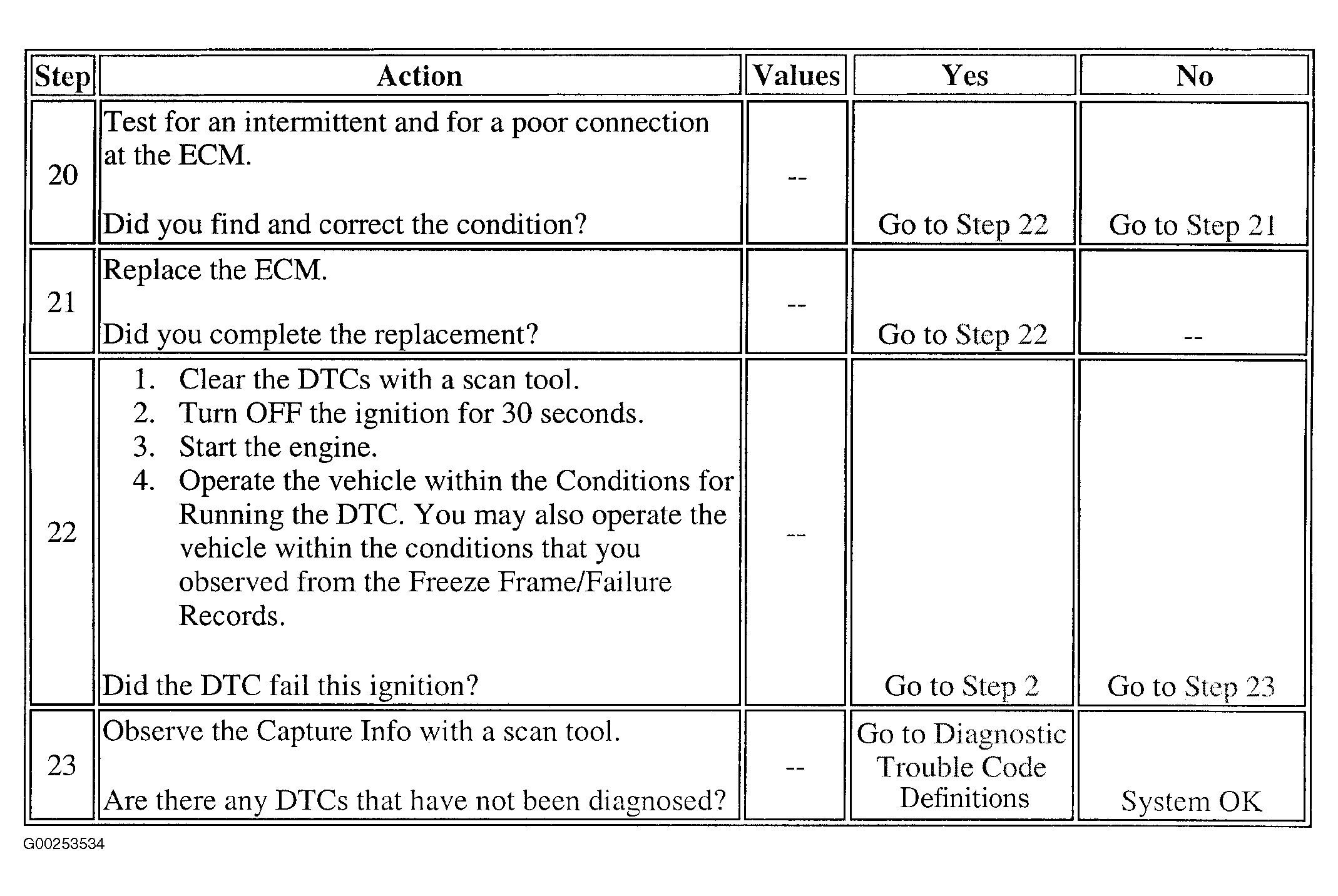

Fig 4: DTC P0121: TP Sensor No. 1 Circuit Performance (Steps 20-23)

Courtesy of GENERAL MOTORS CORP.
